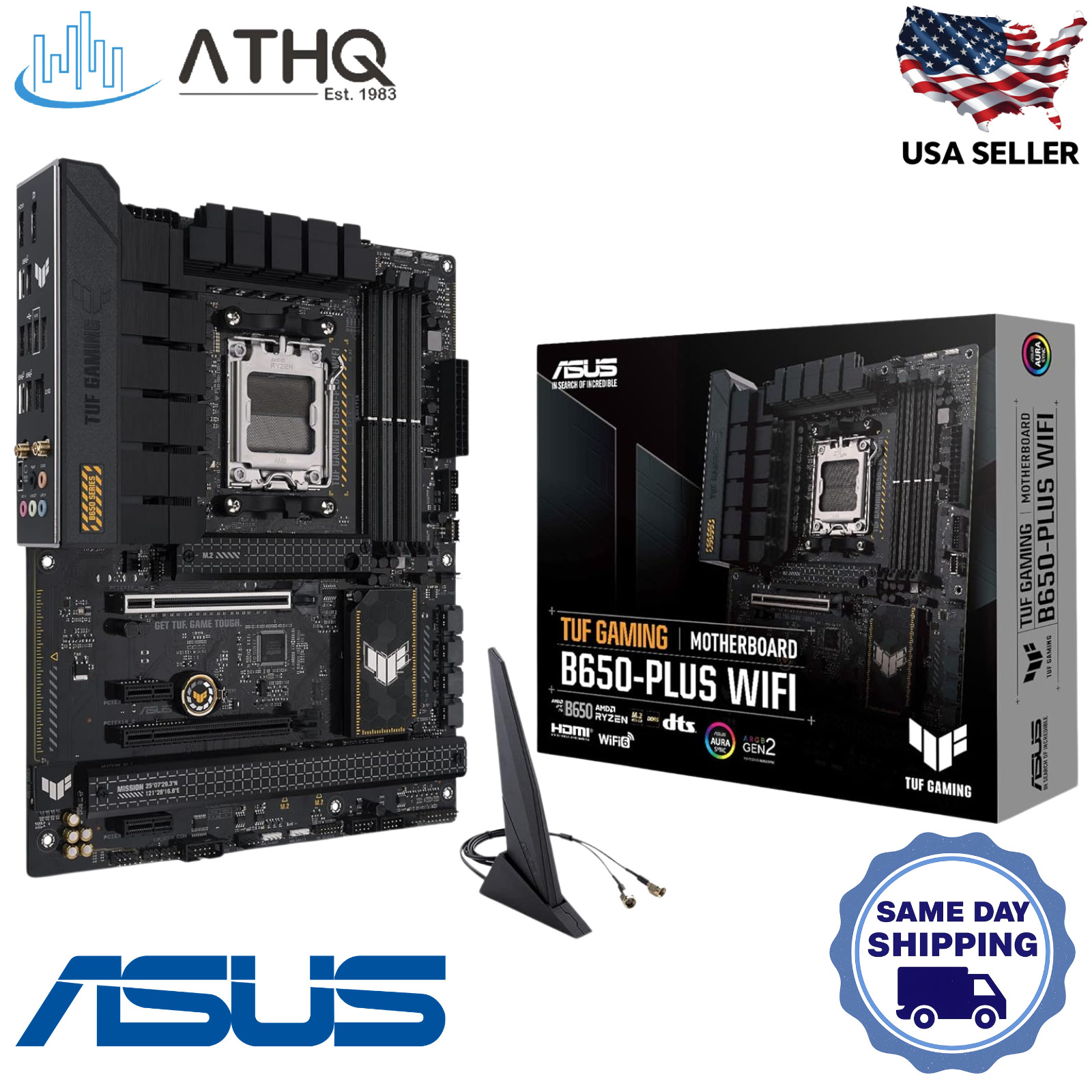

ASUS TUF Gaming B650-PLUS WiFi DDR5 ATX Motherboard (90MB1BZ0-MVAAY0) – AM5, PCIe 5.0, WiFi 6, 2.5Gb LAN – Like New - Tested & Works Great

Build a high-performance AMD gaming or workstation PC with the ASUS TUF Gaming B650-PLUS WiFi (90MB1BZ0-MVAAY0), designed for AM5 Ryzen 7000 and 8000G Series processors. This ATX DDR5 motherboard blends TUF reliability with modern performance features, including PCIe 5.0 M.2, WiFi 6 (802.11ax), 2.5Gb Ethernet, and USB 3.2 Gen 2x2 Type-C. Ideal for gaming, creative production, and professional builds requiring stability, speed, and future-ready design.

Key Features & Benefits

• AM5 Platform Ready: Compatible with AMD Ryzen 7000 and 8000G Series processors
• Next-Gen Storage: PCIe 5.0 x4 M.2 slot for next-gen NVMe SSD performance
• DDR5 Memory Support: 4 DIMM slots with high-frequency, low-latency DDR5
• Stable Power Design: TUF components and optimized VRM ensure consistent operation under load
• Networking: WiFi 6 (802.11ax) and 2.5Gb Ethernet for seamless connectivity
• PCIe 4.0 SafeSlot: Reinforced GPU slot for strength and stability
• Comprehensive I/O: USB 3.2 Gen 2x2 Type-C (20Gbps) + multiple USB 3.2 Gen 2/Gen 1 ports
• Display Outputs: HDMI and DisplayPort for integrated graphics use
• DIY Enhancements: BIOS FlashBack, Q-LED diagnostics, M.2 Q-Latch tool-free installation
• Cooling: Multiple fan headers, hybrid controls, and large VRM heatsinks
• Aura Sync Ready: RGB headers for coordinated lighting across components

Technical Specifications

• Brand: ASUS
• Model: TUF Gaming B650-PLUS WiFi
• Part Number: 90MB1BZ0-MVAAY0
• Chipset: AMD B650
• Socket: AM5
• Form Factor: ATX
• Memory: 4x DDR5 DIMM slots, dual-channel architecture
• Storage: Up to 3x M.2 NVMe (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) + SATA 6Gb/s
• Expansion: PCIe 4.0 x16 SafeSlot for GPU, additional PCIe slots
• Networking: Integrated WiFi 6 + Bluetooth, 2.5Gb Ethernet
• Rear I/O: USB 3.2 Gen 2x2 Type-C (20Gbps), multiple USB 3.2 Gen 2/Gen 1 ports, HDMI, DisplayPort
• Audio: High-definition 7.1-channel audio with shielding and premium capacitors
• DIY Features: BIOS FlashBack, Q-LED, M.2 Q-Latch, pre-installed I/O shield
• Operating System: Windows 11/10 64-bit, Linux compatible
• Condition: Like New - Tested & Works Great
• Package Includes: Motherboard, WiFi antennas, SATA cables, M.2 screws, documentation

Compatibility & Use Cases

• CPU: Compatible with Ryzen 7000 and 8000G Series processors (AM5). Not compatible with AM4 CPUs.
• Memory: DDR5 only (no DDR4 support). Use ASUS QVL kits for optimal stability.
• Graphics: Works with discrete GPUs or integrated Ryzen G-Series graphics.
• Use Cases: Gaming builds, streaming PCs, creative workstations, enterprise desktops.

Frequently Asked Questions (FAQ)

• Does it support PCIe 5.0?
  Yes, the primary M.2 slot supports PCIe 5.0 x4 for NVMe SSDs.
• Is WiFi built-in?
  Yes, integrated WiFi 6 (802.11ax) and Bluetooth are included.
• Can I use DDR4 memory?
  No, this motherboard supports DDR5 only.
• Does it support older AM4 CPUs?
  No, only compatible with AM5 processors.
• Does it include USB-C?
  Yes, USB 3.2 Gen 2x2 Type-C (20Gbps) on the rear I/O panel.
