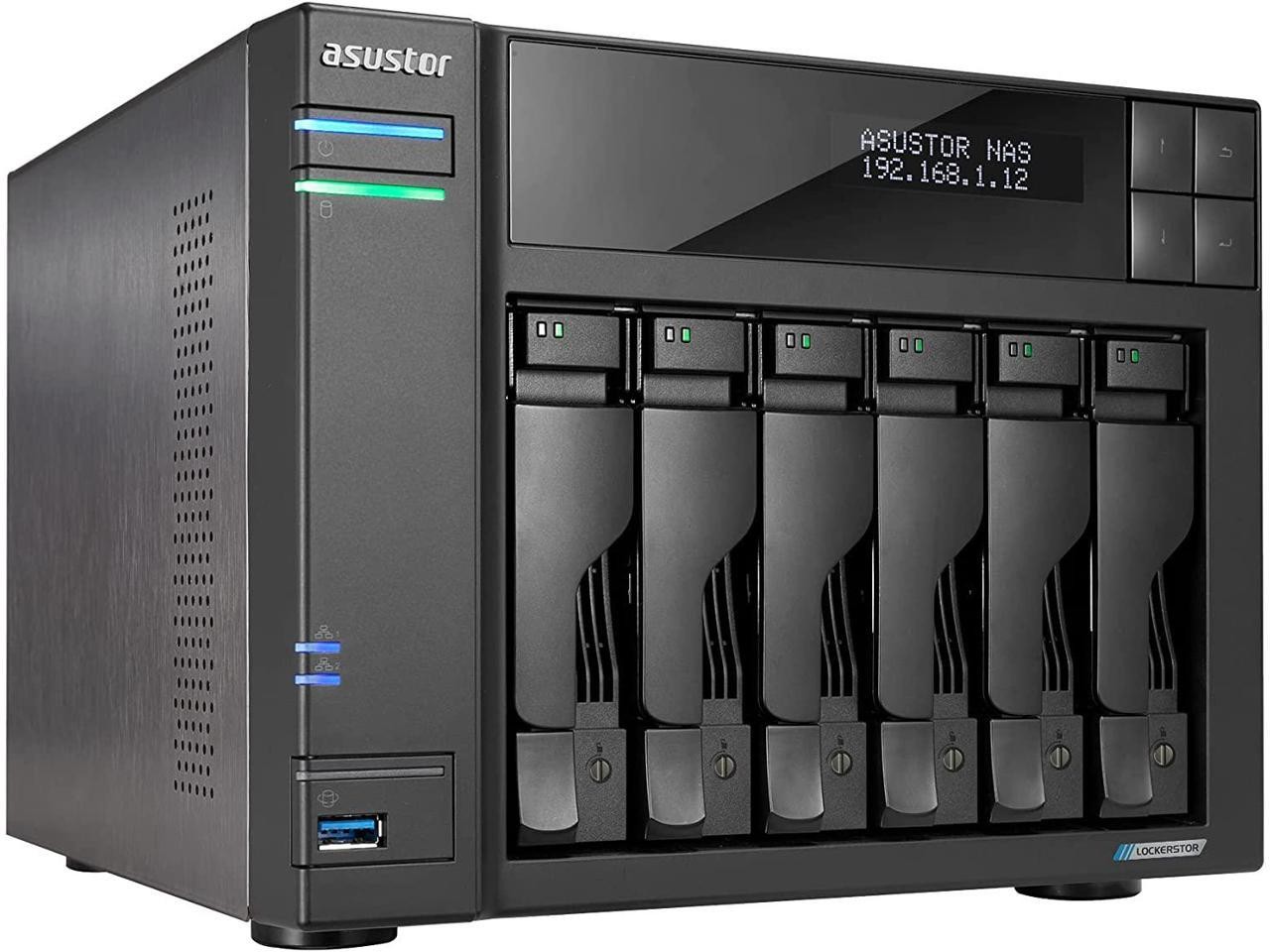

ASUSTOR Lockerstor 6 AS6706T SAN/NAS Storage System ASUSTOR Lockerstor 6 AS6706T SAN/NAS Storage System
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: Lockerstor 6 Gen2 AS6706T SAN/NAS Storage System Quick Installation Guide 1 x AC Power Cord 2 x RJ-45 LAN Cable(Cat 5e) 24 x Flat Head Screw (for 3.5" HDD) 24 x Flat Head Screw (for 2.5" HDD)
Product Description
This item is brand-new, factory sealed.
Powered by the Latest 10 nm Intel Jasper Lake Celeron Quad-Core Processors
The Lockerstor Gen2 comes with Intels newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
* Lockerstor 2 Gen2 (AS6702T) 10GbE not supported.
All New Hardware Same Great Case
ASUSTOR Ultimate 6 bays hybrid storage. Giant space and elastic high speed with M.2 or 10G
Four M.2 Slots - Have Your Cake and Eat it Too
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.
Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling..
Tool-Free M.2 SSD Installation
Uses latches instead of screws for easier installation.
2.5 + 2.5 = Extreme Speeds
The Lockerstor Gen2 has two 2.5GbE ports which more than doubles the performance of Gigabit Ethernet devices. But thats not all, with the recent introduction of support for SMB Multichannel, your NAS will be able to combine the speed of multiple Ethernet ports for speeds way beyond 2.5-Gigabit Ethernet.Hardware Specifications
CPU
CPU Model
Intel Celeron N5105
CPU Architecture
x64 64-bit
CPU Frequency
Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory
Memory
8GB SO-DIMM DDR4
Memory Module Pre-installed
8GB (1x 8GB)
Total Memory Slots
2
Memory Expandable up to
16GB (2x 8GB)
Support mixed capacity
Youtube
Flash Memory
8GB eMMCStorage
Drive Bays
6
M.2 Drive Slots
4
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe
Maximum Drive Bays with Expansion Unit
14
Supports Hot Swappable Drives
YesExternal Ports
Expansion
2x USB 3.2 Gen 2 (10Gbps)
Network
2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
Multimedia Output
1x for optional expansion 10 GbE card
Multimedia Output
1x HDMI 2.0bOthers
System Fan
1x 120mm
LCD Panel
Yes
Infrared Receiver
Yes
Power Supply Unit / Adapter
250W x1
Input Power Voltage
100V to 240V AC
Certification
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCAOperation
Power Consumption
48.5 W (Operation)
27.7 W (Disk Hibernation)
0.81 W (Sleep Mode)
Noise Level
18.1dB (HDD idle)
Operation Temperature
0oC-40oC (32oF-104oF)
Humidity
5% to 95% RHItem Dimension (L inchxW inchxH inch)
13 x 12 x 13
Weight
15 lbs
Warranty Information
3 Years SpecificationControllersRAID SupportedYesController TypeSerial ATA/600RAID Levels0, 1, 5, 6, 10, JBODManagement & ProtocolsProtocols
Power DescriptionMaximum Power Supply Wattage250 WPhysical CharacteristicsForm FactorDesktopWeight (Approximate)9.70 Warranty3 YearI/O ExpansionsTotal Number of Expansion Slots1Number of Total Expansion Bays6Number of 2.5"/3.5" Bays6Expansion Slot TypePCI ExpressMemoryStandard Memory8 GBMemory TechnologyDDR4 SDRAMGeneral InformationBrand NameASUSTORMarketing Information The No-Compromises 2.5GbE NAS | LOCKERSTOR Gen2 Series Enthusiast-grade NAS with two, four or six bays The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel's Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance. The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before. Unleashed Strength Uses powerful software tools to ensure data is safe and secure Unleashed Speed Uses faster hardware for more efficiency Unleashed Creativity Maximum creativity without computing constraints Unleashed Potential Supports Premiere Pro & Final Cut Pro Easily collaborate with anyone, anywhere. Adobe Creative Cloud data backup and version control Stream YouTube and/or Twitch videos with rebroadcasting and live recording functionality CPU Intel's newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades. Keeping Cool With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling. USB 3.2 Gen 2x1 - A First for ASUSTOR The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps. Four M.2 Slots The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs. Tool-Free M.2 SSD Installation Uses latches instead of screws for easier installation. Also Supports 10-Gigabit Ethernet The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility. More from the Manufacturer Product TypeSAN/NAS Storage SystemProduct NameLockerstor 6 Gen2 AS6706T SAN/NAS Storage SystemManufacturerASUSTORManufacturer Part NumberAS6706TProduct ModelAS6706TProduct LineLockerstor 6 Gen2Packaged Quantity1TitleProduct TitleAsustor Lockerstor 6 Gen2 AS6706T - 6 Bay NAS, Quad-Core 2.0 GHz CPU, 4X M.2 NVMe Slots, Dual 2.5GbE, Upgradable to 10GbE, 8GB DDR4 RAM, Content Creation Network Attached Storage [Diskless]Processor & ChipsetProcessor CoreQuad-core (4 Core)Processor ModelN5105Processor TypeCeleronProcessor Speed2 GHzStorageNumber of Hard Drives Supported6Flash Memory Capacity8 GBNumber of Hard Drives Installed0Number of Solid State Drive Installed0Number of Solid State Drive Supported6Interfaces/PortsNetwork (RJ-45)YesHDMIYesNumber of USB 3.2 Gen 2 Ports2Total Number of USB Ports2Number of Network (RJ-45) Ports2Network & CommunicationEthernet Technology2.5 Gigabit Ethernet Shipping
