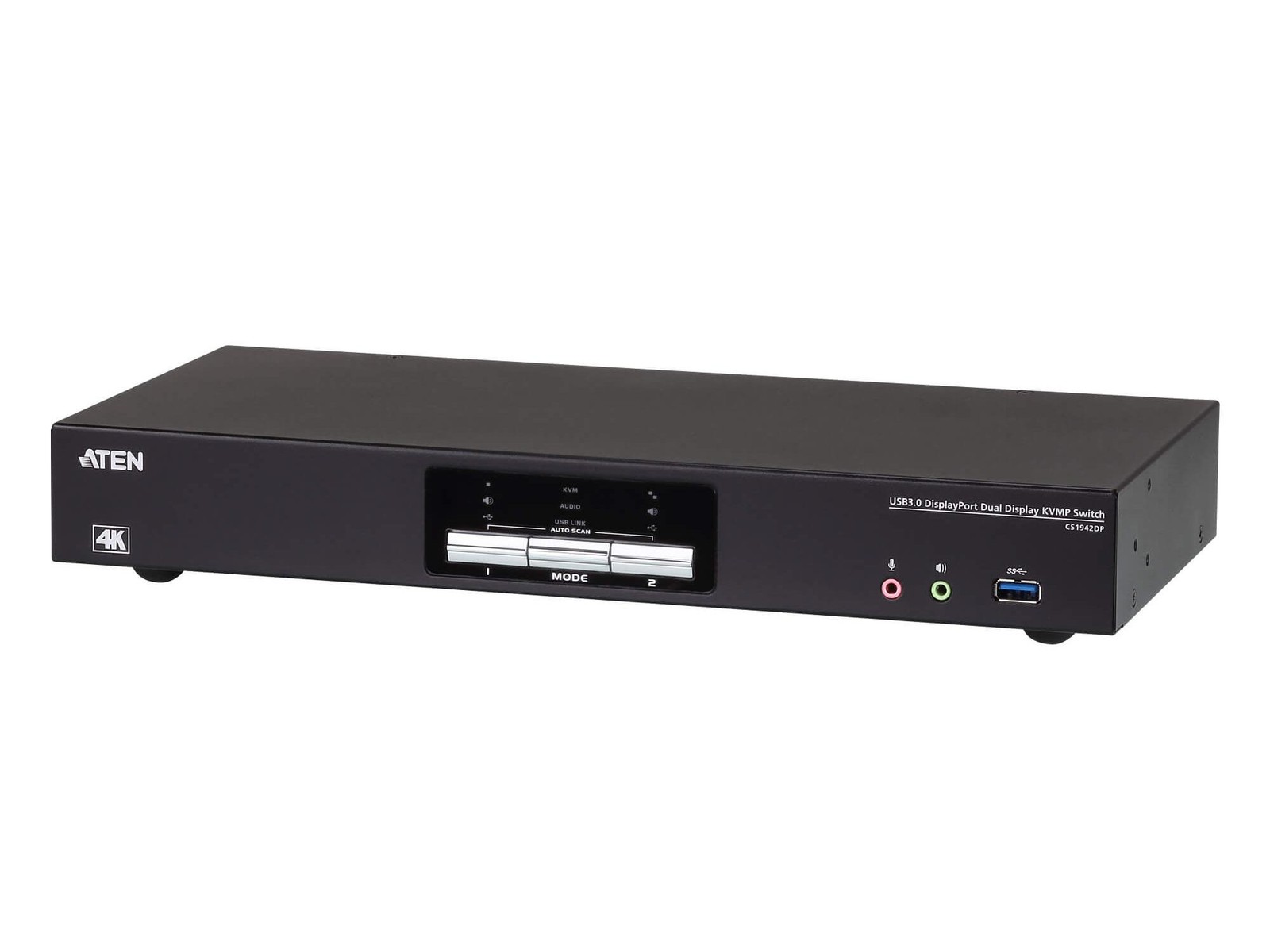

for All Products Aten CS1942DP 2-Port USB 3.1 Gen1 4K 60Hz DisplayPort Dual-Display KVM Switcher / USB 3.0 Hub Manufacturer:Aten SKU:CS1942DP Condition:New Warranty:3 Years
The CS1942DP is a 2-port DisplayPort KVM switch that lets a single USB keyboard and mouse control two dual-display DisplayPort systems. It supports dual-monitor setups and provides simultaneous access to multiple computers using one console - keyboard, mouse and two DisplayPort monitors. The unit is designed for desktop and workstation environments where space and streamlined control are essential.
Key capabilities include dual-display support via DisplayPort, native 4K resolution at 60 Hz, and an integrated USB 3.1 Gen1 hub delivering SuperSpeed up to 5 Gbps. It supports MST for multi-stream transport and DisplayPort Dual-Mode (DP++) for adapter flexibility. Computer selection is available through front-panel buttons, hotkeys, mouse switching and RS-232 commands.
Video performance reaches 4096 x 2160 or 3840 x 2160 at 60 Hz to preserve image fidelity for high-resolution workflows. HD audio is supported over DisplayPort though audio switching is tied to the video path. The built-in USB hub supports high-speed peripherals and large file transfers to accelerate multimedia tasks.
Connectivity includes two DisplayPort console outputs, four DisplayPort computer ports, USB3.1 Gen1 Type B computer connectors, two USB Type A console ports, and 3.5 mm audio jacks for mic and speaker channels. A daisy-chain RJ-45 port allows quad-display configurations by linking two units. Power is provided via a single DC jack and the unit supports firmware upgrades for future enhancements.
The CS1942DP is suitable for design studios, financial trading desks and video post-production where simultaneous access to multiple systems and lossless 4K display are required. Its independent switching of KVM, USB and audio streams simplifies multi-tasking and resource sharing across systems. Multilingual keyboard mapping and HDCP compliance ensure broad compatibility in mixed-buyer environments.
Built in a rugged metal housing the unit is designed for daily professional use and desktop placement. Installation is straightforward using the provided connectors and simple front-panel controls - no complex configuration is required to start switching. Firmware upgradability and RS-232 control support make it adaptable to changing AV workflows and integration Connections2Port SelectionHotkey, Pushbutton, Mouse, RS-232 CommandsVideo4096 x 2160 at 60HzConnectorsConsole Ports2 x USB Type A Female, 2 x DisplayPort Female (Black), 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear), 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)KVM (Computer) Ports2 x USB3.1 Gen1 Type B Female (Blue), 4 x DisplayPort Female (Black), 2 x 3.5mm Audio Jack Female (Green), 2 x 3.5mm Audio Jack Female (Pink)Daisy Chain Ports1 x RJ-45 FemalePower1 x DC JackUSB Hub2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)SwitchesSelected3 x PushbuttonStation Selection1 x Slide SwitchEmulationKeyboard / MouseUSBScan Interval1-99 seconds (default: 5 seconds)Power Temperature0–50°CStorage RH, Non-condensingPhysical PropertiesHousingMetalWeight1.54 kg (3.39 lb)Dimensions (L x W x H)33.50 x 15.66 x 4.40 cm, 13.19 x 6.17 x 1.73 in.NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Includes:
- 1x 2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
- 4x DisplayPort 1.2 Cables
- 2x USB 3.0 Cables
- 4x Audio Cables
- 1x Power Adapter
- 1x User Instructions
