HIGHLIGHTS• ATI All-In-Wonder 9600 128MB NTSC (PN 109-A22500-00)
• NTSC analog TV tuner with a single coaxial TV RF input
• Onboard S-Video OUT directly on the bracket
• ATI AIW multi-pin A/V I/O connector supporting composite/S-video/audio IN/OUT when breakout cable is attached
• RV350 GPU – stable, cool-running, and ideal for Windows XP multimedia builds
• 128MB DDR with a 128-bit interface on AGP 8x
• Theater 200 ASIC for analog video decoding and capture
• Provides multi-video-output capability when used with an ATI breakout cable (not included) that'll expand the Input/Outputs to include composite video, second S-video and stereo audio

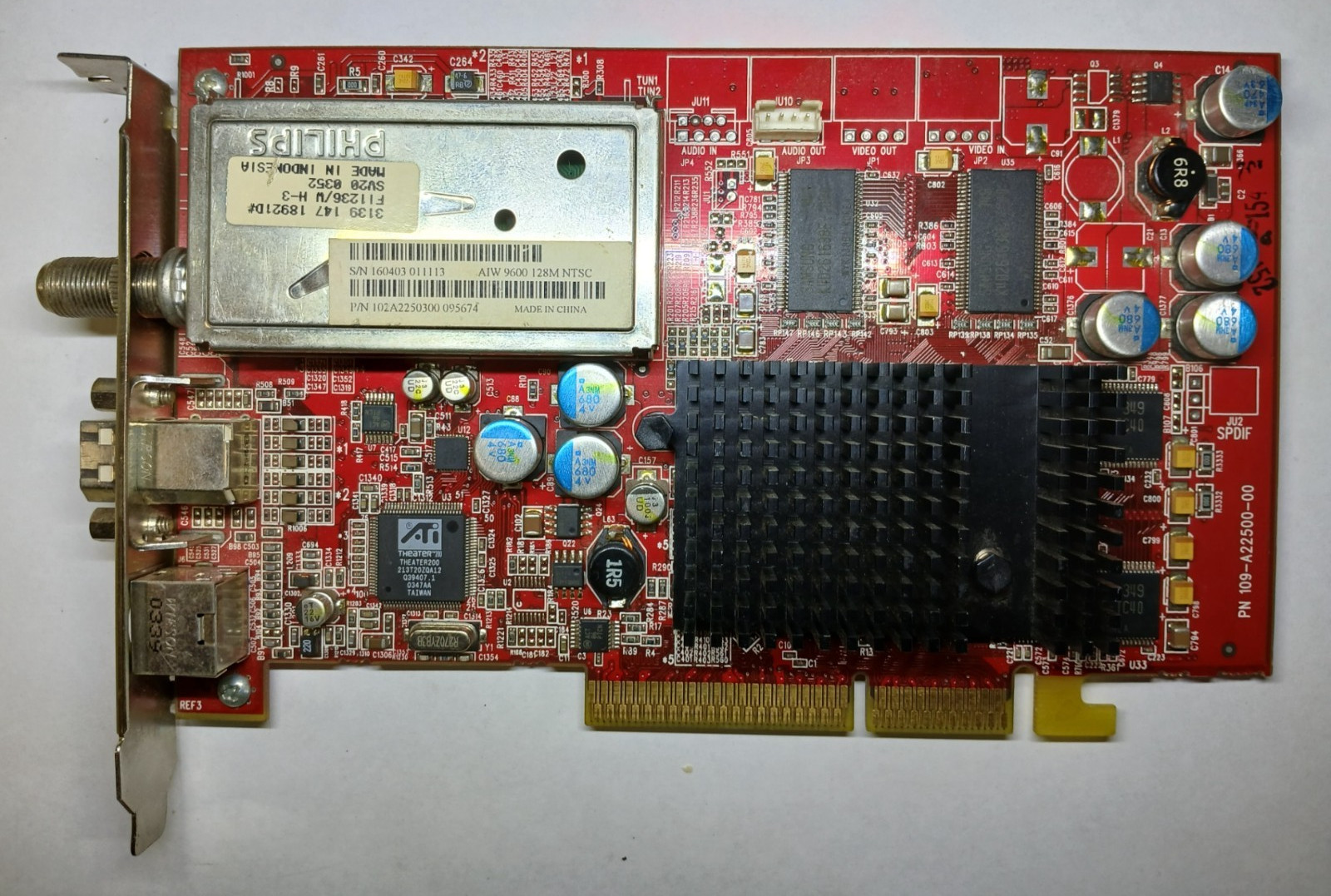

• Includes a 30-day guarantee that it works as describedDESCRIPTIONThis is the ATI All-In-Wonder 9600 128MB NTSC video card, part number 109-A22500-00. It features the RV350 GPU paired with ATI’s Theater 200 multimedia processor, giving it full support for NTSC analog TV tuning and analog video capture. This revision includes a single coaxial TV RF input on the bracket, an onboard S-Video OUT port, and ATI’s multi-pin A/V I/O connector for expanded analog input and output when a breakout cable, not included, is attached. The card supports composite video IN/OUT, S-video IN/OUT, and stereo audio IN/OUT through the breakout cable, enabling full analog capture and playback capability. With 128MB of DDR memory on a 128-bit interface and AGP 8x compatibility, it is well-suited for Windows XP multimedia systems, retro capture setups, and OEM restoration projects. This listing includes a 30-day guarantee that the card will work as described.
