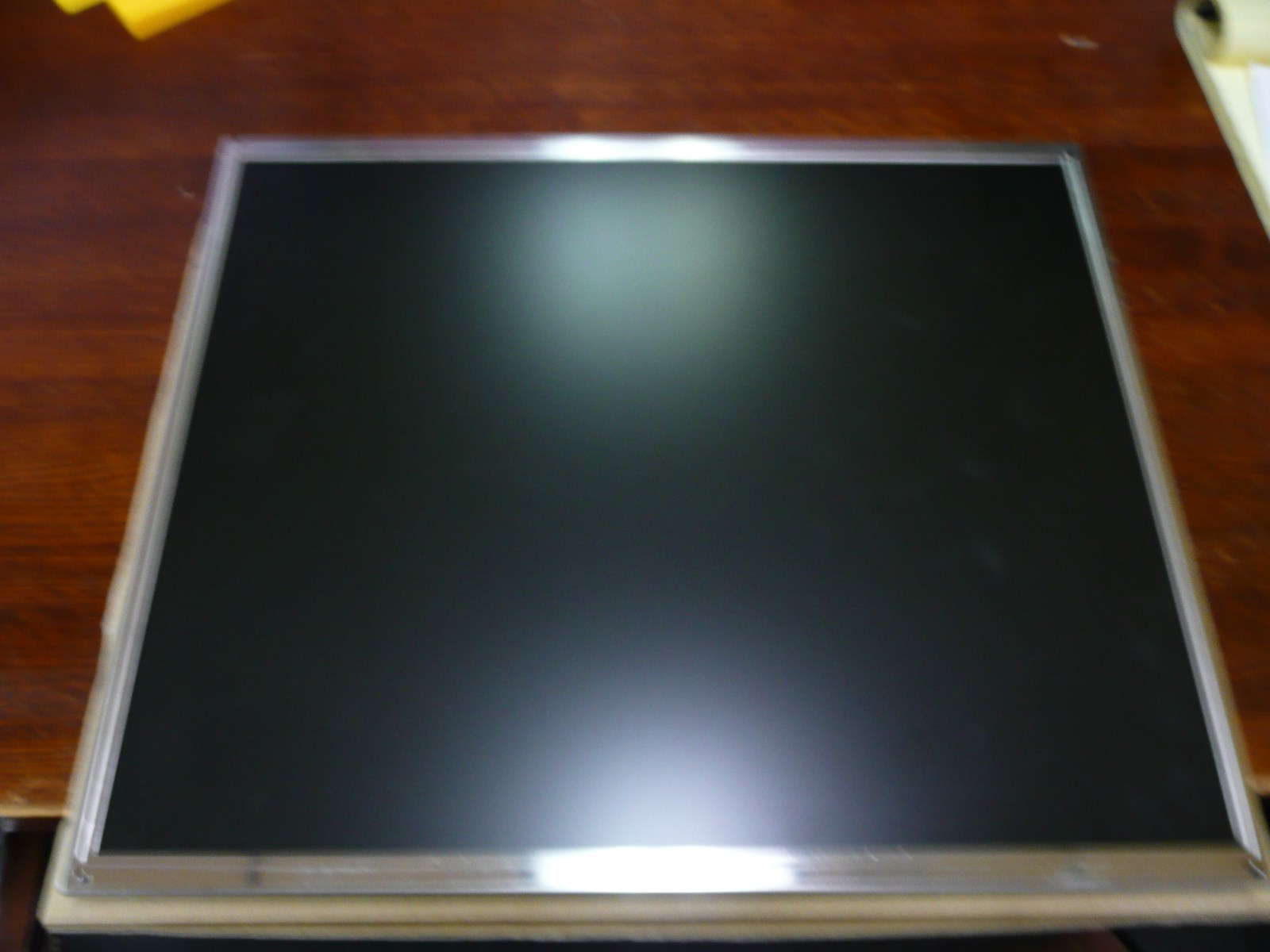

AU Optronics 0 INQUIRE M170ES05 V1 General Information of AUO M170ES05 V1Part NumberM170ES05 V1Alternate Part NumberM170ES05 V.1ManufacturerAUOPanel Size17.0 inchesPanel Resolution1280 x 1024 (SXGA)Panel Typea-Si TFT-LCD, PanelOperating Temperature0 ~ 50 °CStorage Temperature-20 ~ 60 °CRoHSNone RoHSSpecific FeatureHigh Color GamutMichanical Information of AUO M170ES05 V1Panel Dimension383.5×296.5 mm (W×H)Weight in gram2.00Kgs (Typ.)Active Area337.92×270.336 mm (W×H)Aspect Ratio5:4 (W:H)Pixel Pitch0.264×0.264 mm (W×H)Touch ScreenWithoutBezel Openning341.9×274.4 mm (W×H)Holes and BracketsSide mounting holes (8-M3)Pixel ConfigurationRGB Vertical StripePanel Dimension_Depth18.5±0.3 mmOptical Information of AUO M170ES05 V1Luminance in String260 cd/m² (Typ.)Luminance TypeTN, Normally White, TransmissiveContrast Ratio450 : 1 (Typ.) (Transmissive)Colors262K (6-bit)Chromaticity at WhiteX:0.310; Y:0.330Color Gamut72% CIE1931 Standard NTSCViewing Angle70/70/70/70 (Typ.)(CR=10) (L/R/U/D)Response Time4/12 (Typ.)(Tr/Td) (ms)White Variation1.25/1.33 (Typ./Max.)(9 points) Luminance Variation = Maximum / MinimumOptical Information of AUO M170ES05 V1Display Reverse ScanNoTotal Power Consumption25W (Max.)Vertical Frequency60HzBacklight(Lamp) Information of AUO M170ES05 V1Backlight TypeCCFLBacklight Inverter DriverNoBacklight ShapeStraightBacklight Life40K(Typ.) (Hours)Lamp Current3.0/7.0/7.5mA (Min./Typ./Max.)Lamp Frequency40/50/80KHz (Min./Typ./Max.)Lamp Kickoff Voltage1200/1700V (Min.)(Ta=+25/0?)Lamp PositionEdge light type (Top and Bottom)Lamp Power Consumption19.6/25.8 (Typ./Max.)Lamp Qty4 pcs; 8S6P: 8 Serial, 6 ParallelLamp Voltage700/860V (Typ./Max.)Signal Information of AUO M170ES05 V1Interface TypeConnectorSupply Voltage5.0V (Typ.)IO Pin Count4 pinsIO Pin Pitch4.0 mmInput Current for Panel0.80/1.00A (Typ./Max.)Interface BrandJSTInterface Connection Qty.2 pcsInterface ModelBHR-04VS-1Panel Power Consumption4/5W (Typ./Max.)Pin ConfigurationBLL-4PINS-HHNL H:Higt VoltageN:No connectionL:Low VoltageA:AnodeC:CathodeSignal Category TypeRSDSSignal ClassRSDS (2 Channel)
