WAVLINK Outdoor Access Point, AC600 Dual Band Long-Range WiFi Router/Extender, 2*7dBi Omni Antennas,
IP67 Weatherproof, 2.4G 150Mbps+5G 433Mbps, Passive&Active PoE, Supports Fit/Fat AP, For Farm/Yard

Power Your Outdoor Network with Unmatched Reliability

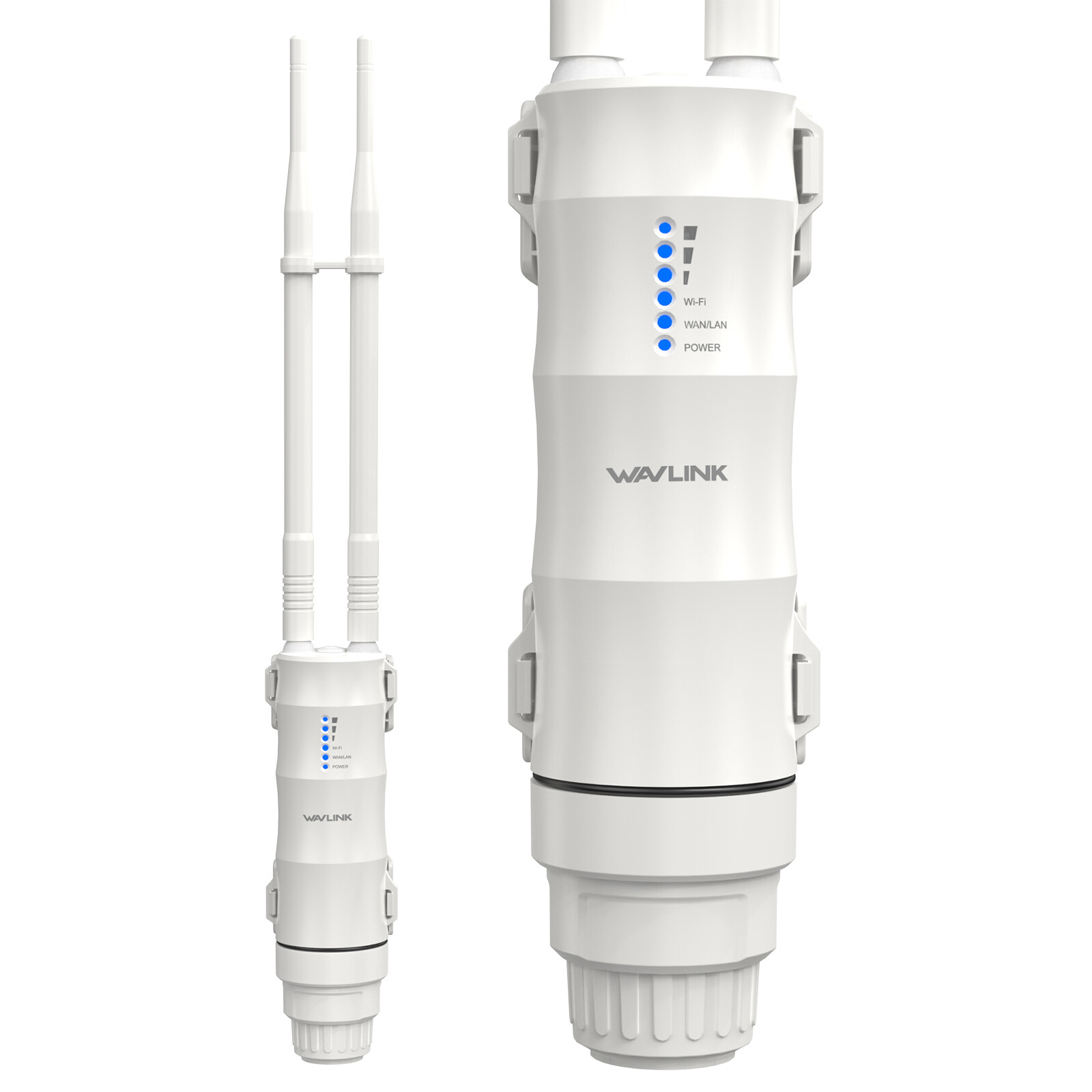

The WAVLINK AC600 Outdoor WiFi Access Point, a long-range connectivity engine for outdoor-industrial hybrid spaces,
supports Fat/Fit AP mode, delivering high-speed wireless solutions for challenging environments. Built for ISPs,
small businesses, and remote users, it bridges gaps in coverage while surviving extreme weather.

How to Install Antennas and Ethernet Cable?
1) Pass the RJ45 cable through the spiral cover.
2) Pass the RJ45 cable through the rubber seal.
3) Pass the RJ45 cable through the holder.
4) Connect the RJ45 cable to the RJ45 port.
5) Spin 2.4G/5G antenna into the 2.4G/5G external RP-SMA connector.
6) Screw up the holder.
7) Plug the rubber seal into the holder.
8) Screw up the spiral cover.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable
is CAT5E or above certified and shorter than 100m/328ft.

Hardware Connection
1) Fasten the main body holder.
2) Plug the device into the holder.
3) Connect one end of an Ethernet cable to the "PoE" port of the PoE converter.
4) Connect one end of another Ethernet cable to the "LAN DATA IN" port of the PoE converter, and connect the other end to a "LAN" port of your router.
5) Plug the Power Adapter into the power outlet.
6) Push the "ON/OFF" button on the PoE converter to power on.

Specification
1. Model: WL-WN570HA1-B/Aerial HD2 Pro
2. Ports: 1 x WAN/LAN 100Mbps
3. Button: 1 x Reset(8s)
4. Status LED: 1 x Power, 1 x WAN/LAN, 1 x WiFi , 3 x Signal
5. Power Supply: DC 54V Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
6. Wireless Standard: IEEE 802.11 a/b/g/n/ac
7. Frequency Band/Speed: 2.4GHz(150Mbps), 5GHz(433Mbps)
8. Antenna: 2 x 7dBi Omni Directional Antennas
9. Wireless Security: WPA-PSK/WPA2-PSK encryption
10. Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
11. Operating Temperature: -20°C~50°C(-4°F ~122°F)
12. Distance: Outdoor 100-150m(Change with the Actual Environment)

Warm Tips
1. The PoE converter is not waterproof, please install it indoors.
2. Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3. Please install the product 2-3 meters above the ground for better performance.
4. Select the wireless network with a signal strength greater than 70% to get the most reliable connection.

In the Box
- 1 x AC600 Dual Band Outdoor Access Point
- 2 x Omni-directional Antennas
- 1 x RJ-45 Network Cable
- 1 x Power Adapter
- 1 x PoE Converter
- 1 x Main Body Holder
- 2 x Cable Ties
- 1 x Screw Fitting Kit
- 1 x Quick Start

WAVLINK AC1200 Wi-Fi 5 Outdoor Access Point, Long-Range Weatherproof Dual-Band Wi-Fi Extender with 4 x 7dBi Omni Antennas,
PoE, Gigabit Port, Supports AP/Repeater/Mesh Modes for Courtyard, Fish Finder

Experience High-Speed Wi-Fi 5 Anywhere with WAVLINK Professional Outdoor Access Point
Experience the power of AC1200 Dual Band outdoor extender - Amplify and extend existing 2.4GHz and
5GHz wireless signals for wider coverage, reaching areas beyond router reach. Simplified by PoE,
this high-power outdoor Wi-Fi solution offers flexible installation anywhere, anytime.
Choose from various operating modes with professional outdoor design to withstand environmental changes,
catering to diverse outdoor connectivity needs. Ideal for resolving warehouse dead spots and ensuring stable
network connection for your fishing gear on-the-go.

How to Install the Ethernet Cable?
① Pass the RJ45 cable through the waterproof connector cover.
② Screw the waterproof seal into the waterproof connector bracket.
③ Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④ Put the waterproof sealing ring on the waterproof connector bracket.
⑤ Connect the RJ45 cable to WAN/LAN port.
⑥ Connect the 2.4G and 5G antennas to the corresponding connectors.

Warm Tips:
1.When setting up a mesh network, please note that the WL-WN588HA2 supports a maximum of 8 devices for networking
(including the main router). It is only compatible with devices from the same brand "Wavlink" that support Everything Mesh;
other devices are not supported.
2.The access point cannot act as a repeater for wireless signals with enforced captive portal.
3.For optimal performance, choose open and unobstructed locations, avoiding obstacles like walls, doors,
aquariums, trees, and other barriers as much as possible.
4.All Wi-Fi extenders are designed to expand or enhance Wi-Fi coverage range, rather than directly increase speed.
5.PoE converter is not waterproof and should be used indoors or in a sheltered WL-WN588HA2 (AERIAL HD8S)
Port: 1 x WAN/LAN Gigabit Port
Button: 1 x Pair/Reset Button
Product Size: 17.0x5.6x17.0cm/6.7x2.2x6.7in
PoE Converter Size: 3.7x2.2x4.3cm/1.5x0.9x1.7in
Ethernet Cable: 100cm/39.4in (CAT 5E)
Power Adapter Cable Length: 125cm/49.2in
Standard: IEEE 802.11ac/a/n/g/b
Frequency Band/Speed: 2.4GHz@300Mbps, 5GHz@867Mbps
Wireless Security: OPEN, WPA2-PSK, WPA/WPA2 MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise
Antennas: 4 x 7dBi Omni Antennas (RP-SMA)
Status LED: Blue
PoE Converter Status LED: Green
PoE Converter Support: DC 54V/0.3A Power over Ethernet (Passive), DC 48V Power over Ethernet (Active)

In the Box：
1 x ACI200 Wi-Fi 5 Outdoor Access Point
4 x Plastic Cable Ties
1 x Main Body Holder
4 x 7dBi Antennas
1 x Wrench
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
1 x PWM M3x5x6MM Screw
6 x KA M3x20x5.2MM Screws
6 x Φ6.5x25MM Screw Plugs
1 x Quick Start Guide

AX1800 WiFi 6/2.4G(574Mbps)+5G(1201Mbps)

Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green

Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.

In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
