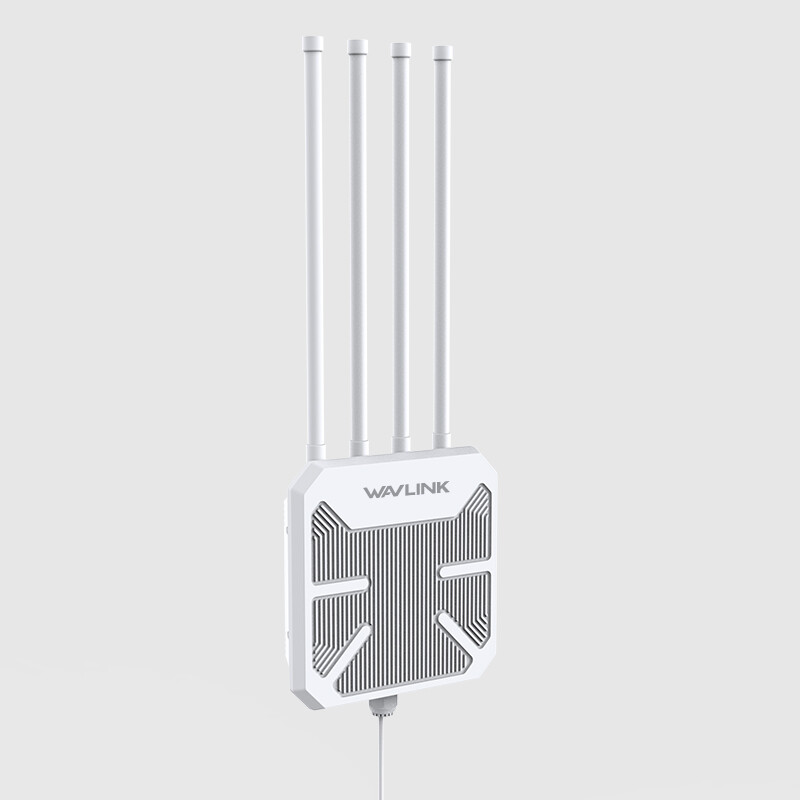

WAVLINK WiFi6 Outdoor Mesh Router/AP/Repeater, Dual Band 2.4G+5G AX1800 Long Range Outdoor
WiFi Mesh Extender with PoE/4x8dBi High-gain Antennas/IP67 Weatherproof Enclosure/Signal Booster AmplifierBuilt for the Outdoors – Rain, Snow, Lightning, or other bad weather - Stop worrying about your
WiFi dying in bad weather. This router is fully sealed to IP67 waterproof/dustproof standards –
rain, snow, wind, thunder and other bad weatherwon’t get inside. Whether it’s mounted on a farm pole,
RV park, construction trailer, or coastal property, it keeps running through every season.
Built-in 15kV ESD protection and 6kV lightning surge protection safeguard the internal components from
static shocks and nearby lightning strikes – giving you peace of mind during thunderstorm season.
The fiberglass-reinforced antennas aren’t just for show – they resist corrosion from stand firm against strong winds, while delivering the high-gain signal you need for long-range outdoor coverage.
Install it and forget it – this router is made to last.
True WiFi 6 Speed – enjoy HD videos, smooth gaming, etc. even outdoors - Powered by the latest IEEE
802.11ax (WiFi 6) technology, this router delivers dual-band speeds up to 1201Mbps on 5GHz and 574Mbps on
2.4GHz – that‘s enough bandwidth for multiple devices to stream video, join calls, and play online
games simultaneously without buffering or lag.WiFi 6 isn’t just faster – it‘s smarter. Advanced features like OFDMA
and MU-MIMO split each channel into sub-channels，so your router can talk to multiple devices at the same time
instead of waiting in line. Perfect for outdoor gatherings where everyone‘s phone, tablet, and speaker are fighting for bandwidth.
PoE Powered & Tool-Free Installation – No Electrician Required -Supports 802.3af/802.3at/48V PoE (Power over Ethernet) –
power and data transmit through a single Ethernet cable, eliminating the need for a nearby power outlet.
Comes with a sturdy mounting bracket for quick pole or wall mounting. Perfect for backyards, garages, farms,
warehouses, or any outdoor area where running power is difficult or expensive. Get your network up and running in minutes –
just connect one cable, mount, and go.
Seamless WiFi Roaming – One Network, No Dead Zones, Zero Dropouts -Powered by 4 high-gain 8dBi omnidirectional
antennas and dual built-in amplifiers, this router pushes strong WiFi signal across your entire property –
backyard, garden, garage, workshop, or farm outbuildings. Walk from house to shed without losing your connection.
Mesh-ready for bigger properties. One-click Mesh pairing lets you add more units to expand coverage as your needs grow
– no complex setup, no IT skills required. All units work as one unified network with a single name and password.
Stay connected as you move. Advanced seamless roaming automatically switches your device to the strongest signal
as you travel across your property – video calls, streaming, and gaming keep running without interruption.
4 Modes in 1 Device – One Router Fits Every Outdoor Need -No more guessing which device to buy.
This outdoor router supportsMesh, AP, Router, and Repeater modes–giving you the flexibility to adapt to any situation:
Mesh Mode– Seamless whole-yard WiFi with one network name. Walk from your house to the backyard, garage,
or workshop without dropping the connection or switching networks.Router/AP Mode– Turn a wired Ethernet
connection into a powerful WiFi signal. Perfect for extending internet to outdoor areas where WiFi doesn’t reach.
Repeater Mode– Boost and rebroadcast an existing wireless signal to cover dead zones in large properties,
farms, or warehouses.Buy once, use everywhere– whether you’re setting up WiFi for a backyard patio, a construction site,
an RV park, or a remote workshop, this single device does it all. Switch modes in minutes via
the web interface – no extra hardware needed.
How to install antennas and Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
⑥Screw the connecting cable into the 2.4G and 5G antenna connector and screw up the connector.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable
is CAT5E or above certified and shorter than 100m/328ft.
How to install the product on a column?
①Stick two silicone pads on the bracket and post respectively.
②Thread the cable ties through the fixing point of the bracket.
③Fix the product to the post with cable ties.
High Power Amplifiers
Dual integrated signal boosters efficiently strengthen the wireless performance. The PA(power amplifier)
increases the power output while the LNA(low-noise amplifier) minimizes additional noises and increases the wireless signal.
Advanced WiFi Safeguard
WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your
private information and keeping your WiFi connection secure at all times.
Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.
In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
