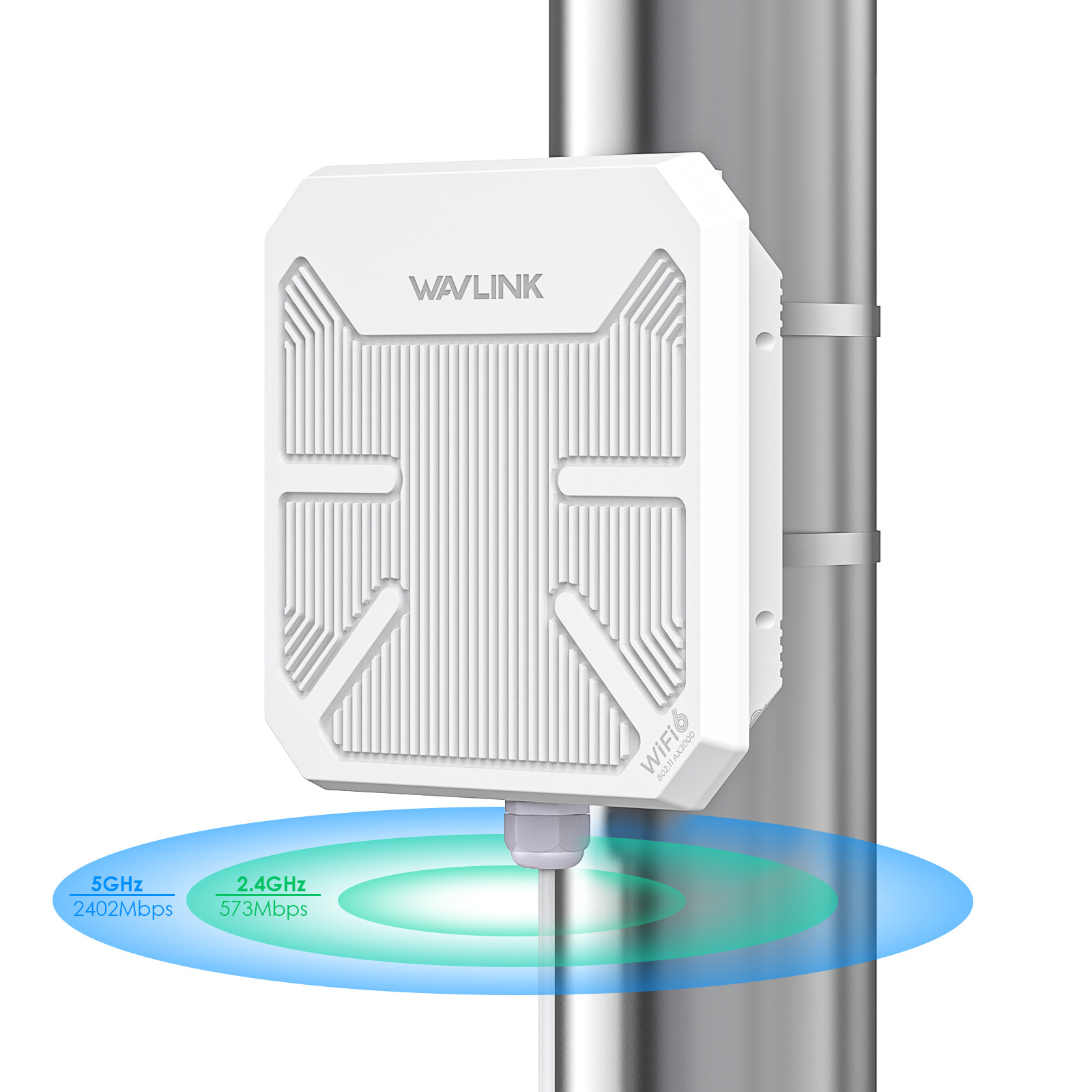

WAVLINK Professional Outdoor Access Point, Enjoy Super-Speed WiFi6 Anytime & Anywhere - WN573HP3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD
protection ensure continuous operation and stable connection under harsh outdoor conditions; 4 x built-in 12dBi high gain antennas provide
better wireless performance and super fast transmission rates; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet
speeds of 3000Mbps (2.4GHz 573Mbps+5GHz 2402Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 256 devices
to be connected simultaneously in a wider style="list-style-type: none;">- 【🌐Designed for Harsh Outdoor Conditions】 IP67-rated waterproof housing that ensures continued operation on harsh outdoor environments
or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatheproof design ensure stable connection in harsh
outdoor conditions. Note: The PoE part of the router is not waterproof. - 【🌐Enjoy True WiFi 6 Speed】The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximumspeed
up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed.With WAVLINK
WN573HP3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
- 【🌐Optional PoE Power Supply】Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a singleEthernet
cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above
cable and the length should not exceed 100m/328ft. Connect up to 256 devices simultaneously, making it ideal for large spaces such as factories, communities,
streets, and more. - 【🌐Seamless WiFi Roaming】The built-in 4x12dBi directional antennas and high-power amplifiers provide extreme WiFi coverage and
penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and
eliminating every network dead zone. - 【🌐Multiple Modes, Flexible Use】Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and
apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh
mode you can enjoy seamless WiFi with a single network name and password. - 【🌐3Km Wireless Data Transmission】Specially designed for outdoor uses, ideal for long distance wireless data transmission over 3km/1.9miles
(only for paired PtP or PtMP transmission), tested in the barrier-free field. Built-in 12dBi directional antennas can significantly improve the
transmission and reception performance of wireless style="padding-left: 240px;">
- How to install the Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified
and shorter than style="text-align: left; padding-left: 240px;">- How to install the product on a column?
①Stick two silicone pads on the bracket and post respectively.
②Thread the cable ties through the fixing point of the bracket.
③Fix the product to the post with cable ties. - Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
⑤The real performance of the product may vary in accordance with different environmental style="text-align: left; padding-left: 240px;">- Specification
- Model: WL-WN573HP3
- Product Size: 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 1050g/37oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 12dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green - Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- Seamless and stable WiFi Mesh makes you enioy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Supports Fat AP Mode.
- Supports Fit AP Mode with WAVLINK AC style="text-align: left; padding-left: 480px;">In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 1 × 54V Power Adapter
- 4 × Cable Ties
- 1 × PoE Converter
- 2 × Silicone Pads
- 1 × Ethernet Cable
- 1 × Main Body Holder
- 1 × PWM M4×8×8MM Screw
- 1 × Wrench
- 6 × KA M4×25×6MM Screws
- 1 × Quick Start Guide
- 6 × Φ8x25MM Screw Plugs
|
|
