WAVLINK Outdoor AP Series – Find Your Perfect Model

Quick Product Comparison — Core Specs

ModelWiFi StandardMax SpeedFrequencyAntennasEthernet PortWN573HP3WiFi 6AX30002.4G / 5G4×12dBi Directional1×GigabitWN573HX3WiFi 6AX30002.4G / 5G4×8dBi Omni (Fiberglass)1×GigabitWN588HX3WiFi 6AX30002.4G / 5G6×7dBi Omni1×GigabitWN588HA2WiFi 5AC12002.4G / 5G4×7dBi Omni1×GigabitWN570HA2WiFi 5AC12002.4G / 5G2×7dBi Omni1×100MbpsWN572HP3WiFi 5AC12002.4G / 5G4×7dBi OmniDual GigabitWN573HX1WiFi 6AX18002.4G / 5G4×8dBi Omni (Fiberglass)1×Gigabit

Quick Product Comparison — Features & Coverage

ModelIP RatingPoE SupportMax RangeMesh SupportKey FeatureWN573HP3IP67Active + Passive3km (PtP/PtMP)✔ Everything MeshLong-distance directionalWN573HX3IP67Active + PassiveWide coverage✔ Everything MeshFiberglass antennasWN588HX3IP67Active + PassiveUp to 300m✔ Yes6 antennas, 256 devicesWN588HA2IP67Active + PassiveUp to 200m✔ Everything MeshMesh, PA+LNA amplifierWN570HA2IP67Active + PassiveUp to 150m—Compact 2-antenna designWN572HP3IP65PassiveUp to 200m✔ Easy MeshDual Gigabit, MT7621AWN573HX1IP67Active + PassiveWide coverage✔ YesBudget WiFi 6

Purchase Recommendations & Best Use Cases

📡 For Long-Distance Point-to-Point Transmission: Choose WN573HP3 (AX3000 4×12) — built‑in 12dBi directional antennas provide stable transmission up to 3km. Perfect for connecting remote buildings, farm‑to‑house networking, and surveillance backhaul.

🏆 For Maximum Coverage & High-Density Environments: Choose WN588HX3 (AX3000 6×7) — 6 high-gain omni antennas deliver 360° coverage up to 300m, supporting 256 devices. Ideal for stadiums, festivals, factories, and large public spaces.

🌳 For Harsh Environments & Industrial Use: Choose WN573HX3 (AX3000 4×8) — IP67 waterproof, fiberglass antennas, and Everything Mesh support. Built for community streets, factories, and extreme weather.

🏠 For Residential & Small Business Outdoor Coverage: Choose WN572HP3 (AC1200 4×7) — Easy Mesh, dual Gigabit ports, and 4 detachable antennas. Perfect for home backyards, café patios, and small office outdoor spaces.

💰 For Budget‑Friendly Outdoor Wi‑Fi: Choose WN570HA2 (AC1200 2×7) — IP67 waterproof, active/passive PoE, and solid coverage at an affordable price. Great for basic outdoor extension.

💡 All WAVLINK Outdoor APs Feature: Weatherproof enclosures (IP65/IP67), flexible PoE options, multiple operation modes (AP/Router/Repeater/Mesh), and robust ESD/lightning protection. Backed by WAVLINK's worry‑free warranty and life‑long technical support.

WN573HP3 – AX3000 WiFi 6 · 4 x 12dBi Directional Antennas

WAVLINK WiFi6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE/4x12dBi High-gain Antennas/IP67 Weatherproof Enclosure/Signal Booster Amplifier

Features:

• 【🌐Enjoy True WiFi 6 Speed】 The next generation of WiFi, complies with IEEE 802.11 ax/ac/a/b/g/n standards. Supports dual‑band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning‑fast Internet speed. With WAVLINK WN573HP3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• 【🌐Optional PoE Power Supply】 Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
• 【🌐Seamless WiFi Roaming】 The built‑in 4x12dBi directional antennas and high‑power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one‑click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• 【🌐Multiple Modes, Flexible Use】 Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
• 【🌐3Km Wireless Data Transmission】 Specially designed for outdoor uses, ideal for long distance wireless data transmission over 3km/1.9miles (only for paired PtP or PtMP transmission), tested in the barrier‑free field. Built‑in 12dBi directional antennas can significantly improve the transmission and reception performance of wireless signal.

Specification

• Model: WL‑WN573HP3
• Product Size: 24x24x7cm / 9.4x9.4x2.8in
• PoE Converter Size: 4.4x3.7x2.2cm / 1.7x1.5x0.9in
• Ethernet Cable: 100cm / 39.4in; Power Adapter Cable: 130cm / 51.2in
• Product Weight: 1050g / 37oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band/Speed: 2.4GHz(573Mbps) + 5GHz(2402Mbps)
• Wireless Security: WPA2‑PSK, WPA2/WPA3‑MIX
• Antennas: 4 x 12dBi Directional Antennas
• PAIR/RESET LED: Blue
• PoE Converter Status LED: Green

Warm Tips

• ① The PoE converter is not waterproof, please install it indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• ③ Please install the product 2‑3 meters above the ground for better performance.
• ④ Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
• ⑤ The real performance of the product may vary in accordance with different environmental conditions.

In the Box

• 1 × AX3000 WiFi 6 Outdoor Access Point
• 1 × 54V Power Adapter
• 4 × Cable Ties
• 1 × PoE Converter
• 2 × Silicone Pads
• 1 × Ethernet Cable
• 1 × Main Body Holder
• 1 × PWM M4×8×8MM Screw
• 1 × Wrench
• 6 × KA M4×25×6MM Screws
• 1 × Quick Start Guide
• 6 × Φ8x25MM Screw Plugs

WN573HX3 – AX3000 WiFi 6 · 4 x 8dBi Omnidirectional Antennas

WAVLINK WiFi6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE/4x8dBi High-gain Antennas/IP67 Weatherproof Enclosure/Signal Booster Amplifier

Features:

• 【⭐Designed for Harsh Outdoor Conditions】 Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high‑gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.
• 【⭐Enjoy True WiFi 6 Speed】 The next generation of WiFi, complies with IEEE 802.11 ax/ac/a/b/g/n standards. Supports dual‑band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning‑fast Internet speed. With WAVLINK WN573HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• 【⭐Optional PoE Power Supply】 Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
• 【⭐Seamless WiFi Roaming】 The 4x8dBi omnidirectional antennas and two built‑in high‑power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one‑click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• 【⭐Multiple Modes, Flexible Use】 Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.

Fiberglass Tube High Gain Antennas

4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.

IP67 Waterproof Enclosure

Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.

PoE Power Supply

Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

573Mbps on 2.4G & 2402Mbps on 5G

Dual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

High Power Amplifiers

Dual integrated signal boosters efficiently strengthen the wireless performance. The PA (power amplifier) increases the power output while the LNA (low-noise amplifier) minimizes additional noises and increases the wireless signal.

Advanced WiFi Safeguard

WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.

Specification

• Model: WL‑WN573HX3
• Product Size (without antennas): 24x24x7cm / 9.4x9.4x2.8in
• PoE Converter Size: 4.4x3.7x2.2cm / 1.7x1.5x0.9in
• Antennas Length: 40cm / 15.7in; Ethernet Cable: 100cm / 39.4in; Power Adapter Cable: 130cm / 51.2in
• Product Weight (without antennas): 1109g / 39.1oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band/Speed: 2.4GHz(573Mbps) + 5GHz(2402Mbps)
• Wireless Security: WPA2‑PSK, WPA2/WPA3‑MIX
• Antennas: 4 x 8dBi Omnidirectional Antennas
• PAIR/RESET LED: Blue
• PoE Converter Status LED: Green

Warm Tips

• ① The PoE converter is not waterproof, please install it indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• ③ Please install the product 2‑3 meters above the ground for better performance.
• ④ Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3(*Latest firmware required) and WN573HX3.

In the Box

• 1 x AX3000 WiFi 6 Outdoor Access Point
• 4 x Omni Antennas
• 4 x Cable Ties
• 1 x Ethernet Cable Connectors
• 1 x Quick Installation
• 1 x Wrench
• 2 x Silicone Pads
• Several Screws
• Passive PoE (Optional):
• 1 x 54V Power Adapter
• 1 x PoE Converter
• 1 x Ethernet Cable

WN588HX3 – AX3000 WiFi 6 · 6 x 7dBi Directional Antennas

WAVLINK WiFi6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE/6x7dBi High-gain Antennas/IP67 Weatherproof Enclosure/Signal Booster Amplifier

Features:

• 【🌐Enjoy True WiFi 6 Speed】 The next generation of WiFi, complies with IEEE 802.11 ax/ac/a/b/g/n standards. Supports dual‑band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning‑fast Internet speed. With WAVLINK WN588HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• 【🌐Seamless WiFi Roaming】 The 6x7dBi omni‑directional antennas and high‑power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one‑click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• 【🌐Multiple Modes, Flexible Use】 Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
• 【🌐Powered by PoE and Flexible Installation】 Supporting 802.3af/802.3at/48V PoE Power over Ethernet with the included PoE adapter, this device offers flexible deployment and convenient installation with its mounting bracket design. It can be easily mounted on poles or walls.

573Mbps on 2.4G & 2402Mbps on 5G

Dual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

Access More Devices

Connect up to 256 devices simultaneously, making it ideal for large spaces such as factories, communities, streets, and more.

Worry-Free WiFi Coverage

Enhanced by built-in high-power amplifiers and 6x7dBi omni-directional antennas to extend outdoor signal coverage up to 300m (984ft).

Specification

• Model: WL‑WN588HX3
• Product Size: 17x17.3x5.1cm / 6.7x6.8x2in
• PoE Converter Size: 4.4x3.7x2.2cm / 1.7x1.5x0.9in
• Ethernet Cable: 100cm / 39.4in; Power Adapter Cable: 130cm / 51.2in
• Product Weight: 552g / 19.5oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band/Speed: 2.4GHz(573Mbps) + 5GHz(2402Mbps)
• Wireless Security: WPA2‑PSK, WPA2/WPA3‑MIX
• Antennas: 6 x 7dBi Directional Antennas
• PAIR/RESET LED: Blue
• PoE Converter Status LED: Green

Warm Tips

• ① The PoE converter is not waterproof, please install it indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• ③ Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
• ④ The real performance of the product may vary in accordance with different environmental conditions.

In the Box

• 1 × AX3000 WiFi 6 Outdoor Access Point
• 4 × Plastic Cable Ties
• 1 × Main Body Holder
• 6 x 7dBi Antennas
• 1 × Wrench
• 1 × 54V Power Adapter
• 1 × PoE Converter
• 1 × Ethernet Cable
• 1 × PWM M3×5×6MM Screw
• 6 × KA M3×20×5.2MM Screws
• 6 × Φ6.5x25MM Screw Plugs
• 1 × Quick Start Guide

WN588HA2 – New Design · AC1200 WiFi 5 · 4 x 7dBi Omni Antennas

WAVLINK AC1200 Wi‑Fi 5 Outdoor Access Point, Long‑Range Weatherproof Dual‑Band Wi‑Fi Extender with 4 x 7dBi Omni Antennas, PoE, Gigabit Port, Supports AP/Repeater/Mesh Modes for Courtyard, Fish Finder

Features:

• [Upgrade to Wi‑Fi 5] Dual Band AC1200 offers faster data transfer speeds with 2.4GHz@300Mbps and 5GHz@867Mbps. Compliant with IEEE 802.11ac/a/n/g/b standards. Enhanced with MU‑MIMO, Beamforming, reducing interference for stable, wider coverage, and increased device connectivity.
• [Expand Coverage Area] Equipped with 4 x 7dBi Omni detachable antennas, it features up to 1000MW power and built‑in high‑power amplifier PA+LNA. Capable of receiving existing 2.4GHz and 5GHz wireless signals, extending the range of the router or access point up to 300 meters.
• [Professional Outdoor Design] Indoor/Outdoor use, supports wall/pole mount; robust IP67 weatherproof casing with grounding terminal; offers 15KV ESD protection, 6KV lightning protection; withstands -20°C to 50°C temperature range, ensuring stable operation in various weather conditions.
• [Flexible Mode Selection] AP/Repeater/Router mode: Connects to most wireless signals, including Starlink. Mesh mode allows seamless home roaming with a single SSID/password setup, pairs easily with one touch. Also compatible with Wavlink AC controller for unified management in large networks.
• [Powered by PoE] Supports 802.3AT/AR Active PoE and Passive PoE for flexible deployment by integrating power and network data over a single cable, simplifying outdoor Wi‑Fi access point setup, making it convenient to install devices in locations without power source.

Warm Tips

• ① When setting up a mesh network, please note that the WL‑WN588HA2 supports a maximum of 8 devices for networking (including the main router). It is only compatible with devices from the same brand "Wavlink" that support Everything Mesh; other devices are not supported.
• ② The access point cannot act as a repeater for wireless signals with enforced captive portal.
• ③ For optimal performance, choose open and unobstructed locations, avoiding obstacles like walls, doors, aquariums, trees, and other barriers as much as possible.
• ④ All Wi‑Fi extenders are designed to expand or enhance Wi‑Fi coverage range, rather than directly increase speed.
• ⑤ PoE converter is not waterproof and should be used indoors or in a sheltered environment.

Specification

• Model: WL‑WN588HA2 (AERIAL HD8S)
• Port: 1 x WAN/LAN Gigabit Port
• Button: 1 x Pair/Reset Button
• Product Size: 17.0x5.6x17.0cm / 6.7x2.2x6.7in
• PoE Converter Size: 3.7x2.2x4.3cm / 1.5x0.9x1.7in
• Ethernet Cable: 100cm / 39.4in (CAT 5E)
• Power Adapter Cable Length: 125cm / 49.2in
• Standard: IEEE 802.11ac/a/n/g/b
• Frequency Band/Speed: 2.4GHz@300Mbps, 5GHz@867Mbps
• Wireless Security: OPEN, WPA2‑PSK, WPA/WPA2 MIX, WPA3‑SAE/WPA2‑PSK, WPA/WPA2‑Enterprise
• Antennas: 4 x 7dBi Omni Antennas (RP‑SMA)
• Status LED: Blue
• PoE Converter Status LED: Green
• PoE Converter Support: DC 54V/0.3A Power over Ethernet (Passive), DC 48V Power over Ethernet (Active)

In the Box

• 1 x AC1200 Wi‑Fi 5 Outdoor Access Point
• 4 x Plastic Cable Ties
• 1 x Main Body Holder
• 4 x 7dBi Antennas
• 1 x Wrench
• 1 x 54V Power Adapter
• 1 x PoE Converter
• 1 x Ethernet Cable
• 1 x PWM M3x5x6MM Screw
• 6 x KA M3x20x5.2MM Screws
• 6 x Φ6.5x25MM Screw Plugs
• 1 x Quick Start Guide

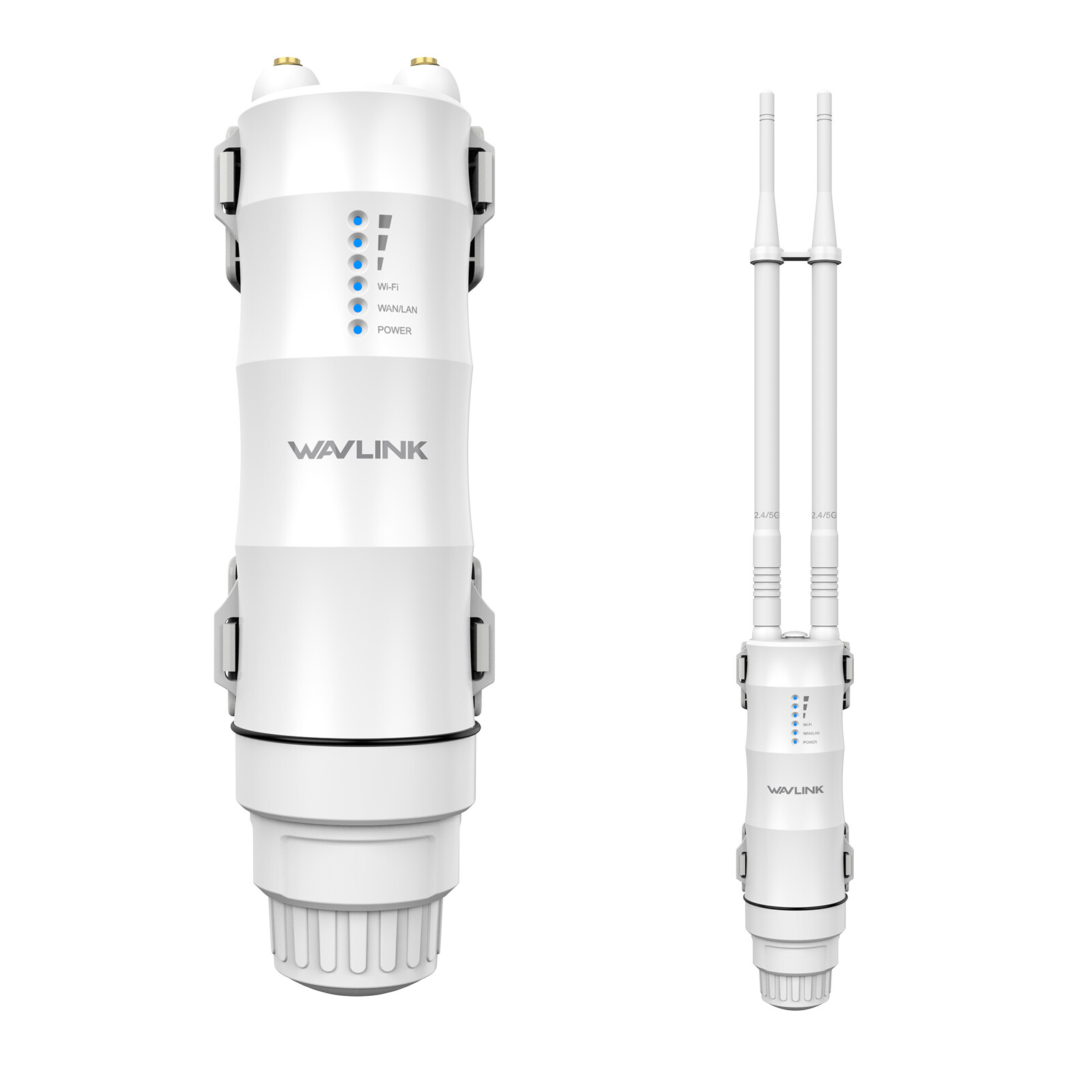

WN570HA2 – AC1200 WiFi 5 · 2 x 7dBi Omni Directional Antennas

WAVLINK AC1200 Dual Band Outdoor Access Point, Outdoor Long Range Wi‑Fi Extender with Active/Passive PoE, WAN/LAN Port, IP67 Waterproof, Supports AP/Router/Repeater Modes, 2x7dBi High‑Gain Antennas

Features:

• *AC1200 Dual‑Band Range Extender: With Wi‑Fi 5 technology at its core, the WAVLINK outdoor AP keeps you connected in stride with speeds reaching up to 1200Mbps. Ideal for smooth HD streaming, online gaming, and bandwidth‑heavy activities. Whether you're in the yard, by the pool, or in a parking lot, relish dependable Wi‑Fi 5 connectivity wherever you are.
• *Power Over Ethernet: Integrated Power over Ethernet (PoE) enables power and network data connections to be consolidated into a single RJ‑45 cable, allowing installation in areas without power outlets. It is equipped with passive PoE and also supports active PoE. You can use and connect your own active switch.
• *IP67 Rated Weatherproof Case: The IP67‑rated weatherproof and heat‑resistant enclosure ensures continued operation in harsh outdoor environments, including extremely cold, hot or constantly humid climates. It can withstand a wide range of humidity and temperature (-10°C to 50°C or -14°F to 122°F), and has 15KV ESD and 6KV lightning protection.
• *Multiple Working Modes: It supports four working modes. The repeater mode extends the Wi‑Fi coverage of an existing wireless network. Router mode creates an instant private wireless network, enabling multiple devices to share it. AP mode converts a wired network to a wireless one. AP+Repeater mode extends the range of a wireless network by using a repeater to amplify and relay the signal from an access point.
• *Outdoor Access Point: Providing ultra‑fast networking speed of 300Mbps over 2.4G band and 867Mbps over 5G band, the outdoor Wi‑Fi repeater has a maximum coverage range of 200 meters, supports up to 32 devices. Simple settings enable wireless optimization to improve the quality and effectiveness of link transmission. (Coverage may vary based on the actual environment.)

Applicable to Kinds of Weather

IP67-rated weatherproof and heat-resistant housing ensures continued operation in harsh outdoor environments. For example, it is sunny and exposed to the sun; it rains and is wet; it snows and freezes; and there is thunder and lightning.

Applicable to Multiple Scenarios

It is suitable for various large-scale outdoor scenes, whether it is your own yard, outdoor swimming pool, school, park, playground, or outdoor parking lot.

Waterproof Case Design

The waterproof housing has an IP67 rating for impressive dust and water resistance, allowing it to operate reliably even when exposed to harsh outdoor conditions or temporary rain.

7dBi Omni Directional Antenna

The AC1200 outdoor access point features two high-gain 7dBi omni directional antennas, designed to enhance the WiFi signal equally in all directions, ensuring broader coverage compared to standard directional antennas.

Warm Tips

• ① The PoE converter is not waterproof, please install it indoors.
• ② Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
• ③ Please install the product 2‑3 meters above the ground for better performance.

Specification

• Model: WL‑WN570HA2
• Ports: 1 x WAN/LAN 100Mbps
• Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi, 3 x Signal
• Power Supply: DC 54V/0.3A Power over Ethernet (Passive), DC 48V Power over Ethernet (Active)
• Wireless Standard: IEEE 802.11 a/b/g/n/ac
• Frequency Band/Speed: 2.4GHz(300Mbps), 5GHz(867Mbps)
• Antenna: 2 x 7dBi Omni Directional Antennas
• Wireless Security: WPA‑PSK/WPA2‑PSK encryption
• Unit Size (without antennas): 18cm x 5cm x 5cm / 7.1in x 2in x 2in (L x W x H); Antenna Length: 25cm / 9.8in
• Ethernet Cable Length: 100cm / 39.4in
• Power Adapter Cable Length: 120cm / 47in
• Operating Temperature: -10°C~50°C (-14°F~122°F)
• Storage Temperature: -30°C~70°C (-22°F~158°F)
• Distance: Outdoor 200m (Change with the Actual Environment)

In the Box

• 1x AC1200 Dual Band Access Point
• 2x 7dBi High‑gain Antennas
• 1x RJ‑45 Ethernet Cable
• 1x Power Adapter
• 1x PoE Converter
• 1x Main Body Holder
• 2x Cable Ties
• 1x Screw Fitting Kit
• 1x Quick Start Guide

WN572HP3 – AC1200 WiFi 5 · 4 x 7dBi Omni Antennas

WAVLINK AC1200 High Power Outdoor Weatherproof WiFi Range Extender/Wireless Access Point/Mesh Agent with Passive PoE, Dual Band 2.4GHz 300Mbps+5.8GHz 867Mbps, 4x7dBi Detachable Omni Directional Antennas, Mesh Technology Supported

Features:

• [AC 1200 Dual‑Band & Upgraded Chip & Easy Mesh Technology Supported]: The next generation of Wi‑Fi, complies with IEEE 802.11 ac/a/b/g/n standards. Dual‑Band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps, an upgraded version of AC1200(1200Mbps); With a brand‑new chip MT7621A and Easy Mesh supported, it lets you keep more devices (64~96) connected simultaneously with the dual bands and enables Wavlink mesh router/AP/repeater to work together, which is superior choice for seamless HD streaming, online gaming and other bandwidth‑intensive tasks.
• [Multiple Operation Modes & Power Over Ethernet & Dual Gigabit Ethernet Ports]: WL‑WN572HP3 supports Mesh Extender Mode, Access Point (AP) Mode, and Repeater Mode. Integrated Power over Ethernet (PoE) supported, allowing it to be installed in areas where power outlet is not available by combining your power and network data connection into a single RJ‑45 cable; Dual Gigabit (1000Mbps) LAN/WAN Ethernet Ports—support 10/100/1000Mbps speeds, 10x faster than a standard Ethernet port, giving you an excellent network speed experience.
• [Design for Harsh Outdoor Environment & Strengthening Waterproof Version]: IP65‑rated weatherproof & heat‑resistant case that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture, withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F); 15KV ESD, 4KV lightning protection, ensure stable connection in harsh outdoor conditions. The key parts have been coated with waterproof glue to strictly avoid leakage phenomenon of the product. Note: The PoE part of the router is not waterproof.
• [4 x 7dBi Detachable Omni Directional Antennas & Outstanding Function]: Higher antenna gain extensively strengthens Wi‑Fi signal and expands wider coverage in the open air, stability technology automatically avoids channel conflicts using its channel selection feature, meet outdoor long range coverage wireless network requirement, cover hard‑to‑reach dead zones. High Power Amplifiers PA 800mW and enhanced receiver design for more strong penetration & longer range coverage than the general access point, ideal for providing Wi‑Fi service in big area such as factory, community, street or etc.
• [What You Get]: All Wavlink products come with a high‑quality after‑sale service. Please feel free to contact us anytime if you have any question, we will do our best to help you. In the Box: AC1200 Dual Band Outdoor AP/Range Extender, 2x 2.4G Omni Antennas, 2x 5G Omni Antennas, 1x RJ45 Networking Cable, 1x Power Adapter, 1x PoE Converter, 1x Main Body Holder, 2x Cable Ties, 1x Screw Fitting Kit, 1x Quick Start Guide. 12‑month worry free warranty (extra 6 months for registered members) and life‑long technical support.

Dual Bands WiFi Repeater

With combined wireless speeds of up to 2.4GHz 300Mbps or 5GHz 867Mbps, simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth-intensive tasks like online gaming or HD video streaming can be processed by the 5GHz.

Multiple Operation Modes

• Mesh Extender Mode: Co-create a larger wireless network coverage with Wavlink mesh supported routers and share signal to multiple WiFi devices.
• AP Mode: Convert a wired network to a wireless network, which allows you connect laptops, tablets, phones or other WiFi devices.
• Repeater Mode: Extend WiFi coverage of an existing wireless network.

Withstand Harsh Climates

An IP65-rated weatherproof housing that ensures the 572HP3 continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F). Build in lightning arrester (15kV ESD), 4KV lightning protection. Note: The PoE part of the router is not waterproof.

Applicable for Large-coverage

Extend the network over long-distances (max 200 meters) with high gain 4x7dBi antennas that deliver a stable and fast network connectivity to large yards and patios. So, it can boost Wi-Fi coverage up to max A=πr² (r=200m)=125,600m² (1,350,000 sq.ft), which is over 135 times larger than others' only 10,000 sq.ft coverage!

Strengthening Waterproof Parts

In order to avoid the water leakage issue the latest version 572HP3 has specially improved the key parts, coated with waterproof glue, greatly strengthening the waterproof protection.

Installation Note

• - Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
• - The outdoor antennas should be installed at a height of 2 meters above the roof or in a high open place for better reception.

Specification

• Frequency: 2.4GHz & 5GHz, speed up to 1,200 Mbps
• Interfaces: 1x 10/100/1,000Mbps LAN; 1x 10/100/1,000Mbps WAN
• Antennas: 4x 7dBi Omni Antennas
• Operation modes: Repeater, AP, Mesh Extender
• Weatherproof case: 15KV ESD and 4KV Lightning Protection
• Security: WPA2‑PSK, WPA2/WPA3 Mix
• LEDs: 7x Status LED Indicators
• Power adapter: 100~240V/50~60Hz; DC 24V (Passive PoE)

What's in the Box

• 1x AC1200 Dual Band Outdoor AP/Range Extender
• 2x 2.4G Omni Antennas
• 2x 5G Omni Antennas
• 1x RJ45 Networking Cable
• 1x Power Adapter
• 1x PoE Converter
• 1x Main Body Holder
• 2x Cable Ties
• 1x Screw Fitting Kit
• 1x Quick Start Guide

WN573HX1 – AX1800 WiFi 6 · 4 x 8dBi Omnidirectional Antennas

WAVLINK Professional Outdoor Router/AP/Repeater, Enjoy Super‑Speed WiFi6 Anytime & Anywhere

Features:

• 【⭐Designed for Harsh Outdoor Conditions】 Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high‑gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.
• 【⭐Enjoy True WiFi 6 Speed】 The next generation of WiFi, complies with IEEE 802.11 ax/ac/a/b/g/n standards. Supports dual‑band maximum speed up to 5GHz 1201Mbps and 2.4GHz 574Mbps, avoiding wireless interference & congestion and offering lightning‑fast Internet speed. With WAVLINK WN573HX1, you can enjoy HD videos, smooth gaming, etc. even outdoors.
• 【⭐Optional PoE Power Supply】 Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
• 【⭐Seamless WiFi Roaming】 The 4x8dBi omnidirectional antennas and two built‑in high‑power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one‑click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
• 【⭐Multiple Modes, Flexible Use】 Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh Mode you can enjoy seamless WiFi with a single network name and password.

Fiberglass Tube High Gain Antennas

4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.

IP67 Waterproof Enclosure

Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.

PoE Power Supply

Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

574Mbps on 2.4G & 1201Mbps on 5G

Dual band AX1800 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

High Power Amplifiers

Dual integrated signal boosters efficiently strengthen the wireless performance. The PA (power amplifier) increases the power output while the LNA (low-noise amplifier) minimizes additional noises and increases the wireless signal.

Advanced WiFi Safeguard

WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.

Specification

• Model: WL‑WN573HX1
• Product Size (without antennas): 24x24x7cm / 9.4x9.4x2.8in
• PoE Converter Size: 4.4x3.7x2.2cm / 1.7x1.5x0.9in
• Antennas Length: 40cm / 15.7in; Ethernet Cable: 100cm / 39.4in; Power Adapter Cable: 130cm / 51.2in
• Product Weight (without antennas): 1109g / 39.1oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band/Speed: 2.4GHz(574Mbps) + 5GHz(1201Mbps)
• Wireless Security: WPA2‑PSK, WPA2/WPA3‑MIX
• Antennas: 4 x 8dBi Omnidirectional Antennas
• PAIR/RESET LED: Blue
• PoE Converter Status LED: Green

Warm Tips

• ① The PoE converter is not waterproof, please install it indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
• ③ Please install the product 2‑3 meters above the ground for better performance.
• ④ Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.

In the Box

• 1 x Wi‑Fi6 Outdoor Mesh Router/AP/Repeater
• 4 x Omni Antennas
• 4 x Cable Ties
• 1 x Ethernet Cable Connectors
• 1 x Quick Installation
• 1 x Wrench
• 2 x Silicone Pads
• Several Screws
• Passive PoE:
• 1 x 54V Power Adapter
• 1 x PoE Converter
• 1 x Ethernet Cable

• 7 Models to Choose – From AC1200 to AX3000, find the perfect outdoor AP for your coverage needs and budget.
• Wi‑Fi 5 & Wi‑Fi 6 Options – AC1200 for budget‑friendly or AX1800/AX3000 for next‑gen speed and performance.
• IP65/IP67 Weatherproof – Built to withstand extreme temperatures, rain, snow, and lightning with ESD protection.
• Flexible PoE Power – Active & passive PoE support for installation anywhere, even without power outlets.
• Easy Mesh & Everything Mesh – Seamless roaming across multiple Wavlink devices with a single network name.
• Multiple Operating Modes – Mesh, AP, Router, Repeater, AP+Repeater for any deployment scenario.

WAVLINK Regarding returns, if you are not satisfied with our product or if the product is not working properly and you need our assistance, please contact us promptly. We will help you resolve the problem you encounter. Fast Shipping | 1‑Year Warranty
