WAVLINK · AX3000 WiFi 6 SERIES One Platform.
Indoor & Outdoor Coverage. Four AX3000 WiFi 6 solutions — from 3000 sq.ft indoor coverage
to 3km point-to-point outdoor links. All with Gigabit ports and next-gen security. AX3000 · 3000MbpsWiFi 6 · 160MHzIP67 · PoE · MESH3000MTOTAL SPEED573+2402DUAL BAND Mbps160MHzBANDWIDTH (INDOOR)3KMPtP/PtMP RANGE📊 MODEL COMPARISON — FOUR WAYS TO COVER YOUR SITEOne indoor, three outdoor — match the antenna pattern to the jobFeatureIndoor AX3000
WN583HX3Outdoor 6-Ant
WN588HX3Outdoor PtP
WN573HP3Outdoor · IP67Outdoor · IP67Outdoor · IP67Total Speed3000 Mbps3000 Mbps3000 Mbps3000 Mbps2.4GHz / 5GHz573 + 2402573 + 2402573 + 2402573 + 2402Antennas4 × 5dBi ext +
1 × 5dBi int6 × 7dBi Omni4 × 12dBi
Directional4 × 8dBi OmniCoverageUp to 3000 sq.ftUp to 300m300m + 3km linkUp to 300mMax Devices256256256256Ethernet Port1 × Gigabit
WAN/LAN1 × Gigabit
WAN/LAN1 × Gigabit
WAN/LAN1 × Gigabit

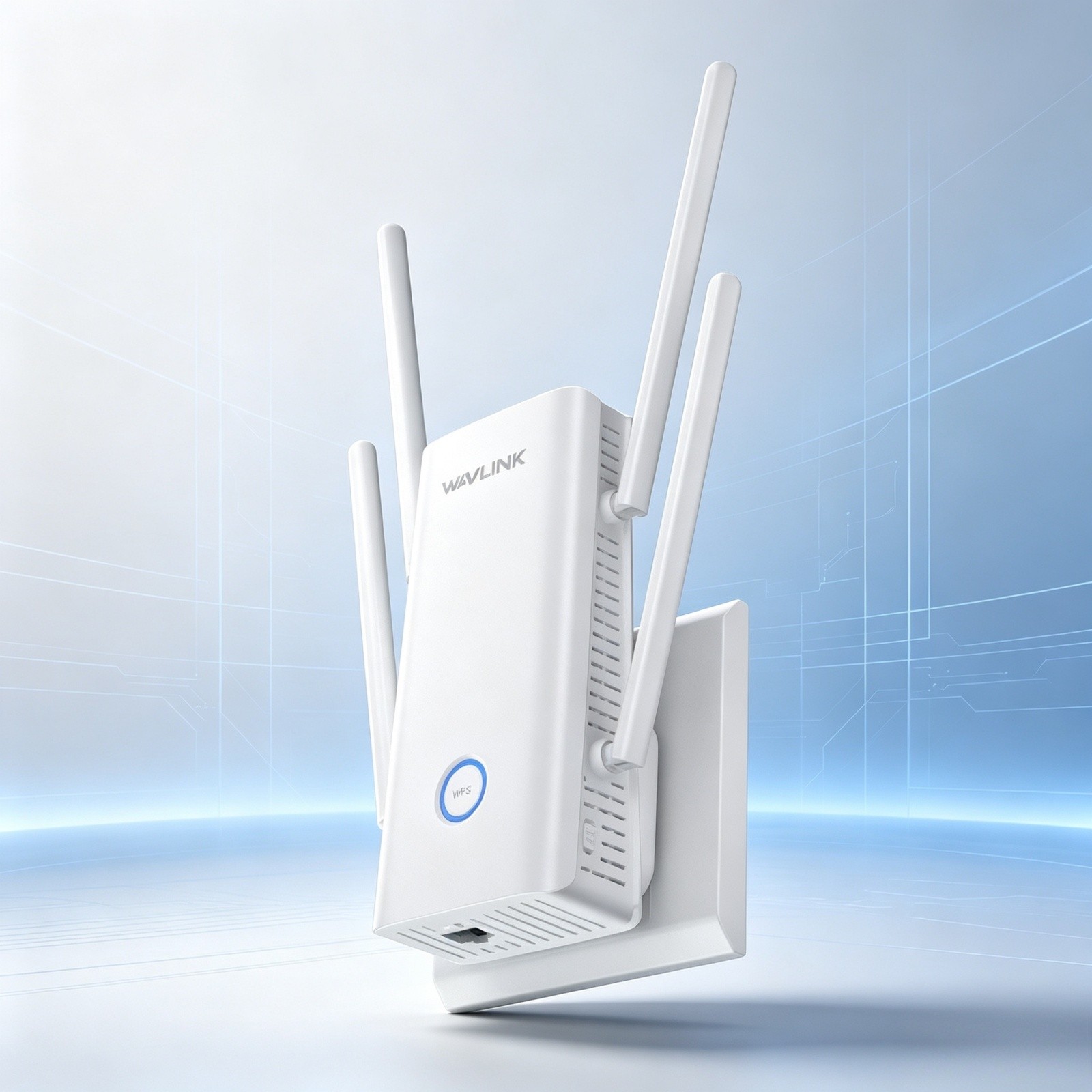

WAN/LANOperation ModesRepeater · AP · RouterRouter · AP · Range Ext · Mesh Router · Mesh Ext · Fat/Fit APRouter · AP · Range Ext · Mesh Router · Mesh Ext · Fat/Fit APAP · Range Ext · Mesh Router · Mesh ExtPoE Support—Active + PassiveActive + PassiveActive + PassiveWeatherproofIndoor useIP67IP67IP67WiFi 6 FeaturesBeamforming · BSS Coloring · OFDMAMU-MIMO · BeamformingMU-MIMO · BeamformingMU-MIMO · BeamformingWireless SecurityWPA3/WPA2-PSK MIX · WPA2-PSK · WPA2/WPA1-PSK MIXWPA2-PSK · WPA2/WPA3-MIXWPA2-PSK · WPA2/WPA3-MIXWPA2-PSK · WPA2/WPA3-MIXWeight298g / 10.5oz552g / 19.5oz1050g / 37oz1109g / 39.1ozBest ForWhole-home coverage up to 3000 sq.ft — dead-zone elimination indoors with 160MHz speedHigh-density outdoor areas — 6 antennas, IP67 and up to 256 devicesLong-distance links — 3km PtP/PtMP with 12dBi directional antennasAll-round outdoor coverage — 360° omni signal up to 300m ◆ All models: AX3000 dual band · 573Mbps @ 2.4GHz + 2402Mbps @ 5GHz · Gigabit WAN/LAN · WiFi 6 ◆ INDOOR AX3000 · UP TO 3000 SQ.FT · 160MHzIndoor AX3000Mbps WiFi 6 up to 3000sq.ft Model: WL-WN583HX3|2025 New WiFi Amplifier|5 × 5dBi Antennas|256 DevicesElevate to the WAVLINK AX3000 WiFi 6 Repeater/AP/Router for lightning-fast speeds of up to 3000Mbps! Unlike ordinary WiFi 6 devices, the WN583HX3 offers 160MHz bandwidth for unparalleled networking speed. Whether you're working from home, streaming your favorite content, or engaging in intense gaming sessions, this innovative WiFi 6 booster provides exceptional coverage and stability, making dead zones a thing of the past.🎨 BSS ColoringWith BSS Coloring technology, the WiFi extender effectively minimizes interference from neighboring networks, ensuring a stable connection even in crowded network environments.⚡ WiFi 6 OFDMAOFDMA technology helps improve WiFi efficiency by allowing multiple devices to communicate with the router simultaneously, enhancing overall network performance for smoother connectivity.🖥️ Easily Accessible Web InterfaceConfigure your AX3000 WiFi 6 repeater via web interfaces on the phone or computer, which offers user-friendly management options and convenient monitoring capabilities, enhancing control and customization of network settings for optimized performance.💡 LED Indicator DescriptionSolid Purple — The device is being activated.
Fast Blinking Red — The device is not connected to the higher-level router.
Slow Blinking Red — The device doesn't have access to the Internet.
Fast Blinking Blue — Pairing with the WPS of a higher-level router.
Slow Blinking Blue — The phone is pairing with WPS / Press the pair button for Mesh pairing.
Solid Blue — The Internet is connected and stable / AP Mode. 🔘 WPS / Mesh Pair ButtonAP Mode — Press and hold WPS for 2 seconds to connect to downstream devices.
Repeater Mode — Press and hold the WPS button for 2 seconds to connect to the downstream devices and for 8 seconds to connect to the upstream router.
Mesh Extender / Mesh Router Mode — Press and hold the Mesh Pair button for 2 seconds to pair. 🔄 Reset ButtonPress and hold the button for 6 seconds to reset to product's factory settings.🔧 SPECIFICATION — WL-WN583HX3 • Ports: 1 × WAN/LAN (10/100/1000Mbps)
• Buttons: 1 × Power On/Off · 1 × Reset · 1 × WPS
• Status LED: 1 × WPS (Purple/Red/Blue) · 1 × WAN/LAN (Blue)
• Wireless Standard: IEEE 802.11 a/b/g/n/ac/ax
• Frequency Band / Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• Antenna: 4 × 5dBi Omni Directional (Length: 15.4cm/6.1in) + 1 × 5dBi internal antenna
• Wireless Security: WPA3/WPA2-PSK MIX · WPA2-PSK · WPA2/WPA1-PSK MIX
• Unit Size (without antennas): 16.0 × 7.5 × 4.2 cm / 6.3 × 3.0 × 1.7 in
• Ethernet Cable Length: 100cm / 39.4in
• Weight: 298g / 10.5oz 📦 IN THE BOX • 1 × Wi-Fi 6 Repeater / AP / Router
• 1 × RJ-45 Ethernet Cable
• 1 × Quick Start Guide OUTDOOR AX3000 · 6 × 7dBi OMNI · IP67Outdoor AX3000Mbps WiFi 6 up to 300M, 6x Antennas Model: WL-WN588HX3|Up to 300m|256 Devices|Gigabit WAN/LAN⭐ FEATURES • Supports dual band (2.4G 573Mbps + 5G 2402Mbps) with aggregated speeds up to 3000Mbps.
• Supports one WAN/LAN Ethernet Gigabit port.
• Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
• 3 × 7dBi 5GHz + 3 × 7dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
• Supports Router / AP / Range Extender / Mesh Router / Mesh Extender mode.
• Encryption type: OPEN · WPA2-PSK · WPA3/WPA2 MIX.
• Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
• Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
• Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
• Supports Fat AP Mode.
• Supports Fit AP Mode with WAVLINK AC controller. 🔧 SPECIFICATION — WL-WN588HX3 • Product Size: 17 × 17.3 × 5.1 cm / 6.7 × 6.8 × 2 in
• PoE Converter Size: 4.4 × 3.7 × 2.2 cm / 1.7 × 1.5 × 0.9 in
• Length: Ethernet Cable 100cm/39.4in · Power Adapter Cable 130cm/51.2in
• Product Weight: 552g / 19.5oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band / Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• Wireless Security: WPA2-PSK · WPA2/WPA3-MIX
• Antennas: 6 × 7dBi Directional Antennas
• PAIR/RESET LED: Blue · PoE Converter Status LED: Green 📦 IN THE BOX • 1 × AX3000 WiFi 6 Outdoor Access Point
• 4 × Plastic Cable Ties
• 1 × Main Body Holder
• 6 × 7dBi Antennas
• 1 × Wrench
• 1 × 54V Power Adapter
• 1 × PoE Converter
• 1 × Ethernet Cable
• 1 × PWM M3×5×6MM Screw
• 6 × KA M3×20×5.2MM Screws
• 6 × Φ6.5×25MM Screw Plugs
• 1 × Quick Start Guide 💡 WARM TIPS ① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
④ The real performance of the product may vary in accordance with different environmental conditions. OUTDOOR AX3000 · 4 × 12dBi DIRECTIONAL · PtP/PtMP UP TO 3KMOutdoor AX3000Mbps WiFi 6, PtP/PtMP up to 3Km Model: WL-WN573HP3|3000Mbps|Up to 3km / 1.9mi|IP67⭐ FEATURES • Supports dual band (2.4G 573Mbps + 5G 2402Mbps) with aggregated speeds up to 3000Mbps.
• Supports one WAN/LAN Ethernet Gigabit port.
• Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
• Supports Router / AP / Range Extender / Mesh Router / Mesh Extender mode.
• Encryption type: OPEN · WPA2-PSK · WPA3/WPA2 MIX.
• Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
• Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
• Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
• Supports Fat AP Mode.
• Supports Fit AP Mode with WAVLINK AC controller. 🔧 SPECIFICATION — WL-WN573HP3 • Product Size: 24 × 24 × 7 cm / 9.4 × 9.4 × 2.8 in
• PoE Converter Size: 4.4 × 3.7 × 2.2 cm / 1.7 × 1.5 × 0.9 in
• Length: Ethernet Cable 100cm/39.4in · Power Adapter Cable 130cm/51.2in
• Product Weight: 1050g / 37oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band / Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• Wireless Security: WPA2-PSK · WPA2/WPA3-MIX
• Antennas: 4 × 12dBi Directional Antennas
• PAIR/RESET LED: Blue · PoE Converter Status LED: Green 📦 IN THE BOX • 1 × AX3000 WiFi 6 Outdoor Access Point
• 1 × 54V Power Adapter
• 4 × Cable Ties
• 1 × PoE Converter
• 2 × Silicone Pads
• 1 × Ethernet Cable
• 1 × Main Body Holder
• 1 × PWM M4×8×8MM Screw
• 1 × Wrench
• 6 × KA M4×25×6MM Screws
• 1 × Quick Start Guide
• 6 × Φ8×25MM Screw Plugs 💡 WARM TIPS ① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Please install the product 2-3 meters above the ground for better performance.
④ Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
⑤ The real performance of the product may vary in accordance with different environmental conditions. OUTDOOR AX3000 · 4 × 8dBi OMNI · UP TO 300MOutdoor AX3000Mbps WiFi 6 up to 300M Model: WL-WN573HX3|3000Mbps|Up to 300m|IP67|Fiberglass Tube Antennas⭐ FEATURES • Supports dual band (2.4G 573Mbps + 5G 2402Mbps) with aggregated speeds up to 3000Mbps.
• Supports one WAN/LAN Ethernet Gigabit port.
• Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
• Supports AP / Range Extender / Mesh Router / Mesh Extender mode.
• Encryption type: OPEN · WPA2-PSK · WPA3/WPA2 MIX.
• 2 × 8dBi 5GHz and 2 × 8dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
• Glass tube antenna for high precision, corrosion resistance, long life, strong wind resistance.
• Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
• Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
• Supports 802.3 AT/AF Active PoE and Passive PoE to supply power. 🔧 SPECIFICATION — WL-WN573HX3 • Product Size (without antennas): 24 × 24 × 7 cm / 9.4 × 9.4 × 2.8 in
• PoE Converter Size: 4.4 × 3.7 × 2.2 cm / 1.7 × 1.5 × 0.9 in
• Length: Antennas 40cm/15.7in · Ethernet Cable 100cm/39.4in · Power Adapter Cable 130cm/51.2in
• Product Weight (without antennas): 1109g / 39.1oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band / Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• Wireless Security: WPA2-PSK · WPA2/WPA3-MIX
• Antennas: 4 × 8dBi Omnidirectional Antennas
• PAIR/RESET LED: Blue · PoE Converter Status LED: Green 📦 IN THE BOX • 1 × AX3000 WiFi 6 Outdoor Access Point
• 4 × Omni Antennas
• 4 × Cable Ties
• 1 × Ethernet Cable Connectors
• 1 × Quick Installation
• 1 × Wrench
• 2 × Silicone Pads
• Several Screws
Passive PoE (Optional):
• 1 × 54V Power Adapter
• 1 × PoE Converter
• 1 × Ethernet Cable 💡 WARM TIPS ① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Please install the product 2-3 meters above the ground for better performance.
④ Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required) and WN573HX3. Which AX3000 Fits Your Site?WN583HX3 · Indoor AX3000 — Whole-home coverage up to 3000 sq.ft. The only model with 160MHz bandwidth and BSS Coloring for maximum indoor speed. 298g. WN588HX3 · Outdoor 6-Antenna — High-density outdoor areas. 6 × 7dBi omni antennas, IP67, up to 256 devices. Ideal for RV parks, events and coastal sites. WN573HP3 · Outdoor PtP/PtMP — 4 × 12dBi directional antennas for 300m coverage plus 3km point-to-point links. Best for long-distance links, farms and rural areas. WN573HX3 · Outdoor Omni — All-round 360° outdoor coverage up to 300m with fiberglass tube antennas. Farm, patio, pool area and workshop coverage. USE THE DROPDOWN ABOVE TO SELECT YOUR MODELWAVLINKAX3000 WiFi 6 · INDOOR & OUTDOOR · IP67 · PoE · MESH
