Parameters:
Size: 94.5×95×36mm
Fan: 92×92×15mm
Air volume: 42.58CFM (MAX)
Air pressure: 1.33mmH2O (MAX
Speed: 2700RPM±10%
Noise: 22.4db (A)
Fan pin: 4PIN PWM
Packing:
AXP90 X36 body×1, TL-9015 fan×1, TF7 Thermal paste×1, Fan buckle×2, Backplane×1, Nut×2, Long screw×4, Nut×4, Nut sleeve×1, Manual×1

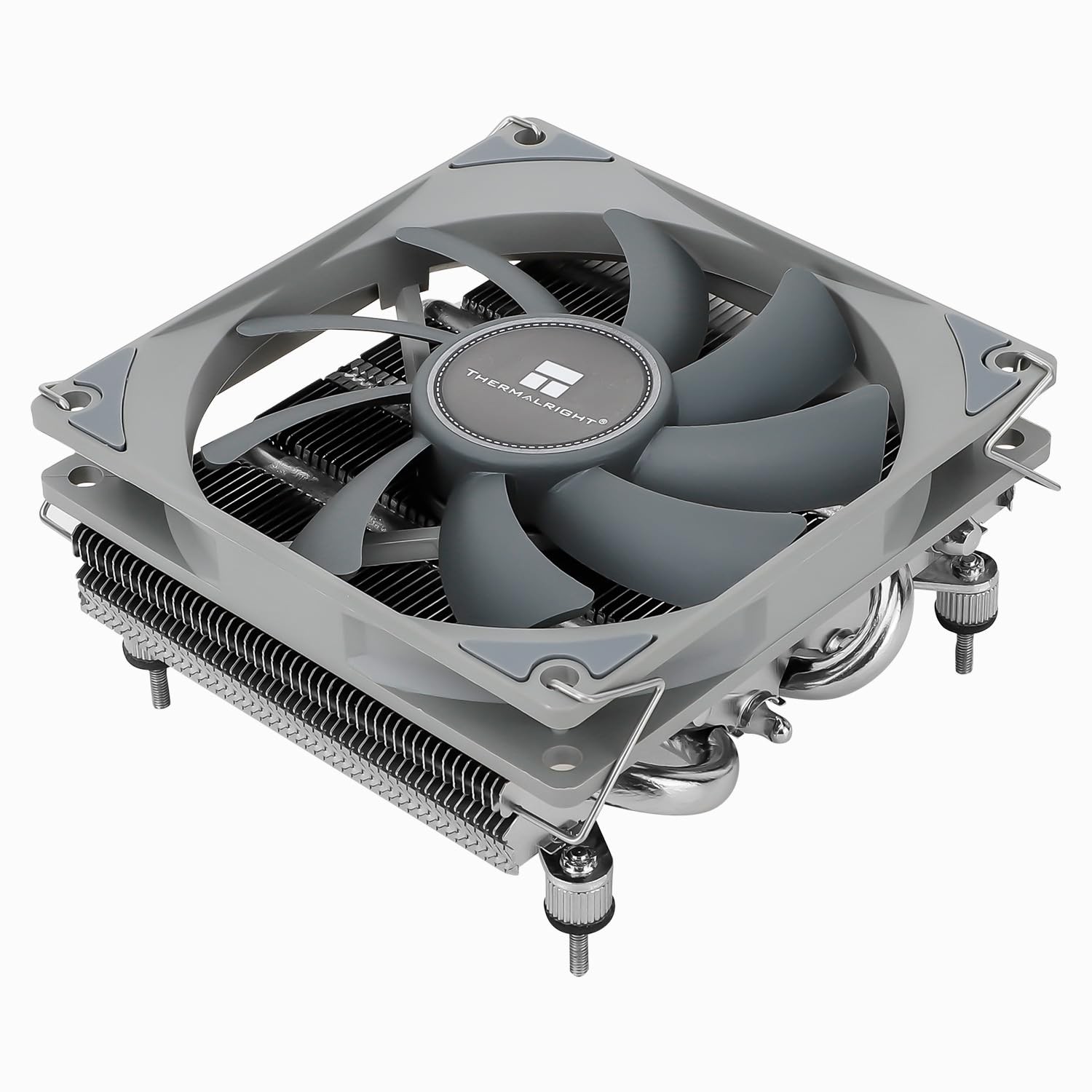

【36mm Height】The AXP90 X36 low profile cooler, combined with a 92mm PWM fan for automatic temperature control and ultra-quiet operation, and a total cooler height of just 36mm, makes it ideal for HTPC, ITX and small models with a small CPU cooler without any memory limitation worries.
【Broad Compatibility】The heatsink supports CPU slots for Intel: LGA1700/1150/1151/1155/1156/1200; AMD/AM4/AM5, for different platforms, the heatsink is equipped with the corresponding metal mounting fasteners, which can be installed in conjunction with the manual or installation video.
【AGHP technique】4×6mm heat pipes apply AGHP technique, Solve the Inverse gravity effect caused by vertical / horizontal orientation,the cooling effect of the cpu cooler is also doubled by the process of secondary welding of heat pipes and fins.
【cpu cooler specifications】cpu cooling Size: 94.5×95×36mm, matched fan: TL-9015, air volume: 42.58CFM (MAX), air pressure: 1.33mmH2O (MAX), rotational speed: 2700RPM ± 10%, noise: 22.4db (A), fan pin: 4PIN PWM, radiator material: aluminum. The attached heat transfer paste can provide good cooling effect and improve the heat transfer of the CPU.
