User versionADTRAN, Inc. OS version R12.3.3
Mainline Version: ENM.16.126
P4 Changelist: 645072
Checksum: CEB02852
Built on: Wed Aug 23 10:33:06 2017
Boot ROM version 13.03.00.SB
Checksum: 70C3
Built on: Fri Nov 10 08:04:44 2006
Compatibility Version: 0
Copyright (c) 1999-2017, ADTRAN, Inc.

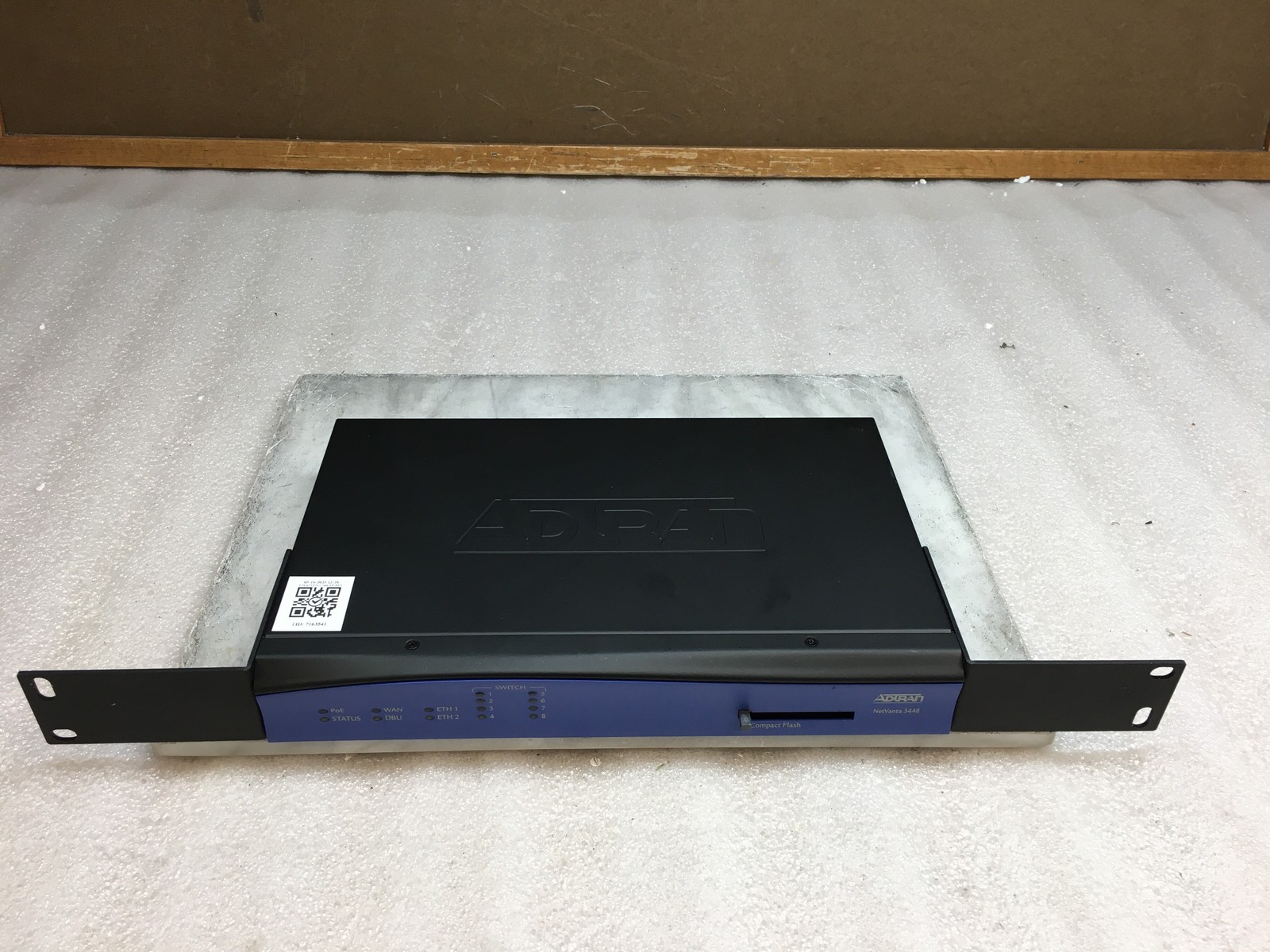

Platform: NetVanta 3448, part number 1200821E1, CLEI code is DDC3RNDCAA
Serial number
Flash: 33554432 bytesDRAM: 134217727 bytes
Router uptime is 0 days, 0 hours, 2 minutes, 51 seconds
System returned to ROM by Soft Reset
Current system image file is "NV3448A-R12-3-3.biz"
Primary boot system image file is "NV3448A-R12-3-3.biz"
Backup boot system image file is "9200821-2R100906.biz"
Primary system configuration file is users
- CONSOLE 0 'password-only' logged in at level 7
Idle for 0/1, swx 0/2, swx 0/3, swx 0/4, swx 0/5,
swx 0/6, swx 0/7, swx spanning-tree
STP 0
Vlan 1
Spanning Tree enabled protocol ieee 802.1w (Rapid Spanning-Tree)
Root root of the spanning tree
Hello Time2 secMax Age 20 secForward Delay 15 sec
Bridge Time300
InterfaceRole Sts CostPrio.Nbr Type
---------------- ---- --- --------- -------- startup-config
File does not running-config
Building ADTRAN, Inc. OS version R12.3.3
! Boot ROM version 13.03.00.SB
! Platform: NetVanta 3448, part number 1200821E1
! Serial number
!
!
hostname "Router"
!
!
clock timezone -5-Eastern-Time
clock no-auto-correct-DST
!
ip subnet-zero
ip classless
ip routing
ipv6 on
no logging forwarding
no logging email
!
no service ip firewall alg msn
no ip firewall alg mszone
no ip firewall alg dot11ap 1
name ethernet cfm
!
interface eth 0/1
ip address dhcp
no eth 0/2
ip address dhcp
no switchport 0/1
no shutdown
!
interface switchport 0/2
no shutdown
!
interface switchport 0/3
no shutdown
!
interface switchport 0/4
no shutdown
!
interface switchport 0/5
no shutdown
!
interface switchport 0/6
no shutdown
!
interface switchport 0/7
no shutdown
!
interface switchport 0/8
no vlan 1
ip address dhcp
no tftp server
no tftp server overwrite
no http server
no http secure-server
no snmp agent
no ip ftp server
ip ftp server default-filesystem flash
no ip scp server
no ip sntp udp 5060
sip tcp con 0
no login
!
line telnet 0 4
login
no shutdown
line ssh 0 4
login local-userlist
no switchports
Name: swx 0/1
Switchport: enabled
Administrative Mode: access
Negotiation of Trunking: access
Access VLAN (configured): 1
Trunking Native VLAN: 1
Trunking VLAN Enabled: 1-4094
Trunking VLAN GVRP Fixed: none
Port Expiration: disabled
Port Security: disabled
Name: swx 0/2
Switchport: enabled
Administrative Mode: access
Negotiation of Trunking: access
Access VLAN (configured): 1
Trunking Native VLAN: 1
Trunking VLAN Enabled: 1-4094
Trunking VLAN GVRP Fixed: none
Port Expiration: disabled
Port Security: disabled
Name: swx 0/3
Switchport: enabled
Administrative Mode: access
Negotiation of Trunking: access
Access VLAN (configured): 1
Trunking Native VLAN: 1
Trunking VLAN Enabled: 1-4094
Trunking VLAN GVRP Fixed: none
Port Expiration: disabled
Port Security: disabled
Name: swx 0/4
Switchport: enabled
Administrative Mode: access
Negotiation of Trunking: access
Access VLAN (configured): 1
Trunking Native VLAN: 1
Trunking VLAN Enabled: 1-4094
Trunking VLAN GVRP Fixed: none
Port Expiration: disabled
Port Security: disabled
Name: swx 0/5
Switchport: enabled
Administrative Mode: access
Negotiation of Trunking: access
Access VLAN (configured): 1
Trunking Native VLAN: 1
Trunking VLAN Enabled: 1-4094
Trunking VLAN GVRP Fixed: none
Port Expiration: disabled
Port Security: disabled
Name: swx 0/6
Switchport: enabled
Administrative Mode: access
Negotiation of Trunking: access
Access VLAN (configured): 1
Trunking Native VLAN: 1
Trunking VLAN Enabled: 1-4094
Trunking VLAN GVRP Fixed: none
Port Expiration: disabled
Port Security: disabled
Name: swx 0/7
Switchport: enabled
Administrative Mode: access
Negotiation of Trunking: access
Access VLAN (configured): 1
Trunking Native VLAN: 1
Trunking VLAN Enabled: 1-4094
Trunking VLAN GVRP Fixed: none
Port Expiration: disabled
Port Security: disabled
Name: swx 0/8
Switchport: enabled
Administrative Mode: access
Negotiation of Trunking: access
Access VLAN (configured): 1
Trunking Native VLAN: 1
Trunking VLAN Enabled: 1-4094
Trunking VLAN GVRP Fixed: none
Port Expiration: disabled
Port Security: port-security
PortMax Secure AddrCurr interface
Displaying interfaces...
eth 0/1 is DOWN, line protocol is DOWN
Hardware address is 00:19:92:F3:A5:A5
Internet address will be negotiated using DHCP
IP MTU is 1500 bytes
BW is 0 Kbit
?b/s, negotiated ? duplex, configured full-duplex
ARP type: ARPA; ARP timeout is 20 minutes
Last clearing of "show interface" counters: never
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
Queueing method: fifo
Output queue: 0/256/0 (size/max total/drops)
Interface Shaper: NOT ENABLED
0 packets input, 0 bytes
0 unicasts, 0 broadcasts, 0 multicasts input
0 unknown protocol, 0 symbol errors, 0 discards
0 input errors, 0 runts, 0 giants
0 no buffer, 0 overruns, 0 internal receive errors
0 alignment errors, 0 crc errors
0 packets output, 0 bytes
0 unicasts, 0 broadcasts, 0 multicasts output
0 output errors, 0 deferred, 0 discards
0 single, 0 multiple, 0 late collisions
0 excessive collisions, 0 underruns
0 internal transmit errors, 0 carrier sense errors
0 resets, 0 throttles
eth 0/2 is DOWN, line protocol is DOWN
Hardware address is 00:19:92:F3:A5:A6
Internet address will be negotiated using DHCP
IP MTU is 1500 bytes
BW is 0 Kbit
?b/s, negotiated ? duplex, configured full-duplex
ARP type: ARPA; ARP timeout is 20 minutes
Last clearing of "show interface" counters: never
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
Queueing method
Specifications Functional Condition:
F3 - Key Functions Working Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.
Cosmetic Condition:
C4 - Used Good Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.
Data Sanitization:
S3 - Data Clear Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
Mpn
1200821F1 Function Tests Powers On
Passed Physical Inspection
Passed Functions
Passed Buttons
Passed Shipping
Tracking information is automatically uploaded to once your order ships.
We ship orders within the contiguous US with FedEx or USPS at our discretion. We use 's shipping calculator for all shipping rates.
PO Box, HI, AK, APO/FPO/DPO, and PR orders must be shipped via USPS. Please contact us or request an adjusted invoice before checking out. Local Pickup
If you have purchased an item and prefer to pick it up, please select “Local Pickup” from the shipping options during checkout. Then please contact us to arrange pickup.
Payment must be made through prior to pickup. Combined Shipping
We can typically provide a 30% shipping discount for multiple purchases that will fit in the same box.
For combined shipping, please click 'Request Total' or send us a message before checking out.
We can then adjust your invoice for combined shipping. Expedited Shipping
In order to guarantee the rates and transit times shown, we must receive your order with its payment cleared by 12:00 PM EST during business days.
Orders placed after 12:00 PM EST will be shipped on the next business day.
Orders placed on weekends or holidays will be shipped the next business day.
Please plan your orders accordingly.
Returns
We strive to be a 5 star seller and hope that you are happy with your purchase.
If there is a problem with your order, please contact us through messages or by phone before leaving response. For items that are tested and working properly:
Our return window for working items listed as "New" or "Used" is 30 days.
If the item is no longer wanted or does not fit, the buyer is responsible for return shipping.
If the item is not working as described, we will work with you on the issue, please contact us to resolve. Please review all product details and sale terms before making a purchase.
