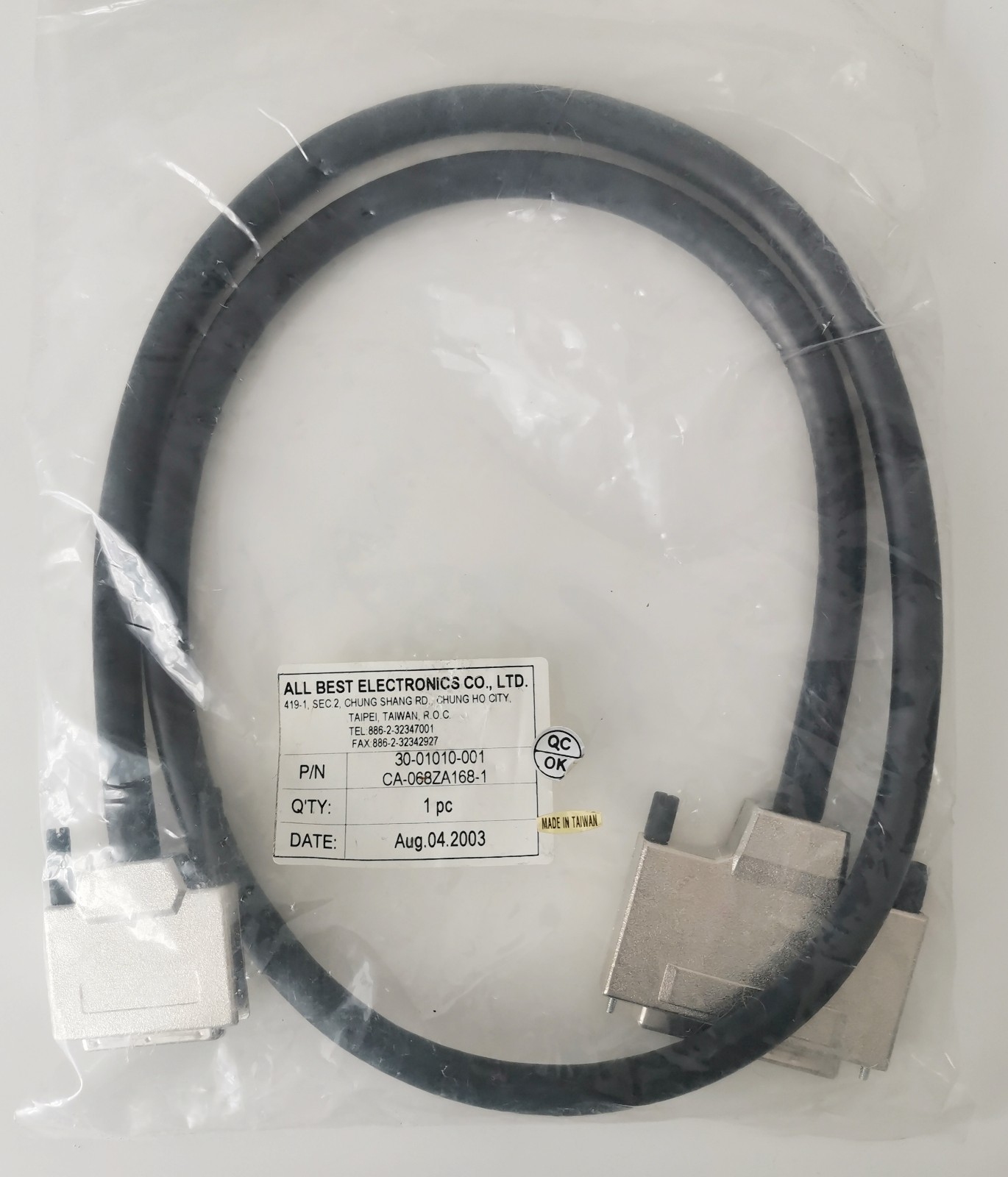

All Best Electronics SCSI-2 to VHDCI (flat) 68-pin male/male 1m round cable (CA-068ZA168-1) suitable for Adlink's PCI-744x DAQ cardsThe high-quality All Best Electronics SCSI-VHDCI (Very High Density Cable Interconnect) flat 68-pin male-to-male round cable is engineered for use with ADLINK’s PCI-744x series data acquisition and control cards. This cable provides a reliable, shielded, and high-speed data connection between host interface cards and peripheral devices that utilize the SCSI-II or VHDCI 68-pin standard. It is designed to ensure signal integrity, minimize crosstalk, and maintain consistent performance in demanding industrial and laboratory environments.Model | P/N: CA-068ZA168-1 | 30-01010-001
Color: black
Length: ~ 1 m- Interface Type: SCSI-II / VHDCI 68-pin male-to-male configuration
- Connector Type: One 68-pin VHDCI male connector and one 68-pin SCSI-II male connector
- Cable Length: 1 meter (approx. 3.28 feet)
- Cable Type: Round, shielded cable with flat VHDCI connector design
- Compatibility: Specifically designed for ADLINK PCI-744x series cards
- High-Density Connector: VHDCI (Very High Density Cable Interconnect) supports compact, high-speed data transmission
- Signal Integrity: Shielded construction reduces electromagnetic interference (EMI) and radio frequency interference (RFI)
- Durability: Molded connectors and strain relief for long-term mechanical stability
- Color: Black
- Application: Ideal for connecting PCI-based motion control or data acquisition cards to external devices or breakout modulesTechnical Specifications- Model: CA-068ZA168-1 (compatible with Adlink ACL-10568NF-1)
- Cable Type: Round, shielded SCSI-II/VHDCI cable
- Connector A: 68-pin VHDCI male
- Connector B: 68-pin SCSI-II male
- Number of Pins: 68
- Cable Length: 1 meter (±0.05 m tolerance)
- Cable Diameter: Approximately 6–8 mm (typical for shielded round cables of this type)
- Color: Black
- Material:
- Conductor: High-purity copper for low resistance and high conductivity
- Insulation: PVC or equivalent thermoplastic insulation for flexibility and durability
- Shielding: Braided copper and aluminum foil shielding for EMI/RFI protection
- Jacket: PVC outer jacket, abrasion-resistant
- Connector Housing: Molded plastic with integrated strain relief
- Operating Temperature Range: 0°C to +70°C (typical for SCSI/VHDCI cables)
- Storage Temperature Range: -20°C to +80°C
- Impedance: 100 ±10 Ω (differential characteristic impedance typical for SCSI-II)
- Signal Type: Differential signaling for high-speed data integrity
- Compliance: Meets SCSI-II and VHDCI mechanical and electrical interface standards
