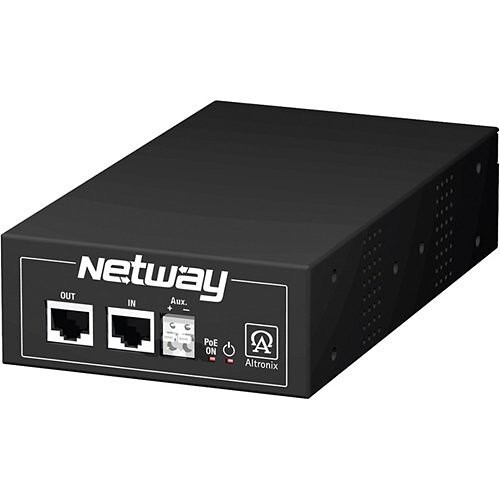

Altronix NetWay1D indoor singleport midspan injector provides PoE (15W), PoE+ (30W), and Hi-PoE (60W).

The unit is also equipped with a56VDC Class 2 rated power-limited output for use with Altronix eBridge™ Plusreceivers. NetWay1D operates at 115VAC or 230VAC input.

Input

115VAC, 60Hz, 1.2A or 230VAC,50/60Hz, 0.75A.

Power Output

Maximum power: Hi-PoE (60W).

Power provided using all 4 pairson CAT5e cable.

IEEE 802.3at (30W) & IEEE802.3af (15W) compliant or Hi-PoE (60W).

Aux. 56VDC/60W Class 2 ratedpower-limited output.

Integral surge protection.

Connectivity: RJ45.

Wire type: 4-pair CAT5e or highercable.

Distance: up to 100m.

Speed: 10/100/1000 Mbps, half/fullduplex, auto negotiation.

Operating Temperature:

30W: - 30° C to 50° C ( - 22° F to122° F).

60W: - 30° C to 40° C ( - 22° F to104° F).

- 30° C to 85° C ( - 22° F to 185°F).

Relative Humidity 85% +/- 5%.

Operating Altitude

- 304.8m to 609.6m.
