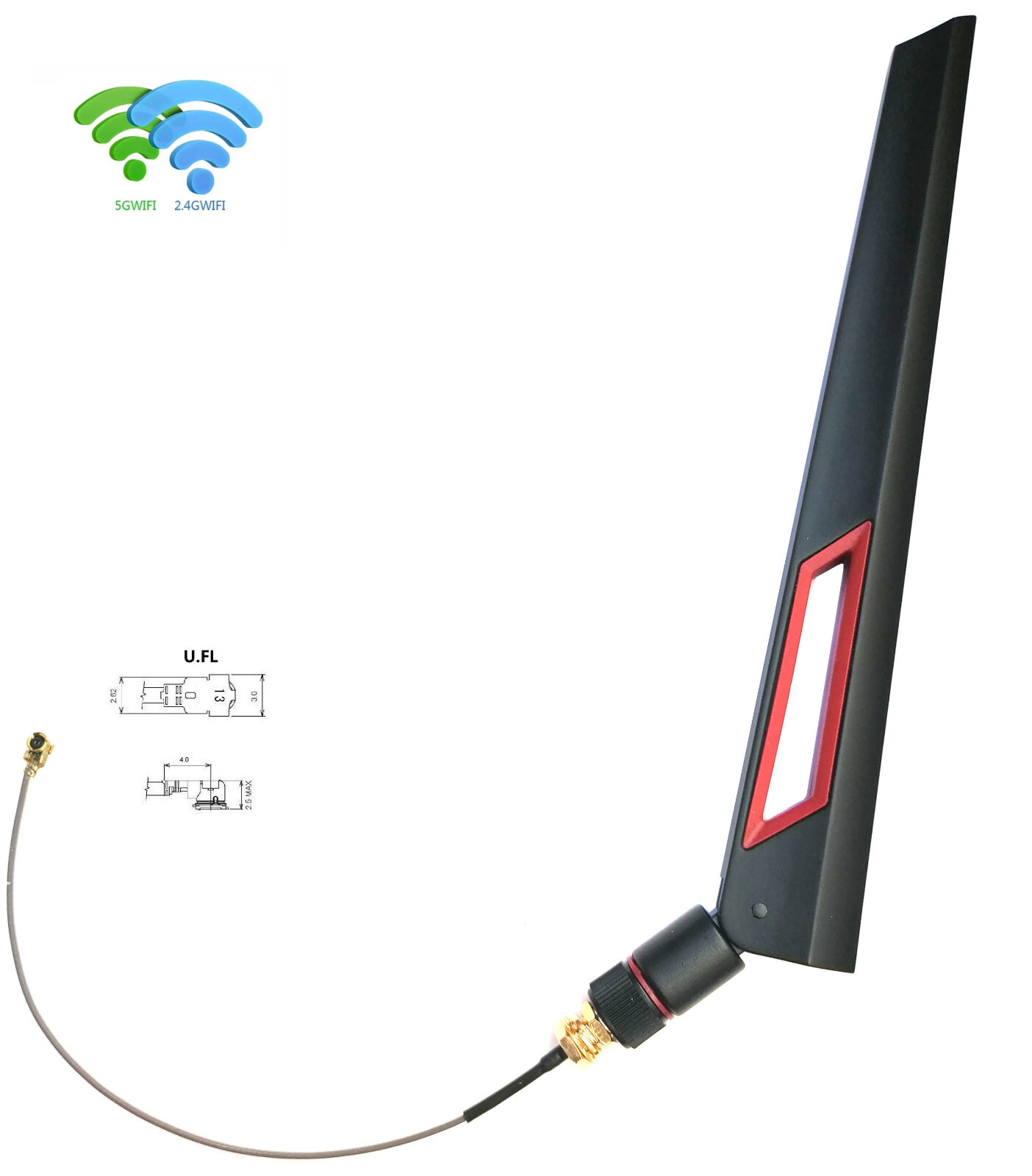

Antenna Set 2.4G&5GHz/10dBi/RP-SMA+U.FL Pigtail Adapter Max 30cm e.g. Wi-Fi BT
Price: DE $6.95
Features
wide range of applications
optional length of pigtial
high gain antenna
low loss coaxial
micro connector
Electrical Data
Frequency(Antenna): 2400 ~ 2500MHz, DC~6GHz
Gain: 10dBi
Radiation type: Omnidirectional
Polarization model: vertical
Impedance: 50Ω
Power capacity: 20W
S.W.R.: <=1.5
Cable loss(Pigtail): <=9.4 dB/1m @6000HZ
Cable capacitance: 98 pf/m
Physical Data
Model: length: 20cm
Antenna Interface: RP-SMA(Female)
Interface material (Antenna): Copper alloy
Radiator material: Cu
Antenna housing material: TPEE
Operating temperature(Antenna): -20° ~ +65°
Weight (without pigtail): 25g
Coaxial cable(Pigtail): RP-SMA(Male)
Interface material (Pigtail): Copper plated gold
I.PX type: U.FL
Length of pigtail: 5cm, 10cm, 15cm, 20cm, 25cm, 30cm
Application
e.g. Wireless communcaiton module/device
e.g. Wi-Fi Bluetooth card like Intel 7260 HMW mini-PCI-e series
e.g. SmartHome network and building (x1 per Pcs)
Spring Washer (x1 per Pcs)
Shake proof Waher (x1 per Pcs)
Shipment & Refund
Our basic shipping fee is based on the rates of Deutsche Post for the year 2022.
Products are to be sent from Germany.
Order is to be sent via Deutsche POST (e.g. Large Letter in Germany, Warenpost international for order outside of Germany).
Since there could be multiple products(same or different) in one order and the products can be shipped in one parcel, we will refund you the overpayment of shipping cost.
