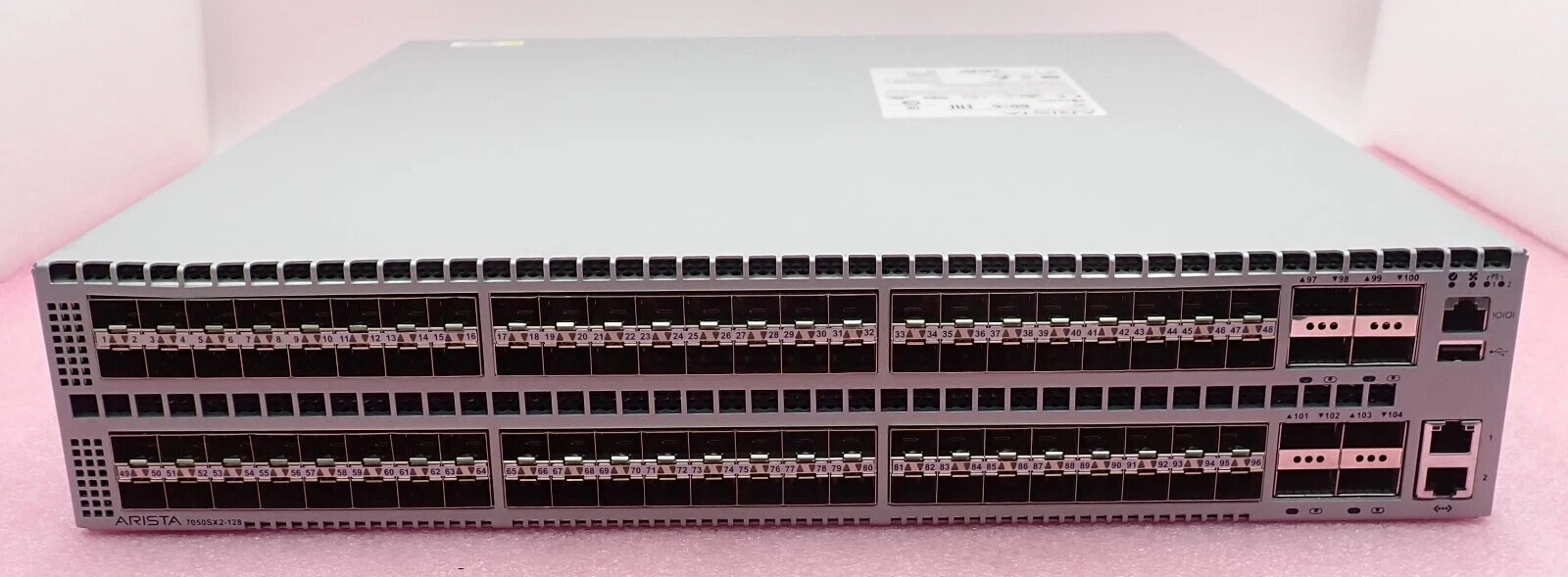

Arista DCS-7050SX2-128-R 7050X2 96x 1/10GbE SFP + 8x 40GbE QSFP+ Port Switch B2F For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Arista DCS-7050SX2-128-R 7050X2 96x 1/10GbE SFP + 8x 40GbE QSFP+ Port Switch B2FModel:DCS-7050SX2-128-R In Good Condition, Full Working OrderTestedRear-to-Front Airflow2 Year Warranty Included:
4 x Arista Fan Arista 7050SX are members of the Arista 7050X Series and key components of the Arista portfolio of data center switches. The Arista 7050X Series are purpose built 10/40GbE data center switches in compact and energy efficient form factors with wire speed layer 2 and layer 3 features combined with low latency and advanced features for software defined cloud networking. Increased adoption of 10 Gigabit Ethernet servers coupled with applications using higher bandwidth is accelerating the need for dense 10 and 40 Gigabit Ethernet switching. The 7050SX Series support flexible combinations of 10G and 40G that allow customers to design large leaf and spine networks to accommodate both east-west traffic patterns found in modern data centers, high performance compute and big data environments. Featuring a choice of 1RU and 2RU models the 7050SX Series deliver high density 1/10G SFP+ based ports and 10/40G ports using QSFP+ for flexible configurations supporting migration from 1/10G to 10/40G networks. All models in the 7050SX Series delivers rich layer 2 and layer 3 features with wire speed performance up to a maximum performance of 2.56Tbps. The Arista 7050SX switches offer low latency from 550ns in cut-through mode, and a shared packet buffer pool of up to 16MB that is allocated dynamically to ports that are congested. With typical power consumption of less than 2 watts per 10GbE port the 7050SX Series provide industry leading power efficiency with airflow choices for back to front, or front to back. An optional built-in SSD supports advanced logging, data captures and other services directly on the switch. Specification:
Ports 96x SFP+ + 8x QSFP+
Total 40GbE Ports: 8
Total 10GbE Ports: 96
Throughput: 2.56 Tbps
Packets/Second: 1440 Mpps
Latency: 550 ns
CPU: Quad-Core x86
System Memory: 8 Gigabytes
Flash Storage Memory: 4 Gigabytes
SSD Storage (optional): No
Packet Buffer Memory: 16MB
10/100/1000 Mgmt: 2
RS-232 Serial Ports: 1 (RJ-45)
USB Ports: 1
Hot-swap Power Supply: 2 (1+1 redundant)
Hot-swap Fans: 4 (N+1 redundant)
Typical/Max Power*: 214W / 396W
Size (WxHxD): 19 x 3.5 x 18.1” (48.3 x 8.8 x 45.9cm)
Weight: 33lbs (15.1kg)
EOS Feature Licenses: Group 2
Minimum EOS Version: 4.18.0
Boot Log:
localhost#show version Arista DCS-7050SX2-128-R Hardware version: 11.00 Serial number: SSJ17139139 Hardware MAC address: 444c.a881.14f5 System MAC address: 444c.a881.14f5Software image version: 4.28.10.1M Architecture: i686 Internal build version: 4.28.10.1M-35010112.428101M Internal build ID: format version: 3.0 Image optimization: Strata-4GBUptime: 11 minutes Total memory: 8098928 kB Free memory: 6533984 kBlocalhost#show inventory System & 8x40GbE QSFP+HW VersionSerial NumberMfg DateEpoch ----------- -------------- ---------- ----- 11.00SSJ171391392017-05-26 01.00System has 2 power supply slots Slot ModelSerial Number ---- ---------------- has 4 fan modules ModuleNumber of FansModelSerial Number ------- --------------- ---------------- has 106 has 104 switched transceiver slots Port ManufacturerModelSerial NumberRev ---- ---------------- ---------------- ---------------- ---- 1Not Present 2Not Present 3Not Present 4Not Present 5Not Present 6Not Present 7Not Present 8Not Present 9Not Present 10Not Present 11Not Present 12Not Present 13Not Present 14Not Present 15Not Present 16Not Present 17Not Present 18Not Present 19Not Present 20Not Present 21Not Present 22Not Present 23Not Present 24Not Present 25Not Present 26Not Present 27Not Present 28Not Present 29Not Present 30Not Present 31Not Present 32Not Present 33Not Present 34Not Present 35Not Present 36Not Present 37Not Present 38Not Present 39Not Present 40Not Present 41Not Present 42Not Present 43Not Present 44Not Present 45Not Present 46Not Present 47Not Present 48Not Present 49Not Present 50Not Present 51Not Present 52Not Present 53Not Present 54Not Present 55Not Present 56Not Present 57Not Present 58Not Present 59Not Present 60Not Present 61Not Present 62Not Present 63Not Present 64Not Present 65Not Present 66Not Present 67Not Present 68Not Present 69Not Present 70Not Present 71Not Present 72Not Present 73Not Present 74Not Present 75Not Present 76Not Present 77Not Present 78Not Present 79Not Present 80Not Present 81Not Present 82Not Present 83Not Present 84Not Present 85Not Present 86Not Present 87Not Present 88Not Present 89Not Present 90Not Present 91Not Present 92Not Present 93Not Present 94Not Present 95Not Present 96Not Present 97Not Present 98Not Present 99Not Present 100Not Present 101Not Present 102Not Present 103Not Present 104Not PresentSystem has 1 storage device MountType ModelSerial Number Rev Size (GB) ---------- ---- -------------- ------------- --- --------- /mnt/flash eMMC Toshiba 008G70 0f3cb96a0.0 4localhost#show license Customer name: System Serial number: System MAC address: Domain system environment all System temperature status is: Ok Action on overheat: shutdown Recovery mode when power-cycle upon overheat: not applicable Restrict recovery when ambient temperature is at or above: not applicable AlertCritical ----------------------------------- ------- ----------- ------ --------- 1Cpu temp sensor35.7(60) 60.89095 2CPU board temp sensor27.0(55) 55.87585 3Back-panel temp sensor24.0(55) 55.87585 4Upper board sensor29.0(55) 55.86575 5Upper front-panel temp sensor25.4(55) 55.86575 6Lower board sensor27.0(55) 55.86575 7Lower front-panel temp sensor24.5(55) 55.86575 8Trident Bottom Right Outer35.5(80) 80.8100120 9Trident Bottom Left Outer35.5(80) 80.8100120 10Trident Top Left Outer36.5(80) 80.8100120 11Trident Top Right Outer36.0(80) 80.8100120 12Trident Bottom Right Inner34.5(80) 80.8100120 13Trident Bottom Left Inner32.6(80) 80.8100120 14Trident Top Left Inner33.1(80) 80.8100120 15Trident Top Right Inner33.6(80) 80.8100120PowerSupply 1: AlertCritical ----------------------------------- ------- ----------- ------ --------- 1Hotspot30.0(80) 80.895100 2Inlet23.0(55) 55.87075PowerSupply 2: AlertCritical ----------------------------------- ------- ----------- ------ --------- 1Hotspot29.0(80) 80.895100 2Inlet23.0(55) 55.87075System cooling status is: Ok Ambient temperature: 27C Airflow: port-side exhaust Number of cooling zones is: 1 Config StabilityUptime -------------- ------ ------ ------ ------- --------- ------- 1/1Ok30%30% 0:08:19 Stable0:05:39 2/1Ok30%30% 0:08:19 Stable0:06:39 3/1Ok30%30% 0:08:19 Stable0:06:39 4/1Ok30%30% 0:08:19 Stable0:06:39 PowerSupply1/1 Ok53%53% 0:08:44 Stable0:06:16 PowerSupply2/1 Ok53%52% 0:08:45 ModelCapacity Current CurrentPower StatusUptime ------ ----------- -------- ------- ------- ------ ------ Ok0:08:45 Total--1000W----83.7W ----
