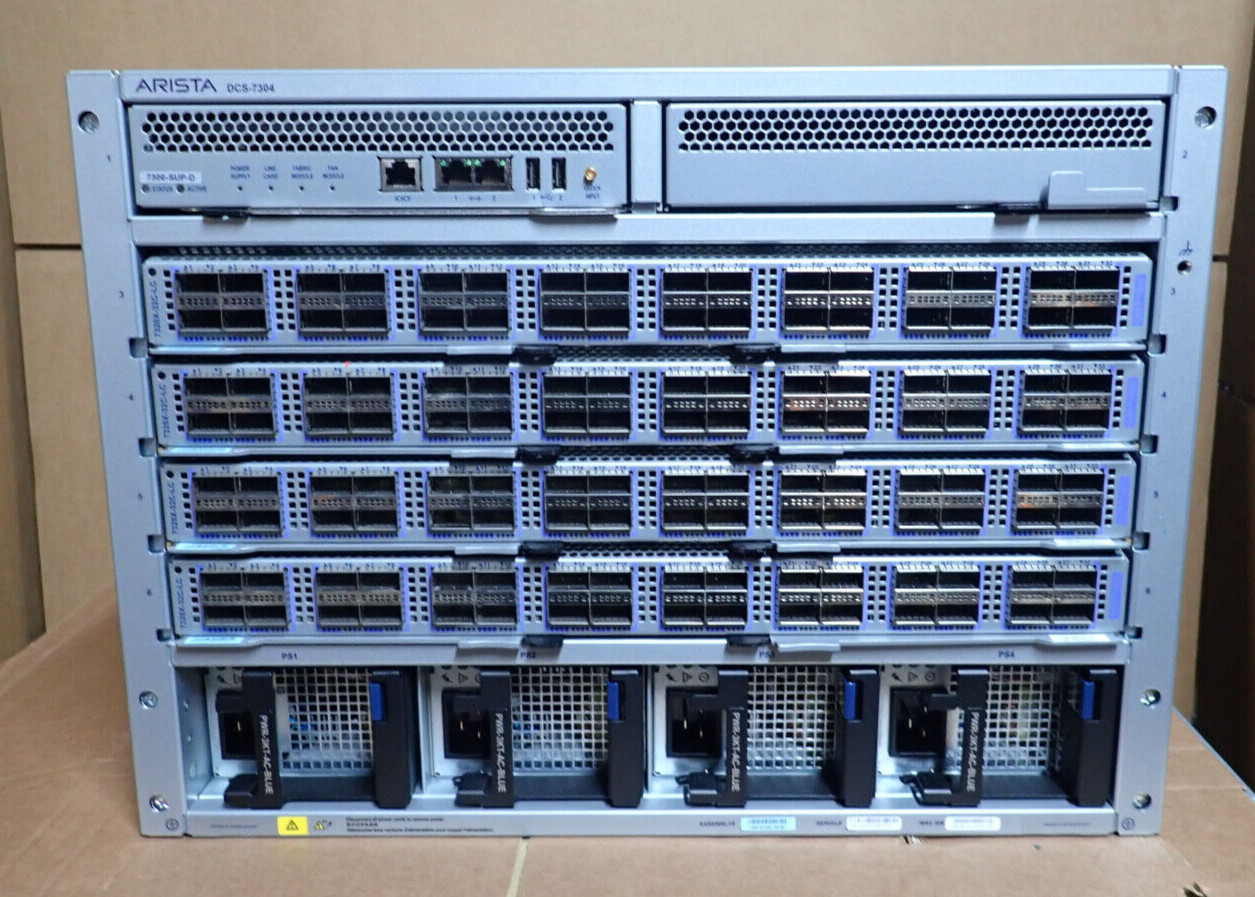

Arista DCS-7304 4 x DCS-7320X-32C-LC Data Center Switch 128 x 100G QSFP100 portsIn Good Condition, Full Working OrderTested2 Year Warranty
Included:
1 x Arista DCS-7304 chassis
1 x Arista DCS-7300-SUP-D Supervisor cards
4 x Arista DCS-7320X-32C-LC 32 port QSFP100 (32 x 100GbE/40GbE or 128 x 25GbE/10GbE ports)
4 x Arista DCS-7324X-FM Fabric modules
4 x Arista PWR-3KT-AC-BLUE 2960W Power Supplies
8 x Arista FAN-7002H-F Fan Modules
The Arista 7300 Series modular switches are part of the Arista portfolio of data center switches. The 7300 Series with 7300X Series line cards increase flexibility and scalability for data center switches supporting both leaf and spine and SplineTM applications for collapsed end of row and aggregation. The 7300X systems share a common architecture with the Arista 7050X and 7250X Series and offer a choice of two modular systems, a 4-slot that support advanced features for network monitoring, precision timing and network virtualization to deliver scalable high performance for software defined cloud networking.
Increased adoption of 10 Gigabit Ethernet servers and applications requiring higher bandwidth is driving rapid adoption of 10 and 40 Gigabit Ethernet switching. The 7300 Series support a choice of high density line cards in combination with wire
speed layer 2/3/4 performance that provides a flexible combination of 100M, 1G, 10G and 40G switching to design large leaf and spine networks for scale-out of east-west traffic patterns with low latency and power efficiency.
With reversible front-to-rear or rear-to-front airflow, redundant and hot swappable supervisor, power, fabric and cooling modules the system is purpose built for data centers. The 7300 Series is energy efficient with typical power consumption of under 3 watts per 10GbE port for a fully loaded chassis. All of these attributes make the Arista 7300 Series an ideal platform for building reliable, low latency, resilient and scalable data center networks. Combined with Arista EOS the 7300 Series delivers advanced features for big data, cloud, virtualized and traditional designs.
Boot Log:
Aboot 3.1.0-3037031
Press Control-C now to enter Aboot shell
Booting flash:EOS.swi
[ 13.165421] Starting new kernel
[ 3.022085] Running dosfsck on: /mnt/flash
Switching rootfs
starting version 219
[ 72.574637] intel ips 0000:00:1f.6: thermal device not enabled (0xb0), aborting
Welcome to Arista Networks EOS 4.26.4M
New seat seat0.
Starting ProcMgr: Removing all files in all subdirs of /etc/ProcMgr.d/run
[ OK ]
Starting EOS initialization stage 1: [ OK ]
Starting NorCal initialization: [ OK ]
Starting isshd: [ OK ]
Starting EOS initialization stage 2: [ OK ]
Completing EOS initialization (press ESC to skip): [ OK ]
Model: 7300-SUP-D
Serial Number: JPE16490656
System RAM: 16394980 kB
Flash Memory size: 7.0G
localhost login: Dec 15 10:35:30 localhost StorageDevices: %STORAGEDEVICE-3-MONITOR_ERROR: A test operation (mountPtCheck) encountered an error on : not mounted
Dec 15 10:35:30 localhost StorageDevices: %STORAGEDEVICE-3-MONITOR_ERROR: A test operation (mountPtCheck) encountered an error on : not mounted
localhost login: admin
localhost(s1)#show version
Arista DCS-7304-F
Hardware version: 11.00
Serial number: HSH17015461
Hardware MAC address: 2899.3a19.52fd
System MAC address: 2899.3a19.52fd
Software image version: 4.26.4M
Architecture: i686
Internal build version: 4.26.4M-25280047.4264M
Internal build ID: class="MsoNoSpacing">Image format version: 1.0
Uptime: 4 minutes
Total memory: 16394980 kB
Free memory: 12811356 kB
localhost(s1)#show inventory
System information
Model Description
------------------------ class="MsoNoSpacing"> DCS-7304 DCS-7304X-MID Midplane
HW Version Serial Number Mfg Date Epoch
----------- -------------- ---------- -----
11.00 HSH17015461 2017-01-07 01.00
System has 10 card slots
Module Model HW Version Serial Number Mfg Date Epoch
------------- -------------- ------------ --------------- ------------- -----
Supervisor1 7300-SUP-D 11.10 JPE16490656 2017-02-08 01.00
Supervisor2 7300-SUP-D 11.10 JPE17015468 2017-01-13 01.00
Linecard3 7320X-32C-LC 11.10 JPE16482026 2016-12-16 01.00
Linecard4 7320X-32C-LC 11.10 JPE17022938 2017-01-16 01.00
Linecard5 7320X-32C-LC 11.10 JPE17022971 2017-01-16 01.00
Linecard6 7320X-32C-LC 11.10 JPE17015050 2017-01-09 01.00
Fabric1 7324X-FM 11.10 JPE17041958 2017-02-06 01.00
Fabric2 7324X-FM 11.10 JPE17041842 2017-02-04 01.00
Fabric3 7324X-FM 11.10 JPE17041828 2017-02-06 01.00
Fabric4 7324X-FM 11.10 JPE17041871 2017-02-06 01.00
System has 4 power supply slots
Slot Model Serial Number
---- ---------------- ----------------
1 PWR-3KT-AC-BLUE L303RQ00A7AYP
2 PWR-3KT-AC-BLUE L303SA018XAZP
3 PWR-3KT-AC-BLUE L303SA018YAZP
4 PWR-3KT-AC-BLUE L303RP000KAXP
System has 8 fan modules
Module Number of Fans Model Serial Number
------- --------------- ---------------- ----------------
1 1 FAN-7002H-F N/A
2 1 FAN-7002H-F N/A
3 1 FAN-7002H-F N/A
4 1 FAN-7002H-F N/A
5 1 FAN-7002H-F N/A
6 1 FAN-7002H-F N/A
7 1 FAN-7002H-F N/A
8 1 FAN-7002H-F N/A
System has 516 ports
Type Count
------------------ ----
Management 4
Switched 504
SwitchedBootstrap 8
System has 128 switched transceiver slots
Port Manufacturer Model Serial Number Rev
---- ---------------- ---------------- ---------------- ----
3/1 Not Present
3/2 Not Present
3/3 Not Present
3/4 Not Present
3/5 Not Present
3/6 Not Present
3/7 Not Present
3/8 Not Present
3/9 Not Present
3/10 Not Present
3/11 Not Present
3/12 Not Present
3/13 Not Present
3/14 Not Present
3/15 Not Present
3/16 Not Present
3/17 Not Present
3/18 Not Present
3/19 Not Present
3/20 Not Present
3/21 Not Present
3/22 Not Present
3/23 Not Present
3/24 Not Present
3/25 Not Present
3/26 Not Present
3/27 Not Present
3/28 Not Present
3/29 Not Present
3/30 Not Present
3/31 Not Present
3/32 Not Present
4/1 Not Present
4/2 Not Present
4/3 Not Present
4/4 Not Present
4/5 Not Present
4/6 Not Present
4/7 Not Present
4/8 Not Present
4/9 Not Present
4/10 Not Present
4/11 Not Present
4/12 Not Present
4/13 Not Present
4/14 Not Present
4/15 Not Present
4/16 Not Present
4/17 Not Present
4/18 Not Present
4/19 Not Present
4/20 Not Present
4/21 Not Present
4/22 Not Present
4/23 Not Present
4/24 Not Present
4/25 Not Present
4/26 Not Present
4/27 Not Present
4/28 Not Present
4/29 Not Present
4/30 Not Present
4/31 Not Present
4/32 Not Present
5/1 Not Present
5/2 Not Present
5/3 Not Present
5/4 Not Present
5/5 Not Present
5/6 Not Present
5/7 Not Present
5/8 Not Present
5/9 Not Present
5/10 Not Present
5/11 Not Present
5/12 Not Present
5/13 Not Present
5/14 Not Present
5/15 Not Present
5/16 Not Present
5/17 Not Present
5/18 Not Present
5/19 Not Present
5/20 Not Present
5/21 Not Present
5/22 Not Present
5/23 Not Present
5/24 Not Present
5/25 Not Present
5/26 Not Present
5/27 Not Present
5/28 Not Present
5/29 Not Present
5/30 Not Present
5/31 Not Present
5/32 Not Present
6/1 Not Present
6/2 Not Present
6/3 Not Present
6/4 Not Present
6/5 Not Present
6/6 Not Present
6/7 Not Present
6/8 Not Present
6/9 Not Present
6/10 Not Present
6/11 Not Present
6/12 Not Present
6/13 Not Present
6/14 Not Present
6/15 Not Present
6/16 Not Present
6/17 Not Present
6/18 Not Present
6/19 Not Present
6/20 Not Present
6/21 Not Present
6/22 Not Present
6/23 Not Present
6/24 Not Present
6/25 Not Present
6/26 Not Present
6/27 Not Present
6/28 Not Present
6/29 Not Present
6/30 Not Present
6/31 Not Present
6/32 Not Present
System has 2 storage devices
Mount Type Model Serial Number Rev Size (GB)
---------- ------- ---------------- ---------------- ---- ---------
unknown Unknown Unknown 0.0 0
/mnt/flash eUSB MICRON_eUSB_DISK 10F0082700102439 1111 8
localhost(s1)#show license
Customer name:
System Serial number:
System MAC address:
Domain name: Unknown
Platform: DCS-7304
localhost(s1)#show system environment all
System temperature status is: Ok
Action on overheat: shutdown
Recovery mode when power-cycle upon overheat: not applicable
Restrict recovery when ambient temperature is at or above: not applicable
Supervisor 1:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
1 Digital Temperature Sensor on cpu0 40.0 (N/A) 64.6 95 105
2 Digital Temperature Sensor on cpu1 34.0 (N/A) 64.6 95 105
3 Digital Temperature Sensor on cpu2 32.0 (N/A) 64.6 95 105
4 Digital Temperature Sensor on cpu3 33.0 (N/A) 64.6 95 105
5 Supervisor temp sensor 26.0 (N/A) 51.0 75 85
6 Plx0 sensor 48.5 (80) 77.2 100 103
7 Plx1 sensor 43.0 (80) 77.2 100 103
8 Rear sensor 19.0 (45) 42.2 65 75
9 Front sensor 18.0 (45) 42.2 65 75
10 CPU VRM temp sensor 0 21.0 (N/A) 71.4 105 110
11 CPU VRM temp sensor 1 21.0 (N/A) 71.4 105 110
Supervisor 2:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
Linecard 3:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
1 Board sensor 28.5 (N/A) 51.0 75 85
2 PCIe Switch 35.1 (N/A) 68.0 100 110
3 Board NIF 24.0 (N/A) 47.6 70 75
4 Switch chip 1 temp sensor 23.0 (N/A) 64.6 95 105
5 Switch chip 2 temp sensor 22.9 (N/A) 64.6 95 105
6 Tomahawk0 top left outer sensor 44.8 (90) 87.2 105 110
7 Tomahawk0 top right outer sensor 45.2 (90) 87.2 105 110
8 Tomahawk0 bottom right outer sensor 45.2 (90) 87.2 105 110
9 Tomahawk0 bottom left outer sensor 44.3 (90) 87.2 105 110
10 Tomahawk0 top outer sensor 43.8 (90) 87.2 105 110
11 Tomahawk0 left inner sensor 41.8 (90) 87.2 105 110
12 Tomahawk0 bottom inner sensor 39.4 (90) 87.2 105 110
13 Tomahawk0 bottom outer sensor 40.9 (90) 87.2 105 110
14 Tomahawk1 top left outer sensor 43.3 (90) 87.2 105 110
15 Tomahawk1 top right outer sensor 42.3 (90) 87.2 105 110
16 Tomahawk1 bottom right outer sensor 41.3 (90) 87.2 105 110
17 Tomahawk1 bottom left outer sensor 43.3 (90) 87.2 105 110
18 Tomahawk1 top outer sensor 42.3 (90) 87.2 105 110
19 Tomahawk1 left inner sensor 39.9 (90) 87.2 105 110
20 Tomahawk1 bottom inner sensor 39.9 (90) 87.2 105 110
21 Tomahawk1 bottom outer sensor 40.4 (90) 87.2 105 110
Linecard 4:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
1 Board sensor 26.0 (N/A) 51.0 75 85
2 PCIe Switch 33.2 (N/A) 68.0 100 110
3 Board NIF 23.8 (N/A) 47.6 70 75
4 Switch chip 1 temp sensor 22.5 (N/A) 64.6 95 105
5 Switch chip 2 temp sensor 22.5 (N/A) 64.6 95 105
6 Tomahawk0 top left outer sensor 44.3 (90) 87.2 105 110
7 Tomahawk0 top right outer sensor 44.8 (90) 87.2 105 110
8 Tomahawk0 bottom right outer sensor 44.8 (90) 87.2 105 110
9 Tomahawk0 bottom left outer sensor 41.3 (90) 87.2 105 110
10 Tomahawk0 top outer sensor 43.3 (90) 87.2 105 110
11 Tomahawk0 left inner sensor 41.3 (90) 87.2 105 110
12 Tomahawk0 bottom inner sensor 39.9 (90) 87.2 105 110
13 Tomahawk0 bottom outer sensor 40.4 (90) 87.2 105 110
14 Tomahawk1 top left outer sensor 46.2 (90) 87.2 105 110
15 Tomahawk1 top right outer sensor 44.3 (90) 87.2 105 110
16 Tomahawk1 bottom right outer sensor 43.3 (90) 87.2 105 110
17 Tomahawk1 bottom left outer sensor 42.3 (90) 87.2 105 110
18 Tomahawk1 top outer sensor 43.3 (90) 87.2 105 110
19 Tomahawk1 left inner sensor 43.8 (90) 87.2 105 110
20 Tomahawk1 bottom inner sensor 40.9 (90) 87.2 105 110
21 Tomahawk1 bottom outer sensor 41.3 (90) 87.2 105 110
Linecard 5:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
1 Board sensor 27.1 (N/A) 51.0 75 85
2 PCIe Switch 39.2 (N/A) 68.0 100 110
3 Board NIF 24.1 (N/A) 47.6 70 75
4 Switch chip 1 temp sensor 22.8 (N/A) 64.6 95 105
5 Switch chip 2 temp sensor 22.9 (N/A) 64.6 95 105
6 Tomahawk0 top left outer sensor 41.3 (90) 87.2 105 110
7 Tomahawk0 top right outer sensor 44.3 (90) 87.2 105 110
8 Tomahawk0 bottom right outer sensor 45.7 (90) 87.2 105 110
9 Tomahawk0 bottom left outer sensor 43.3 (90) 87.2 105 110
10 Tomahawk0 top outer sensor 42.3 (90) 87.2 105 110
11 Tomahawk0 left inner sensor 39.9 (90) 87.2 105 110
12 Tomahawk0 bottom inner sensor 38.4 (90) 87.2 105 110
13 Tomahawk0 bottom outer sensor 41.3 (90) 87.2 105 110
14 Tomahawk1 top left outer sensor 43.8 (90) 87.2 105 110
15 Tomahawk1 top right outer sensor 43.8 (90) 87.2 105 110
16 Tomahawk1 bottom right outer sensor 44.8 (90) 87.2 105 110
17 Tomahawk1 bottom left outer sensor 43.8 (90) 87.2 105 110
18 Tomahawk1 top outer sensor 41.3 (90) 87.2 105 110
19 Tomahawk1 left inner sensor 40.4 (90) 87.2 105 110
20 Tomahawk1 bottom inner sensor 37.4 (90) 87.2 105 110
21 Tomahawk1 bottom outer sensor 39.4 (90) 87.2 105 110
Linecard 6:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
1 Board sensor 27.0 (N/A) 51.0 75 85
2 PCIe Switch 34.2 (N/A) 68.0 100 110
3 Board NIF 24.5 (N/A) 47.6 70 75
4 Switch chip 1 temp sensor 22.1 (N/A) 64.6 95 105
5 Switch chip 2 temp sensor 22.8 (N/A) 64.6 95 105
6 Tomahawk0 top left outer sensor 42.3 (90) 87.2 105 110
7 Tomahawk0 top right outer sensor 42.8 (90) 87.2 105 110
8 Tomahawk0 bottom right outer sensor 45.2 (90) 87.2 105 110
9 Tomahawk0 bottom left outer sensor 44.3 (90) 87.2 105 110
10 Tomahawk0 top outer sensor 41.8 (90) 87.2 105 110
11 Tomahawk0 left inner sensor 42.3 (90) 87.2 105 110
12 Tomahawk0 bottom inner sensor 39.9 (90) 87.2 105 110
13 Tomahawk0 bottom outer sensor 40.9 (90) 87.2 105 110
14 Tomahawk1 top left outer sensor 45.2 (90) 87.2 105 110
15 Tomahawk1 top right outer sensor 45.2 (90) 87.2 105 110
16 Tomahawk1 bottom right outer sensor 43.3 (90) 87.2 105 110
17 Tomahawk1 bottom left outer sensor 40.9 (90) 87.2 105 110
18 Tomahawk1 top outer sensor 43.8 (90) 87.2 105 110
19 Tomahawk1 left inner sensor 41.8 (90) 87.2 105 110
20 Tomahawk1 bottom inner sensor 37.9 (90) 87.2 105 110
21 Tomahawk1 bottom outer sensor 39.9 (90) 87.2 105 110
Fabric 1:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
1 Board sensor 25.2 (N/A) 47.6 70 75
2 Fabric chip 1 temp sensor 28.9 (N/A) 64.6 95 105
3 Board Front 20.0 (60) 57.2 70 75
4 Board Back 21.2 (60) 57.2 70 75
5 Tomahawk0 top left outer sensor 41.3 (90) 87.2 105 110
6 Tomahawk0 top right outer sensor 41.3 (90) 87.2 105 110
7 Tomahawk0 bottom right outer sensor 43.3 (90) 87.2 105 110
8 Tomahawk0 bottom left outer sensor 41.8 (90) 87.2 105 110
9 Tomahawk0 top outer sensor 37.4 (90) 87.2 105 110
10 Tomahawk0 left inner sensor 37.9 (90) 87.2 105 110
11 Tomahawk0 bottom inner sensor 36.5 (90) 87.2 105 110
12 Tomahawk0 bottom outer sensor 38.4 (90) 87.2 105 110
Fabric 2:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
1 Board sensor 26.2 (N/A) 47.6 70 75
2 Fabric chip 1 temp sensor 31.6 (N/A) 64.6 95 105
3 Board Front 20.2 (60) 57.2 70 75
4 Board Back 20.8 (60) 57.2 70 75
5 Tomahawk0 top left outer sensor 46.2 (90) 87.2 105 110
6 Tomahawk0 top right outer sensor 47.7 (90) 87.2 105 110
7 Tomahawk0 bottom right outer sensor 49.6 (90) 87.2 105 110
8 Tomahawk0 bottom left outer sensor 46.2 (90) 87.2 105 110
9 Tomahawk0 top outer sensor 44.8 (90) 87.2 105 110
10 Tomahawk0 left inner sensor 45.2 (90) 87.2 105 110
11 Tomahawk0 bottom inner sensor 44.8 (90) 87.2 105 110
12 Tomahawk0 bottom outer sensor 44.8 (90) 87.2 105 110
Fabric 3:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
1 Board sensor 26.9 (N/A) 47.6 70 75
2 Fabric chip 1 temp sensor 31.0 (N/A) 64.6 95 105
3 Board Front 21.4 (60) 57.2 70 75
4 Board Back 21.5 (60) 57.2 70 75
5 Tomahawk0 top left outer sensor 44.8 (90) 87.2 105 110
6 Tomahawk0 top right outer sensor 43.3 (90) 87.2 105 110
7 Tomahawk0 bottom right outer sensor 46.2 (90) 87.2 105 110
8 Tomahawk0 bottom left outer sensor 46.2 (90) 87.2 105 110
9 Tomahawk0 top outer sensor 41.8 (90) 87.2 105 110
10 Tomahawk0 left inner sensor 41.8 (90) 87.2 105 110
11 Tomahawk0 bottom inner sensor 40.4 (90) 87.2 105 110
12 Tomahawk0 bottom outer sensor 43.3 (90) 87.2 105 110
Fabric 4:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
1 Board sensor 27.1 (N/A) 47.6 70 75
2 Fabric chip 1 temp sensor 31.0 (N/A) 64.6 95 105
3 Board Front 22.2 (60) 57.2 70 75
4 Board Back 22.2 (60) 57.2 70 75
5 Tomahawk0 top left outer sensor 43.8 (90) 87.2 105 110
6 Tomahawk0 top right outer sensor 42.8 (90) 87.2 105 110
7 Tomahawk0 bottom right outer sensor 44.8 (90) 87.2 105 110
8 Tomahawk0 bottom left outer sensor 42.8 (90) 87.2 105 110
9 Tomahawk0 top outer sensor 40.9 (90) 87.2 105 110
10 Tomahawk0 left inner sensor 40.9 (90) 87.2 105 110
11 Tomahawk0 bottom inner sensor 39.4 (90) 87.2 105 110
12 Tomahawk0 bottom outer sensor 40.4 (90) 87.2 105 110
PowerSupply 1:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
1 ORing FET sensor 17.0 (N/A) 79.6 102 109
2 Ambient sensor 21.2 (55) 52.2 65 75
3 PFC sensor 16.3 (N/A) 62.4 80 98
PowerSupply 2:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
1 ORing FET sensor 17.3 (N/A) 79.6 102 109
2 Ambient sensor 21.2 (55) 52.2 65 75
3 PFC sensor 18.1 (N/A) 62.4 80 98
PowerSupply 3:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
1 ORing FET sensor 17.6 (N/A) 79.6 102 109
2 Ambient sensor 21.6 (55) 52.2 65 75
3 PFC sensor 15.8 (N/A) 62.4 80 98
PowerSupply 4:
Alert Critical
Temp Setpoint Limit Limit
Sensor Description (C) (C) (C) (C)
------- ----------------------------------- ------- ----------- ------ ---------
1 ORing FET sensor 17.1 (N/A) 79.6 102 109
2 Ambient sensor 19.8 (55) 52.2 65 75
3 PFC sensor 15.8 (N/A) 62.4 80 98
System cooling status is: Ok
Ambient temperature: 18C
Airflow: port-side intake
Config Actual Speed Stable
Fan Status Speed Speed Uptime Stability Uptime
-------------- ------ ------ ------ ------- ----------- -------
1/1 Ok 35% 34% 0:02:42 Stable 0:01:54
1/2 Ok 35% 35% 0:02:42 Stable 0:01:54
2/1 Ok 35% 34% 0:02:43 Stable 0:01:54
2/2 Ok 35% 34% 0:02:43 Stable 0:01:54
3/1 Ok 35% 35% 0:02:42 Stable 0:01:54
3/2 Ok 35% 35% 0:02:42 Stable 0:01:54
4/1 Ok 35% 34% 0:02:43 Stable 0:01:54
4/2 Ok 35% 35% 0:02:43 Stable 0:01:54
PowerSupply1/1 Ok 30% 32% 0:02:05 FW Override N/A
PowerSupply2/1 Ok 30% 33% 0:02:02 FW Override N/A
PowerSupply3/1 Ok 30% 35% 0:02:07 FW Override N/A
PowerSupply4/1 Ok 30% 41% 0:02:00 FW Override N/A
Power Input Output Output
Supply Model Capacity Current Current Power Status Uptime
------ --------------- -------- ------- ------- ------- ------ -------
1 PWR-3KT-AC-BLUE 3000W 1.45A 25.38A 306.5W Ok 0:02:05
2 PWR-3KT-AC-BLUE 3000W 1.55A 26.97A 326.0W Ok 0:02:02
3 PWR-3KT-AC-BLUE 3000W 1.67A 29.03A 352.0W Ok 0:02:07
4 PWR-3KT-AC-BLUE 3000W 2.11A 36.06A 434.5W Ok 0:02:00
Total -- 12000W -- -- 1419.0W -- --
