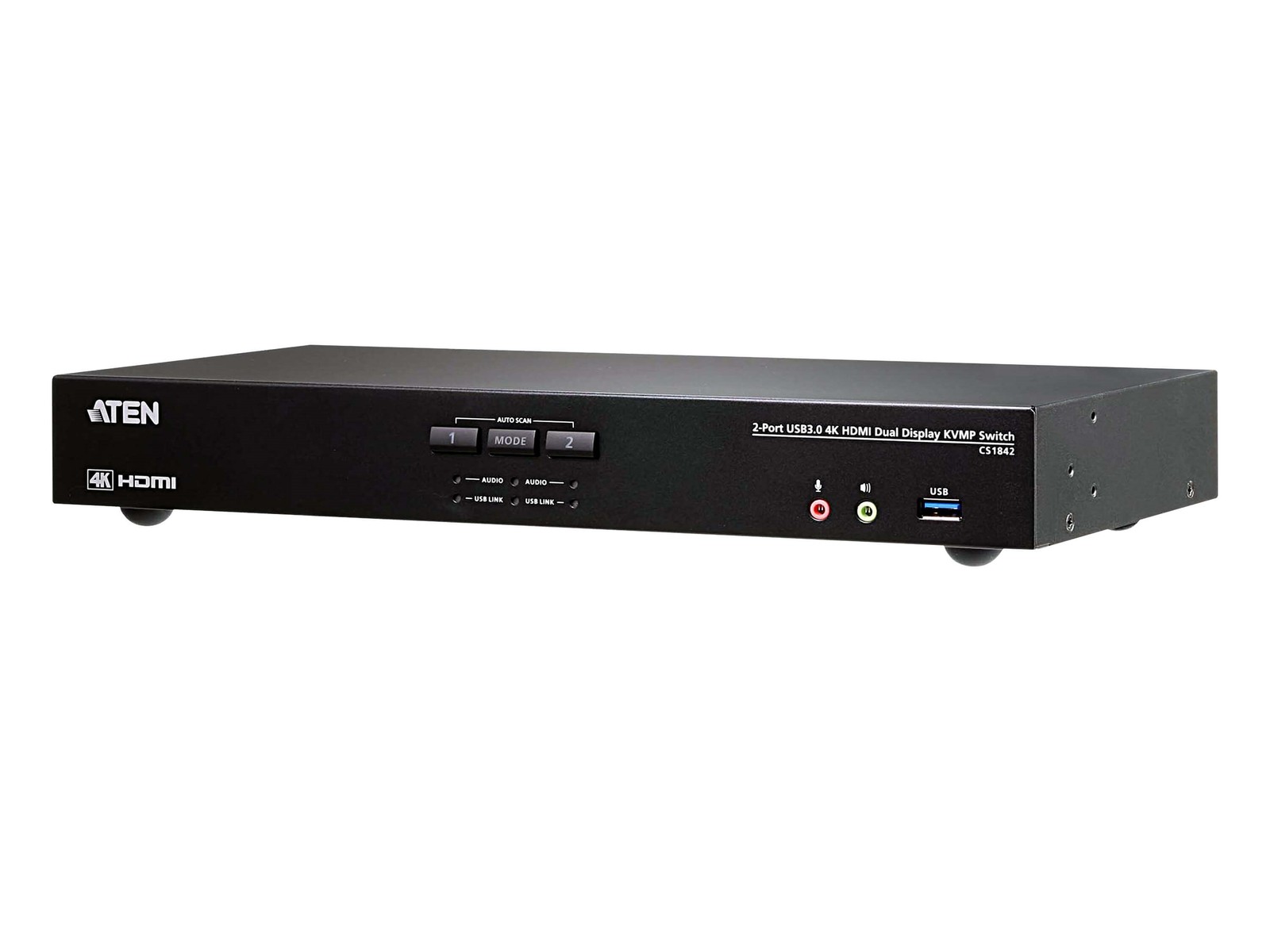

for All Products Aten CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP Switch Manufacturer:Aten SKU:CS1842 Condition:New Warranty:3 Years
The ATEN CS1842 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant and effortless access to two HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users’ needs, the CS1842 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 at 60Hz), offering the most stunning and vivid visuals.
In addition, with patented ATEN technology - Video DynaSync™, which optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports, providing a smooth and uninterrupted user experience. Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.
Features:
- One USB keyboard, mouse and two HDMI monitors control two HDMI computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Video DynaSync™ - an exclusive ATEN technology that optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports
- Supports superior video quality - 4K UHD (3840 x 2160 at 60Hz) and 4K DCI (4096 x 2160 at 60Hz)
- Computer selection via pushbuttons, hotkeys, mouse1, remote port selector, and RS-232 commands2
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports console keyboard emulation / bypass feature
- Supports console mouse emulation / bypass feature
- Independent switching of KVM, USB peripheral, and stereo audio focus3
- Multilingual keyboard mapping - supports English, French, Japanese, and German keyboards
- HDMI 2.0 compliant;HDCP2.2 compliant
- Supports HD audio3
- Power on detection
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
Note:
1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
2. Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45-to-DB-9 cable. Please refer to the CS1842/CS1844user manual.
3. HD audio through HDMI channel cannot be switched Computer Connections 2 Port Selection Hotkey, Pushbutton, Mouse, RS-232 Commands, Remote Port Selector Connectors Console Ports 2 x USB Type A Female
2 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) KVM (Computer) Ports 2 x USB3.1 Gen1 Type B Female (Blue)
4 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink) Daisy Chain Ports 1 x RJ-45 Female Remote Port Selector 1 x 2.5mm Audio Jack Female Power 1 x DC Jack USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear) Switches Selected 3 x Pushbutton Station Selection 1 x Slide Switch LEDs On Line /Selected 3 (Orange) USB Link 3 (Green) Audio 3 (Green) Emulation Keyboard / Mouse USB Video 4096 x 2160 at 60Hz Scan Interval 1-99 Seconds (Default: 5 sec.) Power Consumption DC12V:3.17W:57BTU Environmental Operating Temperature 0-40°C Storage Temperature -20-60°C Humidity 0-80% RH, Non-condensing Physical Properties Housing Metal Weight 1.60 kg ( 3.52 lb ) Dimensions (L x W x H) 33.50 x 16.05 x 4.40 cm
(13.19 x 6.32 x 1.73 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Includes:
- 1x CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
- 4x HDMI 2.0 Cables
- 2x USB 3.0 Cables
- 2x Speaker Cables
- 2x Microphone Cables
- 1x Power Adapter
- 1x Remote Port Selector
- 1x User Instructions
