for All Products Aten CS1944DP 4-Port USB 3.1 Gen1 4K DisplayPort Dual Display KVM Switcher Manufacturer:Aten SKU:CS1944DP Condition:New Warranty:3 Years

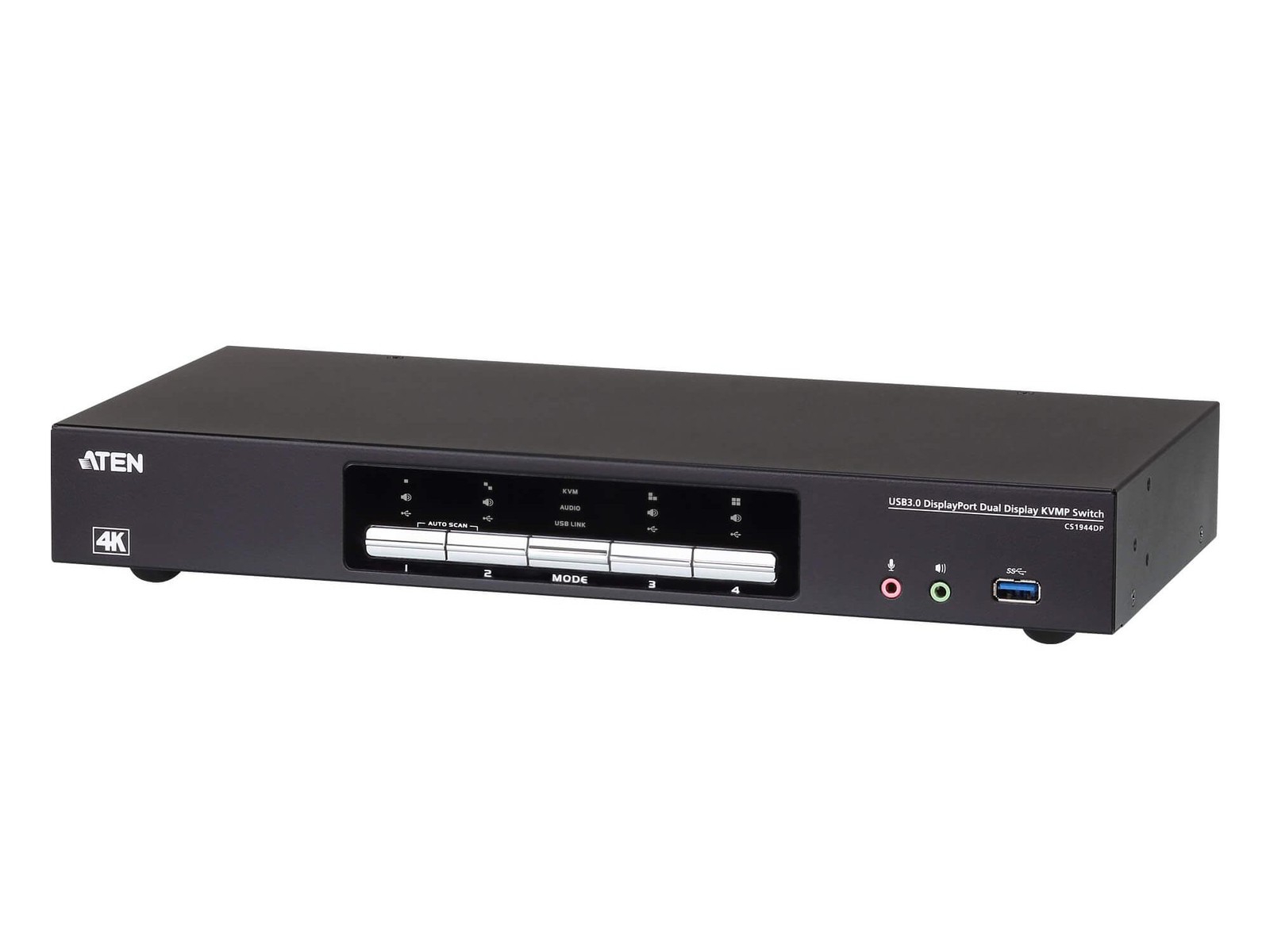

The CS1944DP is a desktop KVM switch designed to consolidate multiple DisplayPort workstations onto a single keyboard and mouse - it provides quick access to up to four host computers while sharing two DisplayPort monitors. This unit supports dual-display configurations so users can extend their desktop across two monitors for expanded workspace. The switch is aimed at users who need efficient control of multimedia and multi-system setups.
Key features include support for DisplayPort video up to 4096 x 2160 and 3840 x 2160 at 60 Hz - ensuring crisp and accurate image reproduction. The built-in USB 3.1 Gen1 hub provides SuperSpeed 5 Gbps data transfer rates for shared peripherals and fast file access. The CS1944DP also supports DisplayPort Dual-Mode (DP++) and MST to accommodate modern graphics output methods.
Performance-wise the CS1944DP handles lossless 4K video and HD audio pass-through while maintaining keyboard and mouse emulation for stable control during system switching. The device is HDCP compliant and supports console keyboard/mouse emulation and bypass features to preserve input behavior across connected systems. Firmware is upgradeable to maintain compatibility and add features over time.
Connectivity includes two console DisplayPort outputs, two USB Type-A console ports, four USB3.1 Gen1 Type-B computer ports, eight DisplayPort computer ports, multiple 3.5mm audio jacks and an RJ-45 daisy chain port. Control options include front-panel pushbuttons, hotkeys, mouse switching and RS-232 commands for remote control and automation. The unit supports multilingual keyboard mapping for English, French, German and Japanese layouts.
Typical applications are design studios, financial trading desks and video post production environments where multi-system access and dual-display real estate are critical. The CS1944DP streamlines workflows by enabling rapid switching between systems without changing peripherals. It also supports daisy-chaining to expand to quad-display setups when additional units are linked.
Installation and daily operation are straightforward thanks to a metal housing, front-panel controls and power-on detection. The unit consumes DC12V:5.76W and operates in standard office temperature and humidity ranges, making it suitable for desktop and equipment-rack environments. Overall the CS1944DP combines robust build quality with professional-grade connectivity for multi-computer DisplayPort setups.
Specifications:
Computer Connections 4 Port Selection Hotkey, Pushbutton, Mouse, RS-232 Commands Video 4096 x 2160 at 60Hz Connectors Console Ports 2 x USB Type A Female, 2 x DisplayPort Female (Black), 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear), 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) KVM (Computer) Ports 4 x USB3.1 Gen1 Type B Female (Blue), 8 x DisplayPort Female (Black), 4 x 3.5mm Audio Jack Female (Green), 4 x 3.5mm Audio Jack Female (Pink) Daisy Chain Ports 1 x RJ-45 Female Power 1 x DC Jack USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear) Switches Selected 5 x Pushbutton Station Selection 1 x Slide Switch Emulation Keyboard / Mouse USB Scan Interval 1-99 seconds (default: 5 seconds) Power Consumption DC12V:5.76W:84BTU Environmental Operating Temperature 0–50°C Storage Temperature -20–60°C Humidity 0-80% RH, Non-condensing Physical Properties Housing Metal Weight 1.51 kg ( 3.33 lb ) Dimensions (L x W x H) 33.50 x 15.66 x 4.40 cm, (13.19 x 6.17 x 1.73 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Includes:
- 1x 4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
- 8x DisplayPort 1.2 Cables
- 4x USB 3.0 Cables
- 8x Audio Cables
- 1x Power Adapter
- 1x User Instructions
