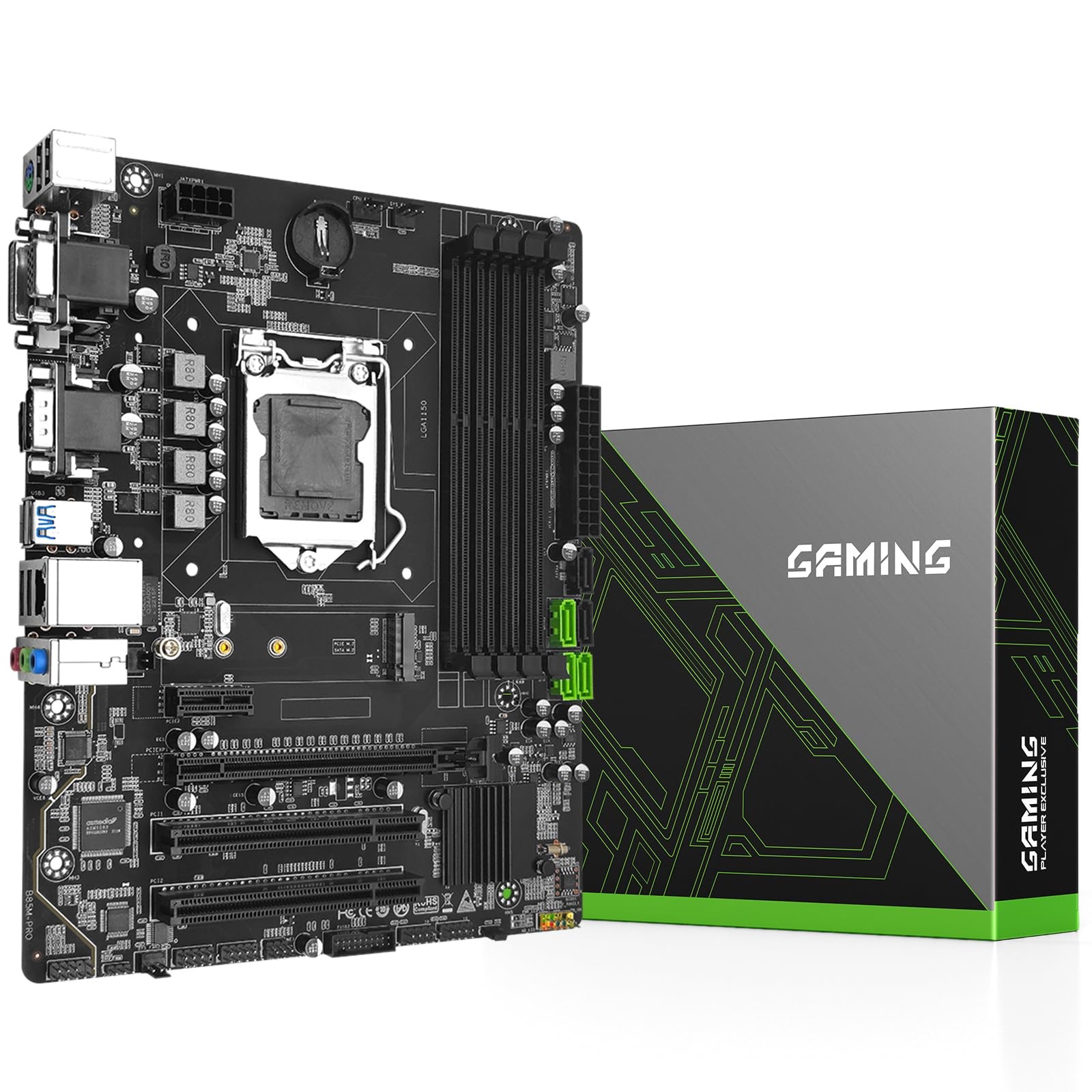

B85M Gaming Motherboard is committed to creating the ultimate smooth computer experience!
☞With exquisite quality and craftsmanship, meet your office, entertainment, and gaming needs.
Gigabit network card, transmission speed is up to 1000Mbit/s.
All solid capacitors, fine workmanship, and professional stability.
Support M.2 NVME or M.2 SATA Protocol hard disk, to achieve faster data transfer speeds.
3 kinds of video interfaces, max support three displays, and meet daily office needs.
Equipped with B85 chipset, 8-layer PCB material, faster transmission efficiency, and longer service life.
The new aesthetic design, rapid heat dissipation, and stable work under high load.
Optimized circuit layout and fully separated memory circuit design ensure strong stability without worrying about system crashes during gameplay.
Metal Aluminum Material provides effective heat dissipation, to provide effective heat dissipation for the chipset.
What's in the Box?
1 * Motherboard
1 * I/O Blocking
1 * SATA Cable
LGA 1150 Socket: The gaming motherboard supports Intel 4th gen processor (Core i7/i5/i3/Pentium/Celeron/E3 series) with LGA 1150 CPU socket, e.g. i5 4570, i5 4690k, i7 4790, i7 4790k, etc.
Dual-channel DDR3: The Intel LGA1150 motherboard supports dual-channel DDR3 desktop memory, 1333/1600/1866MHz frequency type, the maximum memory capacity is 32GB (4*8GB)
High-speed Interface: The computer motherboard supports M.2 protocol, NVME and SATA mode automatic switching. And it is equipped with 1 RJ45 gigabit network, 1 PCIe x16 3.0, 1 PCIe x1 2.0, 2 PCI, 3 SATA 3.0, and VGA, DVI, HDMI-high-definition multimedia transmission interface
Stable Power Supply: 4-phase power supply, all-solid-state capacitor design, fine workmanship, professional stability. And the LGA 1150 M-ATX placa madre is equipped with 24+8 pin power interface (at least 500w brand power supply)
High Performance Motherboard: The Intel DDR3 motherboard is equipped with B85 chipset. And the 8-layer PCB design effectively extends its service life. Heat dissipation armor protection, with strong heat dissipation, to ensure stable bus communication
Package Includes: 1*B85M motherboard, 1*SATA cable, 1*I/0 shield. IMPORTANT: The package does not contain a user manual. If you need the manual, please download it from the product description page or ask us on to get it. And the motherboard does not include a CR2032 battery, please purchase yourself.
Tips 1: If the motherboard does not boot and the fan does not work, please check whether the motherboard power supply and CPU power supply are correctly connected, whether the CPU model and memory model are or good, and whether the memory module is installed in the correct position. If it still does not start after eliminating the above problems, please clear CMOS
Tips 2: If there is no display (the fan is working, the Caps Lock key on the keyboard is pressed, and the keyboard light is off), please check whether the motherboard power supply and CPU power supply are correctly connected, check whether the memory module is installed in the correct position, and check whether the CPU and memory models are and good. If there is still no display after eliminating the above, please clear CMOS
Tips 3: If there is no display (the fan is working, the Caps Lock key on the keyboard is pressed, and the keyboard light is on). Please check whether the monitor is turned on and whether the display data cable is connected properly. If no external graphics card is installed, please check whether the CPU supports integrated graphics. If an external graphics card is installed, please check whether the data cable is correctly connected to the interface of the external graphics card. Check whether the display data cable, graphics card and monitor are in good condition. If there is still no display after eliminating the above, please clear CMOS
