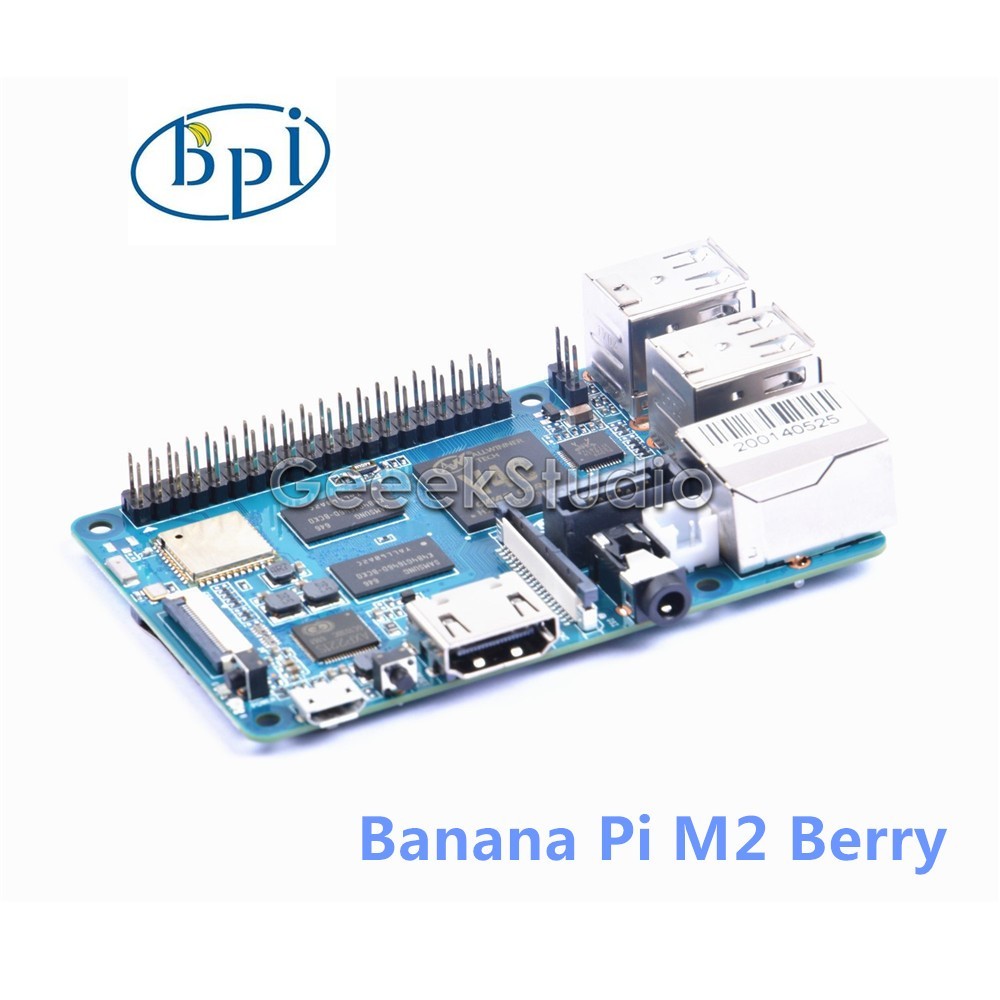

What is Banana Pi M2 Berry Banana Pi BPI-M2 Berry is a quad-core mini single board computer built with Allwinner V40 SoC. It features 1GB of RAM . It also has onboard WiFi and BT. On the ports side, the BPI-M2 Berry has 4 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, a DC power port, and last but not least, a SATA port..
Also being a member of the Banana Pi family, the M2 Berry is a direct upgrade from the Banana Pi M1/M1+ that support SATA from the SoC. The SATA performance on the V40 is fitting for media related projects such as storage servers. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project. Features: - Quad Core ARM Cortex A7 CPU V40.
- 1GB DDR3 SDRAM.
- WiFi (AP6212) & Bluetooth onboard.
- SATA Interface.
- No 8G eMMC flash onboar
- Not support Built-in 3.7V Lithium Battery Charging Circuit
- BPI-M2 Berry is same size as raspberry pi 3 , so you can use raspberry pi box .
Package includes: 1 * Banana Pi M2 Berry
- M2 Berry SpecificationsCPUquad-core cortex -A7 V40GPUMALI-400 MP2 @ 500MHzMemory1GB DDR3 SDRAM (shared with GPU)Storage SupportMicroSD Card(up to 64GB)/SATAOnboard Network10/100/1000Mbps ethernet (Realtek RTL8211E/D)WiFi802.11 b/g/n (AP6212)BluetoothBT4.0 (AP6212)Video InCSI connector that supports 8-bit YUV422 CMOS sensor CSI, CCIR656 protocol for NTSC and PAL, 5MP camera, 1080p video @30HzVideo OutHDMI 1.4 1080P60
MIPI DSI for RAW LCD panelsAudio Out3.5 mm Jack and HDMIAudio InOn board microphonePower Source5V 2A Micro USBUSB Ports4x USB 2.0, USB OTG(Micro USB)ButtonsReset button, Power button, U-boot buttonGPIO40 Pins: GPIO, UART, I2C bus, I2S bus, SPI bus, PWN, +3.3v, +5v, groundLEDPower status Led and RJ45 LedIROnboard IR receiverOSAndroid and Linux etc.OSDimensions92mm x 60mmWeight45g
