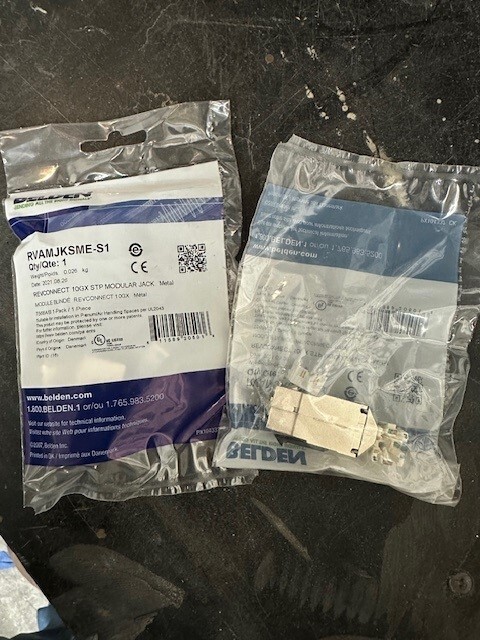

Belden RevConnect 10GX STP Modular Jack Metal T568 A/B RVAMJKSME-sold by each**
Price: US $17.25
MaterialsFront Connection Copper Clad Flexible PCB, 50uin Gold plated contacts over Nickel RJ45 Rear Connection Copper alloy, Gold plated contacts over Nickel Revconnect Connector Body Nickel plated zinc alloy diecastElectrical Characteristics
Dielectric Strength: 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground) Current Rating: 1.300 A Insulation Resistance: 500 M-Ohm Minimum Max Contact Resistance: 20 mOhm Termination Resistance: 2.5 mOhm
Mechanical Characteristics
Footprint/Type: REVConnect Tool Compatibility: RVUTT01 Termination Tool Plug /Jack Compatibility: RJ45, RJ11 Termination Front Connection: Mated Connection Termination Front Connection Durability: 750 cycles Termination Rear Connection: Mated Connection
Termination Rear Connection Durability: 20 cycles Cable/Connector Retention: 15 lbs. Connector/Hardware Retention: 20 lbs Plug/Connector Retention: 11.250 lbs
Standards UL Rating: UL94V-0 Data Category: Category 6A TIA/EIA Compliance: Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2 IEEE Compliance: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W) Other Standards: IEC 60603-7
