• KVM switching of up to four devices plus multiplatform support for PC and Sun!
• Quality video with a maximum resolution of 1600 x 1280 at 100 Hz.
• Built-in PS/2 and ATr compatibility.
• Cascade multiple switches to control additional CPUs.
• Model with USB port also available.
• Stereo audio and microphone jacks.
• Microsoft IntelliMouse and burst-mode/prompt-mode support.

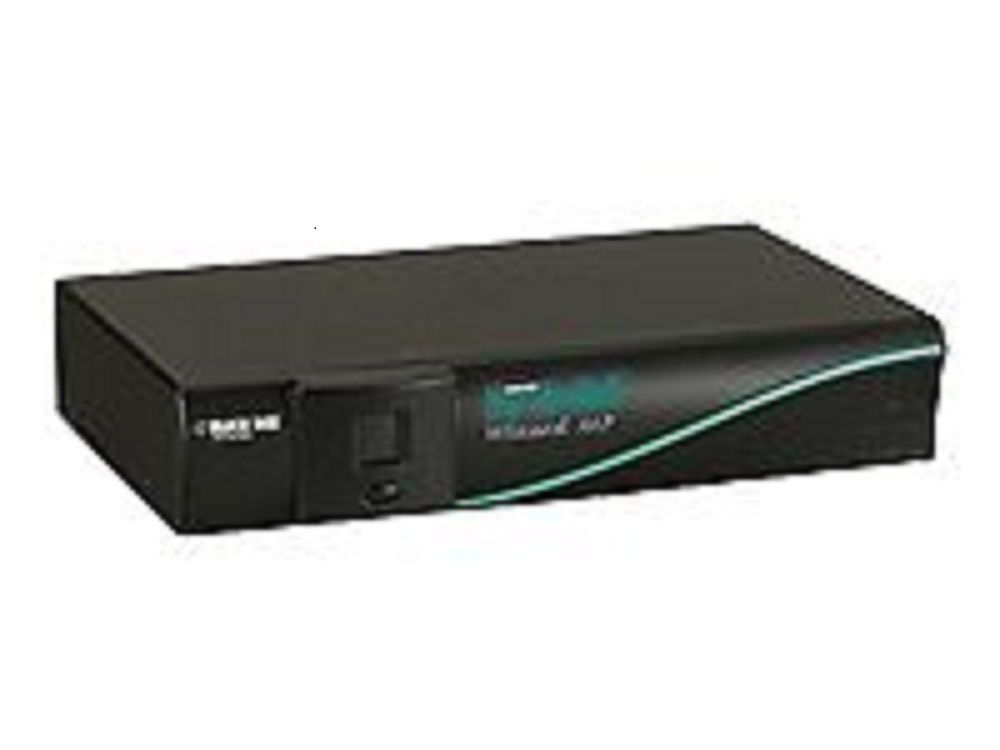

The ServSwitch WizardT MP has all the features of our popular ServSwitch Wizard built into a multiplatform unit.The versatile switch supports KVM switching for PS/2r and Sunr machines, automatically converting the signaling between the two platforms. This means you can mix controlling equipment, such as a Sun keyboard and a PS/2 mouse-the Wizard MP supports both!The switch also has jacks for stereo audio and a microphone, making it ideal for multimedia uses.The ServSwitch Wizard MP works with a wide variety of software platforms, including most Windowsr versions, DOS, UNIXr, Linuxr, Novellr NetWarer, and OS/2r. Video channels on the switch support Display Data Channel signalling.To switch channels, you can use a push button, the keyboard, a three-button mouse, or Sun "hot media" keys. The switch automatically detects attached hardware, and continuous keyboard and mouse emulation on all ports prevents lockups and ensures problem-free bootups. Plus, it automatically restores keyboard and mouse states when you change channels.The ServSwitch Wizard MP can be used with Microsoftr IntelliMouser and other common wheel mice. For applications that connect computers with USB keyboard and mouse ports, order the KV805A.As an added convenience, the Wizard MP draws its power from the connected computer CPUs. But if that's not enough power for reliable operation, order the 5-V Power Supply (PS649).With its many features-flash upgrades, high-bandwidth support, password security, and more-the Wizard MP works like magic!Specifications
Resolution (Maximum) - 1600 x 1280 noninterlaced @ 100 Hz
CE Approval - Yes
Connectors - (4) DB25 F, (2) 6-pin mini DIN F, (1) 8-pin mini DIN F, (1) HD15 F, (1) DB15 F options/flash port, (1) 3.5-mm microphone jack, (1) 3.5-mm stereo speaker jack, (1) power jack
Power - From the interface; optional 5-VDC, 300-mA power supply available
Size - 1.75"H (1U) x 10.3"W x 5.9"D (4.4 x 26.2 x 15 cm)
Weight - 3.8 lb. (1.7 kg)
What's Included

• Black Box ServSwitch Wizard MP 4 Port KVM Switch
• DB9 female to DB15 male cable
• Warranty/Registration Card
• User Manual
