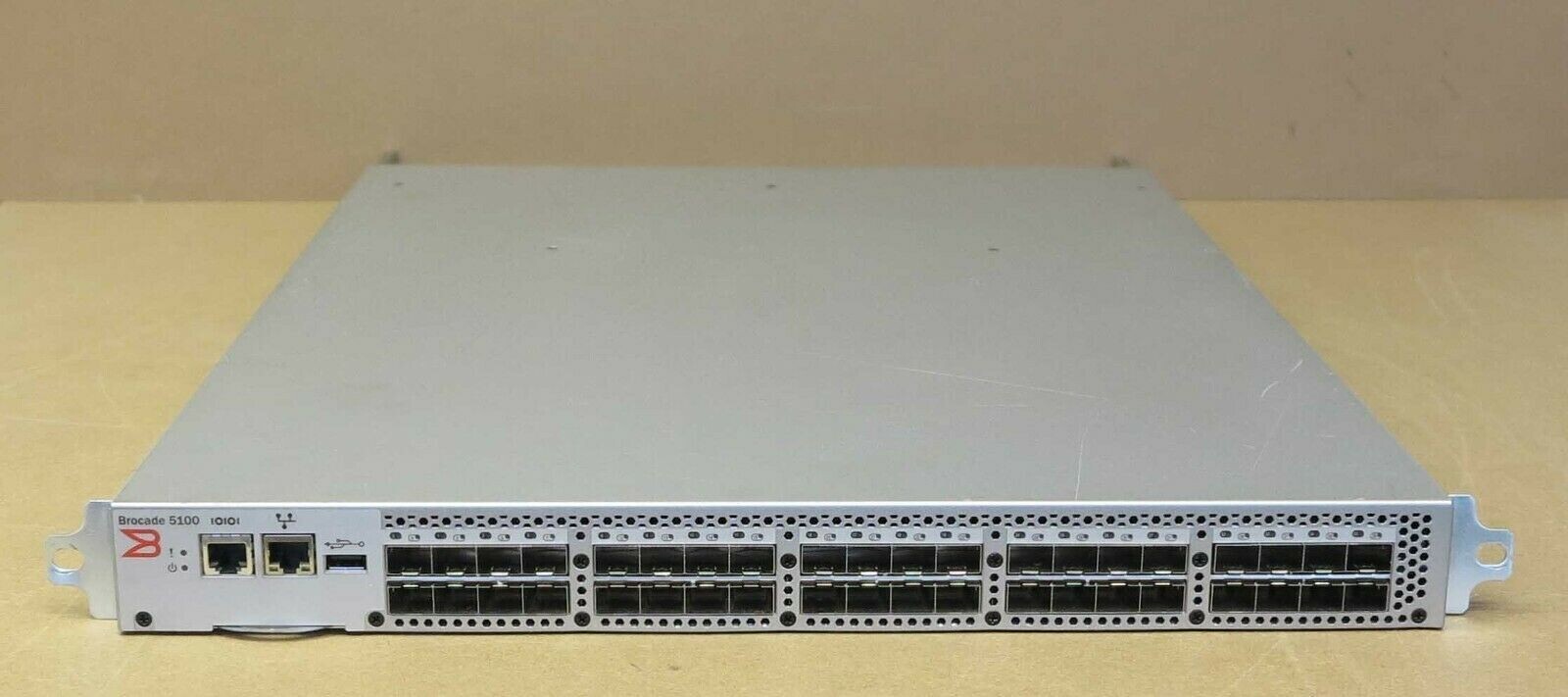

Brocade 5100 40-Port 8Gb FC SAN Switch 24-Port Active SM-5120-1000
Price: GB $643.39
Brocade 5100 40-Port 8Gb FC SAN Switch 24-Port Active
SM-5120-1000Model No: 5100P/N: SM-5120-1000P/N: 80-1002683-03
In Good ConditionIn Full Working Order
24-Ports ActiveFabric, Extended Fabric, Fabric Watch, Enhanced Group Management,Trunking and 8 Gig FC LicensesIncluded
  • 1 x Brocade 5100 40-Port 8Gb FC SAN Switch 24-Port Active SM-5120-1000 with Rail

Overview
The Brocade 5100 is ideal for organizations requiring a flexible solution that will meet rapidly evolving storage requirements, either as a building-block switch for a small SAN or as a high-performance edge switch in larger core-to-edge SAN configurations. With a flexible architecture that supports 1, 2, 4 and 8 Gbit/sec technology with 24, 32, or 40 ports, the Brocade 5100 provides an affordable high-port-count, single-domain solution.
Delivers full 8 Gbit/sec 1:1 performance for up to 40 ports in an energy-efficient, optimized 1U form factor
Offers best-in-class port density and scalability for midrange enterprise SAN switches along with redundant, hot-pluggable components and non-disruptive software upgrades
Protects existing device investments with auto-sensing 1, 2, 4, and 8 Gbit/sec capabilities and native operation with Brocade and Brocade M-Series fabrics
Features Ports on Demand capabilities for fast, easy, and cost-effective scalability from 24 to 40 ports in 8-port increments
Provides Adaptive Networking services, such as Quality of Service (QoS), to help optimize application performance in consolidated, virtual environments
Supports Fibre Channel Integrated Routing for selective device sharing while maintaining remote fabric isolation for higher levels of scalability and fault isolation
Utilizes the Brocade EZSwitchSetup wizard to simplify installation and management, and is Microsoft Simple SAN-compatibleA Flexible, Easy-to-Use Switch for a Variety of SAN Environments
As the value and volume of business data continue to rise, organizations need technology solutions that are easy to implement and manage, and that can grow and change with minimal disruption. The Brocade 5100 Switch is designed for rapidly growing storage requirements in mission-critical environments—combining 1, 2, 4, and 8 Gbit/sec Fibre Channel technology in configurations of 24, 32, or 40 ports in an efficiently designed 1U package. As a result, it provides low-cost access to industry-leading SAN technology as well as “pay-as-you-grow” scalability for consolidating storage and maximizing the value of virtual server deployments. With the highest port density of any midrange enterprise switch, the Brocade 5100 is designed for a broad range of SAN architectures. The evolutionary design consumes less than 2.5 watts of power per port for exceptional power and cooling efficiency, and features consolidated power and fan assemblies to improve environmental performance and reduce ownership costs. These capabilities help make the Brocade 5100 a cost-effective building block for standalone networks or the edge of enterprise core-to-edge fabrics. Industry-Leading Performance
To support mission-critical environments, the Brocade 5100 provides best-in-class performance for midrange SAN switches. It features a non-blocking architecture with as many as 40 ports concurrently active at 8 Gbit/sec full duplex to provide an aggregate bandwidth of 680 Gbit/sec. The Brocade 5100 also enables organizations to use 4 Gbit/sec SFPs today and upgrade to 8 Gbit/sec SFPs when required. The Brocade 5100 utilizes ASIC technology featuring five 8-port groups. Enterprise-Class Availability For Business Continuance
The Brocade 5100 provides a reliable foundation for disaster recovery and business continuance by employing enterprise-class availability features such as hot-swappable, redundant, and integrated fan and power supply assemblies. Moreover, hot code load and activation help maximize application uptime with faster system upgrades and maintenance to reduce the dependency on scheduled outages. Combined with a wide range of diagnostic and monitoring functions, these capabilities help provide a highly available SAN environment. Superior ROI And Investment Protection
The Brocade 5100 utilizes the same Fabric OS that supports the entire Brocade product family—from the 8-port Brocade 300 Switch to the 768-port Brocade DCX Backbone. This helps ensure forward and backward compatibility among Brocade solutions while simplifying maintenance and field upgrades. Moreover, organizations can manage the Brocade 5100 with existing management applications such as Brocade Enterprise Fabric Connectivity Manager (EFCM) and Brocade Fabric Manager.Specification
Systems Architecture
  • Fibre Channel ports: 40 ports, universal (E, F, and FL)
  • Scalability: Full fabric architecture with 239 switches maximum
  • Certified maximum: 56 switches, 7 hops; larger fabrics may be certified as required
  • Performance:
  • 1,2,4 and 8 Gbit/s line speed full duplex and auto-sensing of 1, 2, 4 and 8 Gbit/sec port speeds;
  • optionally programmable to fixed port speed; speed matching between 1, 2, 4 and 8 Gbit/sec ports
  • ISL Trunking: Up to eight 8 Gbit/sec ports per ISL trunk; up to 68 Gbit/sec per ISL trunk
  • Aggregate bandwidth: 680 Gbit/sec end to end
  • Fabric latency: ~700 nanoseconds, cut-through routing at 8 Gbit/sec
  • Maximum frame size: 2112-byte payload
  • Classes of service: Class 2, Class 3, Class F (inter-switch frames)
  • Port types: FL_Port, F_Port, E_Port, M-Port (Mirror Port); self-discovery based on switch type (U_Port)
  • Data traffic types: Fabric switches supporting unicast and broadcast
  • Media types:
  • 4 Gbit/s: Hot-plug, Brocade Small Form-factor Pluggable (SFP), LCAnschluss;
  • Short-Wavelength Laser (SWL) up to 500 Meter;
  • Long-Wavelength Laser (LWL) up to 10 km;
  • Extended Long-Wavelength Laser (ELWL) up to 30 km;
  • Distance depends on fibre channel cable and port speed
  • 8GBit/s: Hot-plug, Brocade Small Form-factor Pluggable (SFP),
  • LC-Connection
  • Short-Wavelength Laser (SWL) up to 100 Meter;
  • Long-Wavelength Laser (LWL) up to 10 km;
  • Extended Long-Wavelength Laser (ELWL) up to 25 km
  • Fabric services: Simple Name Server, Registered State Change Notification (RSCN); Brocade Advanced Zoning, and Brocade Web Tools; optional fabric services include the Brocade FCIP Tunneling Service Brocade Advanced ISL Trunking, FC Routing and Adaptive Networking software supported: SSH,Telnet; HTTPS/SSL,RADIUS; SNMP v3 (FE MIB, FC Management MIB); Web Tools; Fabric Manager; EFCM Standard/Enterprise 9.x third-party applications utilizing the Brocade SMI Agent
  • Management access: 10/100 Ethernet port (RJ-45); serial port (RJ-45); USB Port; In-band through Management Server
  • Diagnostics: POST and embedded online/offline diagnostics Non-port side to port side (port side exhaust); back-to-front airflow; power from rear; 1.0U, 19-in. EIA-compliant
  • Size
    • Width: 42.88 cm
    • Height: 4.29 cm
    • Depth: 61.05 cm
  • System weight 9.34 kg – dual Power supplies no SFP
    • Operating: 0°C to 40°C
    • Non-operating: -25°C to 70°C
  • Humidity
    • Operating: 10% to 85% non-condensing at 40°C
    • Non-operating: 10% to 95%, non-condensing at 70° C
  • Altitude
    • Operating: up to 3000 meters
    • Storage: up to 12 km
Shock
  • Operating: 20G, 6 ms half-sine
  • Non-operating: 33G, 11 ms, Half sine
Vibration
  • Operating: 0.5 g sine, 0.4 grms random, 5 to 500 Hz
  • Non-operating: 2.0 g sine, 1.1 grms random, 5 to 500 Hz
Airflow
  • Maximum airflow 29 CFM
  • Nominal airflow 22 CFM
Power
  • System power consumption: Nominal system draw 84 watts max. 91 watts
  • Nominal input voltage: 85 to 264 VAC, 47 to 63 Hz
  • Input line frequency: 47 to 63 Hz
  • Input voltage: 85 VAC minimum, 264 VAC maximum
  • BTU rating (80% efficiency): 311 BTU/hr
  • Inrush current: Maximum of 35 amps for period between 10 to 150 ms at 50°C, hot or cold start
Bootlog

FAN Unit: 1

Time Awake: 0 days

FAN Unit: 2

Time Awake: 0 days

POWER SUPPLY Unit: 1

Time Awake: 0 days

POWER SUPPLY Unit: 2

Time Awake: 0 days

CHASSIS/WWN Unit: 1

HeaderVersion: 2

Factory PartNum: 40-1000133-14

Factory SerialNum: ALM1926G05N

Manufacture: Day: 4Month: 5 Year: 2011

Update: Day: 8Month: 1 Year: 2019

Time Alive: 2613 days

Time Awake: 0 days

ID: BRD0000CA

Part Num: BROCAD0000510

switchName: FCS0

switchType: 66.1

switchState: Online

switchMode: Native

switchRole: Principal

switchDomain: 1

switchId: fffc01

switchWwn: 10:00:00:05:33:7a:d0:eb

zoning: OFF

switchBeacon: OFF

FC Router: OFF

FC Router BBFabric ID: 128

AddressMode: 0

HIF Mode: OFF

Index PortAddress Media Speed State Proto

00 010000 --N8 No_Module FC

11 010100 --N8 No_Module FC

22 010200 --8G No_Module FC LE

33 010300 --8G No_Module FC LE

44 010400 --8G No_Module FC

55 010500 --8G No_Module FC

66 010600 --8G No_Module FC

77 010700 --8G No_Module FC

88 010800 --N8 No_Module FC

99 010900 --N8 No_Module FC

1010 010a00 --N8 No_Module FC

1111 010b00 --N8 No_Module FC

1212 010c00 --8G No_Module FC

1313 010d00 --8G No_Module FC

14 14 010e00-- 8G No_Module FC

1515 010f00 --8G No_Module FC

1616 011000 --N8 No_Module FC

1717 011100 --N8 No_Module FC

1818 011200 --N8 No_Module FC

1919 011300 --N8 No_Module FC

2020 011400 --N8 No_Module FC

2121 011500 --N8 No_Module FC

2222 011600 --N8 No_Module FC

2323 011700 --N8 No_Module FC

2424 011800 --N8 No_Module FC(No POD License) Disabled

2525 011900 --N8 No_Module FC(No POD License) Disabled

2626 011a00 --N8 No_Module FC(No POD License) Disabled

2727 011b00 --N8 No_Module FC(No POD License) Disabled

2828 011c00 --N8 No_Module FC(No POD License) Disabled

2929 011d00 --N8 No_Module FC(No POD License) Disabled

3030 011e00 --N8 No_Module FC(No POD License) Disabled

3131 011f00 --N8 No_Module FC(No POD License) Disabled

3232 012000 --N8 No_Module FC(No POD License) Disabled

3333 012100 --N8 No_Module FC(No POD License) Disabled

3434 012200 --N8 No_Module FC(No POD License) Disabled

3535 012300 --N8 No_Module FC(No POD License) Disabled

3636 012400 --N8 No_Module FC(No POD License) Disabled

3737 012500 --N8 No_Module FC(No POD License) Disabled

3838 012600 --N8 No_Module FC(No POD License) Disabled

3939 012700 --N8 No_Module FC(No POD License) Disabled

FCS0:root> licenseshow

Fabric license

Extended Fabric license

Fabric Watch license

Trunking license

Enhanced Group Management license

8 Gig FC license

Switch HealthReport Reporttime: 09/24/2019 04:42:45 PM

Switch Name: FCS0

IP address: 192.168.101.220

SwitchState: HEALTHY

Duration: 00:01

Power suppliesmonitor HEALTHY

Fans monitor HEALTHY

Flashmonitor HEALTHY

Marginal portsmonitor HEALTHY

Faulty portsmonitor HEALTHY

Missing SFPs monitor HEALTHY

Error portsmonitor HEALTHY

All ports arehealthy
