TESTING & COSMETIC NOTES:
This is a USED WORKING item in GOOD cosmetic condition that IS THOROUGHLY TESTED and is GUARANTEED WORKING
The unit has been reset to the factory default settings. See console log below.22 port assignments are provisioned for use in this switch: 12 port assignments are provisioned by the base switch license 10 port assignments are provisioned by the first POD license

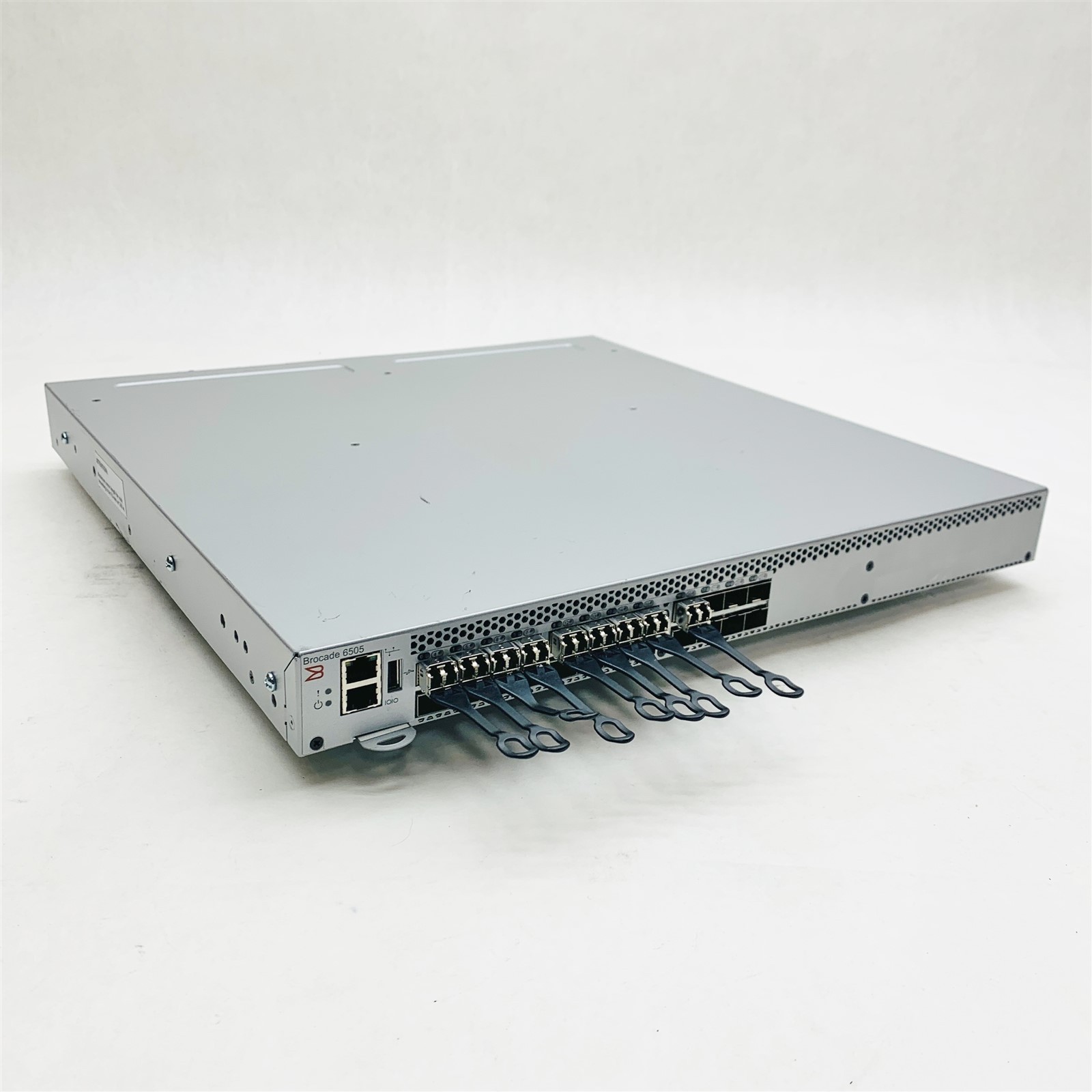

COMPONENTS INCLUDED IN THIS sale:• (1) - BROCADE 6505 16GB 12 ACTIVE SFP+ 10-POD PORT MANAGED FC SWITCH DL-6505-24-16G-1R
• (9) - BROCADE 57-0000088-01 16GB SFP+ TRANSCEIVER
• (1) - POWER CORD

REPLACEMENT or MONEY BACK GUARANTEE:When you receive a Guaranteed item from OC Depot, it should perform as described. In the rare situation that this is not the case, we will send a replacement upon safe return of the original item within 30 days of receiving the item. If a replacement is not available we will honor the terms of our Money-Back Guarantee.

ADDITIONAL INFORMATION:U-Boot 1.1.3 (Feb 2 2016 - 08:24:43)

CPU: AMCC PowerPC 440EPx Rev. A at 660 MHz (PLB=132, OPB=66, EBC=33 MHz)
No Security/Kasumi support
I2C boot EEPROM enabled
Bootstrap Option G - Boot ROM Location I2C (Addr 0x54)
Internal PCI arbiter enabled, PCI async ext clock used
32 kB I-Cache 32 kB D-Cache
Board: Tomtoo
I2C: ready
DRAM: Initializing DDRSDRAM
DQS calibration - Window detected:
max_passing_cases = 57
wr_dqs_shift = 84
dll_dqs_delay_X = 32
dll_dqs_delay_X window = 4 - 60
DDR0_09=0x00011d54
DDR0_22=0x0326740b
DDR0_17=0x20005d00
DDR0_18=0x20202020
DDR0_19=0x20202020
Zeroing SDRAM... DONE
DDR: 1024 MB
POST RAM test disabled.
Now running in RAM - U-Boot at: 3fb26000
trap_init : 0x0
system inventory subsystem initialized
FLASH: Tomtoo CFI Flash Driver Initialized
4 MB
CPLD:
DEBUG: ASIC Reset Enable Register Offset:0x88 Value:0x03...

CPLD: Reseting Bridge & ASIC...
Init complete
PCI: gd->brcd_flags = 0, PCI init
Skip our host bridge
01 00 1657 001d 0280 1a
00 07 10b5 8112 0604 18
In: serial
Out: serial
Err: serial
Net:

Checking system RAM - press any key to stop test

Checking memory address: 00100000

System RAM test using Default POST RAM Test succeeded.

set_bootstatus: BS_LOAD_OS, platform_idx = 16

Type run flash_nfs to mount root filesystem over NFS

Hit ESC to stop autoboot: 0
Map file at LBA sector 0xd659f
do_bootm 171: load_addr 0x00100000 addr 0x00400000
do_bootm 174: ## Booting image at 00400000 load_addr 0x00100000 ...
Image Name: Linux-2.6.14.2
Image Type: PowerPC Linux Multi-File Image (uncompressed)
Data Size: 4306459 Bytes = 4.1 MB
Load Address: 00000000
Entry Point: 00000000
Contents:
Image 0: 3227781 Bytes = 3.1 MB
Image 1: 1078663 Bytes = 1 MB
do_bootm_linux 565: ## Current stack ends at 0x3FAE4BA8 => set upper limit to 0x00C00000
## initrd at 0x007140D4 ... 0x0081B65A (len=1078663=0x107587)
Loading Ramdisk to 1fef8000, end 1ffff587 ... OK
initrd_start = 1fef8000, initrd_end = 1ffff587
## Transferring control to Linux (at address 00000000) ...
Start Autoneg
Installing Linux 2.6 Kernel
Attempting to find a root file system on hda1...
INIT: version 2.78 booting
Bypassing firmware validation.
INIT: Entering runlevel: 3
Starting Fabric OS Services...
FIPS off, RRD...
Found 1(threshold 5) abnormal reboots within 3000 seconds window(threshold)

sys_chip_init: class 0 max 24 Done
ethsw_ha_enabled = 1
uptime: 4293889264; sup_qid: 0
2026/03/03-22:34:03, [HAM-1004], 318680, CHASSIS, INFO, Dell6505, Processor rebooted - Reset.


SNMP Research EMANATE/Lite Agent Version 16.2.0.9
Copyright 1989-2006 SNMP Research, Inc.
2026/03/03-22:34:13, [FV-1001], 318681, CHASSIS, INFO, Brocade_6505, Flow Vision daemon initialized.

!!! save_ethernet_ip failure !!!
interface = eth0
ip is empty !
netmask is empty !
gateway is empty !
.


Fabric OS (Brocade_6505)


Brocade_6505 console login: admin
password
ki_state_set: redundant ACTIVATE for instance 1
2026/03/03-22:34:43, [ZONE-1022], 318682, FID 128, INFO, Brocade_6505, The effective configuration has changed to FabricB.
2026/03/03-22:34:43, [FV-1002], 318683, FID 128, INFO, Brocade_6505, Flow Vision Config Replay Completed Successfully.
2026/03/03-22:34:45, [MAPS-1201], 318684, FID 128, INFO, Brocade_6505, MAPS has started monitoring with dflt_conservative_policy policy.

Mar 3 22:34:46 All service instances on Active
2026/03/03-22:34:48, [EM-1050], 318685, CHASSIS, INFO, Dell6505, FRU Fan 2 removal detected.
POST1: started running Tue Mar 3 22:34:50 GMT 2026
Password: POST1: Test #1 - Running Turboramtest

2026/03/03-22:35:03, [SEC-1192], 318686, FID 128, INFO, Brocade_6505, Security violation: Login failure attempt via SERIAL.
Login incorrect


Brocade_6505 login: POST1: Script PASSED with exit status of 0 Tue Mar 3 22:35:05 GMT 2026 took (0:0:15)
POST2: started running Tue Mar 3 22:35:07 GMT 2026

POST2: Test #1 - Running portloopbacktest
Login incorrect


Brocade_6505 login: admin
Password:
Warning: Default password not changed for 'root' and 'factory'. Please login as 'root' to change them.
Please change passwords for switch default accounts now.
Use Control-C to exit or press 'Enter' key to proceed.

Password was not changed. Will prompt again at next login
until password is changed.
Brocade_6505:admin> licenseport --show
22 ports are available in this switch
1 POD license is installed
Dynamic POD method is in use
22 port assignments are provisioned for use in this switch:
12 port assignments are provisioned by the base switch license
10 port assignments are provisioned by the first POD license
* 0 more assignments are added if the second POD license is installed
22 ports are assigned to installed licenses:
12 ports are assigned to the base switch license
10 ports are assigned to the first POD license
Ports assigned to the base switch license:
2*, 4*, 5*, 6*, 7*, 8*, 10*, 11*, 12*, 13*, 14*, 15*
Ports assigned to the first POD license:
3*, 9*, 16*, 17*, 18*, 19*, 20*, 21*, 22*, 23*
Ports assigned to the second POD license:
None
Ports not assigned to a license:
0, 1

2 license reservations are still available for use by unassigned ports
22 license assignments are held by offline ports (indicated by *)
Brocade_6505:admin> POST2: Script PASSED with exit status of 0 Tue Mar 3 22:35:37 GMT 2026 took (0:0:30)
2026/03/03-22:35:38, [BL-1000], 318687, CHASSIS, INFO, Dell6505, Initializing ports...
2026/03/03-22:35:38, [BL-1001], 318688, CHASSIS, INFO, Dell6505, Port initialization completed.
