TESTING & COSMETIC NOTES:
This is a USED WORKING item in GOOD cosmetic condition that IS THOROUGHLY TESTED and is GUARANTEED WORKING
user: admin / password: password .The unit has been reset to the factory default settings. See console log below.

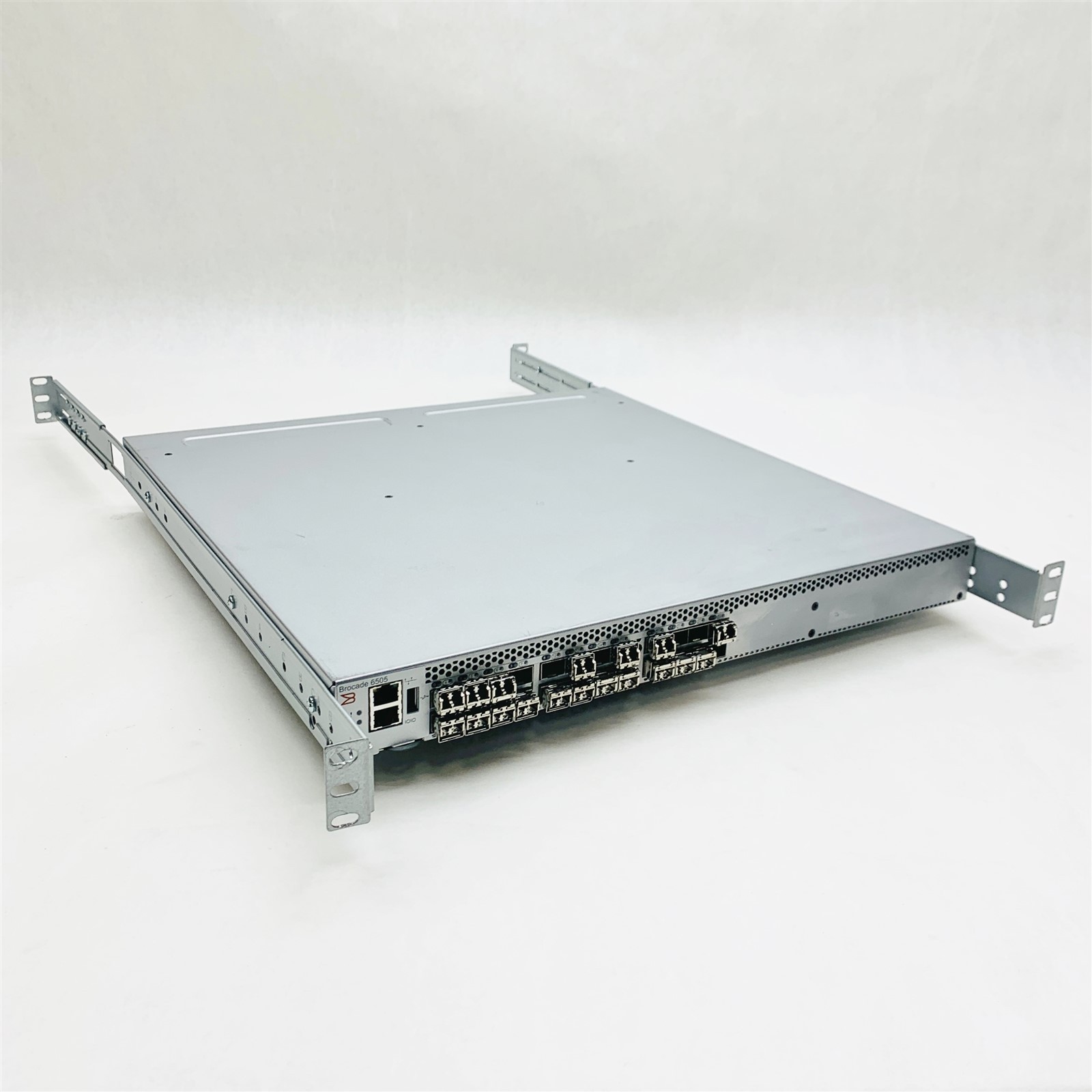

COMPONENTS INCLUDED IN THIS sale:• (1) - BROCADE 6505 16GB FIBRE CHANNEL SAN SWITCH 24-PORT SFP+ 088NXW DL-6505-12-8G-0R
• (1) - RACKMOUNT RAIL KIT
• (1) - POWER CORD
REPLACEMENT or MONEY BACK GUARANTEE:When you receive a Guaranteed item from OC Depot, it should perform as described. In the rare situation that this is not the case, we will send a replacement upon safe return of the original item within 30 days of receiving the item. If a replacement is not available we will honor the terms of our Money-Back Guarantee.
ADDITIONAL INFORMATION:The system is coming up, please wait...
U-Boot 1.1.3 (Nov 15 2017 - 16:02:52)
CPU: AMCC PowerPC 440EPx Rev. A at 660 MHz (PLB=132, OPB=66, EBC=33 MHz)
No Security/Kasumi support
I2C boot EEPROM enabled
Bootstrap Option G - Boot ROM Location I2C (Addr 0x54)
Internal PCI arbiter enabled, PCI async ext clock used
32 kB I-Cache 32 kB D-Cache
Board: Tomtoo
I2C: ready
DRAM: Initializing DDRSDRAM
DQS calibration - Window detected:
max_passing_cases = 54
wr_dqs_shift = 82
dll_dqs_delay_X = 29
dll_dqs_delay_X window = 3 - 56
DDR0_09=0x00011d52
DDR0_22=0x0326720b
DDR0_17=0x1d005800
DDR0_18=0x1d1d1d1d
DDR0_19=0x1d1d1d1d
Zeroing SDRAM... DONE
DDR: 1024 MB
POST RAM test disabled.
Now running in RAM - U-Boot at: 3fb26000
trap_init : 0x0
system inventory subsystem initialized
FLASH: Tomtoo CFI Flash Driver Initialized
4 MB
CPLD:
DEBUG: ASIC Reset Enable Register Offset:0x88 Value:0x03...
CPLD: Reseting Bridge & ASIC...
Init complete
PCI: gd->brcd_flags = 0, PCI init
Skip our host bridge
01 00 1657 001d 0280 1a
00 07 10b5 8112 0604 18
In: serial
Out: serial
Err: serial
Net:
Checking system RAM - press any key to stop test
Checking memory address: 00100000
System RAM test using Default POST RAM Test succeeded.
set_bootstatus: BS_LOAD_OS, platform_idx = 16
Type run flash_nfs to mount root filesystem over NFS
Hit ESC to stop autoboot: 0
Map file at LBA sector 0xd317f
do_bootm 171: load_addr 0x00100000 addr 0x00400000
do_bootm 174: ## Booting image at 00400000 load_addr 0x00100000 ...
Image Name: Linux-2.6.14.2
Image Type: PowerPC Linux Multi-File Image (uncompressed)
Data Size: 4306459 Bytes = 4.1 MB
Load Address: 00000000
Entry Point: 00000000
Contents:
Image 0: 3227782 Bytes = 3.1 MB
Image 1: 1078663 Bytes = 1 MB
do_bootm_linux 565: ## Current stack ends at 0x3FAE4BA8 => set upper limit to 0x
00C00000
## initrd at 0x007140D4 ... 0x0081B65A (len=1078663=0x107587)
Loading Ramdisk to 1fef8000, end 1ffff587 ... OK
initrd_start = 1fef8000, initrd_end = 1ffff587
## Transferring control to Linux (at address 00000000) ...
Start Autoneg
Installing Linux 2.6 Kernel
Attempting to find a root file system on hda1...
INIT: version 2.78 booting
Bypassing firmware validation.
INIT: Entering runlevel: 3
Binding Shell with Loopback address
Enabling FOS failure detection feature
enable fabos log
Starting Fabric OS Services...
FIPS off, RRD...
Found 1(threshold 5) abnormal reboots within 3000 seconds window(threshold)
Enter trace_initialize
fablog module loaded with mtracer!
sys_chip_init: class 0 max 24 Done
ethsw_ha_enabled = 1
uptime: 4293889600; sup_qid: 0
2026/02/23-23:21:56, [HAM-1004], 1311, CHASSIS, INFO, Dell6505, Processor reboot
ed - Reset.
.
bootenv: Could not get requested variable bootargs.
2026/02/23-23:22:06, [FV-1001], 1312, CHASSIS, INFO, IZFiber04, Flow Vision daem
on initialized.
SNMP Research EMANATE/Lite Agent Version 16.2.0.9
Copyright 1989-2006 SNMP Research, Inc.
Fabric OS (IZFiber04)
IZFiber04 console login: admin
ki_state_set: redundant ACTIVATE for instance 1
2026/02/23-23:22:37, [ZONE-1022], 1313, FID 128, INFO, IZFiber04, The effective
configuration has changed to May_23_2019__Config.
Feb 23 23:22:40 All service instances on Active
2026/02/23-23:22:40, [FV-1002], 1314, FID 128, INFO, IZFiber04, Flow Vision Conf
ig Replay Completed Successfully.
Password: 2026/02/23-23:22:41, [MAPS-1201], 1315, FID 128, INFO, IZFiber04, MAP
S has started monitoring with dflt_conservative_policy policy.
2026/02/23-23:22:42, [EM-1050], 1316, CHASSIS, INFO, Dell6505, FRU Fan 2 removal
detected.
POST1: started running Mon Feb 23 23:22:45 GMT 2026
POST1:Mon Feb 23 23:22:47 GMT 2026: Test #1 - Running Turboramtest
Please change passwords for switch default accounts now.
Use Control-C to exit or press 'Enter' key to proceed.
POST1: Script PASSED with exit status of 0 Mon Feb 23 23:23:04 GMT 2026 took (0:
0:19)
POST2: started running Mon Feb 23 23:23:06 GMT 2026
POST2:Mon Feb 23 23:23:07 GMT 2026: Test #1 - Running portloopbacktest
POST2: Test #1: portloopbacktest -lb_mode 2 Status: PASSED exit_status 0 Mon Feb
23 23:23:37 GMT 2026 took (0:0:31)
POST2: Script PASSED with exit status of 0 Mon Feb 23 23:23:39 GMT 2026 took (0:
0:32)
2026/02/23-23:23:41, [BL-1000], 1317, CHASSIS, INFO, Dell6505, Initializing port
s...
2026/02/23-23:23:41, [BL-1001], 1318, CHASSIS, INFO, Dell6505, Port initializati
on completed.
for user - admin
Changing password for admin
Enter old password:
Password was not changed. Will prompt again at next login
until password is changed.
IZFiber04:admin> sys_chip_init: class 0 max 24 Done
ethsw_ha_enabled = 1
uptime: 4293889801; sup_qid: 0
.
2026/02/24-11:34:40, [HAM-1004], 2198, CHASSIS, INFO, Dell6505, Processor reboot
ed - Reset.
Fabric OS (IZFiber03)
IZFiber03 console login: 2026/02/24-11:34:51, [FV-1001], 2199, CHASSIS, INFO, IZ
Fiber03, Flow Vision daemon initialized.
SNMP Research EMANATE/Lite Agent Version 16.2.0.9
Copyright 1989-2006 SNMP Research, Inc.
Fabric OS (IZFiber03)
IZFiber03 console login: admin
