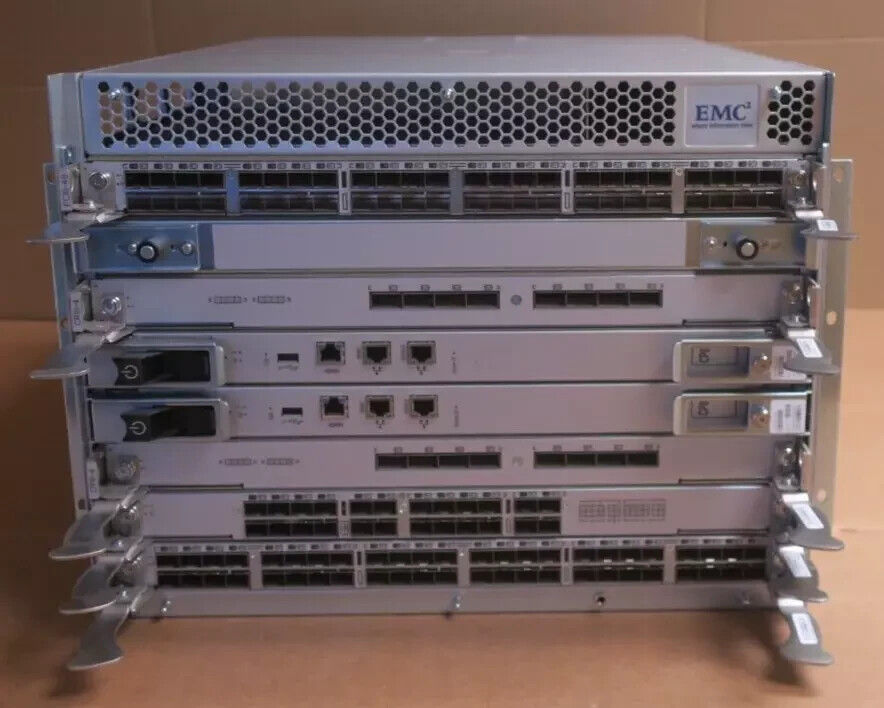

Brocade EMC DCX 8510-4 Backbone SAN Switch 2x FC16-48 2x CR16-4 2x CP8 1x FX8-24Model: DCX 8510-4P/N: EM-DCX8514-B-0002
In Good ConditionNo Bezel Included
Doesnt Boot - Potentially Corrupt FOS
Hardware OnlyIncluded:

• 1 x Brocade EMC DCX 8510-4 Backbone SAN Switch 100-652-849 With Modules:
• 2 x CP8 Control Processor Blades 105-000-138
• 2 x CR16-4 Core Switching Blade Module 105-000-213
• 1 x FC16-48 48-Port 16Gb Fibre Channel Switch Blade 105-000-217
• 1 x FX8-24 Extension Blade (10x 1GbE SFP + 2x 10GbE SFP+ + 12x 8Gb/s FC SFP Ports) 105-000-275-00
• 1 x Module Blank
• 2 x 2000W Power Supplies 105-000-140
• 2 x Fan Module Flexibility and ReliabilityBrocade DCX 8510 Backbones are available in two modular form factors. Built for large enterprise networks, the 14U Brocade DCX 8510-8 has eight vertical blade slots to provide up to 384 16 Gbps Fibre Channel ports. Built for midsize networks, the 8U Brocade DCX 8510-4 has four horizontal blade slots to provide up to 192 16 Gbps Fibre Channel ports. The Brocade DCX 8510 family supports 2, 4, 8, 10, and 16 Gbps Fibre Channel, FICON, and 1/10 Gbps Fibre Channel over IP (FCIP).
  To help minimize downtime costs, Brocade DCX 8510 Backbones build upon years of innovation and leverage the core technology of Brocade systems performing at greater than 99.999 percent uptime in the world's most demanding data centers.
  Simplified Scale-Out Network DesignNetworks are evolving in order to adapt to rapid growth and change in the server and storage infrastructure. New optical Inter-Chassis Links (ICLs) can connect up to 10 Brocade DCX 8510 Backbones, enabling flatter, faster, and simpler fabrics that increase consolidation while reducing network complexity and costs.
  ICLs enable scalable core-edge and active-active mesh chassis topologies. These high-density chassis topologies reduce inter-switch cabling by 75 percent and free up to 33 percent of ports for server and storage. This maximizes overall port density in the lowest amount of rack space.
  Optimized Data Center Connectivity Over DistanceConnecting distributed data centers enables data mobility for advanced data protection solutions. Brocade DCX 8510 Backbones include integrated metro and global SAN extension that provides application agility and flexible business continuity and disaster recovery solutions.
  The Brocade DCX 8510 family enables high-speed replication and backup solutions over metro or WAN links with native Fibre Channel (10/16 Gbps) and optional FCIP (1/10 GbE) extension support. The integrated metro connectivity includes in-flight compression and encryption to optimize bandwidth and minimize the risk of unauthorized access.
  Simplified Deployment and Centralized ManagementAutomating and simplifying SAN management enables data centers to quickly adapt to change and overcome disruptions in a private cloud infrastructure. Brocade DCX 8510 advanced diagnostics, monitoring, and management reduce end-to-end SAN management complexities and costs.
  The Brocade DCX 8510 helps reduce operating costs through simpler server provisioning and change management, advanced cable and optics diagnostics, and comprehensive management. Several technologies support these capabilities, including:

  • Dynamic Fabric Provisioning: Combines Brocade backbone and adapter technology to reduce or eliminate the need to reconfigure zoning and Logical Unit Number (LUN) masking when adding or replacing servers
  • Diagnostic Ports (D_Ports): Help identify and isolate optics and cable problems, reducing fabric deployment and diagnostic times
  • Brocade Network Advisor: Provides comprehensive management of data center fabrics, including configuration, monitoring, and management of Brocade backbones, switches, and adapters
  Industry-Leading PerformanceEmerging and evolving critical workloads and higher density virtualization are continuing to push the limits of SAN infrastructure. The Brocade DCX 8510 features industry-leading 16 Gbps performance and 8.2 Tbps chassis bandwidth to address next-generation I/O- and bandwidth-intensive applications.
  Brocade DCX 8510 Backbones provide unmatched chassis, slot-to-slot, and port performance and bandwidth. In addition, local switching capabilities ensure that data traffic within the same port group does not consume slot bandwidth, maximizing the number of line-rate ports. Performance capabilities include:Brocade DCX 8510-4:
  • Up to 192 ports (equivalent to 256 with ICLs) at 16 Gbps
  • 4.1 Tbps chassis bandwidth
  • 3.1 Tbps universal ports
  • 1 Tbps ICL bandwidth
  • 512 Gbps bandwidth per slot

  Enterprise-Class Reliability, Availability, and ServiceabilityThe Brocade DCX 8510 features advanced monitoring, diagnostics, and RAS capabilities to maximize availability, optimize performance, and simplify administration. These enterprise-class features include:
  • Critical diagnostic and monitoring capabilities to help ensure early problem detection and recovery
  • Non-intrusive and non-disruptive monitoring on every port to provide a comprehensive end-to-end view of the entire fabric
  • Forward Error Correction (FEC) to recover from bit errors in ISLs, enhancing transmission reliability and performance
  • Additional buffers to overcome performance degradation and congestion due to buffer credit loss
  • Real-time bandwidth consumption by hosts/applications on ISLs to easily identify hot spots and potential network congestion
