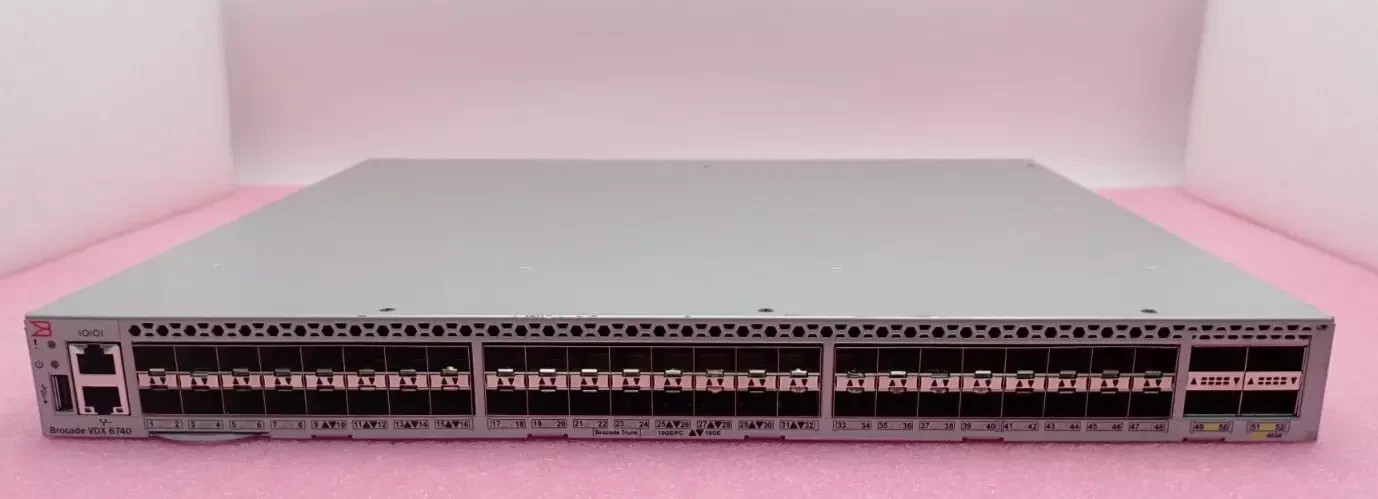

Brocade VDX 6740 BR-VDX6740-48-R 48x 10GbE SFP+ + 4x 40Gb QSFP+ Ethernet SwitchModel:VDX 6740P/N:BR-VDX6740-48-R In Full Working OrderTested48x 1/10GbE SFP+ + 4x 40GbE QSFP+ Active PortsBack to Front Airflow Included - 1 xBrocade VDX 6740 BR-VDX6740-48-R 48x 10GbE SFP+ + 4x 40Gb QSFP+ Ethernet Switch
- 2 x Power Features to Transform Data CentersData centers continue to evolve, creating a need for an infrastructure that can support growth in Virtual Machines (VMs), distributed applications, and data, as well as the transition to cloud-based computing—without compromising performance. The Brocade VDX 6740 and the Brocade VDX family of switches deliver the performance, flexibility, and efficiency essential to modern data centers, including cloud and highly virtualized environments.
Brocade VDX 6740 SwitchThe Brocade VDX 6740 offers 48x 10 Gigabit Ethernet (GbE) SFP+ ports and four 40 GbE QSFP+ ports. Each 40 GbE port can be broken out into four independent 10 GbE SFP+ ports, providing an additional 16x 10 GbE SFP+ ports. In addition, the switch features low power consumption, consuming 1 watt per 10 GbE port.
HIGHLIGHTS:- Transforms networks to deliver cloud scale, agility, and operational efficiency with Brocade data center fabrics
- Supports 1, 10, and 40 GbE options for optimal flexibility and scale
- Meets today's application demands with high performance and low latency
- Delivers line-rate throughput for all ports and packet sizes
- Fits into any data center design by leveraging 10 GbE/40 GbE uplinks, Ports on Demand (PoD), and Capacity on Demand (CoD)
- Maximizes network availability with efficiency and resiliency
- Supports storage environments with advanced flexibility
Boot Log:sw0#show versionNetwork Operating System Software
Network Operating System Version: 7.2.0d
Copyright (c) 2017-2018 Extreme Networks, Inc.
Firmware name:7.2.0d
Build Time:12:18:12 Nov 28, 2019
Install Time:23:28:24 Dec 18, Processor:e500mc with 4096 MB of memorySlotNamePrimary/Secondary 7.2.0d
SW/1NOS7.2.0dSTANDBY
7.2.0dsw0#show inventory
NAME:FAN 1DESCR:Chassis Fan module
PN:N/ASN:N/ANAME:FAN 2DESCR:Chassis Fan SUPPLY 1DESCR:Chassis PS SUPPLY 2DESCR:Chassis PS ChassisDESCR:System dpod
rbridge-id: 1
48 10G ports are available in this switch
4 40G ports are available in this switch
10G Port Upgrade license is installed
40G Port Upgrade license is installed
Dynamic POD method is in use48 10G port assignments are provisioned for use in this switch:
24 10G port assignments are provisioned by the base switch license
24 10G port assignments are provisioned by the 10G Port Upgrade license
0 10G ports are assigned to installed licenses:
0 10G ports are assigned to the base switch license
0 10G ports are assigned to the 10G Port Upgrade license
10G ports assigned to the base switch license:
None
10G ports assigned to the 10G Port Upgrade license:
None
10G ports not assigned to a license:
1/0/1, 1/0/2, 1/0/3, 1/0/4, 1/0/5, 1/0/6, 1/0/7, 1/0/8, 1/0/9, 1/0/10
1/0/11, 1/0/12, 1/0/13, 1/0/14, 1/0/15, 1/0/16, 1/0/17, 1/0/18, 1/0/19, 1/0/20
1/0/21, 1/0/22, 1/0/23, 1/0/24, 1/0/25, 1/0/26, 1/0/27, 1/0/28, 1/0/29, 1/0/30
1/0/31, 1/0/32, 1/0/33, 1/0/34, 1/0/35, 1/0/36, 1/0/37, 1/0/38, 1/0/39, 1/0/40
1/0/41, 1/0/42, 1/0/43, 1/0/44, 1/0/45, 1/0/46, 1/0/47, 1/0/48
48 license reservations are still available for use by unassigned ports 4 40G port assignments are provisioned for use in this switch:
0 40G port assignments are provisioned by the base switch license
4 40G port assignments are provisioned by the 40G Port Upgrade license
0 40G ports are assigned to installed licenses:
0 40G ports are assigned to the base switch license
0 40G ports are assigned to the 40G Port Upgrade license
40G ports assigned to the base switch license:
None
40G ports assigned to the 40G Port Upgrade license:
None
40G ports not assigned to a license:
1/0/49, 1/0/50, 1/0/51, 1/0/52
4 license reservations are still available for use by unassigned portssw0#show environment fan
Fan 1 is Ok, speed is 2989 RPM
Fan 2 is Ok, speed is 2989 RPM
Airflow direction : Port side EXHAUSTsw0#show environment powerPower Supply #1 is OK
,23-1000044-01,AC-DC,AirFlow: Port Side Exhaust
Power Supply #2 is OK
,23-1000044-01,AC-DC,AirFlow: Port Side Exhaustsw0#show environment 312330 312333 312332 312331 312329 312328 312339 312338 312337 312336 312335 312334312342 312341 312340312346 312345 312344 312343dup .co.uk
|
|
