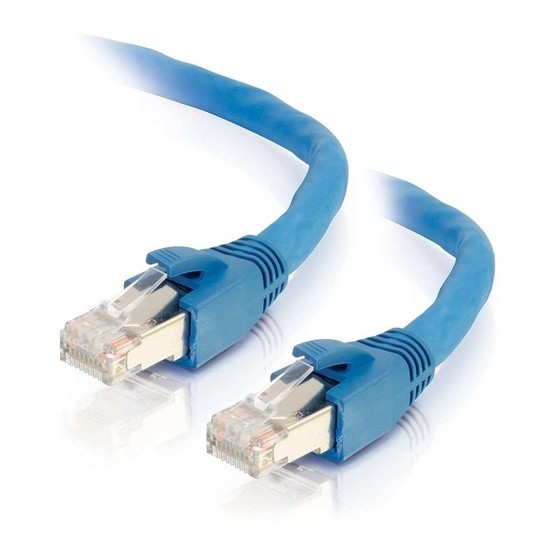

C2G 50 ft Cat6 Snagless Solid Shielded Ethernet Network Patch Cable Blue Model 43167

• Brand C2G
• Model 43167
• Cable Diameter 0.28 in (7.2 mm),
• Cable Length 50 ft (15.2 m),
• Operating Temperature -4° - 140°F (-20° - 60°C),
• Operating Temperature Max 140 Fahrenheit (60 Celsius),
• Operating Temperature Min -4 Fahrenheit (-20 Celsius),
• Shipping Weight 1.91 lbs (0.9 kg),
• Storage Temperature Max 86 Fahrenheit (30 Celsius),
• Storage Temperature Min 32 Fahrenheit (0 Celsius),
• Wire Gauge Shielding Shielded (STP),
• Cable Type Cat6,
• Category Performance Application Cat 6,
• Color Blue,
• Conductor Material Copper,
• Conductor Stranding Solid,
• Connector 1
• (1) RJ-45 Male,
• (1) RJ-45 Male,
• Connector 2
• (1) RJ-45 Male,
• (1) RJ-45 Male,
• Connector Rating Standard Non-Rated,
• Product Type Cable,
• Signal Type STP,
• TAA Compliant No,
• Certifications
• NDAA 889,
• Prop Material PVC,
• Warranty Lifetime,
• This shielded snagless Cat6 cable is perfect for use with our HDBaseT Products or with any other application where long length shielded cable is required. This cable is optimized for superior performance in noisy environments and is designed to handle bandwidth-intensive applications. This cable is designed to meet Cat6 TIA/EIA and ISO/IEC standards for patch cable performance. Each individual pair is bonded together to help maintain the twist-spacing throughout the cable right up to the termination point. The cable design minimizes Near-End Crosstalk (NEXT) levels and features high quality solid conductors, full cable shielding and is terminated with a snagless boot & shielded plug. The combination of the shielded plug, shielded cable, snagless boot and solid conductors provides superior performance over standard stranded conductor patch cables when used with HDBaseT solutions.
• Features and Benefits:
• HDBaseT Certified,
• 4- pair solid conductor construction,
• Overall cable shield and shielded connectors,
• Snagless connector design,
• Additional Technical Specifications,
• Conductor: Cat6 4-pair Solid 23AWG SSTP,
• Resistance: Max 9.38ohm/100M at 20C,
• Insulation: Min 0.38MM Diameter: 1.38 +-0.06MM,
• Jacket: Min 0.5MM Max 0.6MM; Diameter 7.2mm +- 11801 ED.2,
• RoHS,
