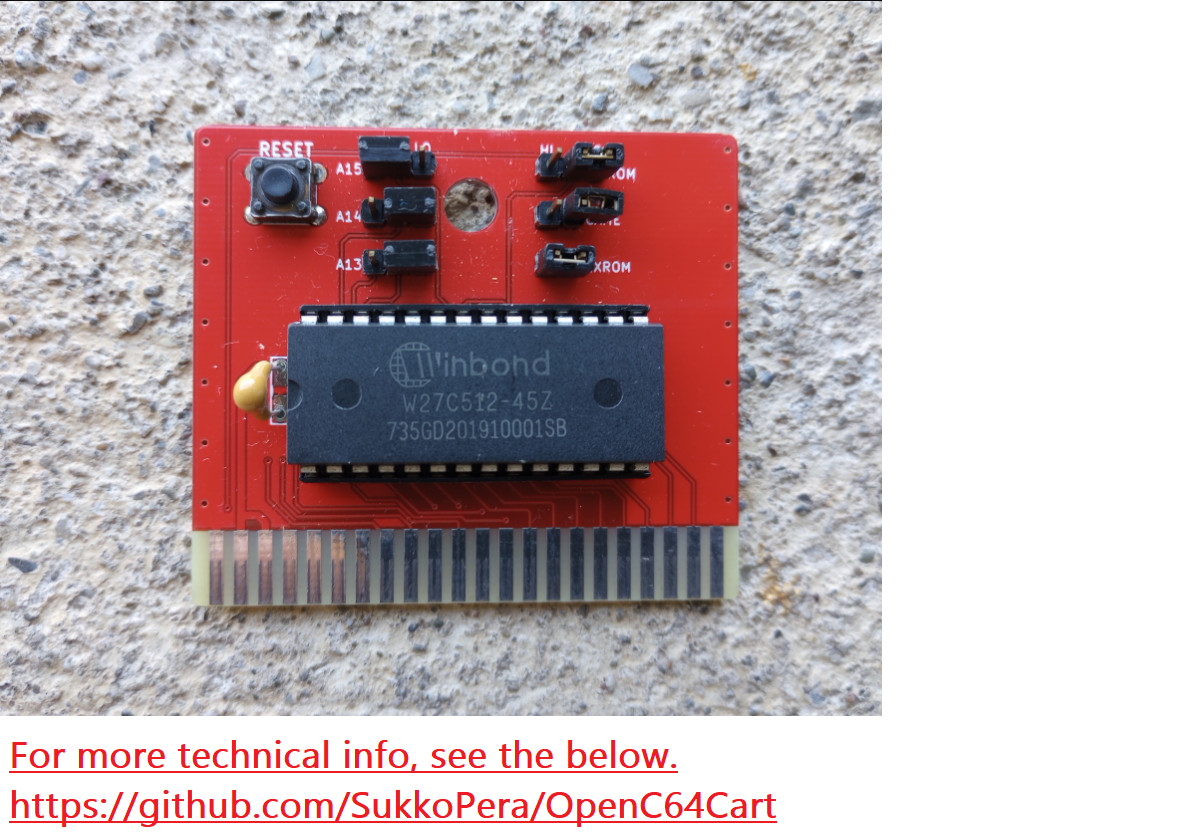

Listed is a brand new C64 64KB Cartridge assembled and is ready to use. It comes with a brand new 27C5125 (64KBx8) EEPROM. Sorry no games included. Please see photos for additional details on how to make use of the cartridge.
You have to provide your own programmer! But the best one I found on is the MiniPro USB TL866CS Programmer. It can program a lot of chips, including the Winbond W27C512 EEPROM.WHAT YOU GET
YOU GET THE ASSEMBLED PCB WITH A BRAND NEW 27C512 EEPROM-- COLOR IS UPON AVAILABILITY.Configuration
IMPORTANT: ALWAYS TURN YOUR C64 OFF BEFORE MOVING THE CONFIGURATION JUMPERS.
When flashing the contents, make sure that every file is exactly 8192 bytes long and just concatenate them. Then use the following table to set the jumper configuration for your image of choice:
ROM Image dir="auto" style="box-sizing: border-box; margin-top: 0px; margin-bottom: 16px; color: rgb(31, 35, 40); font-family: "Mona Sans VF", -apple-system, BlinkMacSystemFont, "Segoe UI", "Noto Sans", Helvetica, Arial, sans-serif, "Apple Color Emoji", "Segoe UI Emoji"; font-size: 16px;">You will also need to configure the ROM and EXROM/GAME jumpers for the chosen image, according to the following common settingROMHHICloseCloseUsed for 16 KB cartridges, so does not apply hereUltimaxHICloseOpenOriginally used for cartridges for the Japanese MAX Machine, will work even if the kernal ROM is damaged
Note that with this cartridge GAME and EXROM must NEVER closed at the same time.
TERMS:
- NO RETURNS/REFUND
- NO TECHNICAL SUPPORT PROVIDED
STANDARD DISCLAIMER:
I AM NOT RESPONSIBLE FOR YOUR PROJECT IN ANYWAY, THAT IS, ANY KIND OF DAMAGES TO YOUR MACHINE(S)/COMPUTER(S), INCLUDING BUT NOT LIMITED OF TO PHYSICAL, MENTAL, EMOTIONAL, PROPERTY-WISE, OR FINANCIALLY. NOR AM I RESPONSIBLE FOR ANY TECHNICAL SUPPORT. THIS IS JUST LIKE A BREAD BOARD THAT YOU USE WIH YOUR RESPONSIBILITY AND IMAGINATION. You MUST read and understand all the computer electrical characteristics on its peripherals, e.g., expansion slots, etc., before using the ampere you can use! Please research that on the internet! You MUST also understand all electrical characteristics of whatever ICs that you use. Read the datasheets! NO returns or refunds. Please note that the descriptions were provided to the best of quality. Not responsible for any typos.
PLEASE ASK QUESTIONS IF YOU'RE IN DOUBT BEFORE offerDING OR BUYING!
