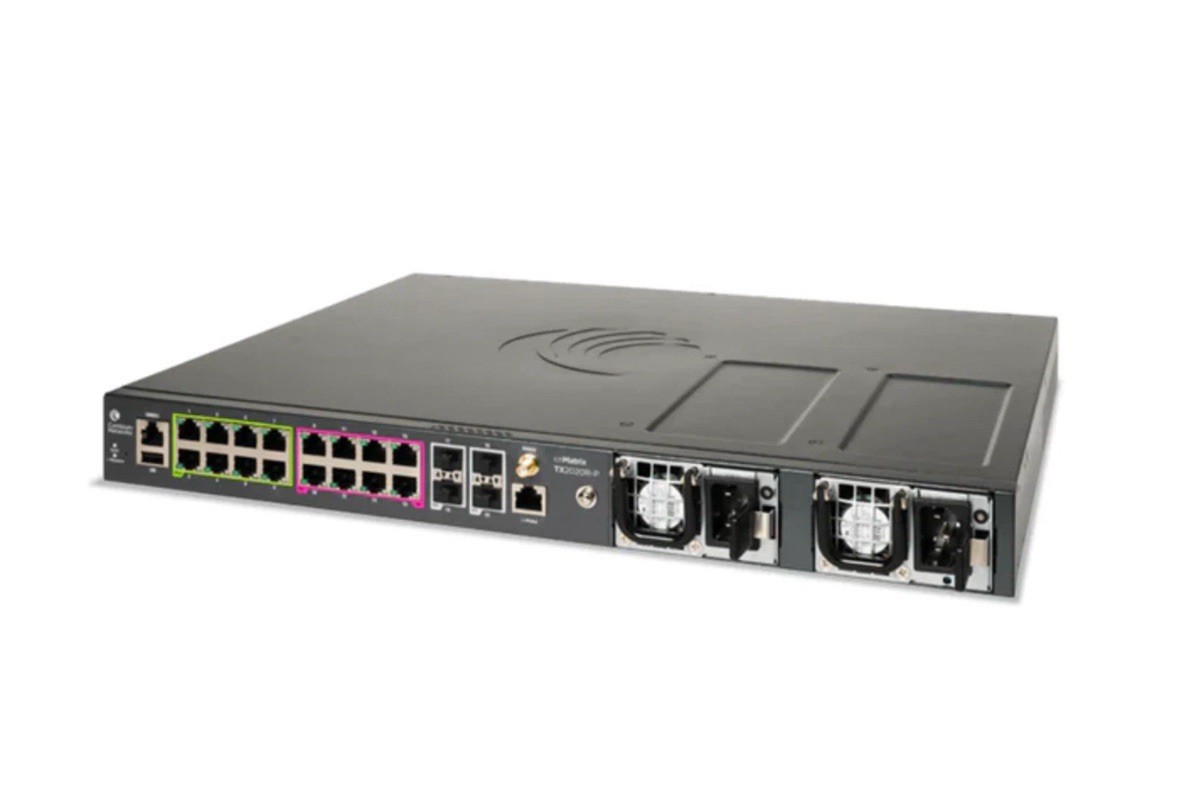

Cambium Networks - MXTX2020GXPA11 - cnMatrix TX 2020R-P Intelligent Ethernet PoE Switch Cambium Sync 16 x 1gbps and 4

2889.77

cnMatrix TX provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE and Cambium synchronization in a single box solution that is easy to install and manage while improving network performance.

Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.

Features:

Throughput: 112 Gbps

Forwarding Rate in Mpps (64 Byte Packets): 120

10/100/1000 Mbps RJ45 Ports: 16

10 Gbps Fiber SFP+ Ports: 4

PoE+ Enabled Ports 802.3af/at/bt: 16

Low Voltage Passive PoE (24 V): 8

Cambium Sync (via RJ45 ports): 16

Hardware Specifications:

Power Supply: CRPS dependent

PoE Power Budget: CRPS dependent

802.3af/at/bt PoE (54V): Ports 1–16

24V Passive PoE - up to 15W: Ports 9–16

54V Passive PoE - up to 90W: Ports 1–8

54V Passive PoE - up to 30W: Ports 9–16

Rack Mountable: Yes 1U

Wall Mountable: Yes

Temperature Ranges: -10°C up to 65°C

Management:

XMS* cloud management

Industry standard Command Line Interface (CLI)

DHCP Client

Embedded web management (/S)

Embedded DHCP server

USB file management and storage

Out-of-Band Ethernet Management

SSH / SSH v2

SNMP v1/v2/v3

Layer 2 Feature Set:

802.1s multiple spanning tree

VLAN, Port, Protocol, 802.1q

802.1d

802.1x authentication

Auto MDI/MDIX

BPDU Guard, Root Guard

Layer 3 Feature Set:

Inter-VLAN Routing

Static ARPs

Static Routes

DHCP Relay

Dynamic Routing – RIPv1/v2

Dynamic Routing – OSPFv2

Route Redistribution

Quality of Service:

ACL mapping and marking of ToS/DSCP (COS)

ACL mapping to priority queue

ACL mapping marking of 802.1p

Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP

Traffic Management:

ACL-based inbound rate limiting policies

Inbound rate limiting per port

Broadcast, multicast and unknown unicast rate limiting

Outbound rate limiting per port/queue

Security:

Source/Destination IP address

TCP/UDP Source/Destination port

IP Protocol Type

Type of Service (ToS) or differentiated services (DSCP) field

Source/Destination MAC address
