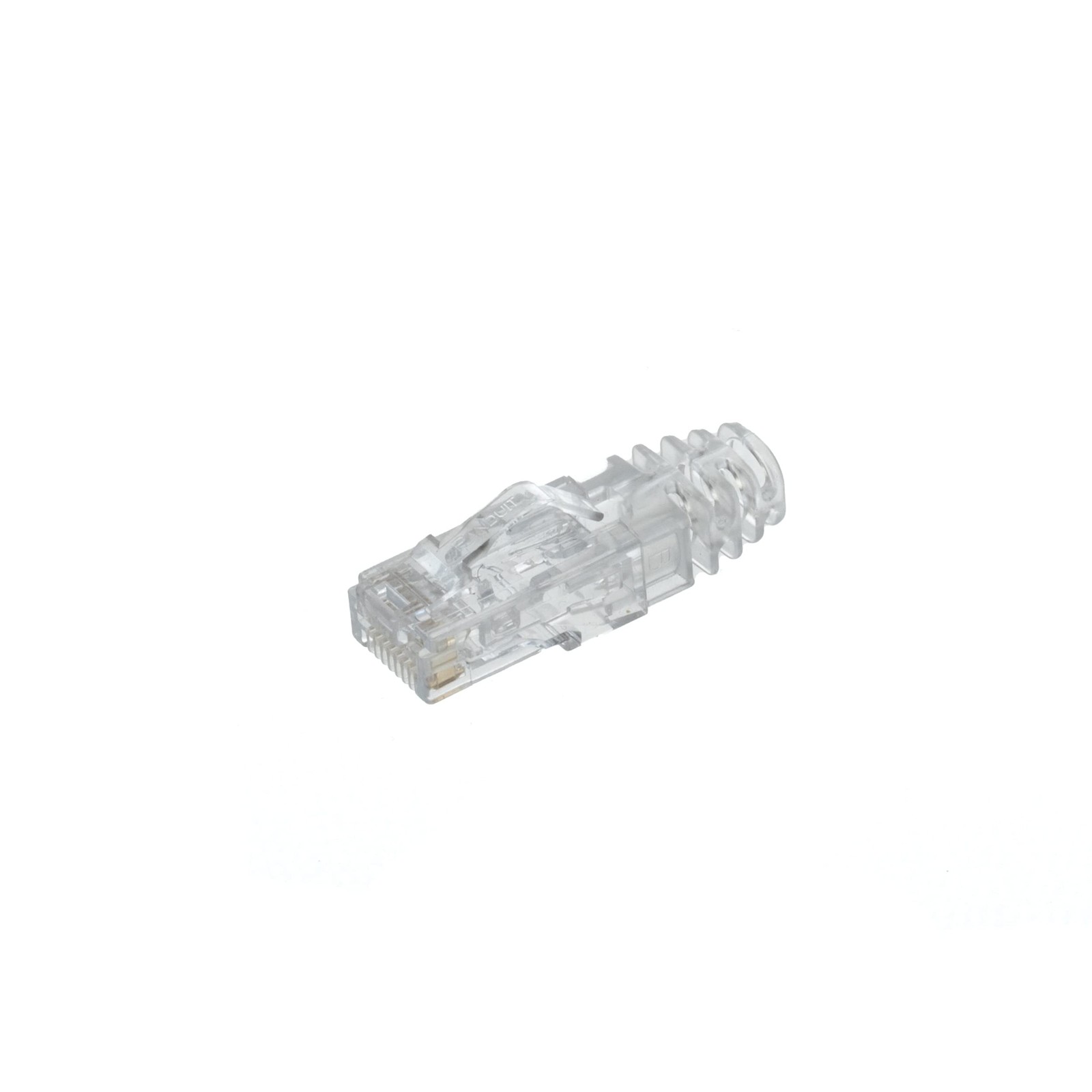

Cat6 modular plug LANconnector 100 pieces SP688E-C PANDUIT Corporation Description
This is a Cat6 modular plug that is the successor to SP688-C. The plug is now 3 parts instead of the previous 5 parts, allowing you to terminate the plug more quickly and easily.
The patented shape prevents the claws from breaking, so there is no need to worry about the claws breaking.
Cat6 modular plugs meet the performance requirements of ISO 11801 Class E, IEEE 802.3an-2006, and ANSI/TIA-568-C.2 Category 6 standards and support transmission speeds up to 1000BASE-T doing.
Applicable conductor diameter: AWG23~AWG24 solid wire and stranded wire. Applicable cable outer diameter (mm): φ5.72~φ6.35.
Number of packages: 100 pieces
The same tools (MPT5-8AS, CSPT) can be used for construction.
Applicable conductor diameter: AWG23~AWG24 solid wire and stranded wire Applicable cable outer diameter (mm): φ5.72~φ6.35
Auxiliary tool: CSPT
Number of packages: 100 pieces
PoE Compliant: Suitable for PoE, PoE+, and Type 3 and 4 PoE++ applications (up to 100 W)
RoHS Compliant
Operating Temperature: -10°C ~ 60° C (14°F ~ 140°F)
Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Cat6 modular plug, successor to SP688-C . The plug is now 3 parts instead of the previous 5 parts, allowing you to terminate the plug more quickly and easily.
There is no need to worry about the claws breaking due to the patented shape that prevents them from breaking. Cat6 modular plugs meet the performance requirements of ISO 11801 Class E, IEEE 802.3an-2006, and ANSI/TIA-568-C.2 Category 6 standards and support transmission speeds up to 1000BASE-T .
Applicable conductor diameter: AWG23~AWG24 solid wire and stranded wire. Applicable cable outer diameter (mm): φ5.72~φ6.35.
Number of packages: 100 pieces
