• Power distribution unit (rack-mountable)
• AC 120/208 V
• 8.6 kW
• 3-phase
• Ethernet 10/100/1000, serial
• input: NEMA L21-30P
• output connectors: 42 (30 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5-20R)
• 42U
• 3 m cord
• black

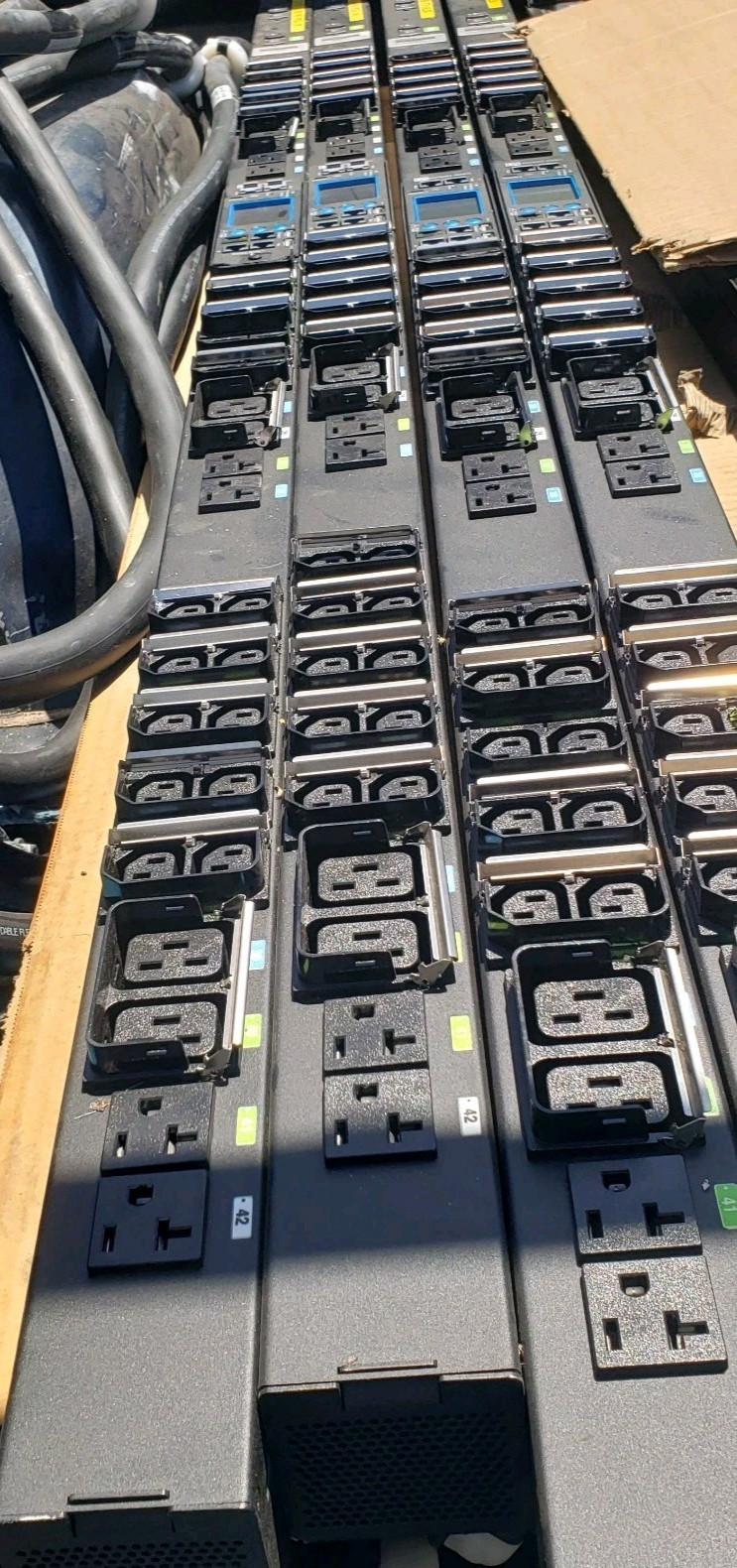

This is for one used Chatsworth Monitored eConnect PDU EA-3014-C 42-Outlet 120V/208V 30A 3-PH L21-30P.

• Includes one Chatsworth Monitored eConnect PDU EA-3014-C 42-Outlet 120V/208V 30A 3-PH L21-30P as pictured above. Also includes button mount hardware. No other parts or accessories are included.

• This PDU is in good working and in good cosmetic condition. Cosmetic defects include light scratches and scuff marks.

Technical Specifications

• Input Power Capacity (kW): 8.6

• Input Plug Type: NEMA L21-30P

• Input Current (A): 30

• Input Phase: 3-Phase

• Outlets:

• (36) IEC C13 (208V)

• (6) IEC C19 (208V)

Features

• Monitored eConnect PDU;

• For 42U & Higher Cabinets;

• 149°F (65°C);

• Secure Array IP Consolidation;

• Phase-Balance Locking Outlets;

• Field-Replaceable Controller;

• +/-1% Metering Accuracy;

• LCD Display;

• 10/100/1000MB Port;

• Onboard GUI;

• RESTful API, CLI; LDAP & Radius Integration;

• HTTPs;

• Environmental Sensor and Electronic Lock Integration Ready;

• 100% Rated Hydraulic Magnetic Breakers;

• Tool-less Mounting

Product Information

Manufacturer: Chatsworth

MPN: EA-3014-C

Shipping Weight: 25 lbs.

Shipping Dimensions: 77 x 6 x 6 Inches

eConnect PDU Monitored 42U & Higher Cabinets EA-3014-C

DESCRIPTION :

Monitored eConnect PDU; Black; Vertical; For 42U & Higher Cabinets; L21-30 Input; (30) C13+(6) C19 + (6) 5-20 Outlets; 8.6kW; 149°F (65°C); Secure Array IP Consolidation; Phase-Balance Locking Outlets; Field-Replaceable Controller; +/-1% Metering Accuracy; LCD Display; 10/100/1000MB Port; Onboard GUI; SNMPv1/v2/v3; RESTful API, CLI; LDAP & Radius Integration; HTTPs; Environmental Sensor and Electronic Lock Integration Ready; 100% Rated Hydraulic Magnetic Breakers; Tool-less Mounting

FEATURES :

⦿ Input and branch circuit monitoring with billing-grade +/-1% accuracy
⦿ Field-replaceable controller module for easy serviceability and upgradeability while
maintaining power to critical loads; SD-card transfers PDU configuration
⦿Onboard GUI, RESTful API, SNMP v1/v2/v3, Command Line Interface (CLI), and native
Power IQ DCIM software integration allows users to easily manage PDUs
⦿Zero Touch Provisioning (ZTP) automates configuration and provisioning of large
deployments of PDUs.
⦿HTTPs support, RADIUS and LDAP integration for enhanced authentication
and security
⦿Customization capabilities: outlet configurations, color options, power cord length,
input connection types and more
⦿ Made in the United States, TAA-compliant
