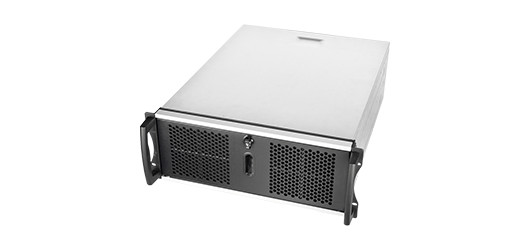

The Chenbro RM42300 is a compact 4U 17.5" deep Industrial Server Chassis. Equipped with a shock isolated design solution, dust-proof filter, and compact size make it perfect for space-sensitive industrial applications.
Features:• Supports M/B up to 12” x 9.6”• Available for rackmount and stand-alone installation• Dedicated 80 mm fan for center front HDD cooling (Optional)• Shock isolated dampener solution on internal HDD and device protection• Card retainer to hold low profile and full height add-on cards• Front 120mm fan with filter for add-on card cooling• Optional second 3 x 5.25” drive cage for maximum configuration flexibility (contact us)• Supports 1-door or 2-door front bezel configuration (*Configured with the 1-door option)• Supports PS/2 single or mini-redundant PSU
Specifications:• Form Factor: 4U• Dimension (D x W x H): 465.2 mm x 430.0 mmx 176.0 mm; 18.32" x 16.93" x 6.93"• MB Support: ATX MB up to 12" x 9.6"• Storage Bay External: 3 x 5.25“, 1 x 3.5”, 1 x Slim ODD• Storage Bay Internal: 4 x 3.5"• PSU Form Factor: ATX PS/2 Single or Mini-redundant• Cooling Fan: Front: 1 x 120mm (T=25mm) PWM• Optional Cooling Fans: 2 x 80mm Rear Fans, 1 x 80mm Hard Drive Cage Fan (*Fans Not Included)• Front Control: 1 x Power On/Off, 1 x System Reset , 2 x USB 3.0• System Security: Intrusion Switch, Key Lock on Front Door• Indicators: 1 x Power Status , 2 x LAN Activity , 1 x HDD Status• Expansion Slot: 7 x Full Height
*Includes Chassis Only - does not include MB, HDD, PS or other parts.
