1x Integrated (Takes C13 Plug)

Minor signs of prior use, including scratching and scuffs around the unit
possible adhesive residue, and other signs of prior use

Power Cord

--------------------------------
Cooling Fan 1: 5888 RPM - OK
Cooling Fan 2: 6144 RPM - OK
Cooling Fan 3: 5888 RPM - Processors:
--------------------------------
Processor 1: 49.0 C - OK Chassis:
--------------------------------
Ambient 1: 36.0 C - OK (Chassis Back Temperature)
Ambient 2: 34.0 C - OK (Chassis Front Temperature)
Ambient 3: 39.0 C - OK (Chassis Back Left Channel 1: 1.072 V - OK (CPU Core)
Channel 2: 12.040 V - OK (12V)
Channel 3: 5.033 V - OK (5V)
Channel 4: 3.280 V - OK (3.3V)
Channel 5: 1.504 V - OK (DDR3 1.5V)
Channel 6: 1.048 V - OK (PCH 1.05V)ciscoasa# show inv

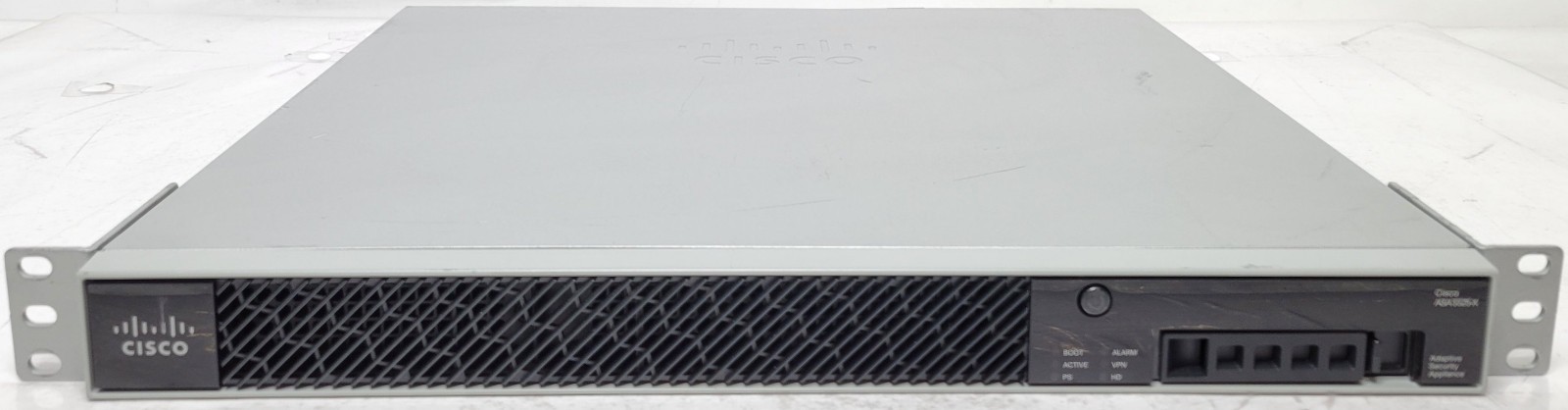

Name: "Chassis", DESCR: "ASA 5525-X with SW, 8 GE Data, 1 GE Mgmt, AC"
PID: ASA5525 , VID: V01 , SN: FGL17224001ciscoasa# show moduleMod Card Type Model Serial No.
---- ------------------ -----------
0 ASA 5525-X with SW, 8 GE Data, 1 GE Mgmt, AC ASA5525 FCH1719J180
ips Unknown N/A FCH1719J180
cxsc Unknown N/A FCH1719J180Mod MAC Address Range Hw Version Fw Version Sw Version
---- --------------------------------- ------------ ------------ ---------------
0 6c41.6aa1.0c01 to 6c41.6aa1.0c0a 1.0 2.1(9)8 9.1(2)
ips 6c41.6aa1.0bff to 6c41.6aa1.0bff N/A N/A
cxsc 6c41.6aa1.0bff to 6c41.6aa1.0bff N/A N/AMod SSM Application Name Status SSM Application Version
---- ------------------------------ ---------------- --------------------------
ips Unknown No Image Present Not Applicable
cxsc Unknown No Image Present Not ApplicableMod Status Data Plane Status Compatibility
---- ------------------ --------------------- -------------
0 Up Sys Not Applicable
ips Unresponsive Not Applicable
cxsc Unresponsive Not ApplicableMod License Name License Status Time Remaining
---- -------------- --------------- ---------------
ips IPS Module Disabled perpetualciscoasa# show verCisco Adaptive Security Appliance Software Version 9.1(2)
Device Manager Version 6.6(1)Compiled on Thu 09-May-13 16:20 PDT by builders
System image file is "disk0:/asa912-smp-k8.bin"
Config file at boot was "startup-config"ciscoasa up 1 min 48 secsHardware: ASA5525, 8192 MB RAM, CPU Lynnfield 2394 MHz, 1 CPU (4 cores)
ASA: 4096 MB RAM, 1 CPU (1 core)
Internal ATA Compact Flash, 8192MB
BIOS Flash MX25L6445E @ 0xffbb0000, 8192KBEncryption hardware device : Cisco ASA-55xx on-board accelerator (revision 0x1)
Boot microcode : CNPx-MC-BOOT-2.00
SSL/IKE microcode : CNPx-MC-SSL-PLUS-T020
IPSec microcode : CNPx-MC-IPSEC-MAIN-0024
Number of accelerators: 1
Baseboard Management Controller (revision 0x1) Firmware Version: 2.4
0: Int: Internal-Data0/0 : address is 6c41.6aa1.0c01, irq 11
1: Ext: GigabitEthernet0/0 : address is 6c41.6aa1.0c06, irq 5
2: Ext: GigabitEthernet0/1 : address is 6c41.6aa1.0c02, irq 5
3: Ext: GigabitEthernet0/2 : address is 6c41.6aa1.0c07, irq 10
4: Ext: GigabitEthernet0/3 : address is 6c41.6aa1.0c03, irq 10
5: Ext: GigabitEthernet0/4 : address is 6c41.6aa1.0c08, irq 5
6: Ext: GigabitEthernet0/5 : address is 6c41.6aa1.0c04, irq 5
7: Ext: GigabitEthernet0/6 : address is 6c41.6aa1.0c09, irq 10
8: Ext: GigabitEthernet0/7 : address is 6c41.6aa1.0c05, irq 10
9: Int: Internal-Data0/1 : address is 0000.0001.0002, irq 0
10: Int: Internal-Control0/0 : address is 0000.0001.0001, irq 0
11: Int: Internal-Data0/2 : address is 0000.0001.0003, irq 0
12: Ext: Management0/0 : address is 6c41.6aa1.0c01, irq 0Licensed features for this platform:
Maximum Physical Interfaces : Unlimited perpetual
Maximum VLANs : 200 perpetual
Inside Hosts : Unlimited perpetual
Failover : Active/Active perpetual
Encryption-DES : Enabled perpetual
Encryption-3DES-AES : Enabled perpetual
Security Contexts : 2 perpetual
GTP/GPRS : Disabled perpetual
AnyConnect Premium Peers : 2 perpetual
AnyConnect Essentials : 750 perpetual
Other VPN Peers : 750 perpetual
Total VPN Peers : 750 perpetual
Shared License : Disabled perpetual
AnyConnect for Mobile : Disabled perpetual
AnyConnect for Cisco VPN Phone : Disabled perpetual
Advanced Endpoint Assessment : Disabled perpetual
UC Phone Proxy Sessions : 2 perpetual
Total UC Proxy Sessions : 2 perpetual
Botnet Traffic Filter : Disabled perpetual
Intercompany Media Engine : Disabled perpetual
IPS Module : Disabled perpetual
Cluster : Disabled perpetualThis platform has an ASA5525 VPN Premium license.Serial Number: FCH1719J180
Running Permanent Activation Key: 0x0b11f140 0xe8e1d331 0x4d31f928 0xf6e8f098 0xcb25c384
Configuration register is 0x1
Configuration has not been modified since last system restart.
