This unit is in great shape and arrives tested working with a 1 year warranty.

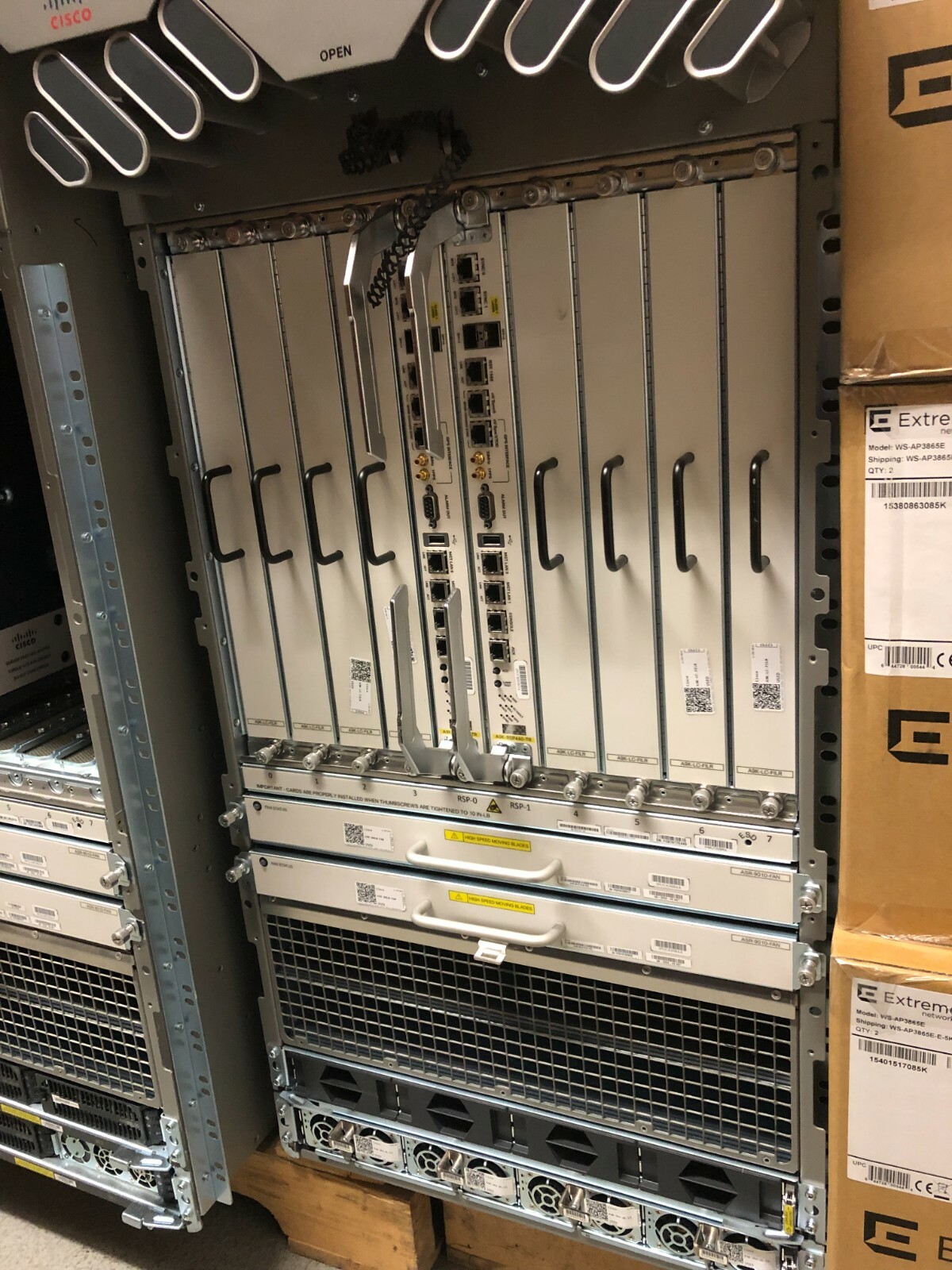

CiscoASR-9010-DC-V2-ASR 9000 V2 Series 10-Slot Aggregation Services Router with DC PSU
HECI: -ASR9K Route Switch Processor with 440G/slot Fabric and 6GB
4xA9K-2KW-DC- 2KW DC Power Module for ASR-9006 & ASR-9010 Spare Power Module
Overview:
Networks are pressured to evolve more rapidly to keep pace with the increasing demand for ultra-low latency connections across both mobile and wireline networks. Edge networks need the capacity to scale, and feature-richness to support a wide array of high demand applications such as distributed provider edge, Internet peering, and metro aggregation. By delivering unparalleled feature richness and with the ability to scale in support of 400 GbE, the Cisco ASR 9000 series is changing the architectural economics for edge networks. Edge network architectures are becoming more distributed to enable new revenue generating services and bring edge compute and storage closer to the end user. This edge evolution requires both hardware and software to deliver scale, simplicity, trust, and security—a combination that can only be found in the Cisco portfolio.
The Cisco ASR 9000 Series
The ASR 9000 is a high-density, high performance edge platform optimized for content streaming (video, online gaming) and mobile aggregation. The ASR is capable of supporting connections from 1G up to 400G providing operators with a long-term growth platform that scales ahead of demand. With carrier-class reliability, comprehensive system redundancy and a full complement of network resiliency schemes, this platform can service growing or high-demand markets. These routers are complete solutions that help you simplify and enhance the deployment and operation of service delivery networks.
Benefits
● Increase revenue by deploying new performance guaranteed services and entering new markets.
● Reduce operational costs through network consolidation and end-to-end automated network orchestration.
● Greatly improve service agility by orchestrating services across a converged network and enabling on-demand service capabilities with customer self-service options.
Benefits
The Cisco ASR 9000 Series is critical component of the Cisco Converged SDN Transport network design. Edge devices need to deliver the scale, features, and bandwidth, without incurring a larger footprint and higher power costs. The Cisco ASR 9000 system is cloud enhanced with automation tools that utilize streaming telemetry data to provide actionable intelligence for network optimization. Recent updates give your network engineers fine-grained, end-to-end control of traffic flow and can add MACsec security for protection during transport.
Cisco ASR 9000 Series routers are designed to simplify and enhance the operations of your network by:
● Meeting the needs of mass scale networks with segment routing, EVPN protocol support to build flexibility into your traffic transport.
● Protecting and maximizing your capital investments with a flexible consumption model for licensing and dynamic licensing pooling.
● Accelerating service agility with multi-dimensional programmability, open APIs, and advanced telemetry built into IOS XR to provide network visibility and closed loop remediation driven by analytics and machine learning.Cisco ASR 9000 Routers
You can take full advantage of a converged, full-featured aggregation platform designed for the mobile and business markets with the Cisco ASR platform. It has the flexibility to support 1G, 10G, 25G, 40G, 100G, and 400G ports allowing deployments for small market remote Point-Of-Presence (POP) applications, or to serve as a Metro aggregation router for mobile traffic. The ASR 9000 gives you full redundancy, shallow depth, low power consumption, and high service scale making it one of the most versatile infrastructure units on the market.
Additional benefits
● Enjoy investment protection through industry leading bandwidth capacities in the ASR 9900 series and a roadmap to meet demands of the future.
● A SDN optimized routing platform that supports standards-based interfaces such as Netconf and YANG models. Each is highly programmable with intelligent virtualization capabilities to lower operational costs. The fully virtualized ASR 9000 with Cisco IOS XRv is optimized for cloud networking.
● The ASR 9000 series combined with Cisco service orchestration capabilities extend from the network edge into data center for instant-on services, customer self-service capabilities, and a reduction of service creation time from months to minutes.
● Segment Routing and Ethernet Virtual Private Networking (EVPN) significantly reduce the network complexity and add dynamic routing policies to decrease potential network ver briefTue Feb 2 21:12:09.710 UTC
Cisco IOS XR Software, Version 4.3.2[Default]Copyright (c) 2013 by Cisco Systems, Inc.
ROM: System Bootstrap, Version 1.06(20120210:003513) [ASR9K ROMMON],
ios uptime is 11 minutesSystem image file is ASR9K Series (MPC8641D) processor with 4194304K bytes of memory.MPC8641D processor at 1333MHz, Revision 2.2ASR-9010 DC Chassis
4 Management Ethernet32 DWDM controller(s)32 TenGigE32 WANPHY controller(s)219k bytes of non-volatile configuration memory.68114M bytes of hard disk.1605616k bytes of disk0: (Sector size 512 bytes).1605616k bytes of disk1: (Sector size 512 bytes).RP/0/RSP0/CPU0:ios(admin)#show invTue Feb 2 21:12:15.558 UTCNAME: "module 0/RSP0/CPU0", DESCR: "ASR9K Fabric, Controller, 4G memory"PID: A9K-RSP-4G, VID: V03, SN: FOC150180EN
NAME: "module 0/RSP1/CPU0", DESCR: "ASR9K Fabric, Controller, 4G memory"PID: A9K-RSP-4G, VID: V03, SN: FOC150180AD
NAME: "module compact-flash 0/RSP1/CPU0", DESCR: " CompactFlash "PID: , VID: N/A, SN:
NAME: "fantray 0/FT0/SP", DESCR: "ASR-9010 Fan Tray"PID: ASR-9010-FAN, VID: V01, SN: FOX1502XGYS
NAME: "fan0 0/FT0/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan1 0/FT0/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan2 0/FT0/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan3 0/FT0/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan4 0/FT0/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan5 0/FT0/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan6 0/FT0/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan7 0/FT0/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan8 0/FT0/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan9 0/FT0/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan10 0/FT0/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan11 0/FT0/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fantray 0/FT1/SP", DESCR: "ASR-9010 Fan Tray"PID: ASR-9010-FAN, VID: V01, SN: FOX1502XGYJ
NAME: "fan0 0/FT1/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan1 0/FT1/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan2 0/FT1/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan3 0/FT1/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan4 0/FT1/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan5 0/FT1/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan6 0/FT1/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan7 0/FT1/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan8 0/FT1/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan9 0/FT1/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan10 0/FT1/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "fan11 0/FT1/SP", DESCR: "ASR9K Generic Fan"PID: , VID: N/A, SN:
NAME: "module 0/0/CPU0", DESCR: "8-Port 10GE Low Queue Line Card, Requires XFPs"PID: A9K-8T-L, VID: V05, SN: FOC1709N43H
NAME: "module 0/1/CPU0", DESCR: "8-Port 10GE Low Queue Line Card, Requires XFPs"PID: A9K-8T-L, VID: V04, SN: FOC1645N3B1
NAME: "module 0/2/CPU0", DESCR: "8-Port 10GE Low Queue Line Card, Requires XFPs"PID: A9K-8T-L, VID: V05, SN: FOC153780MZ
NAME: "module 0/3/CPU0", DESCR: "8-Port 10GE Low Queue Line Card, Requires XFPs"PID: A9K-8T-L, VID: V03, SN: FOC1549839K
NAME: "power-module 0/PM2/SP", DESCR: "2kW DC Power Module"PID: A9K-2KW-DC, VID: V02, SN: TLD14515030
NAME: "power-module 0/PM3/SP", DESCR: "2kW DC Power Module"PID: A9K-2KW-DC, VID: V02, SN: TLD14515034
NAME: "power-module 0/PM4/SP", DESCR: "2kW DC Power Module"PID: A9K-2KW-DC, VID: V02, SN: TLD1451505B
NAME: "power-module 0/PM5/SP", DESCR: "2kW DC Power Module"PID: A9K-2KW-DC, VID: V02, SN: TLD14515032
NAME: "chassis ASR-9010-DC", DESCR: "ASR-9010 DC Chassis"PID: ASR-9010-DC, VID: V01, SN: hw-module fpd location allTue Feb 2 21:15:05.375 Existing Field Programmable Devices HW Current SW Upg/Location Card Type Version Type Subtype Inst Version Dng?============ ======================== ======= ==== ======= ==== =========== ====0/RSP0/CPU0 A9K-RSP-4G 1.0 lc fpga3 0 1.23 No lc fpga1 0 1.05 No lc fpga2 0 1.15 No lc cbc 0 1.03 No lc fpga4 0 3.08 No lc rommon 0 1.06 ASR-9010-FAN 1.0 ft cbc 7 4.02 ASR-9010-FAN 1.0 ft cbc 8 4.02 A9K-RSP-4G 1.0 lc fpga3 0 1.23 No lc fpga1 0 1.05 No lc fpga2 0 1.15 No lc cbc 0 1.03 No lc fpga4 0 3.08 No lc rommon 0 1.06 A9K-8T-L 1.0 lc fpga1 0 1.03 No lc fpga2 0 0.11 No lc cbc 0 6.11 No lc cpld2 0 0.08 No lc cpld1 0 1.02 No lc cpld3 0 0.03 No lc cpld4 0 1.03 No lc rommon 0 1.03 A9K-8T-L 1.0 lc fpga1 1 1.03 A9K-8T-L 1.0 lc fpga1 0 1.03 No lc fpga2 0 0.11 No lc cbc 0 6.11 No lc cpld2 0 0.08 No lc cpld1 0 1.02 No lc cpld3 0 0.03 No lc cpld4 0 1.03 No lc rommon 0 1.03 A9K-8T-L 1.0 lc fpga1 1 1.03 A9K-8T-L 1.0 lc fpga1 0 1.03 No lc fpga2 0 0.11 No lc cbc 0 6.11 No lc cpld2 0 0.08 No lc cpld1 0 1.02 No lc cpld3 0 0.03 No lc cpld4 0 1.03 No lc rommon 0 1.03 A9K-8T-L 1.0 lc fpga1 1 1.03 A9K-8T-L 1.0 lc fpga1 0 1.03 No lc fpga2 0 0.11 No lc cbc 0 6.11 No lc cpld2 0 0.08 No lc cpld1 0 1.02 No lc cpld3 0 0.03 No lc cpld4 0 1.03 No lc rommon 0 1.03 A9K-8T-L 1.0 lc fpga1 1 1.03 diagnostic res location allTue Feb 2 21:13:04.254 UTCRP 0/RSP0/CPU0:
Overall diagnostic result: PASS Diagnostic level at card bootup: minimal
Test results: (. = Pass, F = Fail, U = Untested)
1 ) PuntFPGAScratchRegister ---------> . 2 ) FIAScratchRegister --------------> . 3 ) ClkCtrlScratchRegister ----------> . 4 ) IntCtrlScratchRegister ----------> . 5 ) CPUCtrlScratchRegister ----------> . 6 ) FabSwitchIdRegister -------------> . 7 ) EccSbeTest ----------------------> U 8 ) SrspStandbyEobcHeartbeat --------> U 9 ) SrspActiveEobcHeartbeat ---------> U 10 ) FabricLoopback ------------------> . 11 ) PuntFabricDataPath --------------> . 12 ) FPDimageVerify ------------------> URP 0/RSP1/CPU0:
Overall diagnostic result: PASS Diagnostic level at card bootup: minimal
Test results: (. = Pass, F = Fail, U = Untested)
1 ) PuntFPGAScratchRegister ---------> . 2 ) FIAScratchRegister --------------> . 3 ) ClkCtrlScratchRegister ----------> . 4 ) IntCtrlScratchRegister ----------> . 5 ) CPUCtrlScratchRegister ----------> . 6 ) FabSwitchIdRegister -------------> . 7 ) EccSbeTest ----------------------> U 8 ) SrspStandbyEobcHeartbeat --------> . 9 ) SrspActiveEobcHeartbeat ---------> . 10 ) FabricLoopback ------------------> . 11 ) PuntFabricDataPath --------------> . 12 ) FPDimageVerify ------------------> UA9K-8T-L 0/0/CPU0:
Overall diagnostic result: PASS Diagnostic level at card bootup: bypass
Test results: (. = Pass, F = Fail, U = Untested)
1 ) PHYCtrlScratchRegister ----------> . 2 ) PortCtrlScratchRegister ---------> . 3 ) CPUCtrlScratchRegister ----------> . 4 ) NPScratchRegister ---------------> . 5 ) BridgeScratchRegister -----------> . 6 ) FIAScratchRegister --------------> . 7 ) EccSbeTest ----------------------> U 8 ) LcEobcHeartbeat -----------------> . 9 ) NPULoopback ---------------------> U 10 ) NPULoopbackUseRxPath ------------> U 11 ) FPDimageVerify ------------------> UA9K-8T-L 0/1/CPU0:
Overall diagnostic result: PASS Diagnostic level at card bootup: bypass
Test results: (. = Pass, F = Fail, U = Untested)
1 ) PHYCtrlScratchRegister ----------> . 2 ) PortCtrlScratchRegister ---------> . 3 ) CPUCtrlScratchRegister ----------> . 4 ) NPScratchRegister ---------------> . 5 ) BridgeScratchRegister -----------> . 6 ) FIAScratchRegister --------------> . 7 ) EccSbeTest ----------------------> U 8 ) LcEobcHeartbeat -----------------> . 9 ) NPULoopback ---------------------> U 10 ) NPULoopbackUseRxPath ------------> U 11 ) FPDimageVerify ------------------> UA9K-8T-L 0/2/CPU0:
Overall diagnostic result: PASS Diagnostic level at card bootup: bypass
Test results: (. = Pass, F = Fail, U = Untested)
1 ) PHYCtrlScratchRegister ----------> . 2 ) PortCtrlScratchRegister ---------> . 3 ) CPUCtrlScratchRegister ----------> . 4 ) NPScratchRegister ---------------> . 5 ) BridgeScratchRegister -----------> . 6 ) FIAScratchRegister --------------> . 7 ) EccSbeTest ----------------------> U 8 ) LcEobcHeartbeat -----------------> . 9 ) NPULoopback ---------------------> U 10 ) NPULoopbackUseRxPath ------------> U 11 ) FPDimageVerify ------------------> UA9K-8T-L 0/3/CPU0:
Overall diagnostic result: PASS Diagnostic level at card bootup: bypass
Test results: (. = Pass, F = Fail, U = Untested)
1 ) PHYCtrlScratchRegister ----------> . 2 ) PortCtrlScratchRegister ---------> . 3 ) CPUCtrlScratchRegister ----------> . 4 ) NPScratchRegister ---------------> . 5 ) BridgeScratchRegister -----------> . 6 ) FIAScratchRegister --------------> . 7 ) EccSbeTest ----------------------> U 8 ) LcEobcHeartbeat -----------------> . 9 ) NPULoopback ---------------------> U 10 ) NPULoopbackUseRxPath ------------> U 11 ) FPDimageVerify ------------------> U
RP/0/RSP0/CPU0:ios(admin)#show env allTue Feb 2 21:13:31.591 UTC
Temperature Modules Sensor (deg C)0/0/* host Inlet0 22.5 host Hotspot0 38.8
0/1/* host Inlet0 25.6 host Hotspot0 41.3
0/2/* host Inlet0 24.8 host Hotspot0 44.1
0/3/* host Inlet0 22.0 host Hotspot0 36.6
0/RSP0/* host Inlet0 20.0 host Hotspot0 31.1
0/RSP1/* host Inlet0 20.0 host Hotspot0 30.8
0/FT0/* host Inlet0 19.0 host Hotspot0 20.2
0/FT1/* host Inlet0 19.1 host Hotspot0 21.7
Voltage Modules Sensor (mV) Margin0/0/* host VP3P3_CAN 3285 n/a host 1.8V_DB 1800 n/a host 5.0V_XFP_DB 5001 n/a host 1.1VC_DB 1099 n/a host 1.5VC_DB 1499 n/a host 0.75VD_DB 747 n/a host 0.75VE_DB 751 n/a host 1.8VD_DB 1800 n/a host 1.0VB_DB 1000 n/a host 1.1VD_DB 1100 n/a host 7.0V_DB 7000 n/a host 5.0V_DB 5000 n/a host 1.2VC_DB 1201 n/a host 1.2V_10G_PHY23_DB 1200 n/a host 1.8V_10G_DB 1799 n/a host 1.2V_10G_PHY45_DB 1199 n/a host 1.2V_10G_PHY67_DB 1199 n/a host 1.0V_TCAM6_DB 1000 n/a host 1.0V_TCAM7_DB 1000 n/a
0/1/* host 5.0V 5000 n/a host VP3P3_CAN 3301 n/a host 3.3V 3300 n/a host 2.5V 2500 n/a host 1.8VB 1785 n/a host 1.2VB 1200 n/a host 1.5V 1500 n/a host CPU_CORE 1049 n/a host 0.9VB 893 n/a host 1.8VC 1799 n/a host 1.5VB 1500 n/a host 1.1VB 1099 n/a host 1.0VB 1000 n/a host 1.5VC 1500 n/a host 1.8VD 1799 n/a host 1.1VC 1099 n/a host ZARLINK_3.3V 3300 n/a host ZARLINK_1.8V 1799 n/a host 1.8V 1800 n/a host 0.75V 748 n/a host 0.75VB 750 n/a host 0.75VC 750 n/a host 0.75VD 748 n/a host 0.75VE 748 n/a host 1.2V_RAV 1199 n/a host 1.0V_RAV 1000 n/a host 1.1VD 1100 n/a host 1.1VE 1099 n/a host 3.3V_DB 3300 n/a host 2.5V_DB 2500 n/a host 1.5V_DB 1500 n/a host 1.8V_DB 1800 n/a host 5.0V_XFP_DB 5000 n/a host 1.2VB_DB 1199 n/a host 7.0V 7000 n/a host 1.1VC_DB 1100 n/a host 1.5VC_DB 1500 n/a host 0.75VD_DB 748 n/a host 0.75VE_DB 751 n/a host 1.8VD_DB 1800 n/a host 1.2V_10G_PHY01_DB 1200 n/a host 0.75V_DB 747 n/a host 0.75VB_DB 743 n/a host 0.75VC_DB 740 n/a host 1.8VC_DB 1800 n/a host 1.5VB_DB 1500 n/a host 1.1VA_DB 1099 n/a host 1.2V_RAV1_RX_DB 1199 n/a host 1.0V_RAV1_DB 1000 n/a host 1.2V_RAV1_TX_DB 1199 n/a host 1.0VB_DB 999 n/a host 1.1VD_DB 1100 n/a host 7.0V_DB 7000 n/a host 5.0V_DB 4999 n/a host 1.1VB_DB 1100 n/a host 1.2VC_DB 1200 n/a host 1.2V_10G_PHY23_DB 1199 n/a host 1.8V_10G_DB 1800 n/a host 1.2V_10G_PHY45_DB 1199 n/a host 1.2V_10G_PHY67_DB 1199 n/a host 1.0V_TCAM0 1000 n/a host 1.0V_TCAM2 1000 n/a host 1.0V_TCAM6_DB 1000 n/a host 1.0V_TCAM4_DB 999 n/a host 1.0V_TCAM7_DB 1000 n/a host 1.0V_TCAM5_DB 1000 n/a
0/2/* host IBV 9781 n/a host 5.0V 4999 n/a host VP3P3_CAN 3301 n/a host 3.3V 3299 n/a host 2.5V 2499 n/a host 1.8VB 1785 n/a host 1.2VB 1200 n/a host 1.5V 1499 n/a host CPU_CORE 1050 n/a host 0.9VB 893 n/a host 1.8VC 1800 n/a host 1.5VB 1499 n/a host 1.1VB 1099 n/a host 1.0VB 999 n/a host 1.5VC 1500 n/a host 1.8VD 1800 n/a host 1.1VC 1099 n/a host ZARLINK_3.3V 3299 n/a host ZARLINK_1.8V 1800 n/a host 1.8V 1800 n/a host 0.75V 750 n/a host 0.75VB 751 n/a host 0.75VC 750 n/a host 0.75VD 749 n/a host 0.75VE 748 n/a host 1.2V_RAV 1200 n/a host 1.0V_RAV 1000 n/a host 1.1VD 1099 n/a host 1.1VE 1099 n/a host 3.3V_DB 3300 n/a host 2.5V_DB 2499 n/a host 1.5V_DB 1499 n/a host 1.8V_DB 1800 n/a host 5.0V_XFP_DB 4998 n/a host 1.2VB_DB 1199 n/a host 7.0V 6999 n/a host 1.1VC_DB 1100 n/a host 1.5VC_DB 1500 n/a host 0.75VD_DB 749 n/a host 0.75VE_DB 751 n/a host 1.8VD_DB 1800 n/a host 1.2V_10G_PHY01_DB 1199 n/a host 0.75V_DB 748 n/a host 0.75VB_DB 744 n/a host 0.75VC_DB 742 n/a host 1.8VC_DB 1799 n/a host 1.5VB_DB 1499 n/a host 1.1VA_DB 1099 n/a host 1.2V_RAV1_RX_DB 1199 n/a host 1.0V_RAV1_DB 1000 n/a host 1.2V_RAV1_TX_DB 1200 n/a host 1.0VB_DB 1000 n/a host 1.1VD_DB 1099 n/a host 7.0V_DB 7000 n/a host 5.0V_DB 5000 n/a host 1.1VB_DB 1100 n/a host 1.2VC_DB 1200 n/a host 1.2V_10G_PHY23_DB 1199 n/a host 1.8V_10G_DB 1800 n/a host 1.2V_10G_PHY45_DB 1199 n/a host 1.2V_10G_PHY67_DB 1199 n/a host 1.0V_TCAM0 1000 n/a host 1.0V_TCAM2 999 n/a host 1.0V_TCAM6_DB 999 n/a host 1.0V_TCAM4_DB 1000 n/a host 1.0V_TCAM7_DB 1000 n/a host 1.0V_TCAM5_DB 999 n/a
0/3/* host 5.0V 4999 n/a host VP3P3_CAN 3301 n/a host 3.3V 3299 n/a host 2.5V 2500 n/a host 1.8VB 1786 n/a host 1.2VB 1199 n/a host 1.5V 1500 n/a host CPU_CORE 1049 n/a host 0.9VB 890 n/a host 1.8VC 1799 n/a host 1.5VB 1500 n/a host 1.1VB 1099 n/a host 1.0VB 1000 n/a host 1.5VC 1500 n/a host 1.8VD 1800 n/a host 1.1VC 1099 n/a host ZARLINK_3.3V 3300 n/a host ZARLINK_1.8V 1800 n/a host 1.8V 1800 n/a host 0.75V 747 n/a host 0.75VB 748 n/a host 0.75VC 749 n/a host 0.75VD 748 n/a host 0.75VE 747 n/a host 1.2V_RAV 1199 n/a host 1.0V_RAV 1000 n/a host 1.1VD 1099 n/a host 1.1VE 1100 n/a host 3.3V_DB 3299 n/a host 2.5V_DB 2499 n/a host 1.5V_DB 1500 n/a host 1.8V_DB 1800 n/a host 5.0V_XFP_DB 4999 n/a host 1.2VB_DB 1200 n/a host 7.0V 7000 n/a host 1.1VC_DB 1099 n/a host 1.5VC_DB 1499 n/a host 0.75VD_DB 748 n/a host 0.75VE_DB 751 n/a host 1.8VD_DB 1799 n/a host 1.2V_10G_PHY01_DB 1200 n/a host 0.75V_DB 748 n/a host 0.75VB_DB 744 n/a host 0.75VC_DB 742 n/a host 1.8VC_DB 1799 n/a host 1.5VB_DB 1500 n/a host 1.1VA_DB 1099 n/a host 1.2V_RAV1_RX_DB 1200 n/a host 1.0V_RAV1_DB 1000 n/a host 1.2V_RAV1_TX_DB 1200 n/a host 1.0VB_DB 1000 n/a host 1.1VD_DB 1100 n/a host 7.0V_DB 7000 n/a host 5.0V_DB 4999 n/a host 1.1VB_DB 1100 n/a host 1.2VC_DB 1199 n/a host 1.2V_10G_PHY23_DB 1199 n/a host 1.8V_10G_DB 1799 n/a host 1.2V_10G_PHY45_DB 1200 n/a host 1.2V_10G_PHY67_DB 1199 n/a host 1.0V_TCAM0 1000 n/a host 1.0V_TCAM2 1000 n/a host 1.0V_TCAM6_DB 1000 n/a host 1.0V_TCAM4_DB 1000 n/a host 1.0V_TCAM7_DB 1000 n/a host 1.0V_TCAM5_DB 999 n/a
0/RSP0/* host 0.75VTT 753 n/a host 0.9VTT_A 905 n/a host 0.9VTT_B 904 n/a host IBV 10475 n/a host 5.0V 5020 n/a host VP3P3_CAN 3290 n/a host 3.3V 3312 n/a host 2.5V 2511 n/a host 1.8VB 1809 n/a host 1.2VA 1199 n/a host 1.2VB 1202 n/a host 1.05V 1049 n/a host 1.2VD 1201 n/a host 1.8VA 1805 n/a host 1.5V 1507 n/a host 1.9V 1888 Modules LED Status0/RSP0/* host Critical-Alarm Off host Major-Alarm Off host Minor-Alarm Off host ACO Off host Fail Off0/RSP1/* host Critical-Alarm Off host Major-Alarm Off host Minor-Alarm Off host ACO Off host Fail Off
Fan Fan speed (rpm) and run time (in hours) : FAN0 FAN1 FAN2 FAN3 FAN4 FAN5 FAN6 FAN7 FAN8 FAN9 FAN10 FAN11
0/FT0/* (Speed) 3600 3570 3570 3570 3570 3570 3570 3570 3600 3570 3570 36000/FT0/* (Run Time) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A0/FT1/* (Speed) 3570 3570 3570 3600 3540 3600 3570 3600 3570 3570 3600 35700/FT1/* (Run Time) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/APower Supply Modules Capacity Status (W)0/PM2/* host PM 2100 Ok
0/PM3/* host PM 2100 Ok
0/PM4/* host PM 2100 Ok
0/PM5/* host PM 2100 OkR/S/I Power Supply Voltage Current (W) (V) (A)0/PM2/* 696.3 54.4 12.80/PM3/* 531.1 54.2 9.80/PM4/* 432.0 54.0 8.00/PM5/* 726.2 54.2 13.4--------------Total: 2385.6R/S/I Power Draw Voltage Current (W) (V) (A)0/FT0/* 300 **0/FT1/* 300 **--------------Total: 600.0R/S/I Power Draw Voltage Current (W) (V) (A)0/RSP0/* 205 **0/RSP1/* 205 **--------------Total: 410.0R/S/I Power Draw Voltage Current (W) (V) (A) 0/0/* 575 ** 0/1/* 575 ** 0/2/* 575 ** 0/3/* 575 **--------------Total: 2300.0** Indicates worst case power draw
Power Budget Summary for Rack 0--------------------------------Power Shelves Type: DCPower Budget Strict Mode: Disabled
Total Power Capacity: 8400WUsable Power Capacity: 8400WSupply Failure Protected Capacity: 6300WWorst Case Power Used: 3310W
Slot Max Watts---- ---------0/0/CPU0 5750/1/CPU0 5750/2/CPU0 5750/3/CPU0 5750/RSP0/CPU0 2050/RSP1/CPU0 2050/FT0/SP 3000/FT1/SP 300
Worst Case Power Available: 5090WSupply Protected Capacity Available: 2990WAltitude meters above sea levelRP/0/RSP0/CPU0:ios(admin)#
