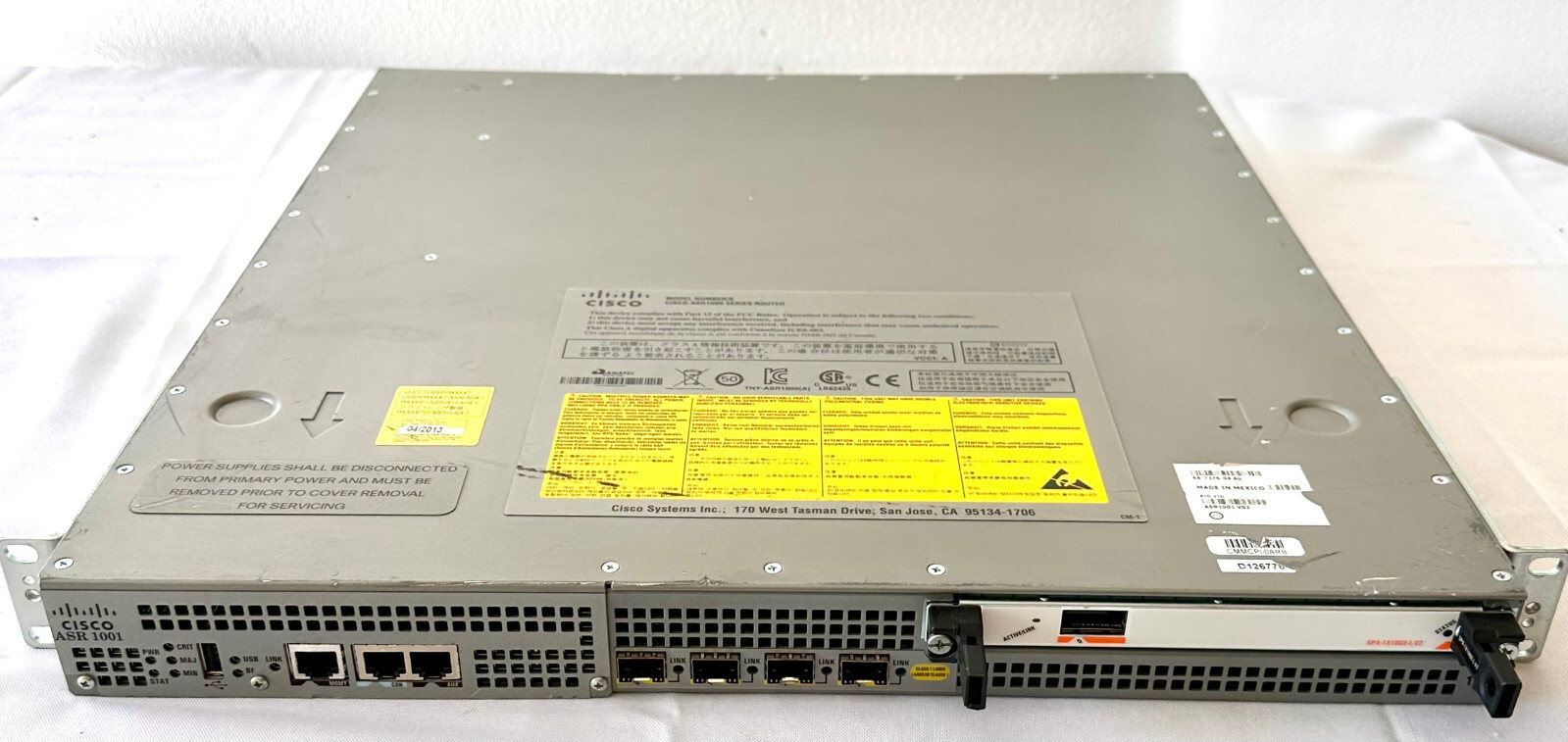

Cisco ASR1001 Aggregation Services Router V03 with 4 GB Ports & Dual AC Power with Cisco Shared Port Adapter SPA-1X10GE-L-V2 1-10 Gigabit Ethernet PortThe Cisco ASR1001 Aggregation Services Router V03, a high-performance router designed for enterprise networking. This rack-mountable router comes equipped with 4 GB ports and dual AC power for optimal performance. The Cisco ASR1001 is perfect for businesses that require reliable and efficient routing services. With its sleek design and advanced features, the Cisco ASR1001 is a great addition to any enterprise networking setup. Its brand, Cisco, is synonymous with quality and innovation. This router is ideal for those in need of a reliable and efficient routing solution. There are moderate scratches and scrapes that occur on a production system but they do not affect performance.This was booted to the initial configuration dialog and we reset the encrypted password and erased the startup config via the console port. Please see the photos for detailsSerial number:SSL17040JFS
Shipping:Fast Shipping within 24 Business-Hours with 30 Days Warranty
Well packed, wrapped in a 200# box. This will be shipped within 24 hours after payment has been received.
Shipping is ONLY in the lower 48 states and we do not ship to APO or PO boxes.
If you're out of the country or area we ship to please email if you have a request for that delivery and we can discuss it
What's Included:Cisco ASR1001 V03 with brackets with SPA-1X10GE-L-V2 module
2 power cordsWarranty/Returns:
30 days warranty on hardware only. Warranty does not cover any software issues. Problems caused by abuse or tampering will not be covered by the warranty. All systems have been fully tested before shipping out. In the unlikely event that a problem does arise on the hardware within 30 days period, please contact us through e-bay Messages for repair, replacement, or refund.
Questions:
If you have any issues, questions or concerns, before and after sale, please feel free to e-mail through messaging; We normally respond within 24 hours. To contact me, go to "Questions and answers about this item" at the bottom of the list and click on "Ask a question". Select the type of question you want to ask and click on "Contact the seller". Please see the posted pictures. They are pictures of the system you will receive.
Ref# 42
Product Overview
●Residential Triple Play
●Metro Ethernet Services
●Converged Residential and Business Services
●Internet Peering
●Inter- and intra-point of presence (POP) Aggregation
Key Features and Benefits
●Modular, flexible, intelligent interface processors
◦ Flexibledesign allows mixing and matching of interface types on the same interfaceprocessor for consistent services, independent of access technology.
◦ Programmableinterface processors provide flexibility for the service diversity required innext-generation networks.
◦ Innovative design providesintelligent delivery of services without compromising performance.
●Increased speed-to-service revenue
◦ Theprogrammable Cisco architecture extended to 10 Gigabits per second dramaticallyimproves customer density, increasing potential revenue per platform andfacilitating compatibility with future versions.
◦ Interfacebreadth (copper, channelized, POS, ATM, and Ethernet) on a modular interfaceprocessor allows service providers to quickly roll out new services,facilitating consistent, secure services for all customers, large and small.
◦ XFPinterfaces are featured for high-port-count applications with reachflexibility. Future optical technology improvements can be adopted usingexisting SPAs.
●Dramatically improved financials for your routing purchase
◦Improved slot economics and increased density reduce capitalexpenditures (CapEx).
◦ The abilityto easily add new interfaces as they are needed facilitates a"pay-as-you-grow" business model while still offering a high-density solution.
◦ SPAs areshared across multiple platforms and can be easily moved from one to another,providing consistent feature support, accelerated product delivery, and asignificant reduction in operating expenses (OpEx) through common sparing asservice needs change.
Product Specifications
● Cisco Catalyst 6500 Series Switches
● Cisco 7600 Series Routers
● Cisco 12000 Series Routers
● Cisco XR 12000 Series Routers
● Cisco ASR 1000 Series Router
● Cisco CRS Carrier Routing System
● Cisco 10000 Series Router
● LED off-SPA is powered off
● LED amber-SPA is powered on and initializing
● LED green-SPA is powered on and operational
● LED off-Port is not activated by software
● LED amber-Port is activated by software, but there is a problem with the Ethernet link
● LED green-Port is activated by software, and there is a valid Ethernet link
● Full-duplex operation
● 802.1Q VLAN termination
● 802.1ad QinQ termination (stacked VLAN processing)
● Jumbo frames support (9188 bytes)
● Support for command-line interface (CLI)-controlled online insertion and removal (OIR)
● 802.3x flow control
● Bridge protocol data unit (BPDU), Cisco Discovery Protocoland VLAN Trunking Protocol (VTP) filtering
● Layer 2 Protocol (BPDU, Cisco Discovery Protocol, and VTP) Tunneling
● Layer 2 access list (MAC address-based filtering)
● Up to 8000 VLANs per SPA and subject to a limit of 4000 VLANs per port for 802.1q
● Up to 5000 MAC accounting entries per SPA (source MAC accounting on the ingress, and destination MAC accounting on the egress)
● Up to 2000 MAC address entries for destination MAC address filtering per SPA, and up to 1000 MAC address filtering entries per port
● Per-port byte and packet counters for policy drops; oversubscription drops; cyclic-redundancy-check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
● Per-VLAN byte and packet counters for policy drops; oversubscription drops; and unicast, multicast, and broadcast packets
● Per-port byte counters for good bytes and dropped bytes Other software features supported:
● Ethernet over Multiprotocol Label Switching (EoMPLS)
● QoS
● Hot Standby Router Protocol (HSRP)
● Virtual Router Redundancy Protocol (VRRP)
● Field-replaceable XFP modules
● Host-system CLI
● Simple Network Management Protocol (SNMP) Inventory- and asset management-related MIBs:
● Entity-MIB (RFC 2737)
● Cisco-entity-asset-MIB Fault management:
● Cisco-entity-field-replaceable unit (FRU)-control-MIB
● Cisco-entity-alarm-MIB
● Cisco-entity-sensor-MIB Physical interface management:
● IF-MIB
● Etherlike-MIB (RFC 2665) Other MIBs:
● Remote Monitoring (RMON)-MIB (RFC 1757)
● Cisco-class-based-QoS-MIB
● MPLS-related MIBs
● Ethernet MIB/RMON
● Weight: 0.75 lb (0.34 kg)
● Height: 0.8 in. (2.03 cm) (single height)
● Width: 6.75 in. (17.15 cm)
● Depth: 7.28 in. (18.49 cm)
● Storage temperature: -38 to 150°F (-40 to 70°C)
● Operating temperature, nominal: 32 to 104°F (0 to 4 0°C)
● Operating temperature, short term: 32 to 131°F (0 to 55°C)
● Storage relative humidity: 5 to 95% relative humidity
● Operating humidity, nominal: 5 to 85% relative humidity
● Operating humidity, short term: 5 to 90% relative humidity
● Operating altitude: -60 to 4000 meters
● UL 60950-1
● CSA C22 No. 60950-1
● EN 60950-1
● IEC 60950-1
● AS/NZS 60950
● EN 60825-1
● EN 60825-2
● 21 CRF 1040 EMC
● CFR 47, FCC Part 15-Class A
● ICES 003-Class A
● CISPR 22 Class A
● EN 55022 Class A
● EN 300386 Class A
● AS/NZS Class A
● VCCI-Class B
● EN 50082-1
● EN 55024
● IEC/EN61000-4-2 Electrostatic Discharge Immunity (8-kV contact, 15-kV air)
● IEC/EN61000-4-3 Radiated Immunity (10 V/m)
● IEC/EN61000-4-4 Electrical Fast Transient Immunity (2-kV power, 1-kV signal)
● IEC/EN61000-4-5 Surge AC Port (4-kV CM, 2-kV DM)
● IEC/EN61000-4-5 Surge Signal Port (1-kV indoor, 2-kV outdoor)
● IEC/EN61000-4-5 Surge DC Port (1 kV)
● IEC/EN61000-4-6 Immunity to Conducted Disturbances (10 Vrms)
● IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity (30 A/m)
● IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations Telecom
● IEEE 802.3ae (10 Gigabit Ethernet interface SPA)
● SR-3580-Network Equipment Building Standards (NEBS): Criteria levels (Level 3 compliant)
● GR-63-CORE-NEBS: Physical protection
● GR-1089-CORE-NEBS EMC and safety
