IOS 15.2

lanbase

1x Integrated (Takes C13 Plug)

Very Minor signs of prior use, including scratches
scuffs and possible adhesive residue remaining.

Power Cord(s)

• No Rack Ears

Switch#show diagnostic result switch 1Switch 1: SerialNo : FOC2020Y0BK Overall Diagnostic Result for Switch 1 : PASS Test results: (. = Pass, F = Fail, U = Untested) 1) TestPortAsicStackPortLoopback ---> .
2) TestPortAsicLoopback ------------> .
3) TestPortAsicRingLoopback --------> .
4) TestPortAsicCam -----------------> .
5) TestMicRingLoopback -------------> .
6) TestPortAsicMem -----------------> .
7) TestInlinePwrCtlr ---------------> .Switch#show env all
FAN is OK
SYSTEM TEMPERATURE is OK
System Temperature Value: 29 Degree Celsius
System Temperature State: GREEN
Yellow Threshold : 58 Degree Celsius
Red Threshold : 68 Degree Celsius
SW PID Serial# Status Sys Pwr PoE Pwr Watts
-- ------------------ ---------- --------------- ------- ------- -----
1 Built-in GoodSW Status RPS Name RPS Serial# RPS Port#
-- ------------- ---------------- ----------- ---------
1 <> <>
Switch#show inv

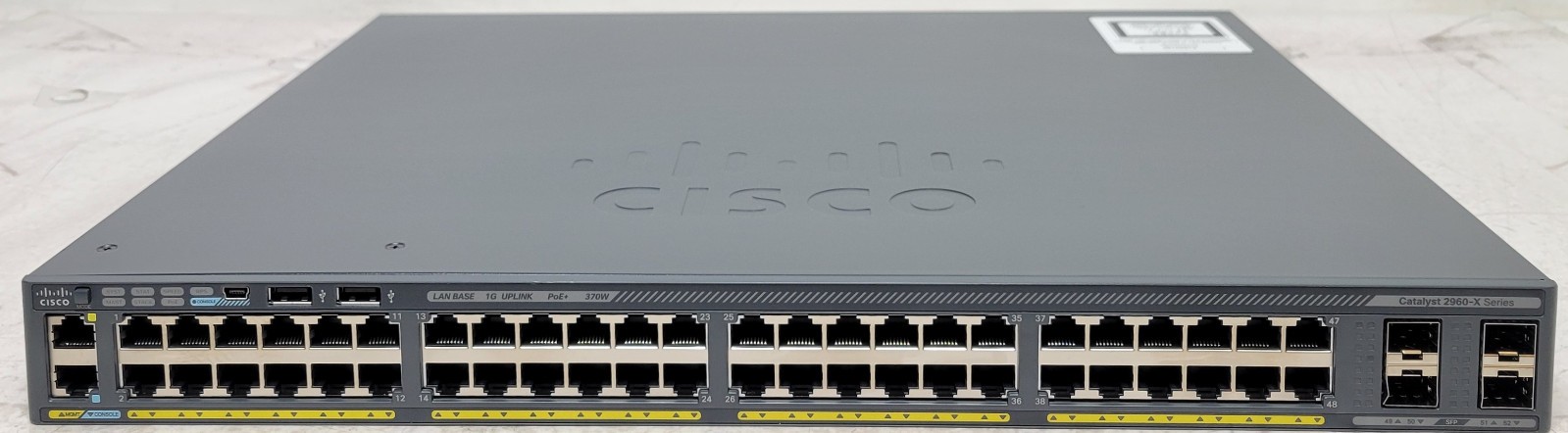

NAME: "1", DESCR: "WS-C2960X-48LPS-L"
PID: WS-C2960X-48LPS-L , VID: V04 , SN: FOC2020Y0BK
Switch#show post
Stored system POST messages:Switch 1
---------POST: MA BIST : Begin
POST: MA BIST : End, Status PassedPOST: TCAM BIST : Begin
POST: TCAM BIST : End, Status PassedPOST: Inline Power Controller Tests : Begin
POST: Inline Power Controller Tests : End, Status PassedPOST: Thermal, Fan Tests : Begin
POST: Thermal, Fan Tests : End, Status PassedPOST: PortASIC Stack Port Loopback Tests : Begin
POST: PortASIC Stack Port Loopback Tests : End, Status PassedPOST: PortASIC Port Loopback Tests : Begin
POST: PortASIC Port Loopback Tests : End, Status PassedPOST: EMAC Loopback Tests : Begin
POST: EMAC Loopback Tests : MAC Loopback Passed
POST: EMAC Loopback Tests : PHY Loopback Passed
POST: EMAC Loopback Tests : End, Status PassedSwitch#show int statusPort Name Status Vlan Duplex Speed Type
Gi1/0/1 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/2 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/3 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/4 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/5 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/6 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/7 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/8 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/9 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/10 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/11 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi1/0/12 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/13 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/14 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/15 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/16 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/17 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/18 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/19 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/20 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/21 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/22 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/23 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi1/0/24 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/25 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/26 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/27 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/28 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/29 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/30 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/31 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/32 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/33 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/34 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/35 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi1/0/36 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/37 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/38 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/39 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/40 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/41 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/42 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/43 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/44 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/45 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/46 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/47 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi1/0/48 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/49 notconnect 1 auto auto Not Present
Gi1/0/50 notconnect 1 auto auto Not Present
Gi1/0/51 notconnect 1 auto auto Not Present
Gi1/0/52 notconnect 1 auto auto Not Present
Fa0 notconnect routed auto auto 10/100BaseTX
Switch#show pow iModule Available Used Remaining
(Watts) (Watts) (Watts)
------ --------- -------- ---------
1 370.0 0.0 370.0
Interface Admin Oper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------- ----- ----
Gi1/0/1 auto off 0.0 n/a n/a 30.0
Gi1/0/2 auto off 0.0 n/a n/a 30.0
Gi1/0/3 auto off 0.0 n/a n/a 30.0
Gi1/0/4 auto off 0.0 n/a n/a 30.0
Gi1/0/5 auto off 0.0 n/a n/a 30.0
Gi1/0/6 auto off 0.0 n/a n/a 30.0
Gi1/0/7 auto off 0.0 n/a n/a 30.0
Gi1/0/8 auto off 0.0 n/a n/a 30.0
Gi1/0/9 auto off 0.0 n/a n/a 30.0
Gi1/0/10 auto off 0.0 n/a n/a 30.0
Gi1/0/11 auto off 0.0 n/a n/a 30.0
Gi1/0/12 auto off 0.0 n/a n/a 30.0
Gi1/0/13 auto off 0.0 n/a n/a 30.0
Gi1/0/14 auto off 0.0 n/a n/a 30.0
Gi1/0/15 auto off 0.0 n/a n/a 30.0
Interface Admin Oper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------- ----- ----
Gi1/0/16 auto off 0.0 n/a n/a 30.0
Gi1/0/17 auto off 0.0 n/a n/a 30.0
Gi1/0/18 auto off 0.0 n/a n/a 30.0
Gi1/0/19 auto off 0.0 n/a n/a 30.0
Gi1/0/20 auto off 0.0 n/a n/a 30.0
Gi1/0/21 auto off 0.0 n/a n/a 30.0
Gi1/0/22 auto off 0.0 n/a n/a 30.0
Gi1/0/23 auto off 0.0 n/a n/a 30.0
Gi1/0/24 auto off 0.0 n/a n/a 30.0
Gi1/0/25 auto off 0.0 n/a n/a 30.0
Gi1/0/26 auto off 0.0 n/a n/a 30.0
Gi1/0/27 auto off 0.0 n/a n/a 30.0
Gi1/0/28 auto off 0.0 n/a n/a 30.0
Gi1/0/29 auto off 0.0 n/a n/a 30.0
Gi1/0/30 auto off 0.0 n/a n/a 30.0
Gi1/0/31 auto off 0.0 n/a n/a 30.0
Gi1/0/32 auto off 0.0 n/a n/a 30.0
Gi1/0/33 auto off 0.0 n/a n/a 30.0
Gi1/0/34 auto off 0.0 n/a n/a 30.0
Gi1/0/35 auto off 0.0 n/a n/a 30.0
Gi1/0/36 auto off 0.0 n/a n/a 30.0
Gi1/0/37 auto off 0.0 n/a n/a 30.0
Interface Admin Oper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------- ----- ----
Gi1/0/38 auto off 0.0 n/a n/a 30.0
Gi1/0/39 auto off 0.0 n/a n/a 30.0
Gi1/0/40 auto off 0.0 n/a n/a 30.0
Gi1/0/41 auto off 0.0 n/a n/a 30.0
Gi1/0/42 auto off 0.0 n/a n/a 30.0
Gi1/0/43 auto off 0.0 n/a n/a 30.0
Gi1/0/44 auto off 0.0 n/a n/a 30.0
Gi1/0/45 auto off 0.0 n/a n/a 30.0
Gi1/0/46 auto off 0.0 n/a n/a 30.0
Gi1/0/47 auto off 0.0 n/a n/a 30.0
Gi1/0/48 auto off 0.0 n/a n/a 30.0Switch#show license
Index 1 Feature: lanlite
Period left: 0 minute 0 second
Index 2 Feature: lanbase
Period left: Life time
License Type: Permanent
License State: Active, In Use
License Priority: Medium
License Count: Non-Counted
Switch#show ver
Cisco IOS Software, C2960X Software (C2960X-UNIVERSALK9-M), Version 15.2(2)E3, RELEASE SOFTWARE (fc3)
Technical Support: (c) 1986-2015 by Cisco Systems, Inc.
Compiled Wed 26-Aug-15 07:12 by prod_rel_teamROM: Bootstrap program is C2960X boot loader
BOOTLDR: C2960X Boot Loader (C2960X-HBOOT-M) Version 15.2(3r)E1, RELEASE SOFTWARE (fc1)Switch uptime is 4 minutes
System returned to ROM by power-on
System restarted at 09:44:04 UTC Sat Jan 1 2000
System image file is reload reason: Unknown reasonThis product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.A summary of U.S. laws governing Cisco cryptographic products may be found at:
If you require further assistance please contact us by sending email to
(email)cisco WS-C2960X-48LPS-L (APM86XXX) processor (revision M0) with 524288K bytes of memory.
Processor board ID FOC2020Y0BK
Last reset from power-on
1 Virtual Ethernet interface
1 FastEthernet interface
52 Gigabit Ethernet interfaces
The password-recovery mechanism is enabled.512K bytes of flash-simulated non-volatile configuration memory.
Base ethernet MAC Address : 00:EB:D5:28:3B:80
Motherboard assembly number : 73-16692-05
Power supply part number : 341-0528-02
Motherboard serial number : FOC201978M0
Power supply serial number : LIT20160UXL
Model revision number : M0
Motherboard revision number : A0
Model number : WS-C2960X-48LPS-L
Daughterboard assembly number : 73-14200-03
Daughterboard serial number : FOC20195W9X
System serial number : FOC2020Y0BK
Top Assembly Part Number : 68-100470-02
Top Assembly Revision Number : B0
Version ID : V04
CLEI Code Number : CMMLP00ARD
Daughterboard revision number : A0
Hardware Board Revision Number : 0x18
Switch Ports Model SW Version SW Image
------ ----- ----- ---------- ----------
* 1 52 WS-C2960X-48LPS-L 15.2(2)E3 C2960X-UNIVERSALK9-M
Configuration register is 0xF
