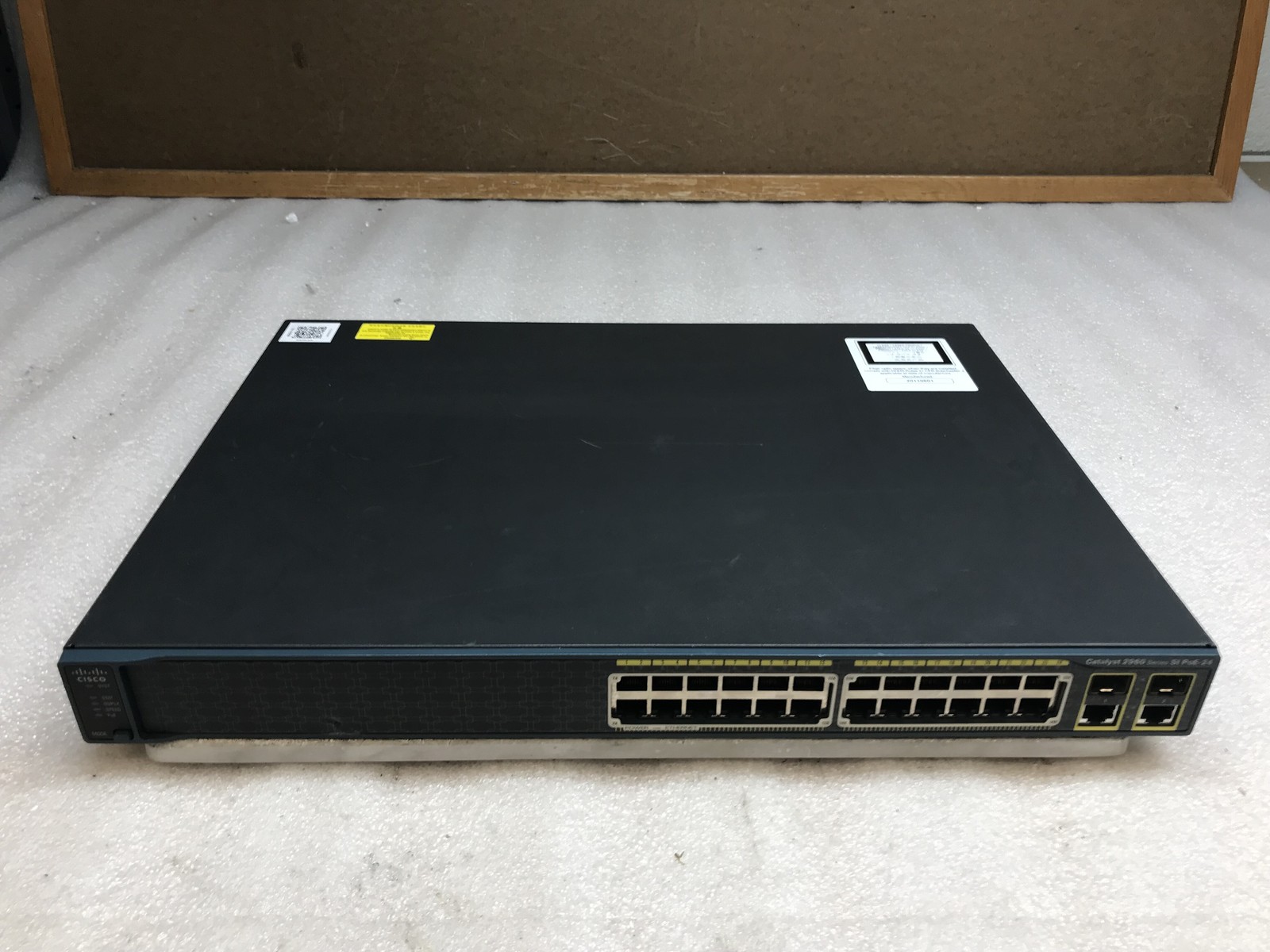

Listing Grid template example Product Photo Description Cisco Catalyst 2960 series 24 Port PoE Ethernet Switch WS-C2960-24PC-L Cisco Catalyst 2960 series 24 Port PoE Ethernet Switch WS-C2960-24PC-L
The Cisco Catalyst 2960 series WS-C2960-24PC-L is a reliable and versatile managed Ethernet switch designed to deliver robust network performance for small to medium-sized businesses. With 24 Fast Ethernet ports and Power over Ethernet (PoE) capabilities, it efficiently supports network devices while simplifying connectivity and power deployment.
Specifications
- 24 Fast Ethernet ports (10/100 Mbps)
- 4 SFP uplink ports for flexible fiber connectivity
- Managed switch with Cisco IOS software
- Power over Ethernet (PoE) support with 360W power budget
- Layer 2 switching functionality
- Non-stackable design
Key Features
- Enhanced security features including 802.1X network access control
- Quality of Service (QoS) for traffic prioritization
- Energy Efficient Ethernet (EEE) technology to reduce power consumption
- Robust management options via CLI, SNMP, and web interface
- Support for VLANs, port mirroring, and link Cable
Not Included
- Network cables
- Console cable
Cisco WS-C2960-24PC-S (PowerPC405) processor (revision E0) with 65536K bytes of memory.
- Processor board ID FCQ1522Z4WN
- Last reset from power-on
- 1 Virtual Ethernet interface
- 24 FastEthernet interfaces
- 2 Gigabit Ethernet interfaces
- The password-recovery mechanism is enabled.
- 64K bytes of flash-simulated non-volatile configuration memory.
- Base ethernet MAC Address: D0:C2:82:12:67:00
- Motherboard assembly number: 73-12784-04
- Power supply part number: 341-0266-03
- Motherboard serial number: FCQ15220017
- Power supply serial number: LIT15160E9Z
- Model revision number: E0
- Motherboard revision number: A0
- Model number: WS-C2960-24PC-S
- System serial number: FCQ1522Z4WN
- Top Assembly Part Number: 800-33168-01
- Top Assembly Revision Number: D0
- Version ID: V04
- CLEI Code Number: COMK400DRB
- Hardware Board Revision Number: Ports ModelSW VersionSW Image
- ------ ----- -------------------------
- *1 register is 0xF
Specifications Functional Condition:
F4 - Hardware Functional
Equipment in this category has all hardware components tested and verified working properly. There are no missing or damaged components or parts essential to primary functions. Software may not be not loaded or configured.
Cosmetic Condition:
C4 - Used Good
Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.
Data Sanitization:
S3 - Data Clear
Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
Port Count
24 Port Speed
10/100 Management Type
Managed Poe Support
PoE Poe Budget
360 Stackable
NO Layer
Layer 2 Sfp Ports
4 Function Tests Powers On
Passed Management Interface Access
Passed Port Connectivity
Passed PoE Output
Passed Link Lights
Passed Factory Reset
Passed Shipping
