TESTING & COSMETIC NOTES:
This is a USED WORKING item in FAIR cosmetic condition that IS THOROUGHLY TESTED and is GUARANTEED WORKING
The unit has been reset to the factory default settings. See console log below.

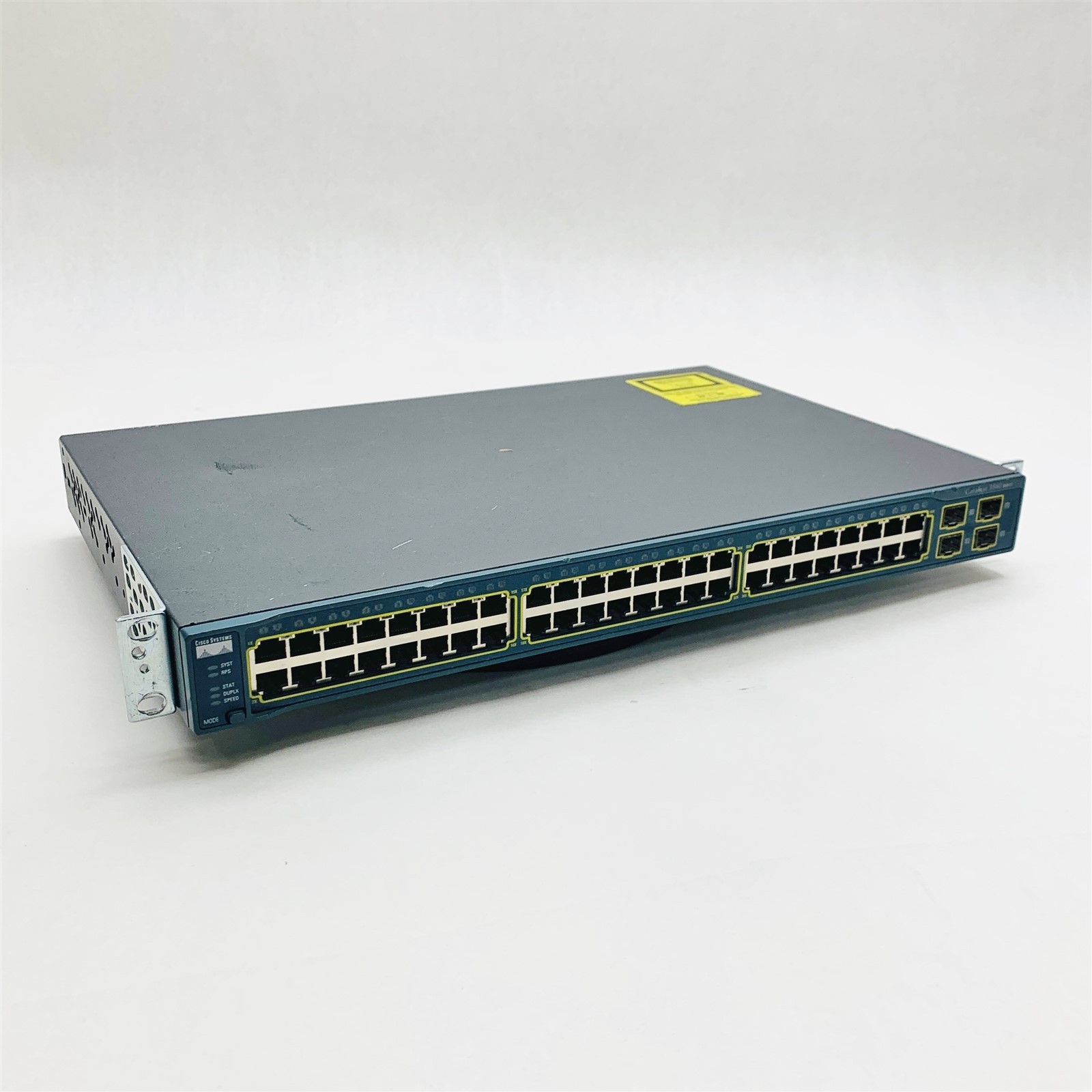

COMPONENTS INCLUDED IN THIS sale:• (1) - CISCO CATALYST 3560 48-PORT MANAGED ETHERNET NETWORK SWITCH WS-C3560-48TS-E
• (1) - POWER CORD
REPLACEMENT or MONEY BACK GUARANTEE:When you receive a Guaranteed item from OC Depot, it should perform as described. In the rare situation that this is not the case, we will send a replacement upon safe return of the original item within 30 days of receiving the item. If a replacement is not available we will honor the terms of our Money-Back Guarantee.
ADDITIONAL INFORMATION:Loading />File uncompressed and installed, ent
ry point: 0x1000000
executing...
Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Cisco IOS Software, C3560 Software (C3560-IPSERVICESK9-M), Version 15.0(2)SE9, R
ELEASE SOFTWARE (fc1)
Technical Support: http:/www.cisco.com/techsupport
Copyright (c) 1986-2015 by Cisco Systems, Inc.
Compiled Tue 01-Dec-15 06:56 by prod_rel_team
HULC:Collect Entropy thread starting on box...
Initializing flashfs...
flashfs[2]: 4 files, 1 directories
flashfs[2]: 0 orphaned files, 0 orphaned directories
flashfs[2]: Total bytes: 32514048
flashfs[2]: Bytes used: 28139520
flashfs[2]: Bytes available: 4374528
flashfs[2]: flashfs fsck took 3 seconds.
flashfs[2]: Initialization complete....done Initializing flashfs.
FIPS: Flash Key Check : Begin
FIPS: Flash Key Check : End, Not Found, FIPS Mode Not Enabled
POST: CPU MIC register Tests : Begin
POST: CPU MIC register Tests : End, Status Passed
POST: PortASIC Memory Tests : Begin
POST: PortASIC Memory Tests : End, Status Passed
POST: CPU MIC interface Loopback Tests : Begin
POST: CPU MIC interface Loopback Tests : End, Status Passed
POST: PortASIC RingLoopback Tests : Begin
POST: PortASIC RingLoopback Tests : End, Status Passed
POST: PortASIC CAM Subsystem Tests : Begin
POST: PortASIC CAM Subsystem Tests : End, Status Passed
POST: PortASIC Port Loopback Tests : Begin
POST: PortASIC Port Loopback Tests : End, Status Passed
Waiting for Port download...Complete
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:
If you require further assistance please contact us by sending email to
[email protected].
cisco WS-C3560-48TS (PowerPC405) processor (revision D0) with 131072K bytes of m
emory.
Processor board ID CAT1035RJU2
Last reset from power-on
1 Virtual Ethernet interface
48 FastEthernet interfaces
4 Gigabit Ethernet interfaces
The password-recovery mechanism is enabled.
512K bytes of flash-simulated non-volatile configuration memory.
Base ethernet MAC Address : 00:19:55:6B:CE:80
Motherboard assembly number : 73-9898-06
Power supply part number : 341-0097-02
Motherboard serial number : CAT10345PVG
Power supply serial number : DCA10324VHW
Model revision number : D0
Motherboard revision number : A0
Model number : WS-C3560-48TS-E
System serial number : CAT1035RJU2
SFP Module assembly part number : 73-7757-03
SFP Module revision Number : A0
SFP Module serial number : CAT10355CU8
Top Assembly Part Number : 800-26385-02
Top Assembly Revision Number : C0
Version ID : V02
CLEI Code Number : COMMK00ARB
Hardware Board Revision Number : 0x01
Switch Ports Model SW Version SW Image
------ ----- ----- ---------- ----------
* 1 52 WS-C3560-48TS 15.0(2)SE9 C3560-IPSERVICESK9-M
Press RETURN to get started!
*Mar 1 00:00:38.839: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, cha
nged state to down
*Mar 1 00:00:41.339: %SPANTREE-5-EXTENDED_SYSID: Extended SysId enabled for typ
e vlan
*Mar 1 00:00:43.167: %DC-4-FILE_OPEN_WARNING: Not able to open flash:/dc_profil
e_dir/dc_default_profiles.txt
*Mar 1 00:00:43.167: %DC-6-DEFAULT_INIT_INFO: Default Profiles DB not loaded.
*Mar 1 00:01:05.540: %SYS-5-RESTART: System restarted --
Cisco IOS Software, C3560 Softwa
--- System Configuration Dialog ---
Enable secret warning
----------------------------------
In order to access the device manager, an enable secret is required
If you enter the initial configuration dialog, you will be prompted for the enab
le secret
If you choose not to enter the intial configuration dialog, or if you exit setup
without setting the enable secret,
please set an enable secret using the following CLI in configuration mode-
enable secret 0
----------re (C3560-IPSERVICESK9-M), Version 15.0(2)SE9, RELEASE SOFTWARE (fc1)
Technical Support: http:/www.cisco.com/techsupport
Copyright (c) 1986-2015 by Cisco Systems, Inc.
Compiled Tue 01-Dec-15 06:56 by />Would you like to enter the initial configuration dialog? [yes/no]: n
Switch>show ver
Cisco IOS Software, C3560 Software (C3560-IPSERVICESK9-M), Version 15.0(2)SE9, R
ELEASE SOFTWARE (fc1)
Technical Support: http:/www.cisco.com/techsupport
Copyright (c) 1986-2015 by Cisco Systems, Inc.
Compiled Tue 01-Dec-15 06:56 by prod_rel_team
ROM: Bootstrap program is C3560 boot loader
BOOTLDR: C3560 Boot Loader (C3560-HBOOT-M) Version 12.2(25r)SEC, RELEASE SOFTWAR
E (fc4)
Switch uptime is 1 minute
System returned to ROM by power-on
System image file is />
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:
If you require further assistance please contact us by sending email to
[email protected].
cisco WS-C3560-48TS (PowerPC405) processor (revision D0) with 131072K bytes of m
emory.
Processor board ID CAT1035RJU2
Last reset from power-on
1 Virtual Ethernet interface
48 FastEthernet interfaces
4 Gigabit Ethernet interfaces
The password-recovery mechanism is enabled.
512K bytes of flash-simulated non-volatile configuration memory.
Base ethernet MAC Address : 00:19:55:6B:CE:80
Motherboard assembly number : 73-9898-06
Power supply part number : 341-0097-02
Motherboard serial number : CAT10345PVG
Power supply serial number : DCA10324VHW
Model revision number : D0
Motherboard revision number : A0
Model number : WS-C3560-48TS-E
System serial number : CAT1035RJU2
SFP Module assembly part number : 73-7757-03
SFP Module revision Number : A0
SFP Module serial number : CAT10355CU8
Top Assembly Part Number : 800-26385-02
Top Assembly Revision Number : C0
Version ID : V02
CLEI Code Number : COMMK00ARB
Hardware Board Revision Number : 0x01
Switch Ports Model SW Version SW Image
------ ----- ----- ---------- ----------
* 1 52 WS-C3560-48TS 15.0(2)SE9 C3560-IPSERVICESK9-M
Configuration register is 0xF
