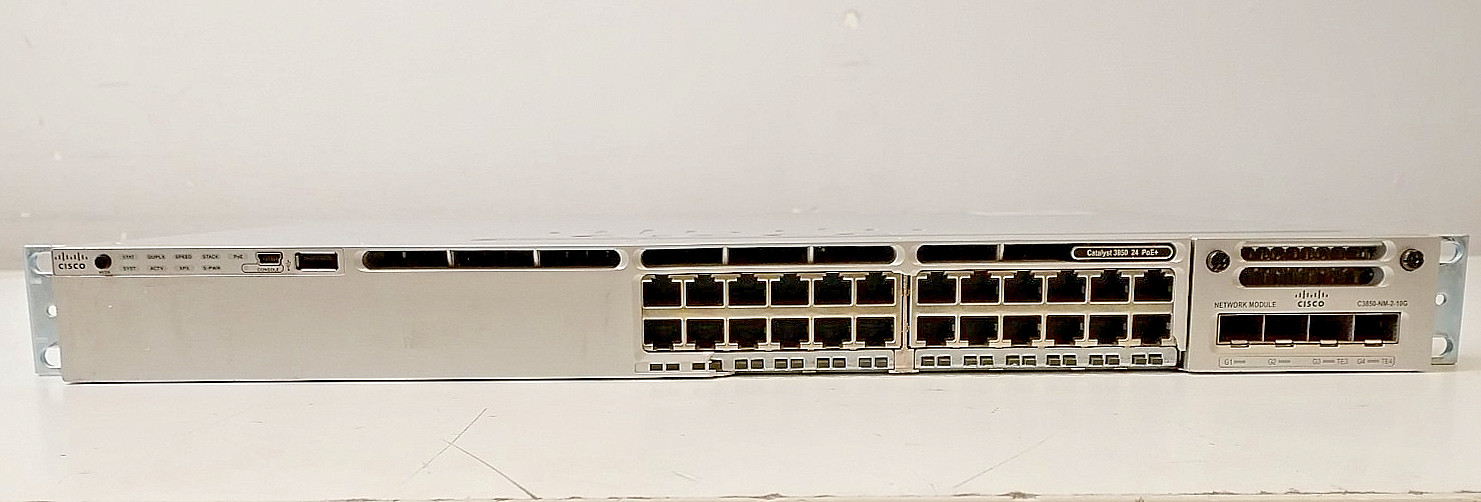

IOS-XE16.12.09

ipbasek9

2xPWR-C1-715WAC(Takes C15 Plug)

Minor signs of prior use, including scratches
scuffs and possible adhesive residue remaining.

Power Cord(s)

Switch#show env all
Switch 1 FAN 1 is OK
Switch 1 FAN 2 is OK
Switch 1 FAN 3 is OK
FAN PS-1 is OK
FAN PS-2 is NOT PRESENT
Switch 1: SYSTEM TEMPERATURE is OK
Inlet Temperature Value: 21 Degree Celsius
Temperature State: GREEN
Yellow Threshold : 46 Degree Celsius
Red Threshold : 56 Degree CelsiusHotspot Temperature Value: 35 Degree Celsius
Temperature State: GREEN
Yellow Threshold : 105 Degree Celsius
Red Threshold : 125 Degree Celsius
SW PID Serial# Status Sys Pwr PoE Pwr Watts
-- ------------------ ---------- --------------- ------- ------- -----
1A PWR-C1-715WAC DCB1842G1ES OK Good Good 715
1B Unknown Unknown No Input Power Bad Bad UnknownSwitch#sh post
Stored system POST messages:Switch 1
---------POST: MBIST Tests : Begin
POST: MBIST Tests : End, Status PassedPOST: CRYPTO Tests : Begin
POST: CRYPTO Tests : End, Status PassedPOST: PHY Loopback: loopback Test : Begin
POST: PHY Loopback: loopback Test : End, Status PassedPOST: Inline Power Controller Tests : Begin
POST: Inline Power Controller Tests : End, Status PassedPOST: Thermal, Temperature Tests : Begin
POST: Thermal, Temperature Tests : End, Status PassedPOST: Thermal, Fan Tests : Begin
POST: Thermal, Fan Tests : End, Status PassedPOST: SIF Tests : Begin
POST: SIF Tests : End, Status Passed
Switch#sh lic summary
Smart Licensing is ENABLEDRegistration:
Status: UNREGISTERED
Export-Controlled Functionality: NOT ALLOWEDLicense Authorization:
Status: IN-USELicense Usage:
License Entitlement tag Count Status
(C3850-24 IP Base) 1 IN-USE
Switch#show int statusPort Name Status Vlan Duplex Speed Type
Gi1/0/1 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/2 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/3 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/4 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/5 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/6 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/7 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/8 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/9 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/10 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/11 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi1/0/12 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/13 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/14 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/15 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/16 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/17 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/18 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/19 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/20 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/21 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/22 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/23 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi1/0/24 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/1/1 notconnect 1 auto auto unknown
Gi1/1/2 notconnect 1 auto auto unknown
Te1/1/3 notconnect 1 auto auto unknown
Te1/1/4 notconnect 1 auto auto unknown
Switch#sh pow iModule Available Used Remaining
(Watts) (Watts) (Watts)
------ --------- -------- ---------
1 485.0 0.0 485.0
Interface Admin Oper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------- ----- ----
Gi1/0/1 auto off 0.0 n/a n/a 30.0
Gi1/0/2 auto off 0.0 n/a n/a 30.0
Gi1/0/3 auto off 0.0 n/a n/a 30.0
Gi1/0/4 auto off 0.0 n/a n/a 30.0
Gi1/0/5 auto off 0.0 n/a n/a 30.0
Gi1/0/6 auto off 0.0 n/a n/a 30.0
Gi1/0/7 auto off 0.0 n/a n/a 30.0
Gi1/0/8 auto off 0.0 n/a n/a 30.0
Gi1/0/9 auto off 0.0 n/a n/a 30.0
Gi1/0/10 auto off 0.0 n/a n/a 30.0
Gi1/0/11 auto off 0.0 n/a n/a 30.0
Gi1/0/12 auto off 0.0 n/a n/a 30.0
Gi1/0/13 auto off 0.0 n/a n/a 30.0
Gi1/0/14 auto off 0.0 n/a n/a 30.0
Gi1/0/15 auto off 0.0 n/a n/a 30.0
Interface Admin Oper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------- ----- ----
Gi1/0/16 auto off 0.0 n/a n/a 30.0
Gi1/0/17 auto off 0.0 n/a n/a 30.0
Gi1/0/18 auto off 0.0 n/a n/a 30.0
Gi1/0/19 auto off 0.0 n/a n/a 30.0
Gi1/0/20 auto off 0.0 n/a n/a 30.0
Gi1/0/21 auto off 0.0 n/a n/a 30.0
Gi1/0/22 auto off 0.0 n/a n/a 30.0
Gi1/0/23 auto off 0.0 n/a n/a 30.0
Gi1/0/24 auto off 0.0 n/a n/a 30.0
Switch#sh switch
Switch/Stack Mac Address : e089.9d91.6680 - Local Mac Address
Mac persistency wait time: Indefinite
H/W Current
Switch# Role Mac Address Priority Version Active e089.9d91.6680 15 V05 ReadySwitch#sh ver
Cisco IOS XE Software, Version 16.12.09
Cisco IOS Software [Gibraltar], Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSALK9-M), Version 16.12.9, RELEASE SOFTWARE (fc2)
Technical Support: (c) 1986-2023 by Cisco Systems, Inc.
Compiled Mon 20-Mar-23 03:14 by mcpre
Cisco IOS-XE software, Copyright (c) 2005-2023 by cisco Systems, Inc.
All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.
ROM: IOS-XE ROMMON
BOOTLDR: CAT3K_CAA Boot Loader (CAT3K_CAA-HBOOT-M) Version 6.08, RELEASE SOFTWARE (P)Switch uptime is 5 minutes
Uptime for this control processor is 7 minutes
System returned to ROM by Power Failure or Unknown at 21:41:04 EDT Tue Jun 13 2023
System image file is "flash:packages.conf"
Last reload reason: Power Failure or UnknownThis product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.A summary of U.S. laws governing Cisco cryptographic products may be found you require further assistance please contact us by sending email
--More--
*Sep 24 17:36:33.968: %PLATFORM_FEP-1-FRU_PS_ACCESS: Switch 1: power supply B is not Technology Package License Technology-package
Current Type Next Smart License ipbasek9
None Subscription Smart License None
Smart Licensing Status: UNREGISTERED/EVAL EXPIREDcisco WS-C3850-24P (MIPS) processor (revision T0) with 794816K/6147K bytes of memory.
Processor board ID FOC1847X07X
1 Virtual Ethernet interface
28 Gigabit Ethernet interfaces
4 Ten Gigabit Ethernet interfaces
2048K bytes of non-volatile configuration memory.
4194304K bytes of physical memory.
250456K bytes of Crash Files at crashinfo:.
1609272K bytes of Flash at flash:.
0K bytes of WebUI ODM Files at webui:.Base Ethernet MAC Address : e0:89:9d:91:66:80
Motherboard Assembly Number : 73-14441-10
Motherboard Serial Number : FOC18465RG7
Model Revision Number : T0
Motherboard Revision Number : A0
Model Number : WS-C3850-24P
System Serial Number : FOC1847X07X
Switch Ports Model SW Version SW Image Mode
------ ----- ----- ---------- ---------- ----
* 1 32 WS-C3850-24P 16.12.09 CAT3K_CAA-UNIVERSALK9 INSTALL
Configuration register is 0x142 (will be 0x102 at next reload)Switch#sh inv
NAME: "c38xx Stack", DESCR: "c38xx Stack"
PID: WS-C3850-24P-S , VID: V05 , SN: FOC1847X07XNAME: "Switch 1", DESCR: "WS-C3850-24P-S"
PID: WS-C3850-24P-S , VID: V05 , SN: FOC1847X07XNAME: "Switch 1 - Power Supply A", DESCR: "Switch 1 - Power Supply A"
PID: PWR-C1-715WAC , VID: V01 , SN: DCB1842G1ESNAME: "Switch 1 FRU Uplink Module 1", DESCR: "2x1G 2x10G Uplink Module"
PID: C3850-NM-2-10G , VID: V01 , SN: FOC18466SGX
