TESTING & COSMETIC NOTES:
This is a USED WORKING item in GOOD cosmetic condition that IS THOROUGHLY TESTED and is GUARANTEED WORKING
Power supplies and power cord are not included. The unit has been reset to the factory default settings. See console log below.

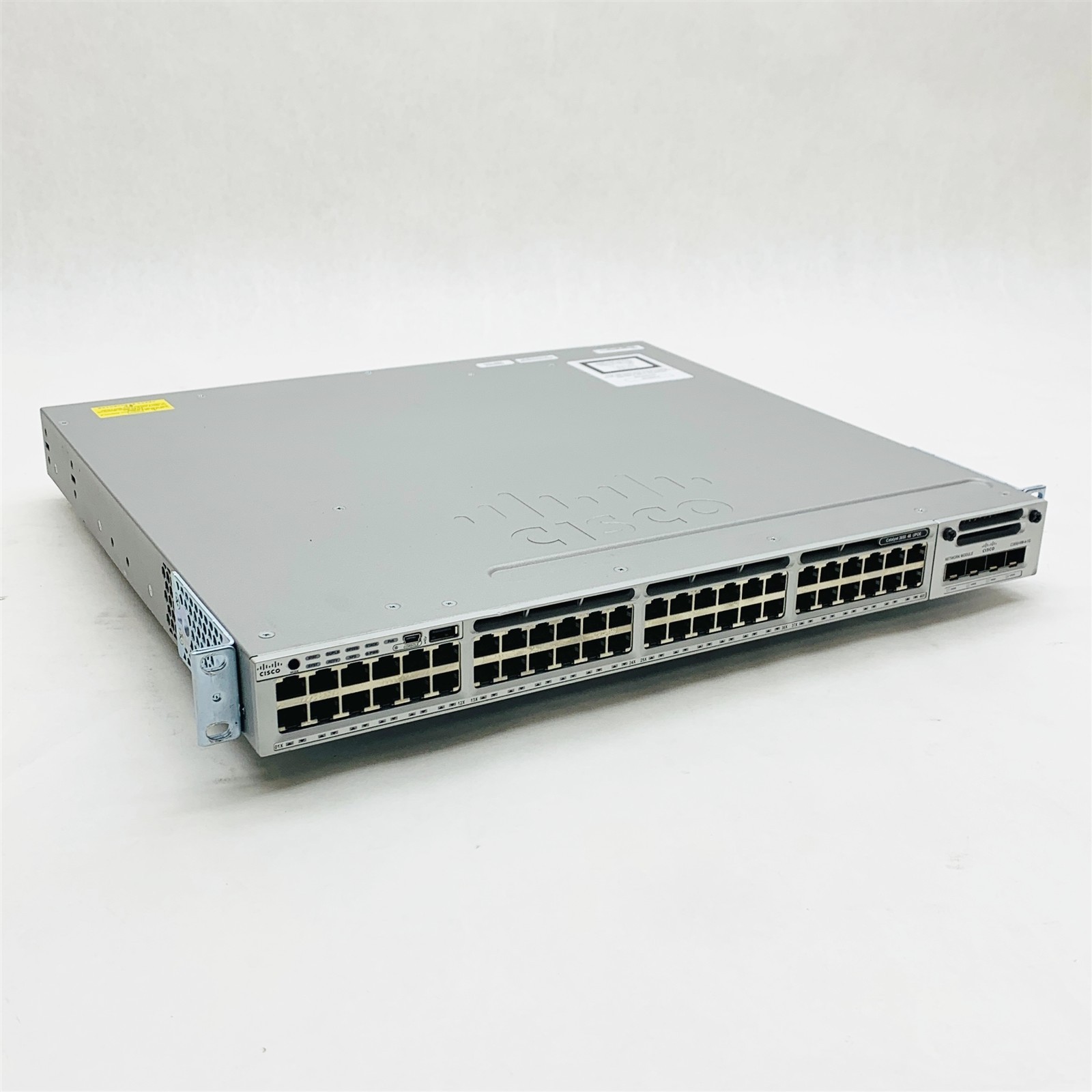

COMPONENTS INCLUDED IN THIS sale:• (1) - CISCO CATALYST 3850 48-PORT UPOE GIGABIT MANAGED SWITCH WS-C3850-48U-L *NO PSU*
• (1) - CISCO C3850-NM-4-1G NETWORK MODULE
REPLACEMENT or MONEY BACK GUARANTEE:When you receive a Guaranteed item from OC Depot, it should perform as described. In the rare situation that this is not the case, we will send a replacement upon safe return of the original item within 30 days of receiving the item. If a replacement is not available we will honor the terms of our Money-Back Guarantee.
ADDITIONAL INFORMATION:Booting...
Interface GE 0 link down***ERROR: PHY link is down
The "IP_ADDR" environment variable is not set.
Reading full image into />Bundle Image
Kernel Address : 0x537766d4
Kernel Size : 0x368a28/3574312
Initramfs Address : 0x53adf0fc
Initramfs Size : 0x19afcb7/26934455
Compression Format: mzip
Bootable image at @ ram:0x537766d4
Bootable image segment 0 address range [0x81100000, 0x81c145b0] is in range [0x8
0180000, 0x90000000].
@@@@@@@@@@@@@@@@@@@@
File uncompressed and installed,
entry point: 0x816e5650
Loading Linux kernel with entry point 0x816e5650 ...
Bootloader: Done loading app on core_mask: 0xf
### Launching Linux Kernel (flags = 0x5)
Both links down, not waiting for other switches
Switch number is 5
Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Cisco IOS Software [Fuji], Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSALK9-M)
, Version 16.9.6, RELEASE SOFTWARE (fc2)
Technical Support: http:/www.cisco.com/techsupport
Copyright (c) 1986-2020 by Cisco Systems, Inc.
Compiled Thu 27-Aug-20 01:57 by mcpre
PLEASE READ THE FOLLOWING TERMS CAREFULLY. INSTALLING THE LICENSE OR
LICENSE KEY PROVIDED FOR ANY CISCO SOFTWARE PRODUCT, PRODUCT FEATURE,
AND/OR SUBSEQUENTLY PROVIDED SOFTWARE FEATURES (COLLECTIVELY, THE
"SOFTWARE"), AND/OR USING SUCH SOFTWARE CONSTITUTES YOUR FULL
ACCEPTANCE OF THE FOLLOWING TERMS. YOU MUST NOT PROCEED FURTHER IF YOU
ARE NOT WILLING TO BE BOUND BY ALL THE TERMS SET FORTH HEREIN.
Your use of the Software is subject to the Cisco End User License Agreement
(EULA) and any relevant supplemental terms (SEULA) found at
You hereby acknowledge and agree that certain Software and/or features are
licensed for a particular term, that the license to such Software and/or
features is valid only for the applicable term and that such Software and/or
features may be shut down or otherwise terminated by Cisco after expiration
of the applicable license term (e.g., 90-day trial period). Cisco reserves
the right to terminate any such Software feature electronically or by any
other means available. While Cisco may provide alerts, it is your sole
responsibility to monitor your usage of any such term Software feature to
ensure that your systems and networks are prepared for a shutdown of the
Software feature.
FIPS: Flash Key Check : Begin
FIPS: Flash Key Check : End, Not Found, FIPS Mode Not Enabled
cisco WS-C3850-48U (MIPS) processor (revision M0) with 832327K/6147K bytes of me
mory.
Processor board ID FOC1915U190
2048K bytes of non-volatile configuration memory.
4194304K bytes of physical memory.
257008K bytes of Crash Files at crashinfo:.
1550272K bytes of Flash at flash:.
0K bytes of WebUI ODM Files at webui:.
Base Ethernet MAC Address : bc:c4:93:a3:0b:00
Motherboard Assembly Number : 73-14983-07
Motherboard Serial Number : FOC19155SFV
Model Revision Number : M0
Motherboard Revision Number : A0
Model Number : WS-C3850-48U
System Serial Number : FOC1915U190
%INIT: waited 0 seconds for NVRAM to be available
Press RETURN to get started!
*Dec 8 21:21:27.870: %SMART_LIC-6-EXPORT_CONTROLLED: Usage of export controlled
features is not allowed
*Dec 8 21:21:31.285: %SMART_LIC-6-AGENT_READY: Smart Agent for Licensing is ini
tialized
*Dec 8 21:21:31.286: %SMART_LIC-6-AGENT_ENABLED: Smart Agent for Licensing is e
nabled
*Dec 8 21:21:31.288: %SMART_LIC-6-EXPORT_CONTROLLED: Usage of export controlled
features is not allowed
*Dec 8 21:21:31.336: %SMART_LIC-5-EVAL_START: Entering evaluation period
*Dec 8 21:21:34.252: %SMART_LIC-6-HA_ROLE_CHANGED: Smart Agent HA role changed
to Active.
*Dec 8 21:21:47.007: %SPANTREE-5-EXTENDED_SYSID: Extended SysId enabled for typ
e vlan
*Dec 8 21:21:48.646: %LINK-3-UPDOWN: Interface Lsmpi22/3, changed state to up
*Dec 8 21:21:48.654: %LINK-3-UPDOWN: Interface EOBC22/1, changed state to up
*Dec 8 21:21:48.655: %LINEPROTO-5-UPDOWN: Line protocol on Interface LI-Null0,
changed state to up
*Dec 8 21:21:48.657: %LINK-3-UPDOWN: Interface GigabitEthernet0/0, changed stat
e to down
*Dec 8 21:21:48.657: %LINK-3-UPDOWN: Interface LIIN22/2, changed state to up
*Dec 8 21:21:49.383: %HMANRP-6-HMAN_IOS_CHANNEL_INFO: HMAN-IOS channel event fo
r switch 5: EMP_RELAY: Channel UP!
*Dec 8 21:21:49.393: %HMANRP-6-EMP_NO_ELECTION_INFO: Could not elect active EMP
switch, setting emp active switch to 0: EMP_RELAY: Could not elect switch with
mgmt port UP
*Dec 8 21:21:20.893: %STACKMGR-6-STACK_LINK_CHANGE: Switch 5 R0/0: stack_mgr: S
tack port 1 on Switch 5 is nocable
*Dec 8 21:21:20.893: %STACKMGR-6-STACK_LINK_CHANGE: Switch 5 R0/0: stack_mgr: S
tack port 2 on Switch 5 is down
*Dec 8 21:21:20.893: %STACKMGR-6-STACK_LINK_CHANGE: Switch 5 R0/0: stack_mgr: S
tack port 2 on Switch 5 is nocable
*Dec 8 21:21:20.893: %STACKMGR-4-SWITCH_ADDED: Switch 5 R0/0: stack_mgr: Switch
5 has been added to the stack.
*Dec 8 21:21:20.893: %STACKMGR-4-SWITCH_ADDED: Switch 5 R0/0: stack_mgr: Switch
5 has been added to the stack.
*Dec 8 21:21:20.893: %STACKMGR-4-SWITCH_ADDED: Switch 5 R0/0: stack_mgr: Switch
5 has been added to the stack.
*Dec 8 21:21:20.893: %STACKMGR-6-ACTIVE_ELECTED: Switch 5 R0/0: stack_mgr: Swit
ch 5 has been elected ACTIVE.
*Dec 8 21:21:49.401: %HMANRP-6-EMP_NO_ELECTION_INFO: Could not elect active EMP
switch, setting emp active switch to 0: EMP_RELAY: Could not elect switch with
mgmt port UP
*Dec 8 21:21:49.703: %LINEPROTO-5-UPDOWN: Line protocol on Interface Lsmpi22/3,
changed state to up
*Dec 8 21:21:49.703: %LINEPROTO-5-UPDOWN: Line protocol on Interface EOBC22/1,
changed state to up
*Dec 8 21:21:49.704: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEth
ernet0/0, changed state to up
*Dec 8 21:21:49.704: %LINEPROTO-5-UPDOWN: Line protocol on Interface LIIN22/2,
changed state to up
*Dec 8 21:21:51.915: %IOSXE_MGMTVRF-6-CREATE_SUCCESS_INFO: Management vrf Mgmt-
vrf created with ID 1, ipv4 table-id 0x1, ipv6 table-id 0x1E000001
*Dec 8 21:21:52.849: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, cha
nged state to down
*Dec 8 21:21:54.682: %ONEP_BASE-6-SS_ENABLED: ONEP: Service set Base was enable
d by Default
*Dec 8 21:21:55.524: %SYS-5-CONFIG_I: Configured from memory by console
*Dec 8 21:21:55.857: %LINK-3-UPDOWN: Interface GigabitEthernet0/0, changed stat
e to up
*Dec 8 21:21:56.882: %SYS-5-RESTART: System restarted --
Cisco IOS Software [Fuji], Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSALK9-M)
, Version 16.9.6, RELEASE SOFTWARE (fc2)
Technical Support: http:/www.cisco.com/techsupport
Copyright (c) 1986-2020 by Cisco Systems, Inc.
Compiled Thu 27-Aug-20 01:57 by mcpre
*Dec 8 21:21:58.267: %LINK-3-UPDOWN: Interface GigabitEthernet5/1/1, changed st
ate to down
*Dec 8 21:21:58.268: %LINK-3-UPDOWN: Interface GigabitEthernet5/1/2, changed st
ate to down
*Dec 8 21:21:58.271: %LINK-3-UPDOWN: Interface GigabitEthernet5/1/3, changed st
ate to down
*Dec 8 21:21:58.273: %LINK-3-UPDOWN: Interface GigabitEthernet5/1/4, changed st
ate to down
*Dec 8 21:21:58.274: %LINK-3-UPDOWN: Interface TenGigabitEthernet5/1/1, changed
state to down
*Dec 8 21:21:58.276: %LINK-3-UPDOWN: Interface TenGigabitEthernet5/1/2, changed
state to down
*Dec 8 21:21:58.279: %LINK-3-UPDOWN: Interface TenGigabitEthernet5/1/3, changed
state to down
*Dec 8 21:21:58.280: %LINK-3-UPDOWN: Interface TenGigabitEthernet5/1/4, changed
state to down
*Dec 8 21:21:58.876: %LINK-3-UPDOWN: Interface Vlan1, changed state to up
*Dec 8 21:21:59.267: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEth
ernet5/1/1, changed state to down
*Dec 8 21:21:59.270: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEth
ernet5/1/2, changed state to down
*Dec 8 21:21:59.271: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEth
ernet5/1/3, changed state to down
*Dec 8 21:21:59.274: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEth
ernet5/1/4, changed state to down
*Dec 8 21:21:59.274: %LINEPROTO-5-UPDOWN: Line protocol on Interface TenGigabit
Ethernet5/1/1, changed state to down
*Dec 8 21:21:59.277: %LINEPROTO-5-UPDOWN: Line protocol on Interface TenGigabit
Ethernet5/1/2, changed state to down
*Dec 8 21:21:59.281: %LINEPROTO-5-UPDOWN: Line protocol on Interface TenGigabit
Ethernet5/1/3, changed state to down
*Dec 8 21:21:59.281: %LINEPROTO-5-UPDOWN: Line protocol on Interface TenGigabit
Ethernet5/1/4, changed state to down
*Dec 8 21:21:59.787: %SYS-6-BOOTTIME: Time taken to reboot after reload = 336
seconds
*Dec 8 21:22:00.660: %LINK-3-UPDOWN: Interface GigabitEthernet0/0, changed stat
e to down
*Dec 8 21:22:01.661: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEth
ernet0/0, changed state to down
*Dec 8 21:22:02.014: %PNP-6-PNP_DISCOVERY_STOPPED: PnP Discovery stopped (Start
up Config Present)
CRYPTO_PKI: setting trustpoint policy TP-self-signed-4103383502 to use keypair T
P-self-signed-4103383502% Generating 2048 bit RSA keys, keys will be non-exporta
ble...
*Dec 8 21:22:07.124: %PKI-2-NON_AUTHORITATIVE_CLOCK: PKI functions can not be i
nitialized until an authoritative time source, like NTP, can be obtained.
[OK] (elapsed time was 2 seconds)
*Dec 8 21:22:08.261: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named CISCO_IDEVID_SU
DI_LEGACY has been generated or imported by pki-sudi
*Dec 8 21:22:08.399: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named CISCO_IDEVID_SU
DI has been generated or imported by pki-sudi
*Dec 8 21:22:09.209: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named TP-self-signed-
4103383502 has been generated or imported by crypto-engine
*Dec 8 21:22:09.211: %SSH-5-ENABLED: SSH 1.99 has been enabled
*Dec 8 21:22:09.487: %PKI-4-NOCONFIGAUTOSAVE: Configuration was modified. Issu
e "write memory" to save new IOS PKI configuration
*Dec 8 21:22:09.754: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named TP-self-signed-
4103383502.server has been generated or imported by crypto-engine
*Dec 8 21:22:20.179: %PLATFORM_PM-6-FRULINK_INSERTED: 4x1G uplink module insert
ed in the switch 5 slot 1
*Dec 8 21:22:27.895: %SMART_LIC-6-EXPORT_CONTROLLED: Usage of export controlled
features is not allowed
*Dec 8 21:22:27.920: %CALL_HOME-6-CALL_HOME_ENABLED: Call-home is enabled by Sm
art Agent for Licensing.
*Dec 8 21:22:27.922: %SMART_LIC-5-COMM_RESTORED: Communications with the Cisco
Smart Software Manager (CSSM) restored
*Dec 8 21:28:16.720: %PLATFORM-4-ELEMENT_WARNING: Switch 5 R0/0: smand: 5/RP/0:
limited space - copy files out of flash: directory. flash: value 100% (1525 MB)
exceeds warning level 70% (1068 MB)
Switch>
Switch>show ver
Cisco IOS XE Software, Version 16.09.06
Cisco IOS Software [Fuji], Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSALK9-M)
, Version 16.9.6, RELEASE SOFTWARE (fc2)
Technical Support: http:/www.cisco.com/techsupport
Copyright (c) 1986-2020 by Cisco Systems, Inc.
Compiled Thu 27-Aug-20 01:57 by mcpre
Cisco IOS-XE software, Copyright (c) 2005-2020 by cisco Systems, Inc.
All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.
ROM: IOS-XE ROMMON
BOOTLDR: CAT3K_CAA Boot Loader (CAT3K_CAA-HBOOT-M) Version 4.68, RELEASE SOFTWAR
E (P)
Switch uptime is 8 minutes
Uptime for this control processor is 10 minutes
System returned to ROM by Reload Command
System image file is />Last reload reason: Reload Command
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:
If you require further assistance please contact us by sending email to
[email protected].
Technology Package License Information:
Technology-package Technology-package
Current Type Next reboot
ipservicesk9 Smart License ipservicesk9
None Subscription Smart License None
Smart Licensing Status: UNREGISTERED/EVAL MODE
cisco WS-C3850-48U (MIPS) processor (revision M0) with 832327K/6147K bytes of me
mory.
Processor board ID FOC1915U190
1 Virtual Ethernet interface
52 Gigabit Ethernet interfaces
4 Ten Gigabit Ethernet interfaces
2048K bytes of non-volatile configuration memory.
4194304K bytes of physical memory.
257008K bytes of Crash Files at crashinfo:.
1550272K bytes of Flash at flash:.
0K bytes of WebUI ODM Files at webui:.
Base Ethernet MAC Address : bc:c4:93:a3:0b:00
Motherboard Assembly Number : 73-14983-07
Motherboard Serial Number : FOC19155SFV
Model Revision Number : M0
Motherboard Revision Number : A0
Model Number : WS-C3850-48U
System Serial Number : FOC1915U190
Switch Ports Model SW Version SW Image Mode
------ ----- ----- ---------- ---------- ----
* 5 56 WS-C3850-48U 16.09.06 CAT3K_CAA-UNIVERSALK9 BUNDLE
Configuration register is 0x102
Switch> Please Click Here to Visit Our StoreSearchBy37 - 273596 | Loc: E74 | L: Mitchell |T: | PM: Nick | QTY: 0| Plan: L FREESHIP - 20LBS |22.00"x22.00"x5.00"23.00lbs |Start: $0.00 | BIN: $74.99 | |2025-12-09 ||51268
