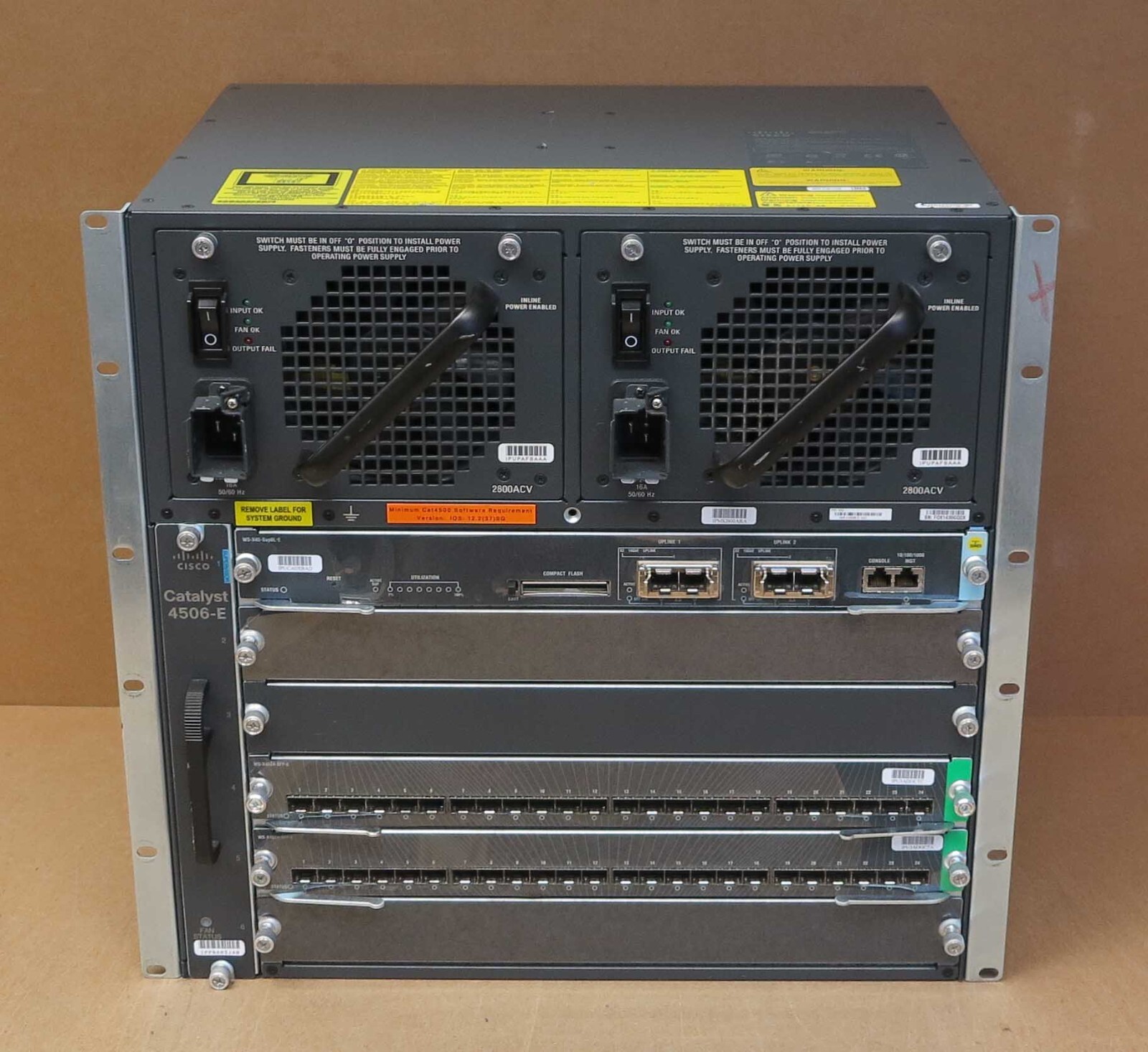

- 1 x Cisco Catalyst 4500 Supervisor Engine 6L-E - WS-X45-SUP6L-E
- 2 x Cisco 24-Port 1GbE LineCard - WS-X4624-SFP-E
- 1 x Fan Module - WS-X4596-E
- 2 x 2800W PSU - number of slots:6
- Line-card slots:5
- Supervisor engine slots:1
- Dedicated supervisor engine slot numbers:1
- Supervisor engine redundancy:No
- Supervisor engines supported:Supervisor Engines 8-E, 8L-E, 7-E, 7L-, 6-E, and 6L-E
- Maximum PoE per slot:1500W
- Bandwidth scalability per line-card slot:Up to 48 Gbps on all slots
- Number of power supply bays:2
- AC input power:Yes
- DC input power:Yes
- Integrated PoE:Yes
- Minimum number of power supplies:1
- Power supplies supported:
- 1000W AC
- 1400W AC
- 1300W ACV
- 2800W ACV
- 4200W ACV
- 6000W ACV
- 9000W ACV
- 1400W DC (triple of fan-tray bays:1
Physical Specifications- Dimensions (H x W x D):17.38 x 17.31 x 12.50 in. (44.13 x 43.97 x 31.70 cm)
- Rack units (RU):10RU
- Chassis weight (with fan tray):40.50 lb (18.37 kg)
- Mounting:19- and 23-in. rack compatible
BootlogSwitch#show version
Cisco IOSSoftware, Catalyst 4500 L3 SwitchSoftware (cat4500e-LANBASEK9-M), Version 15.2(2)E7, RELEASE SOFTWARE(fc3)
Copyright (c)1986-2017 by Cisco Systems, Inc.
Compiled Wed12-Jul-17 15:09 by prod_rel_team
ROM: 12.2(44r)SG9
Switch uptime is1 minute
System returnedto ROM by power-on
System image fileis class="MsoNoSpacing" style="">Darkside Revision4, Nexu Revision 12, Fortooine Revision 1.40
Last reloadreason: power-on
This productcontains cryptographic features and is subject to United
States and localcountry laws governing import, export, transfer and
use. Delivery ofCisco cryptographic products does not imply
third-partyauthority to import, export, distribute or use encryption.
Importers,exporters, distributors and users are responsible for
compliance withU.S. and local country laws. By using this product you
agree to complywith applicable laws and regulations. If you are unable
to comply withU.S. and local laws, return this product immediately.
cisco WS-C4506-E(MPC8548) processor (revision 12) with 524288K bytes of memory.
Processor boardID FOX1430GQDX
MPC8548 CPU at1GHz, Supervisor 6L-E
Last reset fromPowerUp
1 VirtualEthernet interface
52 GigabitEthernet interfaces
2 Ten GigabitEthernet interfaces
511K bytes ofnon-volatile configuration memory.
Configurationregister is 0x102
Switch#show hardware
Cisco IOSSoftware, Catalyst 4500 L3 SwitchSoftware (cat4500e-LANBASEK9-M), Version 15.2(2)E7, RELEASE SOFTWARE(fc3)
Copyright (c)1986-2017 by Cisco Systems, Inc.
Compiled Wed12-Jul-17 15:09 by prod_rel_team
ROM: 12.2(44r)SG9
Switch uptime is1 minute
System returnedto ROM by power-on
System image fileis class="MsoNoSpacing" style="">Darkside Revision4, Nexu Revision 12, Fortooine Revision 1.40
Last reloadreason: power-on
This productcontains cryptographic features and is subject to United
States and localcountry laws governing import, export, transfer and
use. Delivery ofCisco cryptographic products does not imply
third-partyauthority to import, export, distribute or use encryption.
Importers,exporters, distributors and users are responsible for
compliance withU.S. and local country laws. By using this product you
agree to complywith applicable laws and regulations. If you are unable
to comply withU.S. and local laws, return this product immediately.
cisco WS-C4506-E(MPC8548) processor (revision 12) with 524288K bytes of memory.
Processor boardID FOX1430GQDX
MPC8548 CPU at1GHz, Supervisor 6L-E
Last reset fromPowerUp
1 VirtualEthernet interface
52 GigabitEthernet interfaces
2 Ten GigabitEthernet interfaces
511K bytes ofnon-volatile configuration memory.
Configurationregister is 0x102
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£400 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
TH 278820
