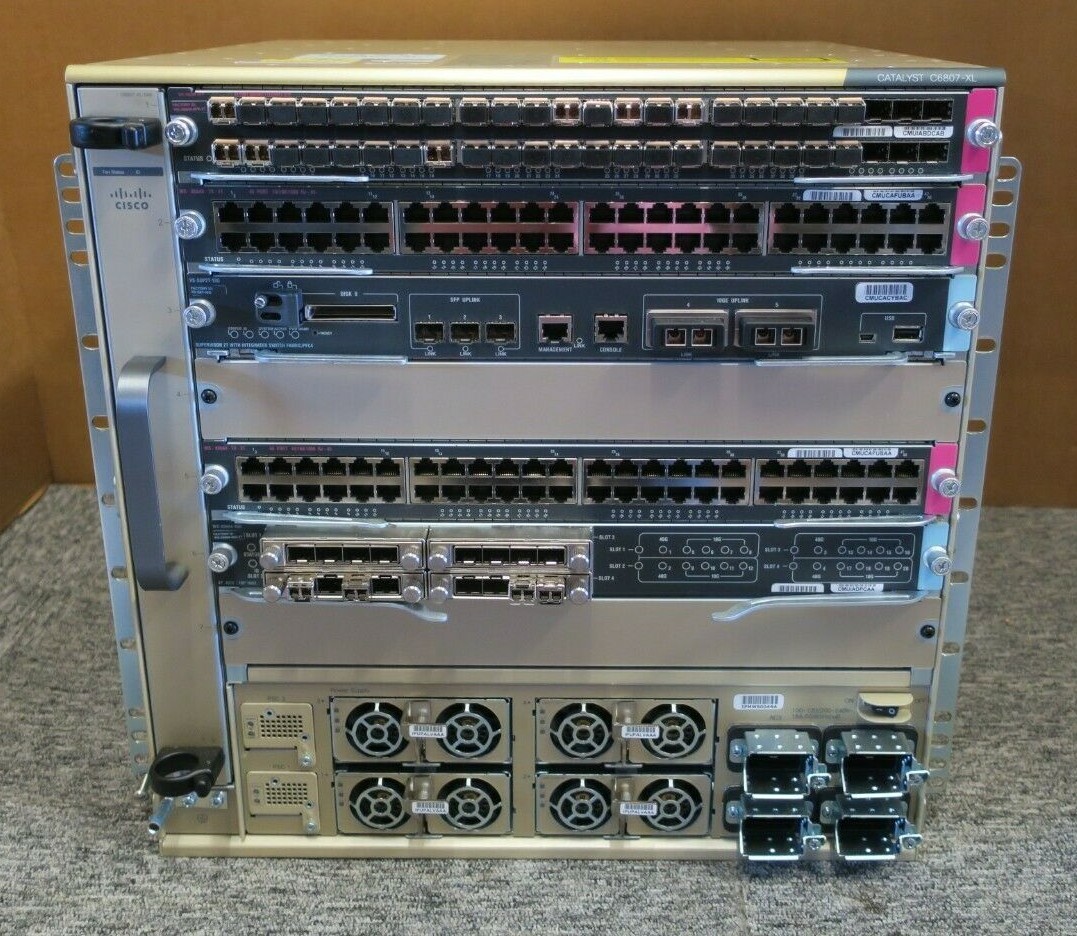

Cisco Catalyst 6807-XL 7 Slot Chassis 10U Modular Switch 6807-XL-S2T-BUN V01
In Good Condition And Full Working Order
TESTED - bootlog lower down the page
Included:
- 1 x Cisco Catalyst 6807-XL 7 Slot Chassis 10U Modular Switch 6807-XL-S2T-BUN V01
- 1 x Cisco WS-X6848-SFP 48 Port Gigabit Ethernet SFP Fiber Ethernet ModuleWS-X6848-SFP 48-2T / WS-X6848-SFP-2T
- With Daughter SFP's Installed:-
- 42 x Cisco GLC-SX-MMD 10-2626-01 1000BASE-SX 850NM 550M Transceiver Module
- 2 xCiscoWS-X6848-TX-2T 48-Port Gigabit Ethernet Expansion Module with DFC4
- 1 x Cisco VS-SUP2T-10G Supervisor 2T With Integrated Switch Fabric/PFC4 VS-S2T-10G
- With 2 x Cisco X2-10GB-SR 10 Gbe 850nm MM 300m DOM Transceiver Module 10-2205-06
- 1 x Cisco Catalyst 6900 WS-X6904-40G-2T Series 4-Port 40 Gigabit Ethernet Fiber Module WS-X6904-40G
- With Daughter Boards:-
- 1 x WS-F6904-40G
- 1 x WS-F6K-DFC4-E V02
- With Modules Installed:-
- 4 x Cisco CVR-CFP-4SFP10G CFP to SFP10G Adapter Module
- With SFP's Installed:-
- 1 x Cisco SFP-10G-SR Transceiver Module SFP GBIC 10-2415-02
- 2 xCisco SFP-10G-SR Transceiver Module SFP GBIC 10-2415-03
- 1 x 10G BASE-SR SFP 850nm SFP-10G-SR Transceiver Module
- 4 x Cisco Catalyst 6800 C6800-XL-3KW-AC V01 Switch Power Supply
- 1 xCisco C6807-XL-FAN Catalyst 6807-XL Chassis Fan Tray
- 1 x Rackmount Frame
Product Overview
CiscoCatalyst6807-XL Modular Switch for the next-generation campus. The Cisco Catalyst 6807-XL Modular Switch is built on the rich Cisco DNA of the Cisco Catalyst 6500 Series Switch and provides high levels of scalability and performance. The Cisco Catalyst 6807-XL Modular Switch provides unprecedented investment protection for migrations and upgrades from the Cisco Catalyst 6500-E Series Switch.
The Cisco Catalyst 6807-XL chassis (Figure 1) is built to be capable of delivering up to 11.4 Terabits per second (Tbps) of system bandwidth capacity and up to 440 Gigabits per second (Gbps) of per-slot bandwidth. In a system configured for VSS, this translates to a system capacity of up to 22.8 Tbps. With the Supervisor Engine 6T and latest generation of line cards, the 6807-XL chassis supports a maximum of 160 Gigabits per second (Gbps) of per slot bandwidth. The Cisco Catalyst 6807-XL Modular Switch is optimized for high-density 10 Gigabit Ethernet and capable of supporting 40 Gigabit Ethernet.
The Cisco Catalyst 6807-XL chassis provides superior investment protection by supporting the Supervisor Engine 6T, Supervisor Engine 2T and associated line cards and service modules. Refer to Table 2 for the complete list of modules supported.
The Cisco Catalyst 6807-XL chassis offers integrated resiliency by providing 1+1 supervisor engine redundancy, redundant fans, and N+1 power supply redundancy, thereby limiting network downtime and making sure of workforce productivity, customer satisfaction, and profitability.
MPN CISCO C6807-XLForm Factor Rack MountableBrand CiscoUPC 882658639500Network Management Type Fully ManagedModel CISCO C6807-XLType Catalyst SwitchEthernet Technology 10 Gigabit Ethernet (10000-Mbit/s)
High interface capacityThis switch scales to high-density Gigabit Ethernet, 10 Gigabit Ethernet, and 40 Gigabit Ethernet and configurations and it is capable of supporting 100 Gigabit Ethernet.Standby fabric hot syncDecreases the supervisor engine switchover time of supervisor engine 2T based systems to between 50 and 200 ms, depending on the modules being used.Redundant control channelIncreases resiliency to protect against backplane control channel failures.Redundant supervisor engine optionIncreases availability by supporting a redundant supervisor engine.Fan trayIt supports the hot-swappable fan tray. The variable speed fans in the fan tray can handle individual fan failures (N+1 redundancy) and still provide sufficient cooling to the chassis.Side-to-side airflowConsistent with existing Cisco Catalyst 6500 series chassis to allow easy upgrades.AC power supplySupports up to 4 AC power supplies, which can be added incrementally as the system requirements grow. Power supplies support both 110 volt and 220 volt inputs.Network equipment building standards layer 3 (NEBS L3) compliantSupports NEBS L3 compliance for deployment in demanding environments.
Product Code
C6807-XL
Number of slots
7
Number of Supervisor Engine Slots
2
Number of Module Slots
5
redundant supervisor engines
Yes
system bandwidth capacity
up to 11.4 terabits per second (Tbps)
per-slot bandwidth for all slots
440 Gbps
Rack units (RU)
10
Power Supply Compatibility
AC: 3000W (up to 4 power supplies)
Operating temperature (T-T)
32 - 104 °F
redundant power supply modules
Yes(AC input)
Input Voltage
100 to 240 VAC
-48 to -60 VDC
Physical Dimensions (H x W x D)
·Inches：17.45 x 17.37 x 18.1
·Centimeters：44.3 x 44.1 x 46
Weight
·Chassis Only (lbs)：62
·Fully Configured (lbs)：185
System Bootstrap,Version 12.2(50r)SYS3, RELEASE SOFTWARE (fc1)
Copyright (c)2012 by cisco Systems, Inc.
PYRAMID platformwith 2097152 Kbytes of main memory
Autoboot: failed,BOOT string is empty
Autobootexecuting command: "boot "
Initializing ATAmonitor library...
string class="MsoNoSpacing">
Initializing ATAmonitor library...
Self extractingthe image... [OK]
Selfdecompressing the image class="MsoNoSpacing">
Restricted Rights Legend
Use, duplication,or disclosure by the Government is
subject to restrictionsas set forth in subparagraph
(c) of theCommercial Computer Software - Restricted
Rights clause atFAR sec. 52.227-19 and subparagraph
(c) (1) (ii) ofthe Rights in Technical Data and Computer
Software clauseat DFARS sec. 252.227-7013.
Cisco IOSSoftware, s2t54 Software (s2t54-IPSERVICESK9-M), Version 15.1(2)SY3, RELEASESOFTWARE (fc4)
Copyright (c)1986-2014 by Cisco Systems, Inc.
Compiled Wed11-Jun-14 14:27 by prod_rel_team
Image text-base:0x041001B8, data-base: 0x0C000000
This productcontains cryptographic features and is subject to United
States and localcountry laws governing import, export, transfer and
use. Delivery ofCisco cryptographic products does not imply
compliance withU.S. and local country laws. By using this product you
agree to complywith applicable laws and regulations. If you are unable
to comply withU.S. and local laws, return this product immediately.
cisco C6807-XL(M8572) processor (revision ) with 1785856K/262144K bytes of memory.
Processor boardID SMC18350037
CPU: MPC8572_E, Version: 2.2, (0x80E80022)
CORE: E500, Version: 3.0, (0x80210030)
CPU:1500MHz, CCB:600MHz, DDR:600MHz
L1:D-cache 32 kB enabled
I-cache 32 kB enabled
Last reset frompower-on
1 VirtualEthernet interface
147 GigabitEthernet interfaces
2 Ten GigabitEthernet interfaces
4 Forty GigabitEthernet interfaces
2543K bytes ofnon-volatile configuration memory.
