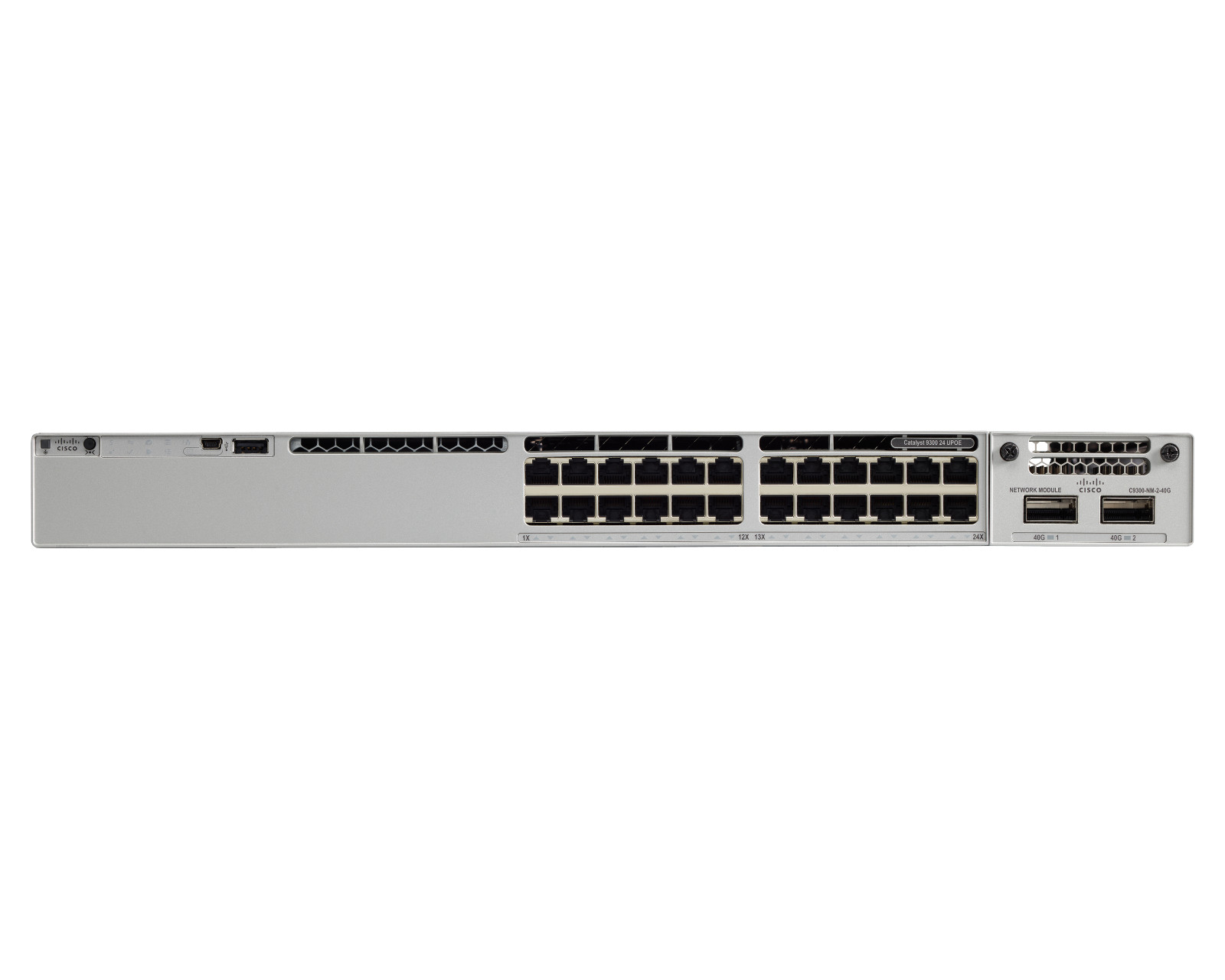

Cisco Catalyst 9300 Switch, C9300-24U-M For Sale
|
 When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Cisco Catalyst C9300-24U-M 24-Port UPOE Managed SwitchCisco Catalyst C9300-24U-M 24-Port UPOE Managed Switch Overview The Cisco Catalyst C9300-24U-M is an enterprise-class managed switch from the Catalyst 9300 series, designed for high-performance wired network deployments. It provides 24 UPOE-capable Ethernet interfaces, modular uplink options, and StackWise-480 technology with up to 480 Gbps of stacking bandwidth. The switch supports Layer 3 networking, advanced security features, centralized management, and high-density connectivity for enterprise environments. Key Features - 24 Gigabit Ethernet UPOE interfaces supporting PoE, PoE+, and UPOE.
- Up to 820 W PoE power budget according to the detailed specifications.
- 320 Gbps switching capacity and 240 Mpps forwarding rate.
- Layer 3 switching capabilities for enterprise network deployments.
- StackWise-480 technology with up to 480 Gbps stacking bandwidth.
- Dual dedicated hardware stacking ports.
- Supports physical stacking of up to 8 switches.
- Modular 10G or 40G uplink options available separately.
- 8 GB RAM and 16 GB flash memory.
- Advanced security features including AES-128 MACsec encryption.
- Support for Adaptive Policy and Security Group-based traffic segmentation.
- CLI, Web UI, and SNMP management.
- DNA Essentials network management.
- Supports up to 4,000 VLANs and jumbo frames up to 9198 bytes.
Specifications Brand Cisco Series Catalyst 9300 Model C9300-24U-M Port Count 24 Port Type UPOE Gigabit Ethernet Switching Capacity 320 Gbps Forwarding Rate 240 Mpps Switching Layer Layer 3 RAM 8 GB Flash Memory 16 GB PoE Support PoE / PoE+ / UPOE PoE Power Budget 820 W Maximum Power Consumption 880 W Stacking Technology StackWise-480 Stacking Bandwidth 480 Gbps Maximum Stack Size Up to 8 switches Stacking Ports 2 dedicated hardware stacking ports Uplink Options Modular 10G or 40G uplink options, sold separately Management CLI, Web UI, SNMP Network Management DNA Essentials VLAN Support Up to 4,000 VLANs Jumbo Frames Up to 9198 bytes Power Supplies Dual redundant, 750 W AC Input Voltage 100-240 VAC Dimensions 44.5 x 44.5 x 4.4 cm Operating Temperature 0°C to 45°C Compliance RoHS  |
| | |
