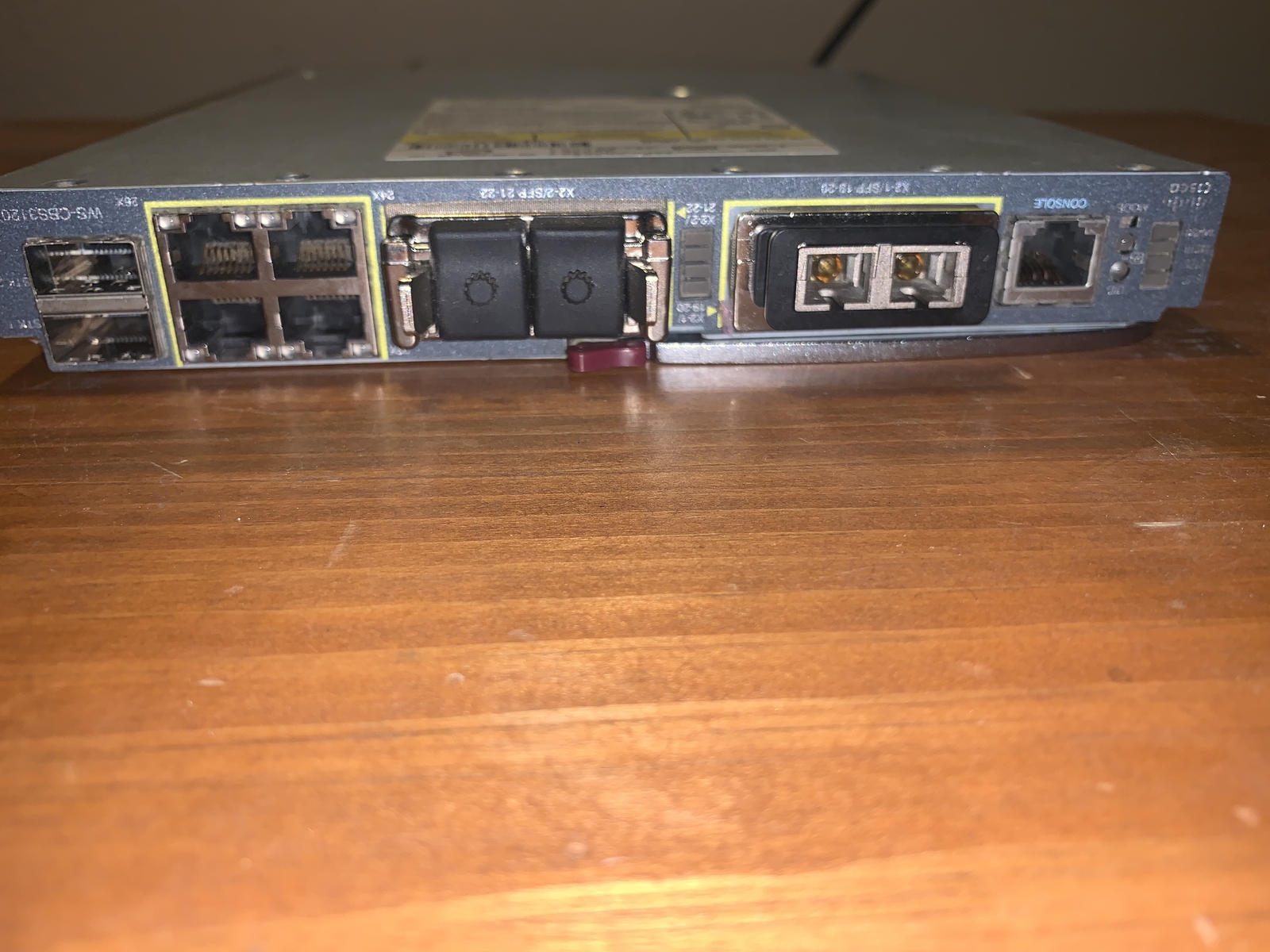

Cisco Catalyst Blade Switch 3120 for HP ws-cbs3120x-s v03
Price: US $55.00

HOTLINE: [phone removed by ] Cisco Catalyst Blade Switch 3120 for HP ws-cbs3120x-s v03Cisco Catalyst Blade Switch 3120 for HP ws-cbs3120x-s v03

Product class="ods_si_list">

  • Wire speed switching on sixteen internal 1Gb ports.

  • Wire Speed switching on four external 10/100/1000BASE-T ports. (Two of these ports can be used as cross-connects to provide failover protection).

  • Wire speed switching on four external 10/100/1000 SFP based ports that can be configured in addition to the four 10/100/1000BASE-T ports to support Fiber SX/LX SFP modules from Cisco systems.

  • Two external 10Gb X2 based ports that support SR, LRM and CX4 modules.

  • Two 64Gb stacking ports

  • One external console port

    • Management

    • CiscoWorks Software that includes multilayer feature configurations such as routing protocols, ACLs and QoS parameters.

    • Compatible with Cisco Network Assistant

    • Supports both Embedded Events Manager (EEM) and Generic On-line Diagnostics (GOLD).

    • IOS CLI support providing a common user interface and command set with all Cisco routers and Cisco Catalyst desktop switches.

    • The Catalyst Blade Switch 3120 series supports an embedded Remote Monitoring (RMON) software agent for enhanced traffic management, monitoring and analysis.

    Security

    • Virtual Local Area Network (VLAN) is a logical network topology configured on top of a physical network topology which conserves bandwidth and improves security by limiting traffic to specific groups of devices.

    • Supports Cisco’s Identity-Based Networking Services (IBNS) which prevents unauthorized network access and insures that users get only their designated privileges.

    • Compatible with Cisco Secure Access Control Server (ACS) so that user security profiles and authentication follow the user regardless of where they connect on the network.

    • Access Control Lists (ACL’s) are maintained in hardware for maximum performance and can be used to guard against denial of-service and other attacks.

    • 802.1x Port Security recognizes the MAC address of the device connecting to it and will set rights or limitations based on predefined security thresholds.

    Stacking

    • Up to nine 3120 switches can be combined into a single virtual stack.

    • Switches can be managed as a single virtual switch with a single IP address and single routing domain.

    • 64Gb stacking fabric provides flexible and redundant ring architecture eliminating any single point of failure.

    CompatibilityHP ProLiant Servers

    • HP ProLiant BL2x220c G7

    • HP ProLiant BL2x220c G5

    • HP ProLiant BL260c G5

    • HP ProLiant BL280c G6

    • HP ProLiant BL420c Gen8

    • HP ProLiant BL460c Gen8

    • HP ProLiant BL460c G7

    • HP ProLiant BL460c G6

    • HP ProLiant BL460c G5

    • HP ProLiant BL460c

    • HP ProLiant BL465c Gen8

    • HP ProLiant BL465c G7

    • HP ProLiant BL465 G6

    • HP ProLiant BL465 G5

    • HP ProLiant BL465c

    • HP ProLiant BL480c

    • HP ProLiant BL490c G7

    • HP ProLiant BL490c G6

    • HP ProLiant BL495c G6

    • HP ProLiant BL495c G5

    • HP ProLiant BL620c G7

    • HP ProLiant BL660c Gen8

    • HP ProLiant BL680c G5

    • HP ProLiant BL680c G7

    • HP ProLiant BL685c G7

    • HP ProLiant BL685 G6

    • HP ProLiant BL685 G5

    • HP ProLiant BL685c

    HP Integrity Server Blade

    • HP Integrity BL860c Server Blade

    • HP Integrity BL860c i2 Server Blade

    • HP Integrity BL860c i4 Server Blade

    • HP Integrity BL870c Server Blade

    • HP Integrity BL870c i2 Server Blade

    • HP Integrity BL860c i4 Server Blade

    • HP Integrity BL890c i2 Server Blade

    • HP Integrity BL860c i4 Server Blade

    HP ProLiant c-ClassServer Blade Enclosure

    • HP BladeSystem c3000 Enclosure

    • HP BladeSystem c7000 Enclosure

    Required network cabling10Base-T

    • Categories 3, 4 or 5 UTP (100 m)

    • EIA/TIA-568 100 ohm STP (100 m)

    100Base-TX

    • Category 5 UTP (100 m)

    • EIA/TIA-568 100 ohm STP (100 m)

    1000Base-T

    • Category 5 UTP (100 m)

    • EIA/TIA-568 100 ohm STP (100 m)

    1000Base-SX

    • 50/125 μm Multimode Fiber, 400 MHz/Km (500 m)

    • 50/125 μm Multimode Fiber, 500 MHz/Km (550 m)

    • 62.5/125 μm Multimode Fiber, 160 MHz/Km (220 m)

    • 62.5/125 μm Multimode Fiber, 200 MHz/Km (275 m)

    1000Base LXOperates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers.10Gb

    • Multimode fiber cable; 62.5/125 or 50/125 microns

    • Singlemode fiber cable: 9/125 micron

    The following CX4 cable lengths have been qualified and can be purchased directly from HP.

    • HP BLadeSystem c-Class 5 m 10 GbE CX4 cable

    • HP BLadeSystem c-Class 1 m 10 GbE CX4 cable

    • HP BLadeSystem c-Class 15 m 10 GbE CX4 cost:
