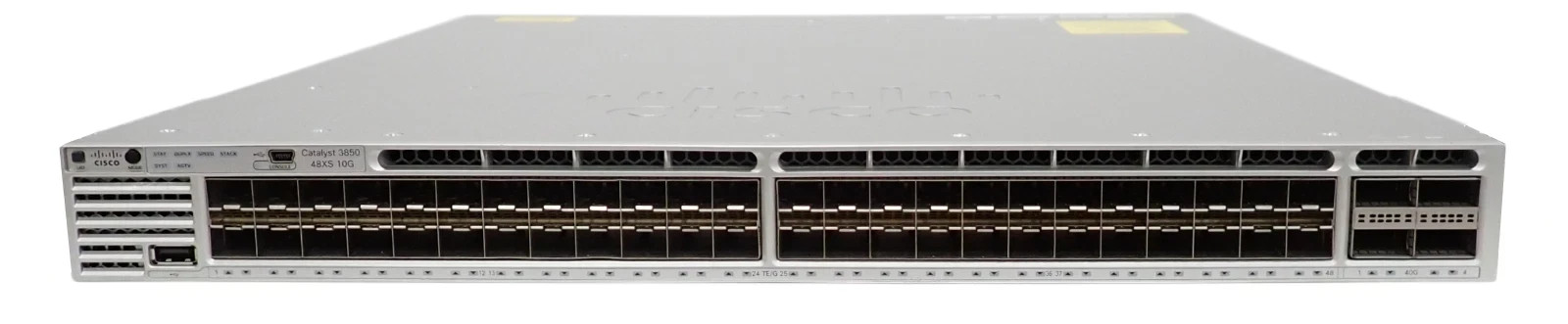

Cisco Catalyst WS-C3850-48XS-E 48x 1/10Gb SFP+ + 4x 40Gb QSFP+ F2B Switch

WS-C3850-48XS-E

In Good Condition, Full Working Order
Tested,2 Year Warranty

Front to Back Airflow

ipservicesk9 Installed

Included:

• 1 xCisco Catalyst WS-C3850-48XS-E 48x 1/10Gb SFP+ + 4x 40Gb QSFP+ Port Switch
• 5 x Fan Modules (Front to Back)
• 1 x 750W Power info: WS-C3850-48XS-E
• Enclosure type Rack-mountable - 1U
• Ports 48 x SFP+ ports
• Network management Interface
• Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
• Management console port: RJ-45-to-DB9 cable for PC connections
• Available PoE Power: None
• Switching Capacity: 1280 Gbps
• Maximum stacking number: 9
• FNF entries: 96,000 flows
• Maximum VLANs IDs: 1,000
• MAC Address Table Size: 32K
• CPU: Multicore CPU
• RAM: 8 GB
• Flash Memory: 8 GB

• Number of AP per switch/stack: 100
• Number of wireless clients per switch/stack: 2000
• Total number of WLANs per switch: 64
• Wireless bandwidth per switch: Up to 40 Gbps
• Supported Aironet AP series: 3600, 3500, 2600, 1600, 1260, 1140, 1040

• Console ports: USB (Type-B), Ethernet (RJ-45)
• Expansion Slot(s): 1 network module slot and 1 power redundant slot
• Power supply: PWR-C3-750WAC-R
• Power Device: Power supply - redundant - plug-in module
• Power Redundancy: 4.45 X 44.5 x 51.1 cm (1.75 x 17.5 x 20.1 inch)
• Weight: 7.45 kg
• Rack Mounting Kit: optional
• MTBF in hours: 286,900
• Compliant Standards:
• IEEE 802.1D Spanning Tree Protoco
• IEEE 802.1p CoS Prioritization
• IEEE 802.1Q VLAN
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1X
• IEEE 802.1X-Rev
• IEEE 802.11
• IEEE 802.1ab (LLDP)
• IEEE 802.3ad
• IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3z 1000BASE-X
• RMON I and II standards
• SNMP v1, v2c, and v3

• System software: IOS IP Base (Upgradable)
• EnergyWise license: ENERGY-MGMT, Support
• Jumbo Frames
• VLANS
• Voice LACP and Fast/Uplink Fast
• Dynamic Trunking Protocol (DTP)
• port CoS Trust and Override
• Trusted Boundary
• ACL Classification
• ingress Policing
• Auto QoS
• Per VLAN policies
• 802.1p Queuing
• Configure CoS Priority Queues
• Configure CoS Priority Queues
• Configure Queue Weights
• Configure Buffers and Thresholds
• Class & Policy Maps
• Modify CoS and DSCP Mapping
• Weighted Tail Drop
• IGMPv1,v2,v3 and MLDv1, v2
• DHCP server
• DSCP transparency
• HSRP, VRRP, BLGP
• RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, PIM sparse-dense mode, SSM
• Flexible Netflow

• Port security
• DHCP snooping
• Dynamic ARP inspection (DAI)
• IP source guard
• The Unicast Reverse Path Forwarding (uRPF)
• offerirectional data support on a SPAN
• User authentication
• Private VLAN
• Router and VLAN ACLs
• complete identity and security
• Multidomain authentication
• MAC address notification
• IGMP filtering
• Cisco security VLAN ACL
• Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
• Port-based ACLs
• TrustSec SXP
• IEEE 802.1ae
• TACACS+ and RADIUS authentication
• Cisco standard and extended IP security router ACLs
• Bridge protocol data unit (BPDU) Guard
• Spanning Tree Root Guard (STRG)
• Wireless end-to-end security

Switch#show version
Cisco IOS XE Software, Version 16.12.14
Cisco IOS Software [Gibraltar], Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSALK9-M), Version 16.12.14, RELEASE SOFTWARE (fc1)
Technical Support:
Copyright (c) 1986-2025 by Cisco Systems, Inc.
Compiled Mon 08-Sep-25 08:50 by mcpre
Cisco IOS-XE software, Copyright (c) 2005-2025 by cisco Systems, Inc.
All rights reserved.Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0.The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY.You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0.For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.
ROM: IOS-XE ROMMON
BOOTLDR: CAT3K_CAA Boot Loader (CAT3K_CAA-HBOOT-M) Version 6.08, RELEASE SOFTWARE (P)Switch uptime is 1 minute
Uptime for this control processor is 6 minutes
System returned to ROM by Power Failure or Unknown
System image file is "flash:packages.conf"
Last reload reason: Power Failure or UnknownThis product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.A summary of U.S. laws governing Cisco cryptographic products may be found at:
If you require further assistance please contact us by sending email toTechnology Package License Licenseipservicesk9
NoneSubscription Smart LicenseNone
Smart Licensing Status: UNREGISTERED/EVAL MODEcisco WS-C3850-48XS (MIPS) processor (revision M0) with 794814K/6147K bytes of memory.
Processor board ID FOC2135T37S
1 Virtual Ethernet interface
64 Ten Gigabit Ethernet interfaces
4 Forty Gigabit Ethernet interfaces
2048K bytes of non-volatile configuration memory.
8388608K bytes of physical memory.
256091K bytes of Crash Files at crashinfo:.
7284411K bytes of Flash at flash:.
0K bytes of WebUI ODM Files at webui:.Base Ethernet MAC Address: f8:7b:20:8f:23:00
Motherboard Assembly Number: 73-16622-05
Motherboard Serial Number: FOC21332H7L
Model Revision Number: M0
Motherboard Revision Number: A0
Model Number: WS-C3850-48XS
System Serial Number: FOC2135T37S
Switch Ports ModelSW VersionSW ImageMode
------ ----- -----------------------------
*1 INSTALL
Configuration register is 0x142 (will be 0x102 at next reload)Switch#show inventory
NAME: "c38xx Stack", DESCR: "c38xx Stack"
PID: WS-C3850-48XS-E, VID: V02, SN: FOC2135T37SNAME: "Switch 1", DESCR: "WS-C3850-48XS-E"
PID: WS-C3850-48XS-E, VID: V02, SN: FOC2135T37SNAME: "Switch 1 - Power Supply A", DESCR: "Switch 1 - Power Supply A"
PID: PWR-C3-750WAC-R, VID: V01, SN: QCS21123X18Switch#show license all
Smart Licensing Licensing is ENABLEDRegistration:
Status: UNREGISTERED
Export-Controlled Functionality: NOT ALLOWEDLicense Authorization:
Status: IN-USELicense Conversion:
Automatic Conversion Enabled: False
Status: Not startedExport Authorization Key:
Features Authorized:
<none>Utility:
Status: DISABLEDData Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLEDTransport:
Type: CallhomeLicense 1
Version: 1.0
Status: IN-USE
Export status: NOT RESTRICTEDProduct Version
=============
Smart Agent for Licensing: 4.8.18_rel/86Reservation Info
================
License reservation: DISABLEDSwitch#show environment all
Switch 1 FAN 1 is OK
Switch 1 FAN 2 is OK
Switch 1 FAN 3 is OK
Switch 1 FAN 4 is OK
Switch 1 FAN 5 is OK
FAN PS-1 is OK
FAN PS-2 is NOT PRESENT
Switch 1: SYSTEM TEMPERATURE is OK
Inlet Temperature Value: 18 Degree Celsius
Temperature State: GREEN
Yellow Threshold : 46 Degree Celsius
Red Threshold: 56 Degree CelsiusHotspot Temperature Value: 34 Degree Celsius
Temperature State: GREEN
Yellow Threshold : 105 Degree Celsius
Red Threshold: 125 Degree Celsius
Switch 1 FAN 1 direction is Front to Back
Switch 1 FAN 2 direction is Front to Back
Switch 1 FAN 3 direction is Front to Back
Switch 1 FAN 4 direction is Front to Back
Switch 1 FAN 5 direction is Front to Back
SWPIDSerial#StatusSys PwrPoE Present
