Cisco ISR4451-X/K9 Router SM-X-1T3/E3 T3/E3 Module Rack Mount Kit
Click Thumbnails to Enlarge Specifications Server TypeLot QuantityWarranty30 DaysBrandCiscoManufacturer Part 4000 SeriesModel NumberISR 4451-XForm Factor2U RackmountFormBracket SizeNetwork Interface4x 10/100/1000 GbE RJ-45/SFP 1x Management RJ-45Interface4x GE RJ-45/SFP 3x NIM 2x SM-X 1x ISC 1x RJ-45 AUX 1x RJ-45 Console 1x Mini USB Type-4 2x USB 2.0Watts450WChassisBatteryAC AdapterMotherboard SupportExpansion Slots3x NIM 2x Single-wide SM-X 1x Double-wide SM-X 1x ISCDimms per ChannelSocketProcessorProcessors InstalledProcessor SpeedSpeed10/100/1000 Mbps GE interfaceProcessor Max Speed (Turbo Boost)CPU BrandProcessor CoresNumber of ThreadsHyper ThreadingCache Per ProcessorProcessor Main FeaturesCPU InstalledCompatible RAMFSBCPU CacheCPU Cooling SystemCPU Cooling System BrandCPU Cooling System DetailsNumber of Fans1Fan ModelFan SupportFan SpeedFan AirflowFan NoiseMemory (RAM)Memory SizeRAM DetailsRAM TypeRAM TypeRAM SpeedRam SpeedMaximum RAMRAM BrandRAM/RankRankModule TypeModule QTYECC/FFSpeed & ECCRAM Installed1.8" Drive Bays2.5" Drive Bays3.5" Drive BaysM.2 SlotsStorageHDDHDD InstalledSSDOptional Supports 2x SSDSSD InstalledNoneStorage TypeStorage CapacityHard Disk Rotational SpeedRead SpeedStorage CacheSector SizeHard Drive TraysDrive BlanksIn trayGraphics CardGraphics CoprocessorGraphics Card BrandGraphics Card SeriesGraphics Card MemoryGraphics Card Memory TypeGraphics Card Clock SpeedGraphics Card Boost Clock SpeedGraphics Card CUDA CoresGraphics Card Memory Bus WidthGraphics Card InterfaceGraphics Card Video OutputsPower ConnectorsAC 100-240 VACGPU InstalledCacheTransfer RatePower SupplyYESPSU TypeInternalPSU BrandCiscoPSU QTY2x IncludedPSU Form FactorInternal ModularPSU Features100-240 VACPSU Installed1x PWR-4450-ACOperating SystemCisco IOS XESoftwareSoftware FeaturesCOABattery InstalledBluetooth InstalledCabling InstalledCamera InstalledMedia Drive InstalledHeatsinks InstalledRAID ControllerRaid InstalledNetwork ControllerIntergrated ISR4451-X-4x1GE Front PanelRail KitIncludedBezelOptical DriveSpecial FeaturesPackage ContentsOnboard GPUBluetoothWifi InstalledWLANLAN SpeedCase MaterialColorsDrive BaysMaximum CPUsMax CPU'sNumber of Memory SlotsDIMM SlotsMemory ChannelsI/O SlotsPorts4x GE RJ-45/SFP 3x NIM 2x SM-X 1x ISC 1x RJ-45 AUXFront USBFront Audio PortsRear USBRear Audio PortsVideo PortsRJ45Power ConsumptionKeyboardMouseMonitorRefresh RateScreen SizeEars IncludedFeature SetsFixed UplinksTotal 10/100/1000 Ethernet Ports4xAvailable PoE PowerOptionalSwitching CapacityStacking BandwidthTotal number of MAC addressesN/ATotal number of IPv4 routesN/AFNF entriesDRAM16GBFlash16GBVLAN IDsIEEE 802.1QTotal switched virtual interfaces (SVIs)Jumbo frame9216 bytesTotal routed ports per stackNumber of access points per switch/stackNumber of wireless clients per switchTotal number of WLANs per switchWireless bandwidth per switchSupported Aironet access point seriesForwarding RateECC/FFScalabilityCountry of OriginPCSP SKUNSB 445192 Extended Warranty for this listing:Click Here Our other items:Click Here Product Description

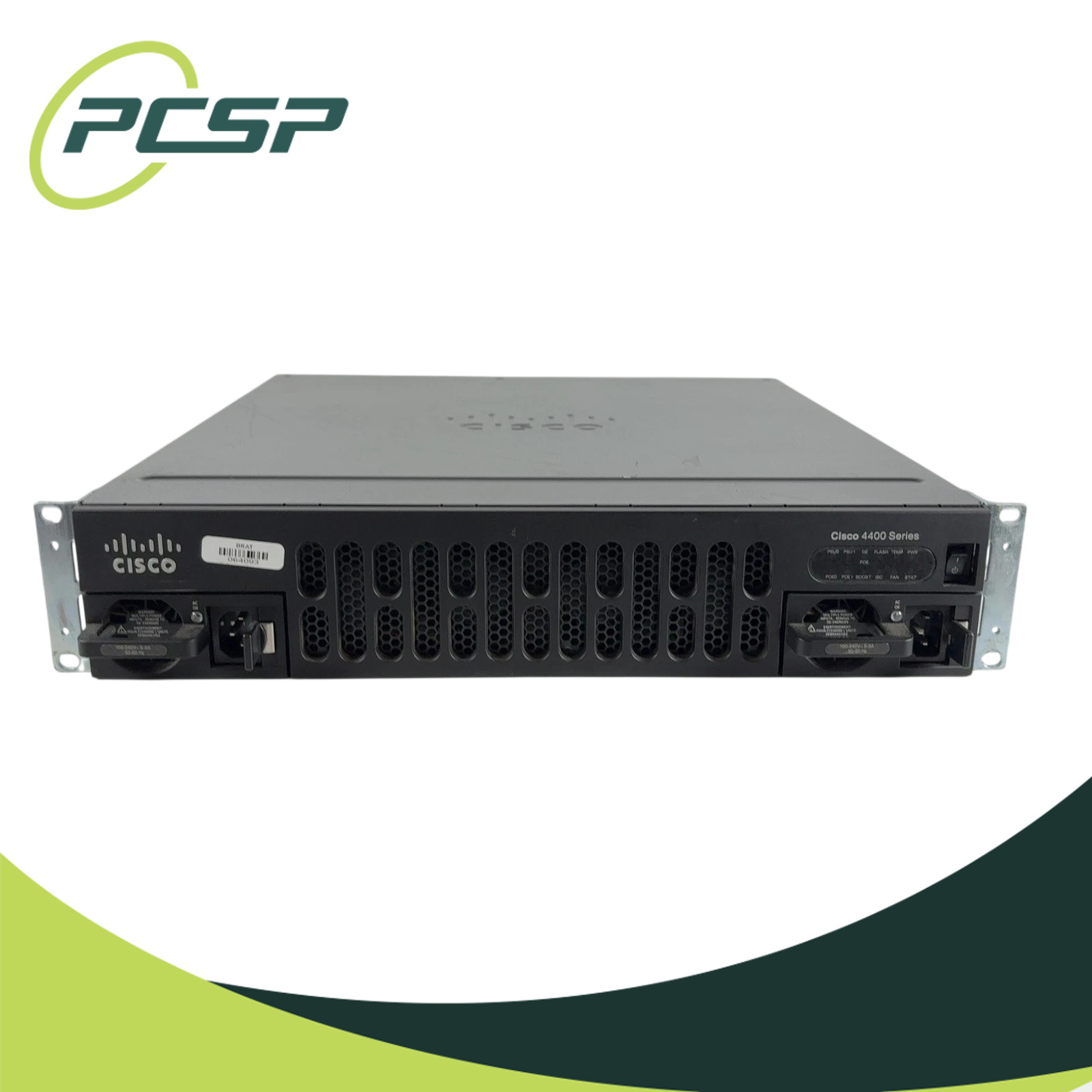

Cisco ISR4451-X/K9 Integrated Services Router w/ SM-X-1T3/E3 & Rack Mount Kit

The Cisco ISR4451-X/K9 is a modular 2U enterprise Integrated Services Router designed for WAN, branch networking, security, voice, and application services. This configuration includes one Cisco SM-X-1T3/E3 clear-channel T3/E3 Service Module and a rack mount kit.

The installed SM-X-1T3/E3 provides one software-configurable clear-channel T3 or E3 WAN interface using separate 75-ohm female BNC connectors for transmit and receive. It can operate at the standard T3/DS3 rate of 44.736Mb/s or E3 rate of 34.368Mb/s.

Manufacturer: Cisco

Series: Cisco 4000 Series ISR

Model: ISR4451-X/K9

Product Type: Integrated Services Router

Onboard Ethernet: 4x Gigabit Ethernet

Installed Module: 1x SM-X-1T3/E3

T3/E3 Interfaces: 1x Clear-Channel T3/E3

Physical WAN Connectors: 2x Female 75-Ohm BNC - Separate RX/TX

T3 Rate: 44.736Mb/s

E3 Rate: 34.368Mb/s

NIM Slots: 3

SM-X Slots: 2

Operating System: Cisco IOS XE

Form Factor: 2U Rackmount

Rack Mount Kit: Included

Key Features

• Cisco ISR4451-X/K9 enterprise Integrated Services Router
• 4x onboard Gigabit Ethernet interfaces
• 1x installed Cisco SM-X-1T3/E3 Service Module
• One-port clear-channel T3 / E3 WAN interface
• Software configurable between T3 and E3 operation
• Integrated DSU / line interface eliminates the need for an external T3/E3 DSU
• Separate receive and transmit BNC connectors
• 3x Network Interface Module slots
• 2x SM-X service module slots
• Cisco IOS XE software platform
• Dual internal power supply capability
• 2U rackmount chassis
• Rack mount kit included

SM-X-1T3/E3 Service Module

• 1x clear-channel T3 / E3 interface
• DSX-3 level interface
• 2x female 75-ohm BNC connectors
• Separate RX and TX coaxial connections
• T3 / DS3 full-duplex rate: 44.736Mb/s
• E3 full-duplex rate: 34.368Mb/s
• Integrated line interface unit / DSU
• Software selectable T3 or E3 operation
• Single-wide SM-X form factor
• No SM-X slot restrictions on supported platforms

T3 / E3 Features

• C-bit or M23 framing for T3
• Bypass or G.751 framing for E3
• B3ZS line coding for T3
• HDB3 line coding for E3
• 16-bit and 32-bit CRC support
• Scrambling and subrate support
• Line and payload loopback capabilities
• Bit Error Rate Test functions
• Alarm and event monitoring
• DS3 FEAC support
• 24-hour error statistics and failure history

Serial Encapsulation Support

• HDLC
• PPP
• Frame Relay

Interface Indicators

• Carrier Detect
• Loopback
• Alarm Indication Signal
• Far-End Receive Failure
• Module Enable
• Loss of Frame Alarm

Router Expansion

• 3x NIM slots
• 2x single-wide SM-X service module slots
• 1x SM-X slot occupied by the SM-X-1T3/E3 in this configuration
• 1x SM-X slot remains available for a compatible single-wide module
• 1x Integrated Services Card slot

Management & Console

• Dedicated Gigabit Ethernet management interface
• RJ45 serial console port
• RJ45 auxiliary port
• USB console interface
• USB Type-A connectivity
• Cisco IOS XE management platform

Power

• Supports dual internal power supplies for redundancy
• Standard ISR4451-X AC power supply: 450W
• Second redundant power supply is optional unless specifically listed
• Actual installed power supply quantity should be verified from the listed unit

Rack Mount Kit

• Rack mount kit included
• Designed for compatible 19-inch rack installation
• Rack cabinet is not included

Important Notes

• Photos are for reference only.
• Only listed items are included.
• The SM-X-1T3/E3 is a T3/E3 WAN service module and is not an Ethernet interface module.
• The module provides one logical T3/E3 port using two physical BNC connectors: one RX and one TX.
• The module can be configured for T3 or E3 operation; it does not provide both simultaneously.
• T3/E3 coaxial cables are not included unless specifically stated.
• Verify compatibility before purchase.
