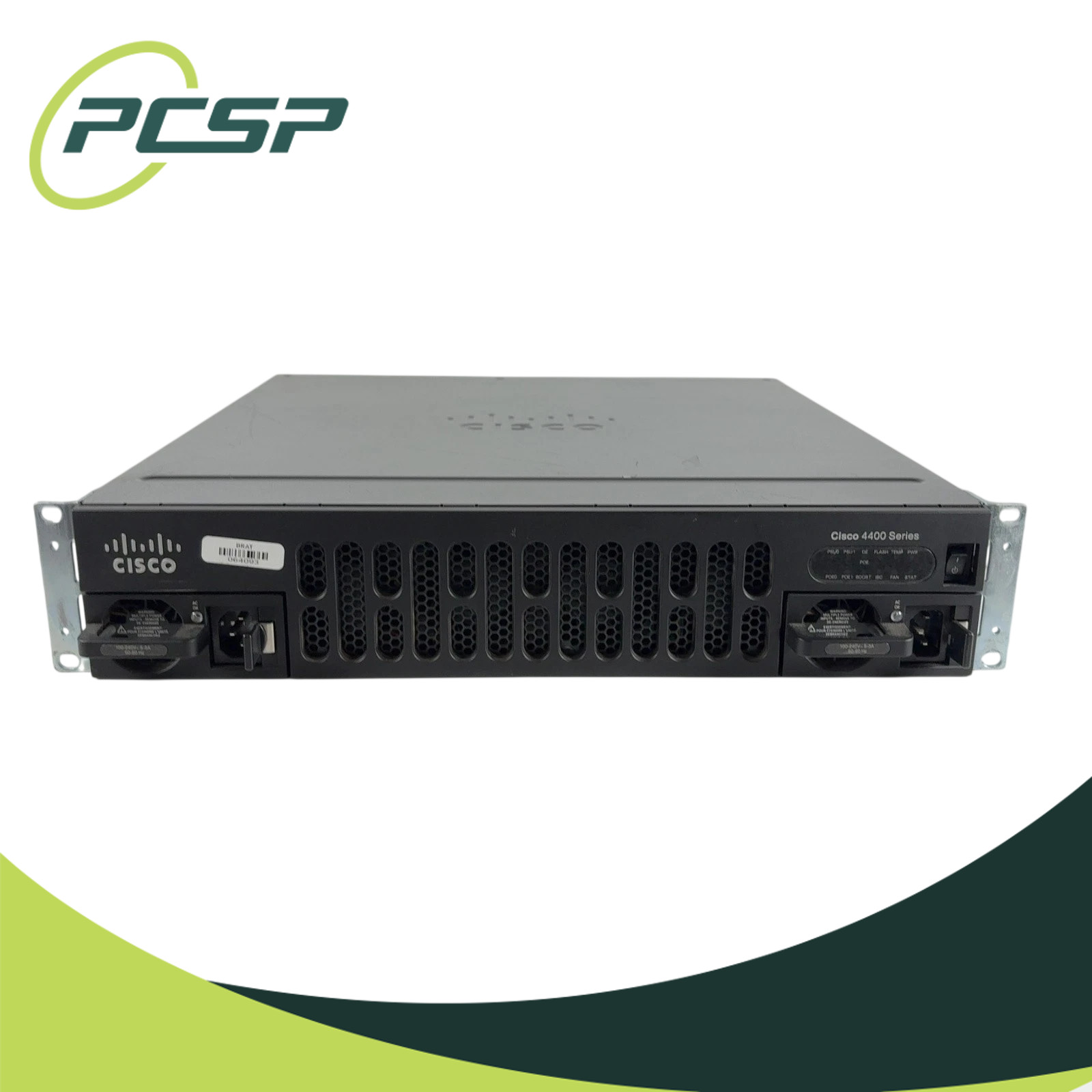

Cisco ISR4451-X/K9 Router w/ NIM-2GE-CU-SFP & Rack Mount Kit
Click Thumbnails to Enlarge Specifications Server TypeLot QuantityWarranty30 DaysBrandCiscoManufacturer Part 4000 SeriesModel NumberISR 4451-XForm Factor2U RackmountFormBracket SizeNetwork Interface4x 10/100/1000 GbE RJ-45/SFP 1x Management RJ-45Interface4x GE RJ-45/SFP 3x NIM 2x SM-X 1x ISC 1x RJ-45 AUX 1x RJ-45 Console 1x Mini USB Type-4 2x USB 2.0Watts450WChassisBatteryAC AdapterMotherboard SupportExpansion Slots3x NIM 2x Single-wide SM-X 1x Double-wide SM-X 1x ISCDimms per ChannelSocketProcessorProcessors InstalledProcessor SpeedSpeed10/100/1000 Mbps GE interfaceProcessor Max Speed (Turbo Boost)CPU BrandProcessor CoresNumber of ThreadsHyper ThreadingCache Per ProcessorProcessor Main FeaturesCPU InstalledCompatible RAMFSBCPU CacheCPU Cooling SystemCPU Cooling System BrandCPU Cooling System DetailsNumber of Fans1Fan ModelFan SupportFan SpeedFan AirflowFan NoiseMemory (RAM)Memory SizeRAM DetailsRAM TypeRAM TypeRAM SpeedRam SpeedMaximum RAMRAM BrandRAM/RankRankModule TypeModule QTYECC/FFSpeed & ECCRAM Installed1.8" Drive Bays2.5" Drive Bays3.5" Drive BaysM.2 SlotsStorageHDDHDD InstalledSSDOptional Supports 2x SSDSSD InstalledNoneStorage TypeStorage CapacityHard Disk Rotational SpeedRead SpeedStorage CacheSector SizeHard Drive TraysDrive BlanksIn trayGraphics CardGraphics CoprocessorGraphics Card BrandGraphics Card SeriesGraphics Card MemoryGraphics Card Memory TypeGraphics Card Clock SpeedGraphics Card Boost Clock SpeedGraphics Card CUDA CoresGraphics Card Memory Bus WidthGraphics Card InterfaceGraphics Card Video OutputsPower ConnectorsAC 100-240 VACGPU InstalledCacheTransfer RatePower SupplyYESPSU TypeInternalPSU BrandCiscoPSU QTY1x Included (Supports 2x)PSU Form FactorInternal ModularPSU Features100-240 VACPSU Installed1x PWR-4450-ACOperating SystemCisco IOS XESoftwareSoftware FeaturesCOABattery InstalledBluetooth InstalledCabling InstalledCamera InstalledMedia Drive InstalledHeatsinks InstalledRAID ControllerRaid InstalledNetwork ControllerIntergrated ISR4451-X-4x1GE Front PanelRail KitIncludedBezelOptical DriveSpecial FeaturesPackage ContentsOnboard GPUBluetoothWifi InstalledWLANLAN SpeedCase MaterialColorsDrive BaysMaximum CPUsMax CPU'sNumber of Memory SlotsDIMM SlotsMemory ChannelsI/O SlotsPorts4x GE RJ-45/SFP 3x NIM 2x SM-X 1x ISC 1x RJ-45 AUXFront USBFront Audio PortsRear USBRear Audio PortsVideo PortsRJ45Power ConsumptionKeyboardMouseMonitorRefresh RateScreen SizeEars IncludedFeature SetsFixed UplinksTotal 10/100/1000 Ethernet Ports4xAvailable PoE PowerOptionalSwitching CapacityStacking BandwidthTotal number of MAC addressesN/ATotal number of IPv4 routesN/AFNF entriesDRAM16GBFlash16GBVLAN IDsIEEE 802.1QTotal switched virtual interfaces (SVIs)Jumbo frame9216 bytesTotal routed ports per stackNumber of access points per switch/stackNumber of wireless clients per switchTotal number of WLANs per switchWireless bandwidth per switchSupported Aironet access point seriesForwarding RateECC/FFScalabilityCountry of OriginPCSP SKUNSB 445191 Extended Warranty for this listing:Click Here Our other items:Click Here Product Description

Cisco ISR4451-X/K9 Integrated Services Router w/ NIM-2GE-CU-SFP & Rack Mount Kit

The Cisco ISR4451-X/K9 is a modular 2U Integrated Services Router designed for enterprise branch, WAN, security, voice, and application services. This configuration includes one Cisco NIM-2GE-CU-SFP Network Interface Module and a rack mount kit.

The ISR4451-X provides four onboard Gigabit Ethernet interfaces. The installed NIM-2GE-CU-SFP adds two additional routed Gigabit Ethernet interfaces with dual-mode copper RJ45 / SFP connectivity, providing a total of six logical Gigabit Ethernet routed interfaces in this configuration.

Manufacturer: Cisco

Series: Cisco 4000 Series ISR

Model: ISR4451-X/K9

Product Type: Integrated Services Router

Onboard Ethernet: 4x Gigabit Ethernet

Installed Module: 1x NIM-2GE-CU-SFP

Module Interfaces: 2x Dual-Mode Gigabit Ethernet RJ45 / SFP

Total Logical Gigabit Ethernet Interfaces: 6

NIM Slots: 3 Total

SM-X Slots: 2 Single-Wide / 1 Double-Wide

Operating System: Cisco IOS XE

Form Factor: 2U Rackmount

Rack Mount Kit: Included

Key Features

• Cisco ISR4451-X/K9 enterprise Integrated Services Router
• 4x onboard Gigabit Ethernet routed interfaces
• 1x installed NIM-2GE-CU-SFP Network Interface Module
• 2x additional dual-mode Gigabit Ethernet interfaces
• Each NIM interface supports copper RJ45 or compatible SFP media
• 6 logical Gigabit Ethernet routed interfaces total in this configuration
• 3x Network Interface Module slots
• 2x single-wide SM-X slots or 1x double-wide SM-X configuration
• 1x Integrated Services Card slot
• Cisco IOS XE software platform
• Modular and field-expandable architecture
• Internal redundant power supply capability
• 2U rackmount chassis
• Rack mount kit included

Integrated Gigabit Ethernet

• 4x onboard Gigabit Ethernet interfaces
• Onboard interfaces use dual-physical-media RJ45 / SFP architecture
• Four onboard interfaces are logical Gigabit Ethernet ports, not eight simultaneous ports
• Supports WAN or LAN routed-interface operation
• Dedicated Gigabit Ethernet management interface is also provided

NIM-2GE-CU-SFP Module

• 1x Cisco NIM-2GE-CU-SFP installed
• 2x Gigabit Ethernet routed interfaces
• Dual-mode copper / SFP connectivity
• Each logical interface can use compatible RJ45 copper or SFP media
• Interfaces operate as Layer 3 routed ports
• Does not operate as an integrated Layer 2 Ethernet switch
• Supports auto-switchover / auto-failover with supported IOS XE releases
• Supports 256-bit MACsec with supported IOS XE software
• Does not provide Power over Ethernet

Performance

• Default aggregate throughput: 1Gbps
• Performance License aggregate throughput: up to 2Gbps
• Boost / CEF-only throughput: over 4Gbps in supported configurations
• Actual throughput depends on licensing, enabled services, traffic profile, and software configuration

Memory & Storage

• Default control-plane DRAM: 4GB
• Default data-plane DRAM: 2GB
• Default flash memory: 8GB
• Maximum flash supported by platform: 32GB
• Memory and flash configuration may vary from factory defaults

Expansion

• 3x NIM slots total
• 1x NIM slot occupied by NIM-2GE-CU-SFP in this configuration
• 2x Enhanced Service Module / SM-X slots
• Supports 1x double-wide SM-X module in place of the two single-wide slots
• 1x Integrated Services Card slot
• Supports Online Insertion and Removal for compatible modules

Management & Console

• 1x dedicated Gigabit Ethernet management port
• 1x RJ45 serial console port
• 1x RJ45 auxiliary port
• 1x USB Mini-B console interface
• 2x USB Type-A ports
• Cisco IOS XE management and routing platform

Power

• Supports internal AC, DC, and PoE-capable power supply options
• Supports dual internal power supplies for redundancy
• Standard factory AC supply option: Cisco PWR-4450-AC 450W
• 100-240VAC autoranging with compatible AC power supply
• Actual installed power supply quantity should be verified from the listed configuration

Physical Specifications

• 2U rackmount form factor
• Approximate dimensions: 3.5 x 17.25 x 18.5 inches
• Approximate base weight with one 450W AC PSU and no modules: 28.8 lb
• Airflow direction: I/O side to bezel side
• 19-inch EIA rack mounting supported

Rack Mount Kit

• Rack mount kit included
• Designed for compatible 19-inch EIA rack installation
• Rack cabinet is not included

Included

• 1x Cisco ISR4451-X/K9 Integrated Services Router
• 1x Cisco NIM-2GE-CU-SFP Network Interface Module
• 1x Rack Mount Kit

Important Notes

• Photos are for reference only.
• Only listed items are included.
• The four onboard Gigabit Ethernet interfaces use dual-phy RJ45/SFP connectivity; they should not be counted as eight simultaneous Ethernet interfaces.
• The NIM-2GE-CU-SFP adds two logical Gigabit Ethernet interfaces, each with dual-mode copper/SFP media options.
• The NIM-2GE-CU-SFP ports are routed Layer 3 interfaces and do not function as a local Layer 2 switch.
• Verify compatibility before purchase.
