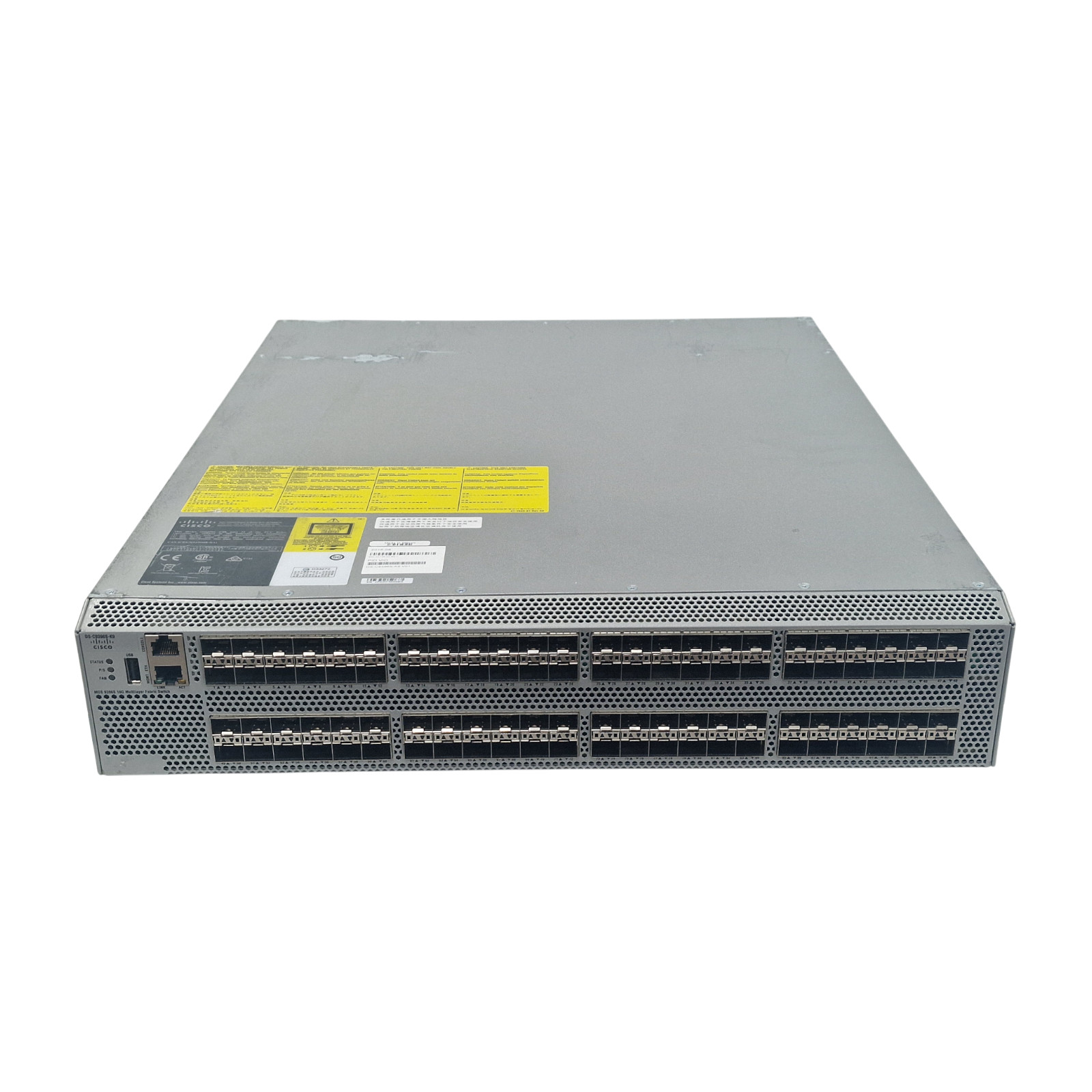

Cisco MDS 9396S 96x 16G FC (48-Active) Multilayer Fabric Switch DS-C9396S-K9Model:DS-C9396S-K9 In Full Working Order,Tested2 Year WarrantyPort-side Exhaust (Back-to-Front) 48-Ports style=""> 1 x Cisco MDS 9396S 96x 16G FC (48 Active) Multilayer Fabric Switch DS-C9396S-K92 x Cisco DS-C96S-FAN-E Fan Modules2 x Cisco DS-CAC-1200W-E 1200W Power SuppliesDescription: The Cisco MDS 9396S 16G Multilayer Fabric Switch is a high-performance, high-density and highly reliable Fibre Channel switch designed for modern storage networking environments. Built on the Cisco MDS 9000 Series platform, it delivers exceptional scalability, performance and flexibility for enterprise SAN Type: Switch - 48 ports active - managed Enclosure Type: Rack-mountable 2USubtype: Fibre Channel SAN SwitchPorts: 48 x 16Gb Fibre Channel active (96 port capable via Ports on Demand)Fibre Channel: - FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6, FC-SB-5
Remote Management Protocol: - RMON, SNMP v3, SMI-S, SSH-2, CLI
Features: - Ports on Demand (PoD) Licensing
- Access Control List (ACL) Support
- Quality of Service (QoS)
- Remote Switch Port Analyzer (RSPAN)
- Registered State Change Notification (RSCN) Support
- Cisco NX-OS Operating System
Interfaces: - 1 x 1000Base-T RJ-45 management
- 1 x RS-232 serial console port
- 1 x USB port
- 48 x 16Gb Fibre Channel SFP+ ports active
- 48 x additional Fibre Channel ports available via Ports on Demand Device: Internal power supply - hot-plug
- Installed Power Supplies: 2 x DS-CAC-1200W-E
- Max Supported Qty: 2
- Power Redundancy: Yes
- Power Redundancy Scheme: 1+1
- Power Provided: 1200 Watt each
- Voltage Required: AC 100–230 V (50/60 Hz)
- Power Consumption Operational: Approx. 900W showversion
Cisco NexusOperating System (NX-OS) Software
TAC (c)2002-2022, Cisco Systems, Inc. All rights reserved.
The copyrights tocertain works contained herein are owned by
other thirdparties and are used and distributed under license.
Some parts ofthis software are covered under the GNU Public
License. A copyof the license is available at
Software
BIOS:version 5.2.24
loader:version N/A
kickstart: version 8.4(2d)
system:version 8.4(2d)
BIOS compile time: 04/04/2020
kickstart image file compile time: 3/15/2022 12:00:00 [02/10/2022 17:45:36]
system image file is: compile time: 3/15/2022 12:00:00 [02/10/2022 19:08:35]
Hardware
cisco MDS 9396S 96X16G FC (2 RU) Chassis("2/4/8/10/16 Gbps FC/Supervisor-4")
Motorola, 476fpe with 3890532 kB of memory.
Processor Board ID JAE19280NL1Device name: switch
bootflash:3915776 kBKernel uptime is0 day(s), 0 hour(s), 4 minute(s), 48 second(s)Last reset
Reason: Unknown
System Pluginswitch# showinventory
NAME:"Chassis", DESCR: "MDS9396S 96X16G FC (2 RU) Chassis"
PID:DS-C9396S-K9 , VID: V01 ,SN: JPG192800U5NAME: "Slot1", DESCR: "2/4/8/10/16 , VID: V01 ,SN: JAE19280NL1NAME: "Slot2", DESCR: "MDS 9396S 96X16GFC (2 RU) Chassis Power Supply"
PID:DS-CAC-1200W-E , VID: V00 ,SN: DCH1924P05RNAME: "Slot3", DESCR: "MDS 9396S 96X16GFC (2 RU) Chassis Power Supply"
PID:DS-CAC-1200W-E , VID: V00 ,SN: DCH1924P067NAME: "Slot4", DESCR: "MDS 9396S 96X16GFC (2 RU) Chassis Fan Module"
PID:DS-C96S-FAN-E , VID: V00 ,SN: N/ANAME: "Slot5", DESCR: "MDS 9396S 96X16GFC (2 RU) Chassis Fan Module"
PID:DS-C96S-FAN-E , VID: V00 ,SN: N/Aswitch# showlicense usage
Feature Ins LicStatus Expiry Date Comments
Yes -Unused never -
ENTERPRISE_PKG Yes -Unused never -
PORT_ACTIV_9396S_PKG No48 In use never showenvironment
Power Supply:
Voltage: 12 Model Power PowerStatus
(Watts) DS-CAC-1200W-E 1200.00 100.00Ok
2 DS-CAC-1200W-E 1200.00 100.00Ok
Mod Model Power PowerPower Power Status
RequestedRequested Allocated Allocated
(Watts) (Amp)(Watts) (Amp)
---------------------- ------- ------------------- ---------- ----------
1 DS-C9396S-K9-SUP 900.0075.00 900.00 75.00Powered-Up
Power Supplyredundancy mode:Redundant
Power Supplyredundancy operational mode:RedundantTotal PowerCapacity1200.00 WTotal PowerAllocated (budget)900.00 W
-------------
Total PowerAvailable300.00 W
Model Hw Clock Module -- Model Hw Status Airflow FAN Module 1 -- Ok Back to Front
ChassisFan2 FAN Module 2 -- Ok Back to Front
Fan_in_PS1 -- -- Ok Back to Front
Fan_in_PS2 -- -- Ok Back to Front
Fan Air Filter SensorMajorThresh MinorThres CurTempStatus
(Celsius) (Celsius) Outlet1(s1) 80 70 22 Ok
1 Outlet2(s2) 80 70 28 Ok
1 Intake1(s3) 70 60 18 Ok
1 Intake2(s4) 70 60 18 Ok
1 Crossbar (s5) 125 115 46 Ok
1 Arbiter(s6) 125 105 33 Ok
1 CPU(s7) 105 100 39 Ok
1 IOSlice0 (s8) 125 115 39 Ok
1 IOSlice1 (s9) 125 115 39 Ok
1 IOSlice2 (s10) 125 115 39 Ok
1 IOSlice3 (s11) 125 115 39 Ok
1 IOSlice4 (s12) 125 115 39 Ok
1 IOSlice5 (s13) 125 115 39 Ok
1 Intake3(s14) 70 60 18 Ok
1 Outlet3(s15) 80 70 22 Ok
1 IOSlice6 (s16) 125 115 41 Ok
1 IOSlice7 (s17) 125 115 41 Ok
1 IOSlice8 (s18) 125 115 41 Ok
1 IOSlice9 (s19) 125 115 41 Ok
1 IOSlice10 (s20) 125 115 41 Ok
1 IOSlice11 (s21) 125 115 41 Ok
1 Intake4(s22) 70 60 18 Ok
1 Outlet4(s23) 80 70 28 Ok
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£500excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UKMJ DS-C9396S-K9/REF -3
|
|
